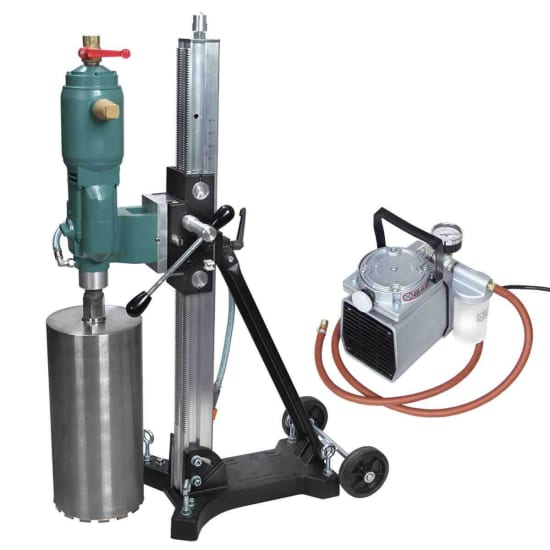

CS Unitec 12" Air 3-Speed, 3.8 hp, Pneumatic Core Drill Vacuum Pump and Anchor Stand

Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems.

Standard Equipment:

  • Mechanical Safety Slip Clutch protects in case of jamming.
  • 3-Speed Mechanical Gear Box with heat-treated gears.
  • Hand-crank can be mounted on either side of the drill stand.
  • The stand angle is adjustable up to 45˚.
  • 360˚ Rotatable Side Handle.
  • Centering Aid P/N 2 1315 6800.
  • Can be used with drill rig to keep stationary.
What's Included?
  • CS Unitec 12" Pneumatic Wet Core Drill. 3 Speed, 3.8 hp. With Stand
  • Vacuum Pump
  • Built-in Water Swivel
  • 1-1/4" x 7 UNC Spindle
  • 5/8" x 11 UNC Adapter
  • Operator's manual
CS Unitec Pneumatic Wet Core Drill With Stand

and Vacuum Pump Specifications
MotorPneumatic - 3 Speed Gear Box

with Mechanical Safety Slip Clutch
Power3.8 hp (2.8 kW)
Bit Capacity12 inch
RPM300/700/1,350 RPM
Air Consumption123 CFM
Air Pressure90 PSI
Air Consumption3/4 in. NPT
Bit Connection1-1/4 in.-7 thread

5/8 in.-11 thread with adapter
Weight72 lbs.
