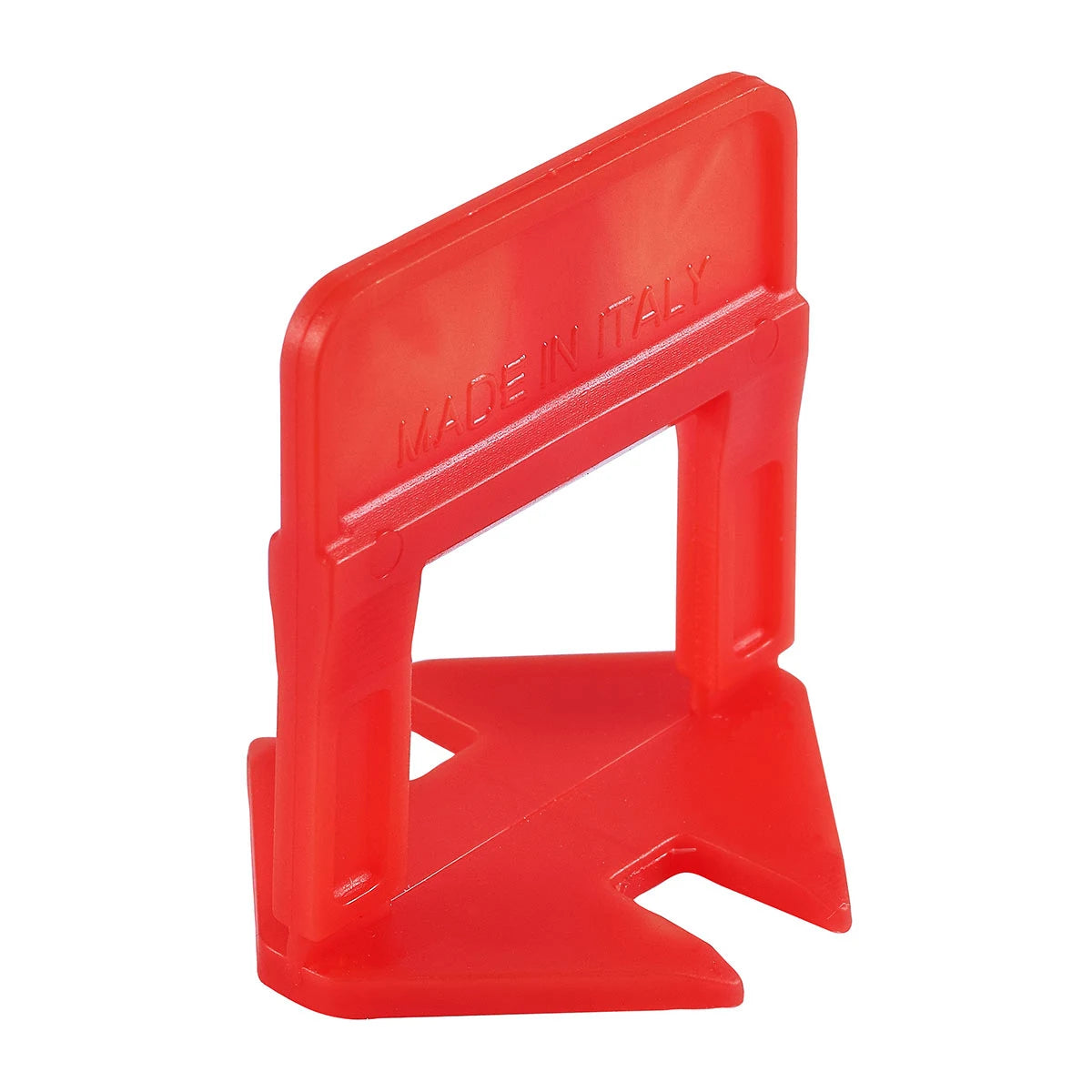

Raimondi Tile Leveling 1/8" Red HD Clips

Raimondi Heavy Duty Tile Leveling System 1/8" Red HD Tile Clips

The new RLS clips have been named HD, which stands for Heavy Duty. They are Raimondi's best-performing and easiest-to-use clips, offering the highest tensile strength within Raimondi's range of clips.

Features

• Available in 250, 500, and 2200 quantities
• It can be used when installing wall and floor tiles
• For use on porcelain, ceramic, and natural stone tiles
• HD clips will work with the same wedges, pliers, and tile protectors as all other Raimondi clips.
• The new HD base offers a much easier way to insert the clip underneath the tile.

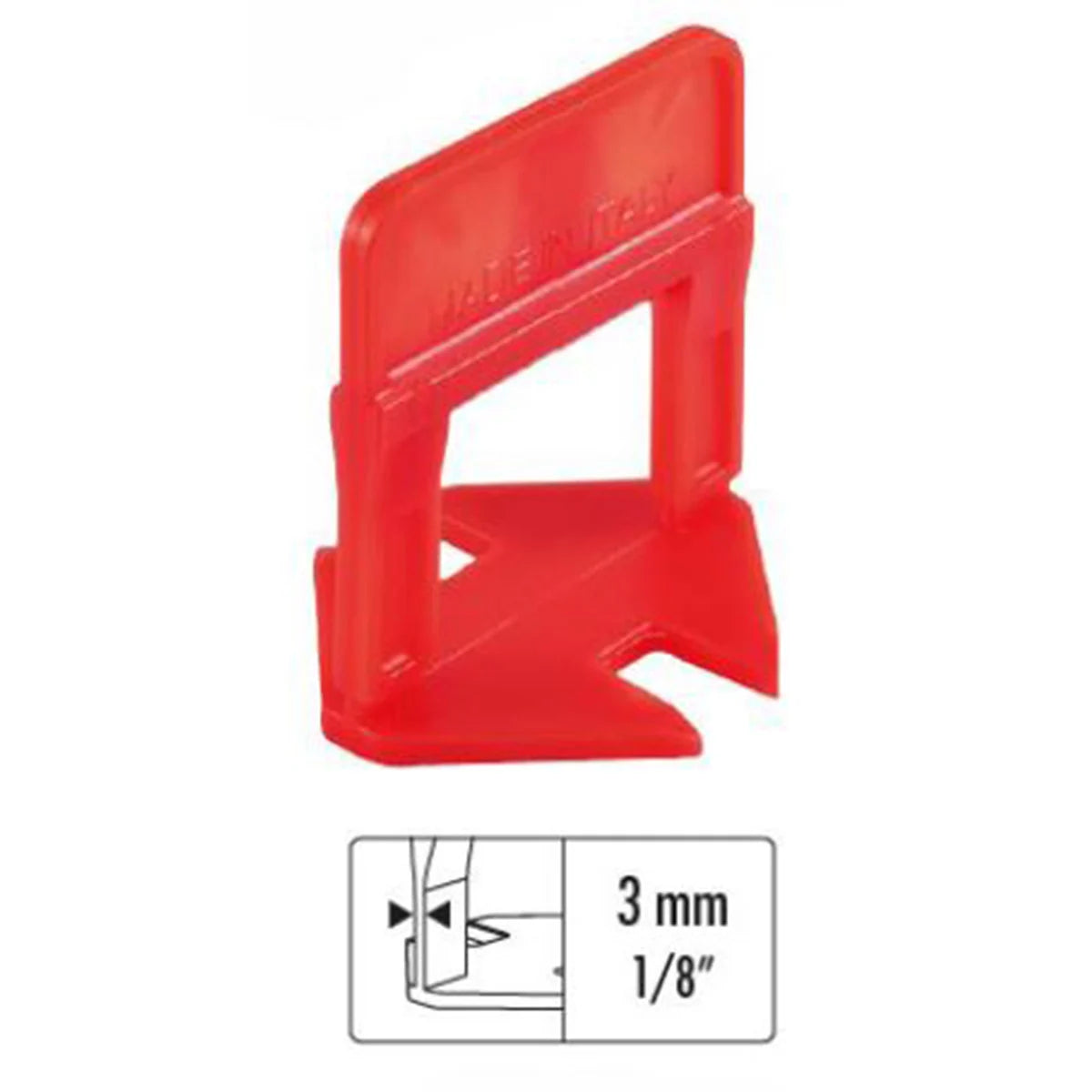

• Creates a grout joint size of 1/8"
• The new HD base offers a much easier way to insert the clip underneath the tile.
• Use on 1/8" to 1/2" thick tile
• Wedges sold separately

Technical Data

• Use on 1/8" to 1/2" thick tile
• Minimum joint size: 1/8" (3m)
• 250, 500, or 2200 clips per bag

How to use

• STEP 1: After spreading your tile adhesive, insert a leveling spacer underneath the tiles along the 4 sides; use traditional spacers as you usually would to square up the corners. For larger tiles, it may be necessary to "double up," using 2 leveling spacers for each side
• STEP 2: Set the tile and beat it with a rubber mallet
• STEP 3: Use the special traction-adjustable pliers to insert the wedge into the leveling spacers, paying attention not to pass the breakpoint
• STEP 4: Once the tile adhesive has been allowed to set. Remove the leveling spacers with the traction-adjustable plier's rubber mallet, or kick them out with your feet
