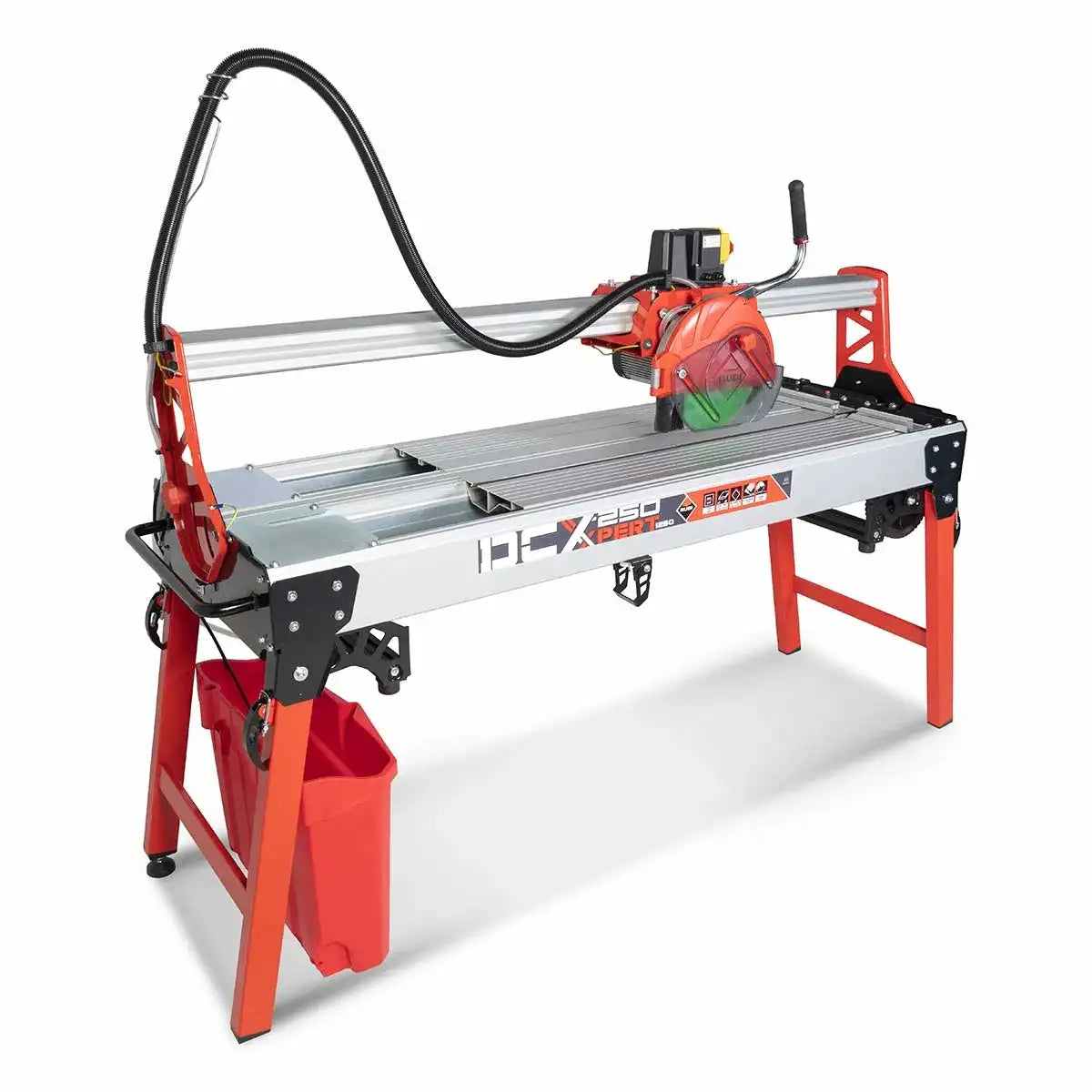

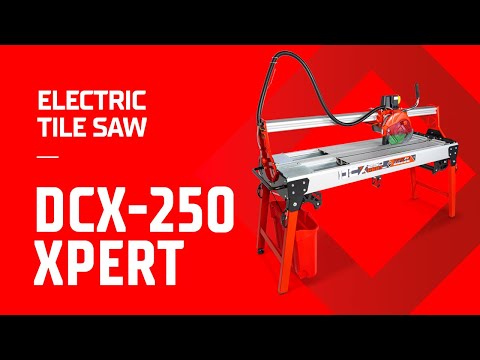

Rubi Tools DCX-250 Xpert Wet Saw

Rubi Tools DCX-250 Xpert Wet Saw

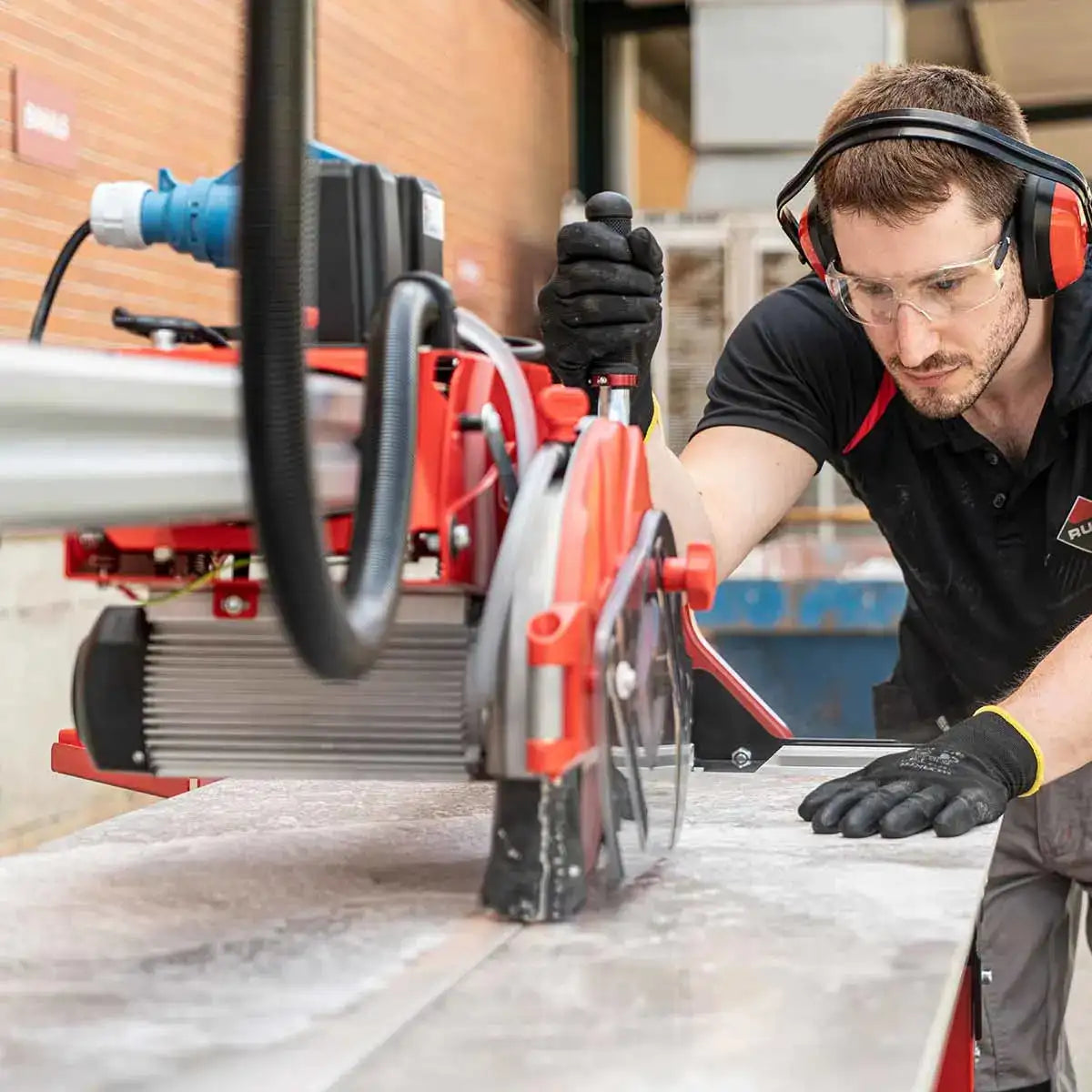

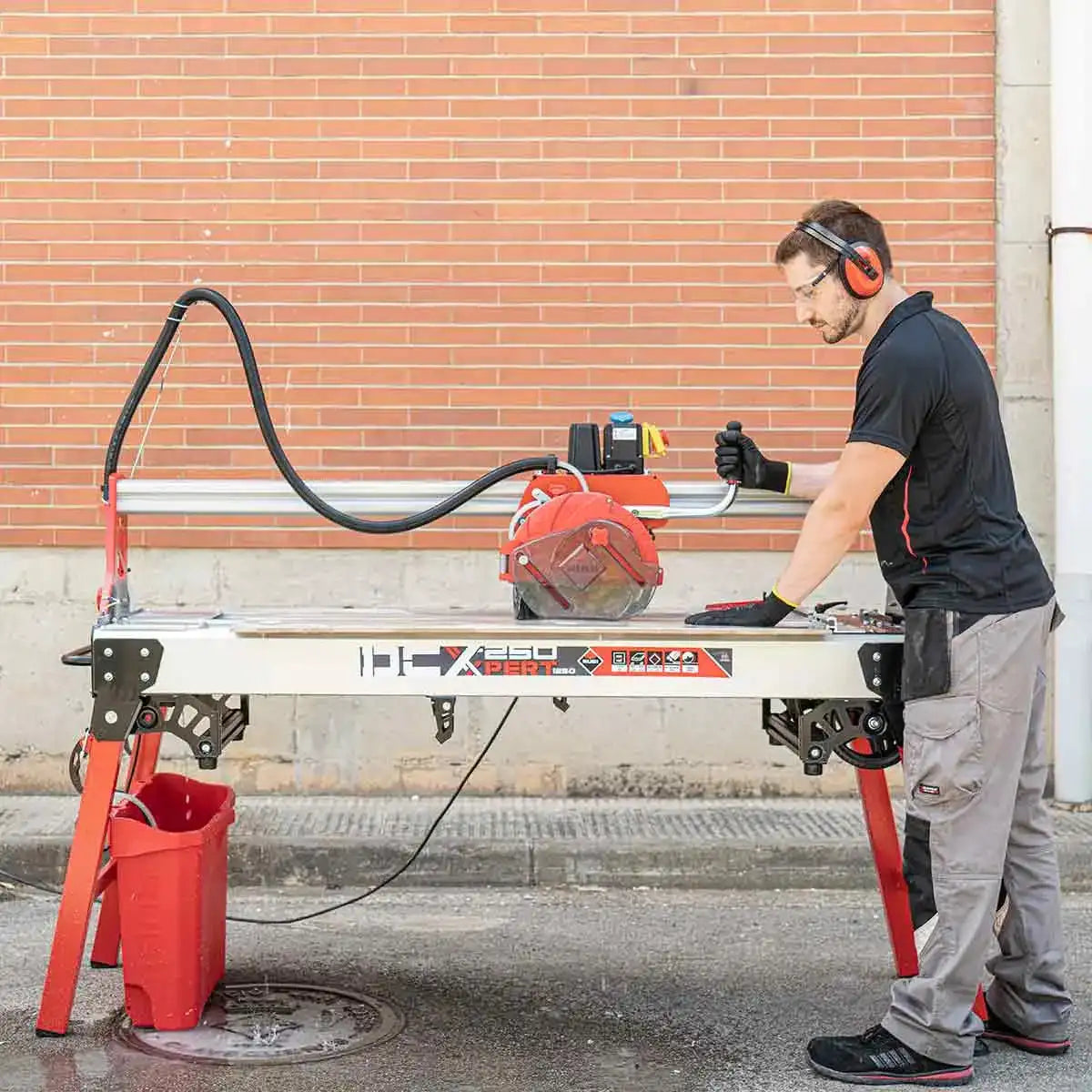

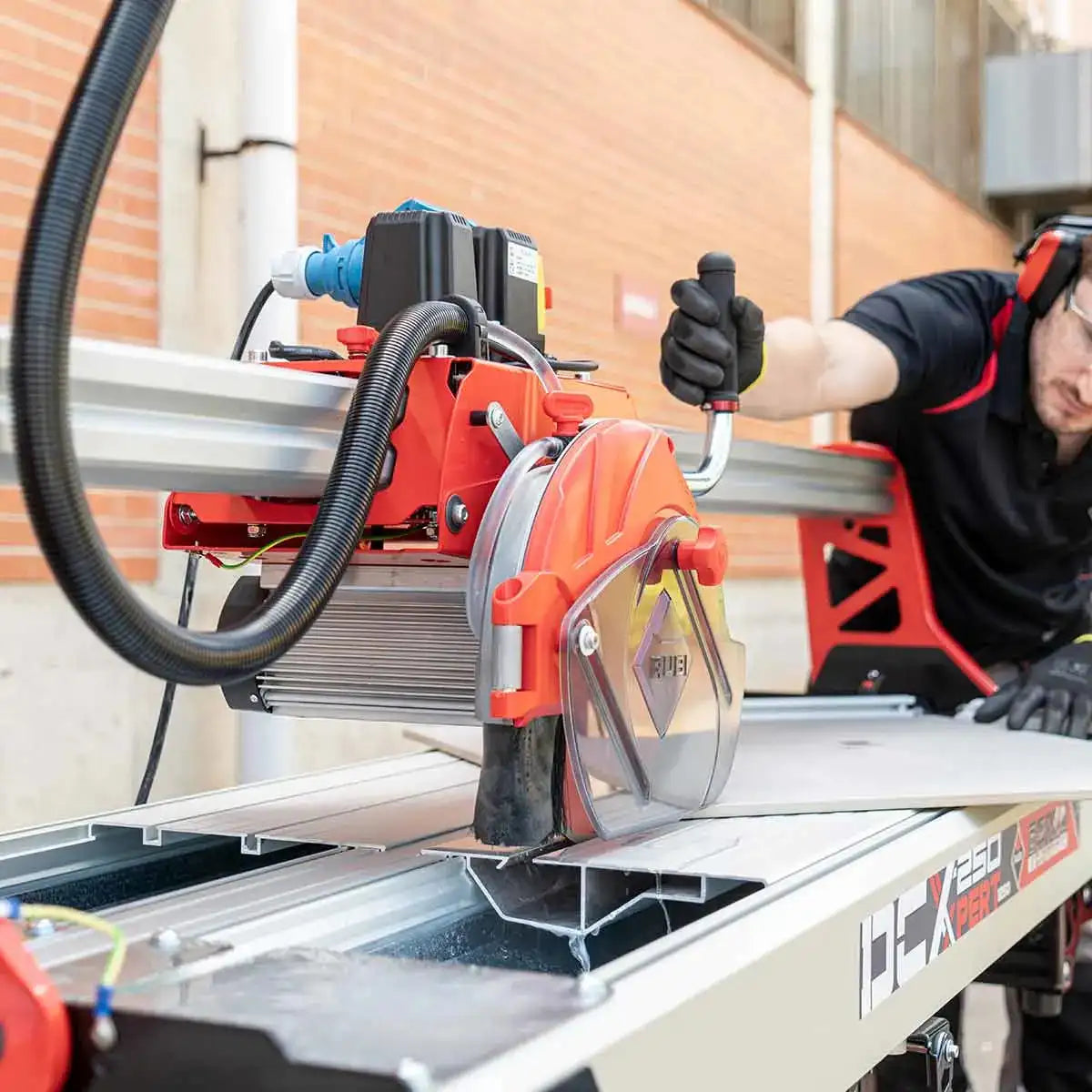

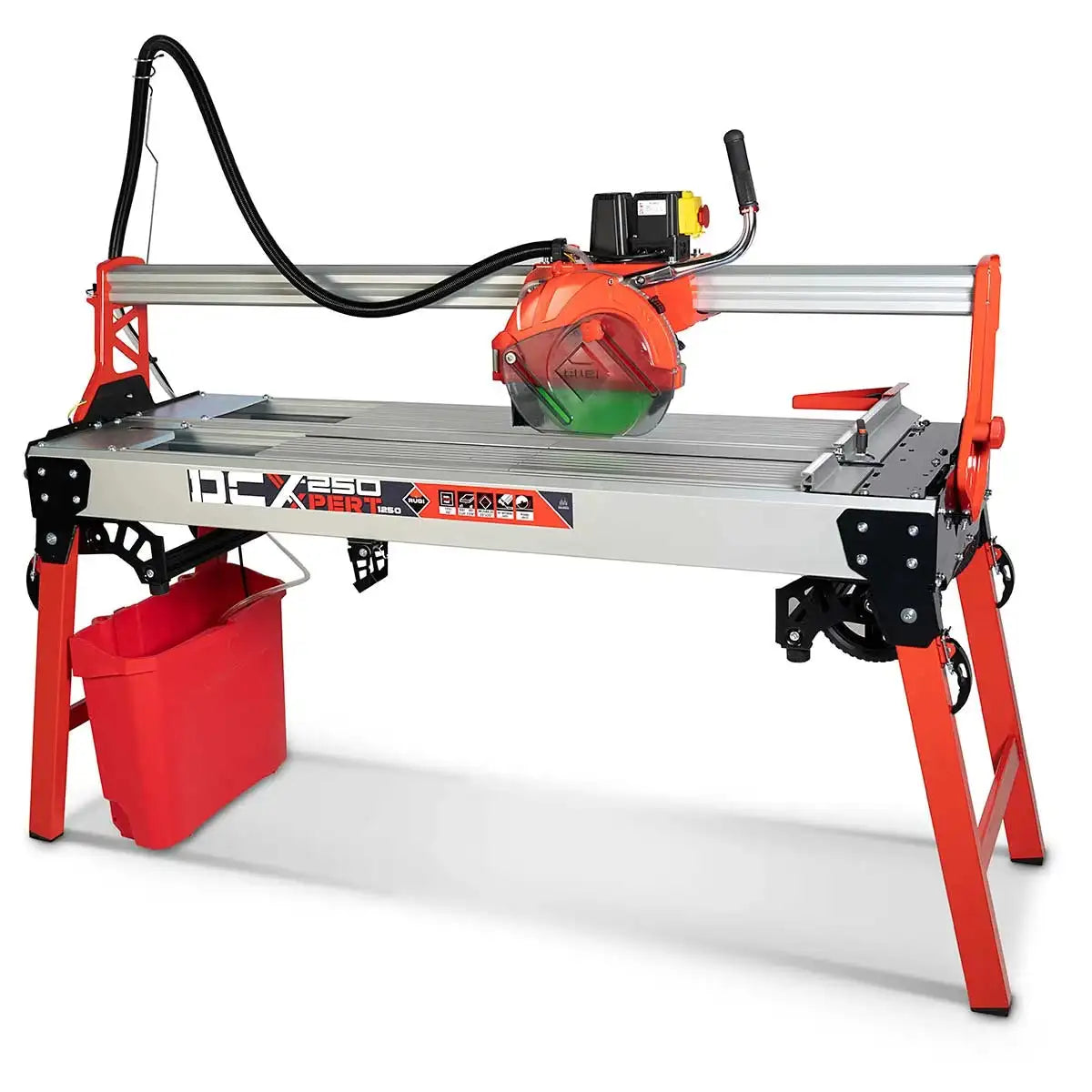

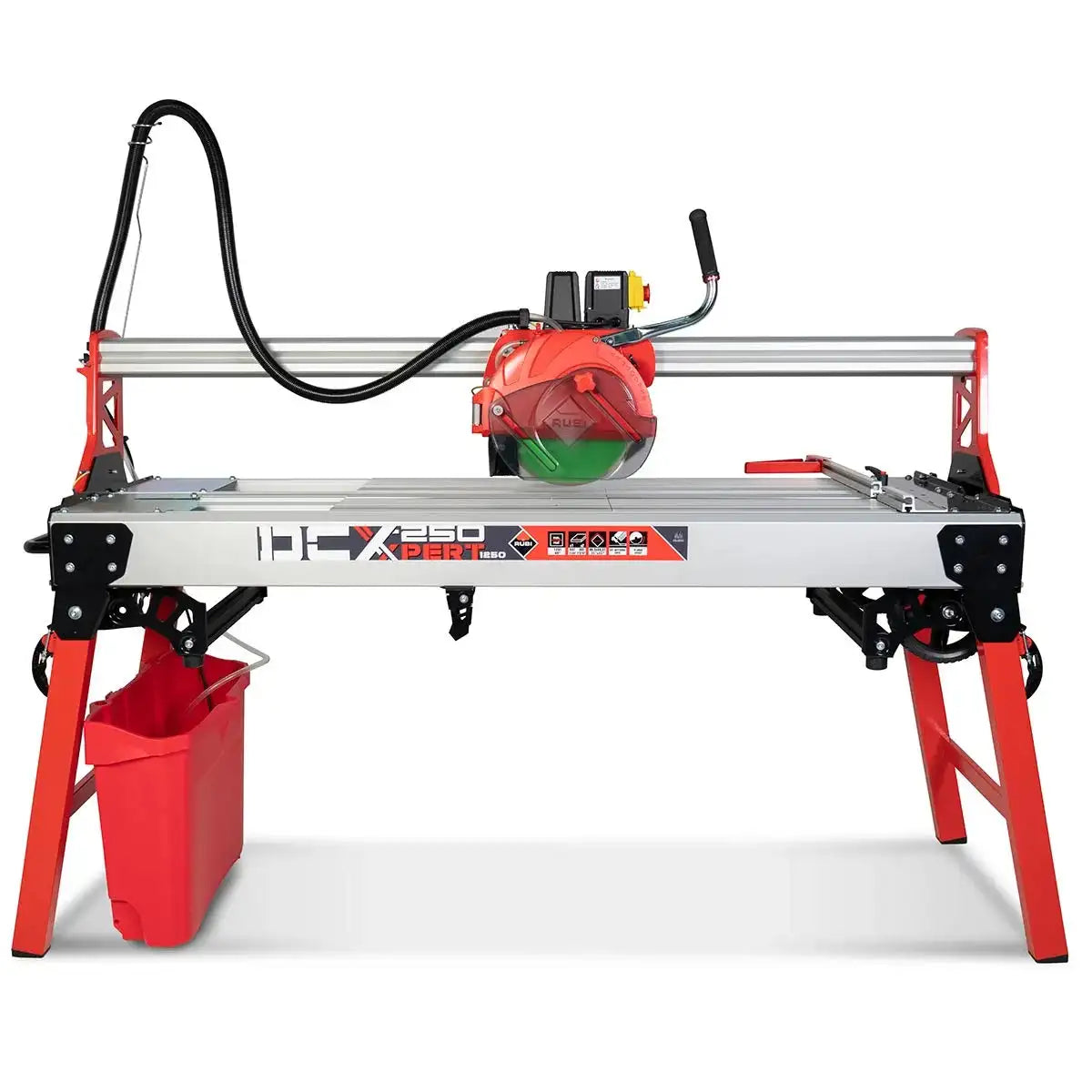

The Rubi DCX-250 Xpert is a professional saw with a movable head for wet cutting with a mitering effect. Suitable for intensive cutting of porcelain, stoneware and ceramic tile. Can be used for occasional cutting of natural stone, such as marble or granite.

C3 Python Cooling System

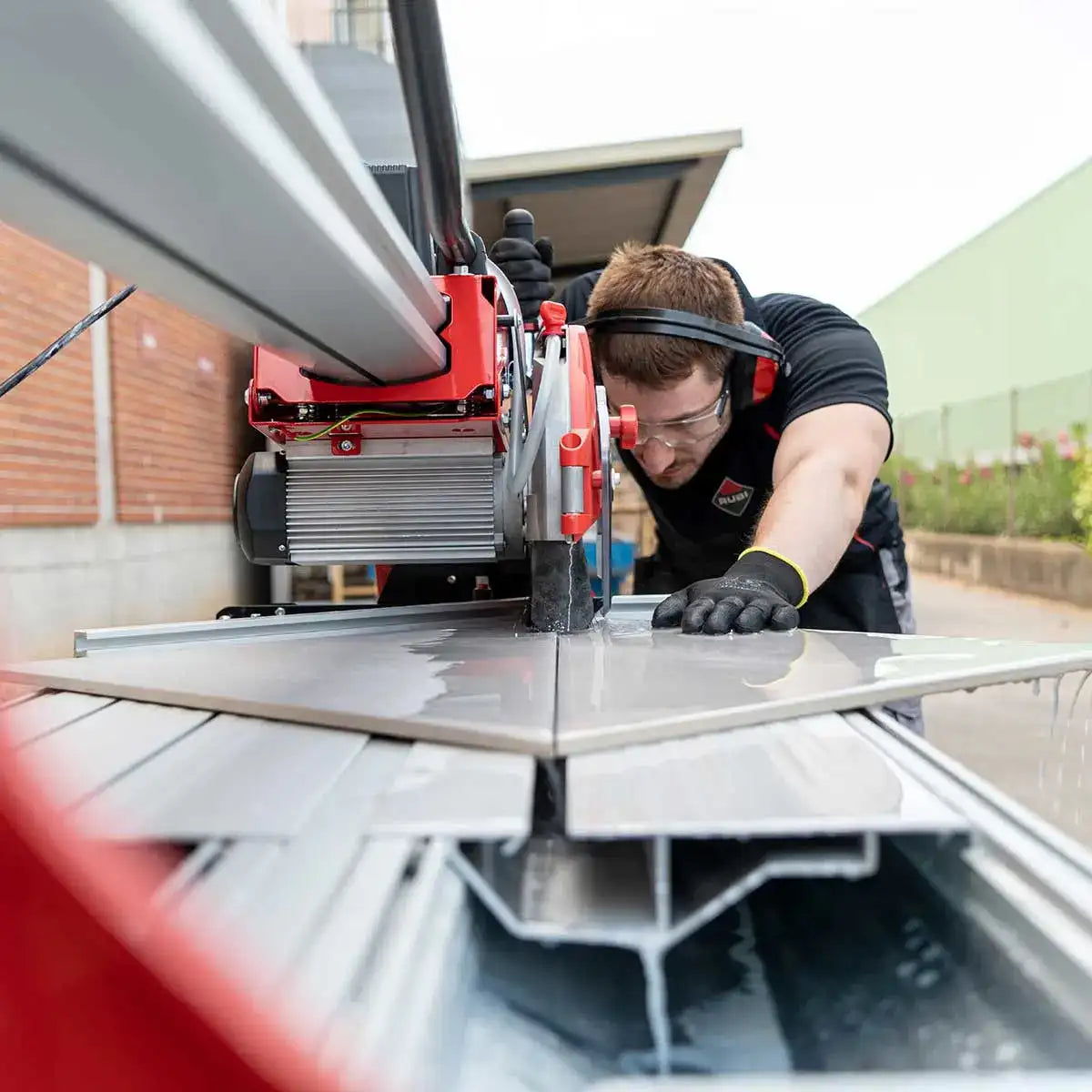

The new system guarantees that water use is optimized by directing it only at the point of contact with the ceramic. At the same time, it minimizes water loss from the centrifugal effect of the disc, thus reducing splashing. It Guarantees the perfect cooling of the diamond part, prolonging disc life and improving cutting precision.

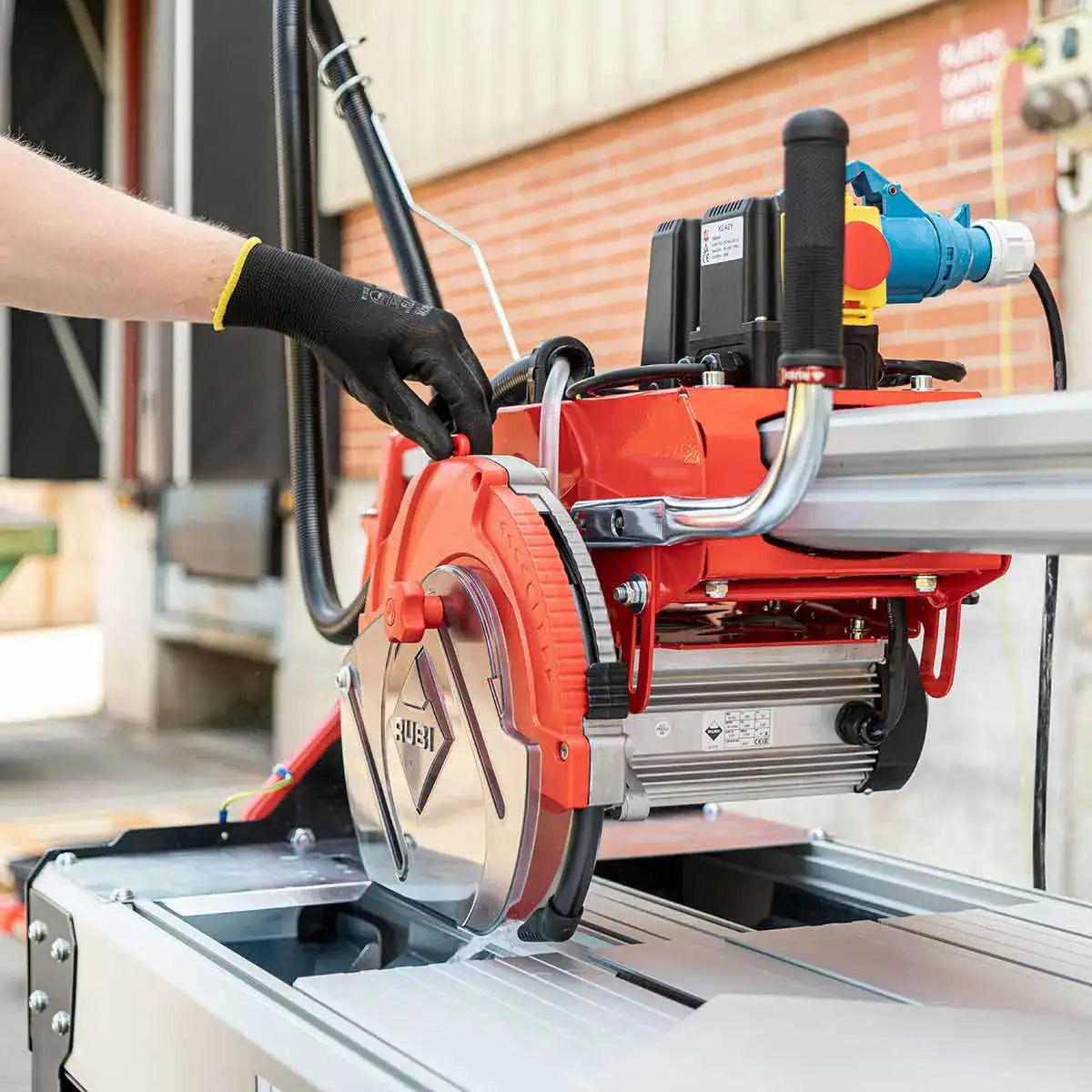

A cooling system with triple contact point between the disc, the water and the material to be cut. The water jet is always tangent to the disc's rotation (not lateral); The tube movement is always concentric to the rotation of the disc, ensuring permanent contact between the nozzle and ceramic, regardless of disc thickness. Utilizing a clip system on the cutting head to quickly and precisely adjust the tube height, thus avoiding direct manipulation and guaranteeing the user's safety when attempting to adjust the cooling jet manually. By providing a height adjustment, it is always possible to guarantee perfect visibility when making the initial cut.

Features

• Premium quality electric wet saws
• Direct transmission 2-HP motor
• Two options for the DCX: 52962 DCX-250 1250 (49") or 52972 DCX-250 1550 (61")
• Reinforced aluminum chassis with an innovative triple beam system and steel sides which improves stability directly resulting in a better cut finish
• Reinforced cutting guide

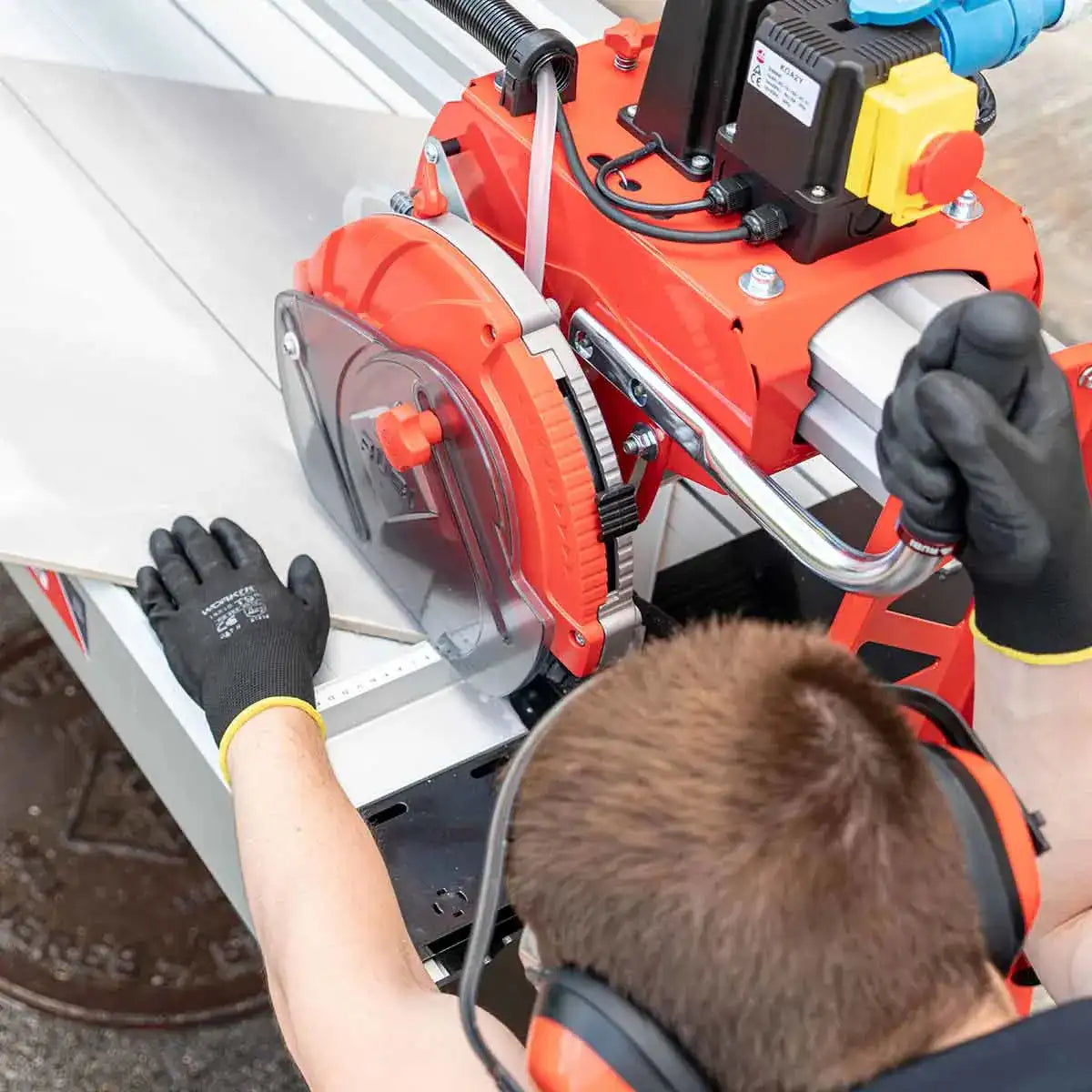

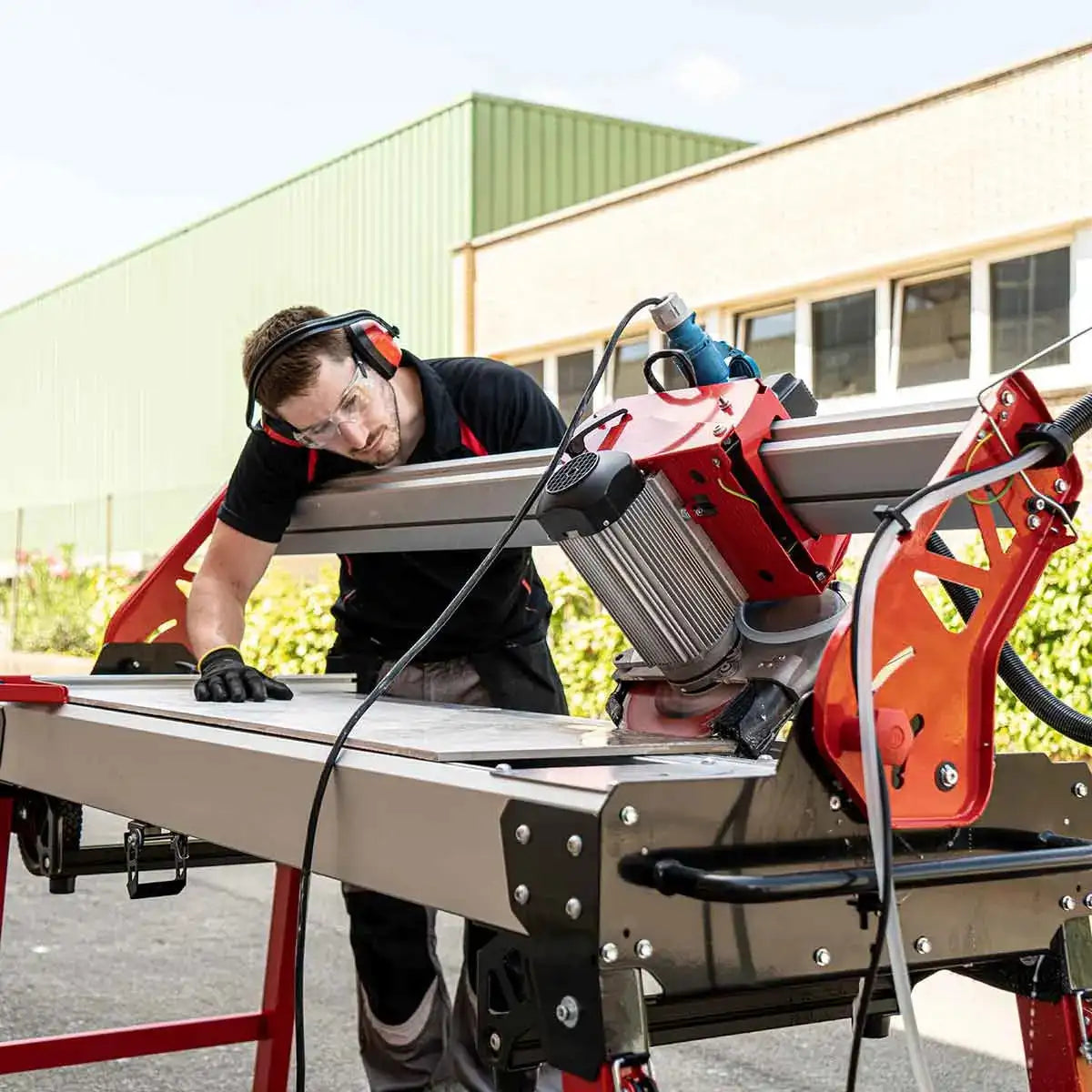

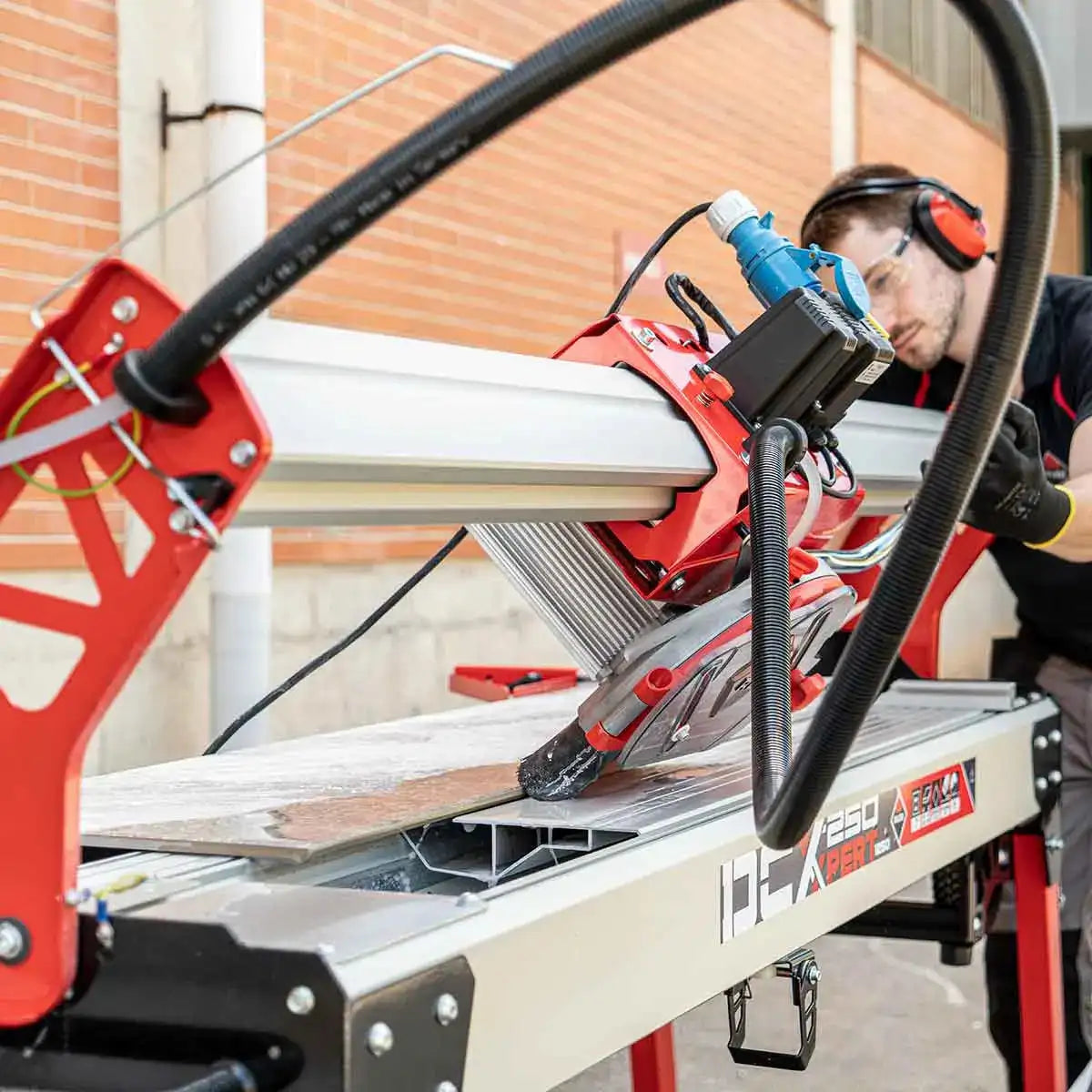

• High performance mitering effect with cutting height adjustment

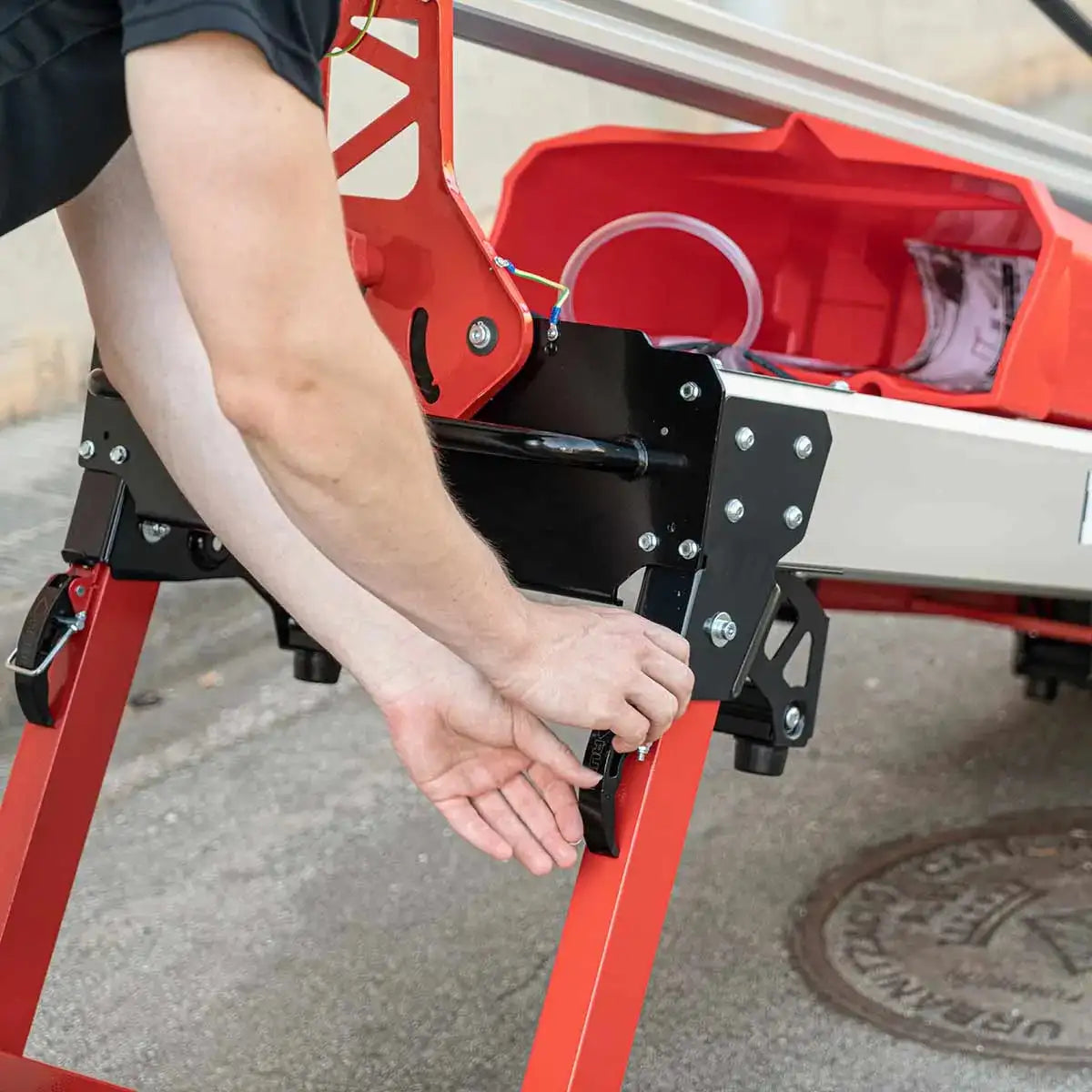

• Reinforced folding legs with anti-folding and quick-locking system

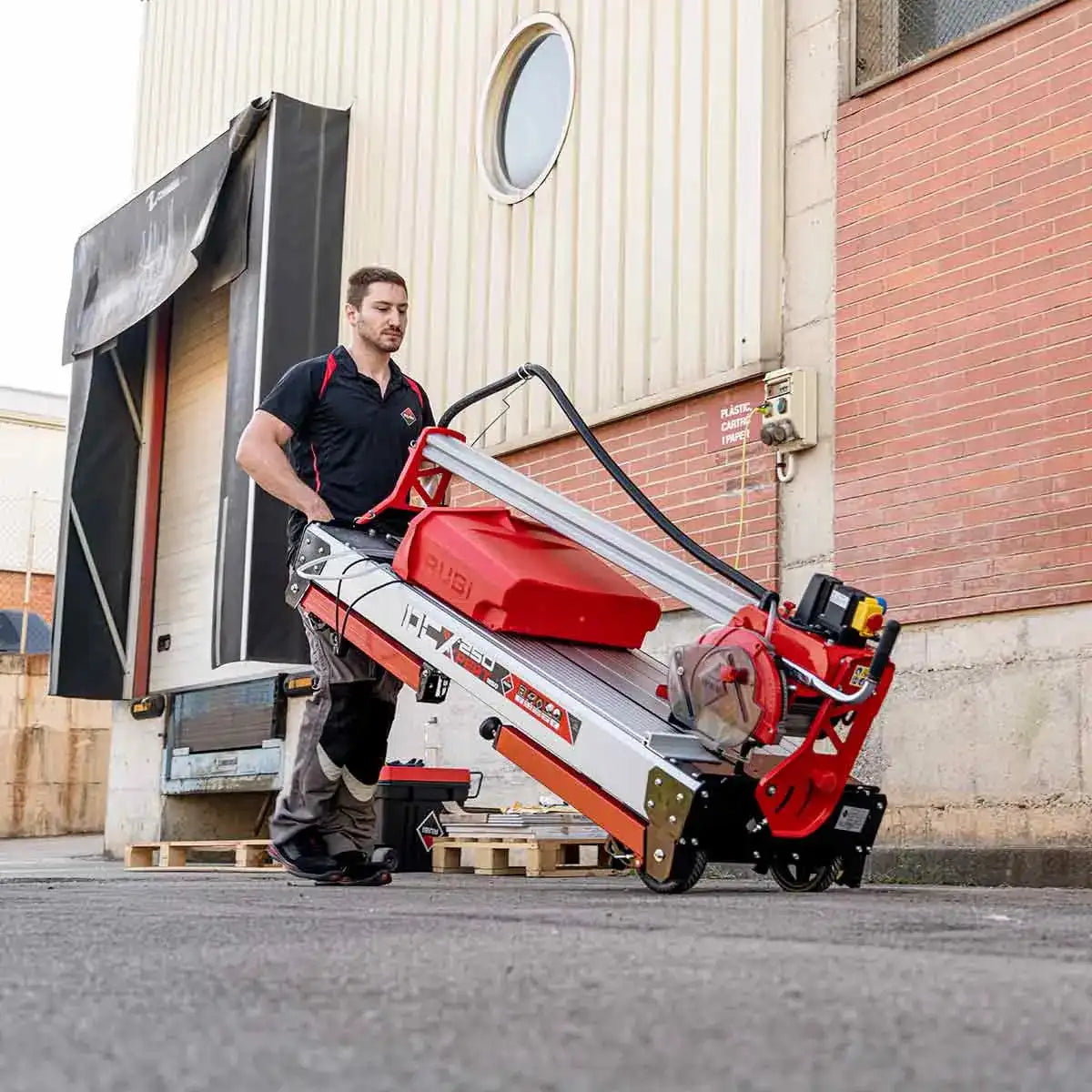

• Carrying handle welded to the chassis and reinforced off-road wheels, for easier portability and handling of the machine
• Steel double decanter system for improved water efficiency and recovery

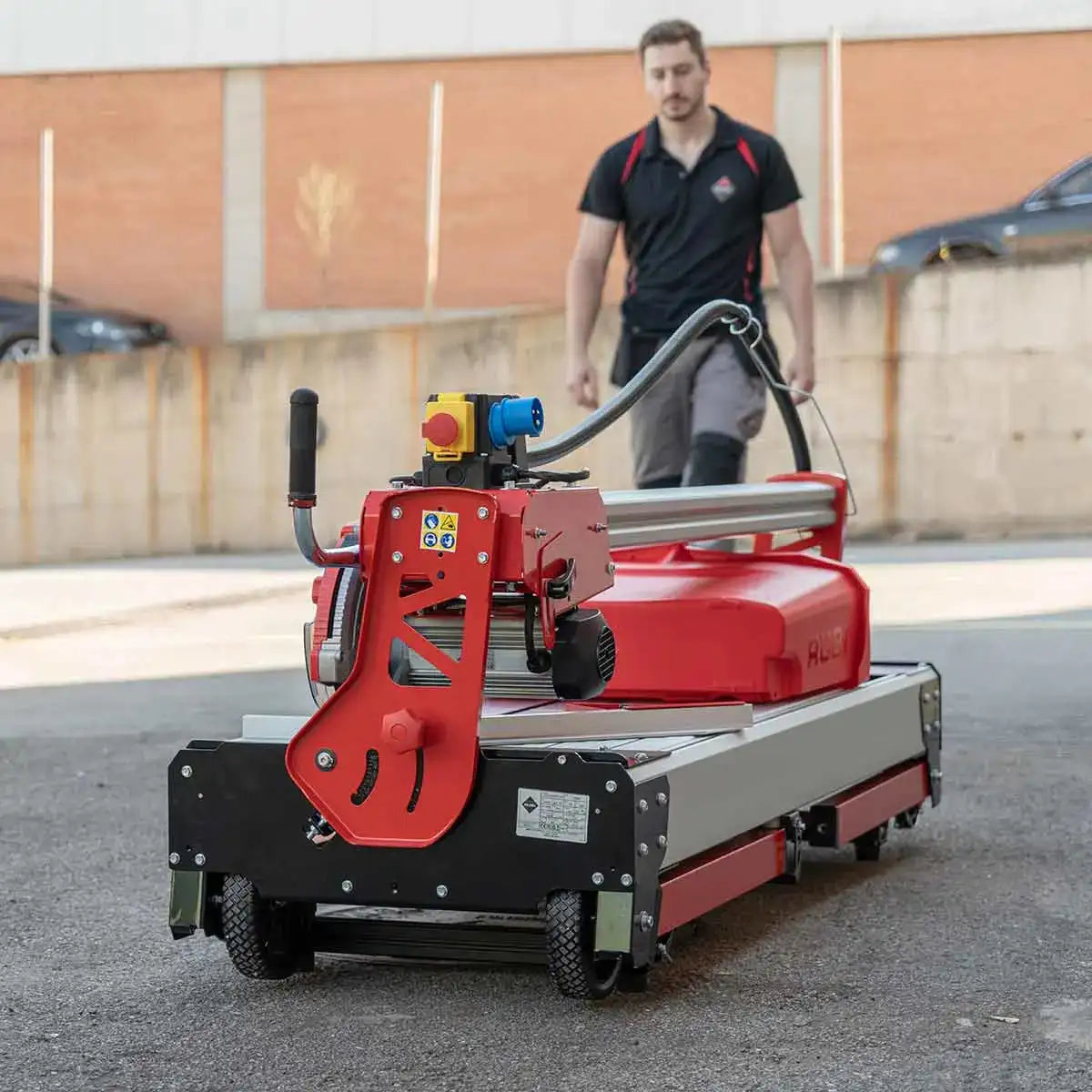

• Features an automatic fastening assembly to anchor the legs once the machine is in the transport position
• This system also provides additional safety when transporting and handling the machine, since it keeps the legs from moving or dropping unexpectedly
• Features a system with a position axis and spring that allows the motor position to be adjusted more precisely
• Aluminum square adjustable from 0 to 60 degrees for repetitive cuts

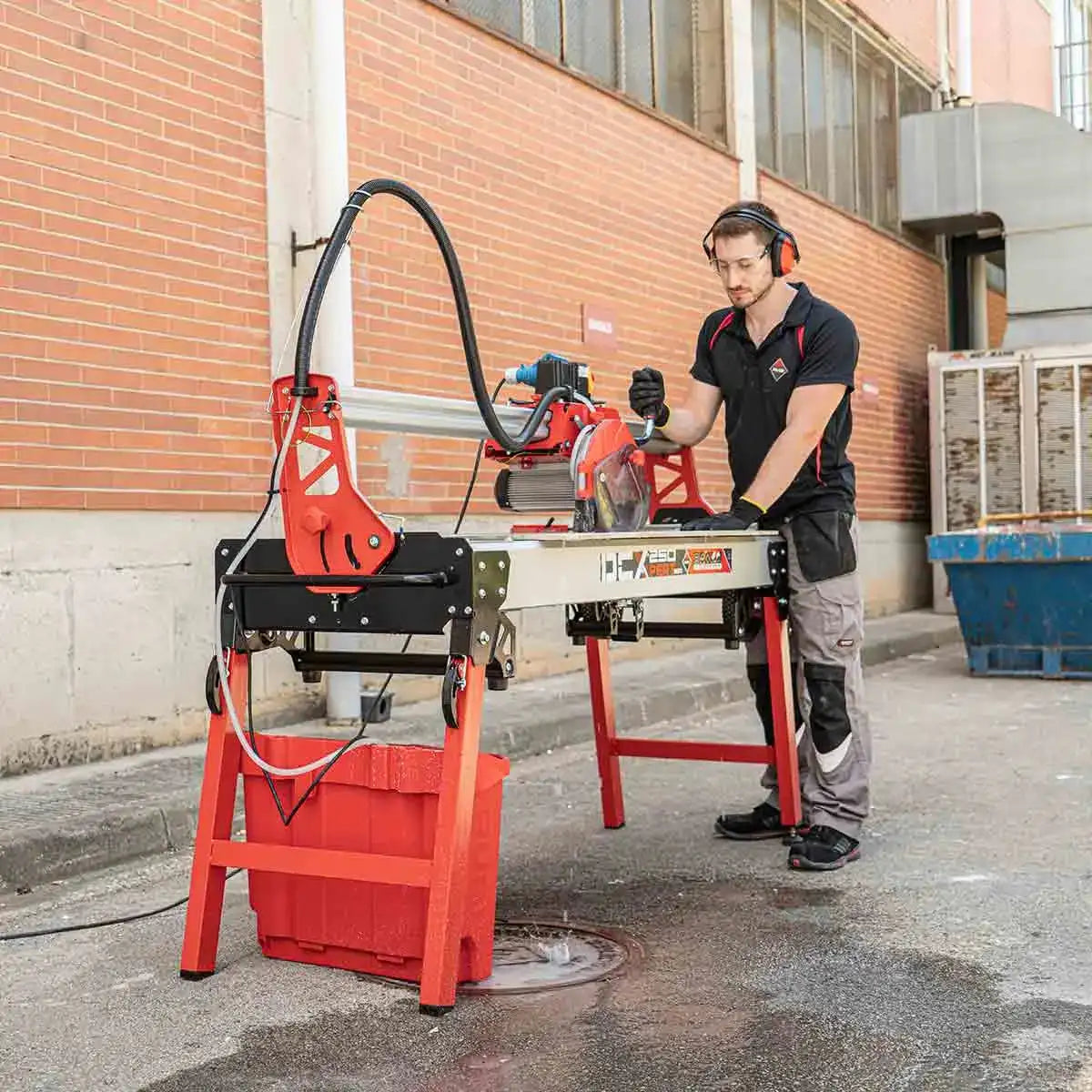

• Simplified and easily removable external water tank with a 30-l capacity
• Ergonomic, bi-material (Softgrip) vertical handle
• Exclusive RUBI ZERO DUST patented system certified by the TNO*, for safe exposure thanks to the reduction of breathable dust particles created while cutting
• Grounding connection built into the chassis

What's Included?

• DCX-Xpert Wet Saw
• 31961 Red Cobra 10" Blade
• Power cable
• Foldable reinforced feet with anti-fold system and quick lock
• Upgraded anti-splash protection system with auto slide protection cover
• External 30L water deposit
• Aluminum square
• Telescopic transport handle
• Reinforced off-road type wheels
• Operators Manual

Rubi DCX-250 Xpert Rail Saw Specifications
Model	52962	52972
Power (Direct Drive)	2 hp (1.5 kW)	2 hp (1.5 kW)
Voltage	120V/60Hz	120V/60Hz
Blade RPM	2750 – 3350	2750 – 3350
Length of Cut	49” (125 cm) (direct, w/o plunge) 52" (133 cm) (w/ plunge)	61” (155 cm) (direct, w/o plunge) 64" (163 cm) (w/ plunge)
Diagonal Cut	35” x 35” (88.5 x 88.5 cm)	43.3” x 43.3” (110 x 110 cm)
Max Cut Thickness	2.36” – 3.54” (60 - 90 mm) - 1.96" (50 mm) for miter	2.36” – 3.54” (60 – 90 mm) - 1.96” (50 mm) for miter
Blade Capacity	10"	10"
Arbor	1"	1"
Weight	172 lbs (78 Kg)	189.5 lbs (86 Kg)
Dimensions (mounted)	75.5” x 29” x 51” (1920 mm x 740 mm x 1300 mm)	87.4” x 29” x 51” (2220 mm x 740 mm x 1300 mm)
