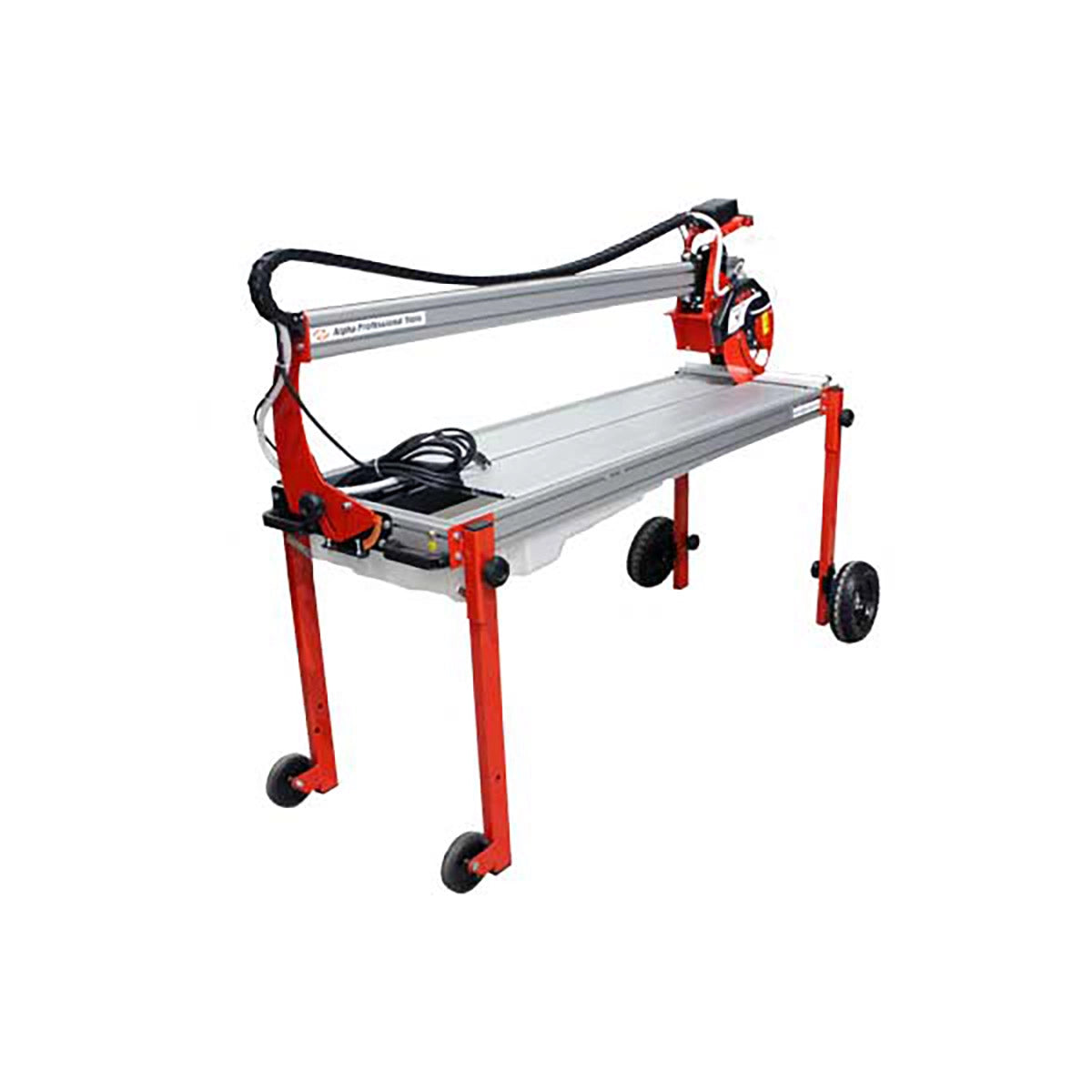

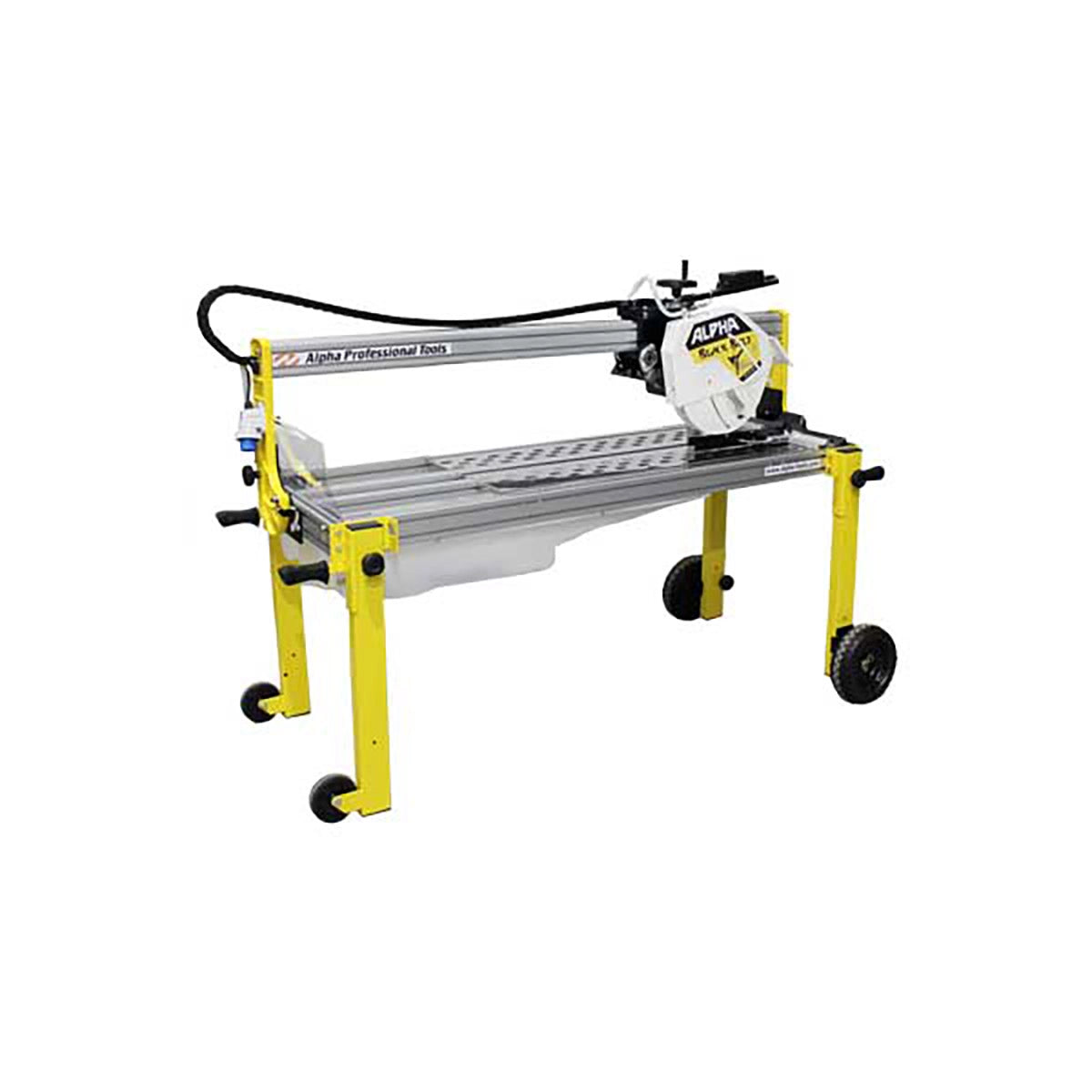

Alpha Black Belt Rail Saw
The new Black Belt Rail Saw is a heavy-duty rail saw suitable for tile installers, stone fabricators, and hardscape contractors. It has several features, including a sturdy metal table chassis for reliable operation and a maintenance-free magnetic-induction water pump that supplies plenty of water to both blade sides.
Features
- The cutting head's mechanical vertical tilting system provides cutting depth adjustment
- Stainless steel head rails and adjustable armored ball bearings allow for smooth and precise movement
- The cutting system's side tilt capability eases up to 45 degree cuts (ideal for miter cuts)
- Front, back, and bilateral blade guards minimize blade exposure for safety and to reduce water splash
| Black Belt Rail Saw Specifications | ||
| Voltage | 115 Volts | 230 Volts |
| Frequency | Single-phase AC, 60Hz | Single-phase AC, 60Hz |
| Amperage | 9.6 Amps | 13.5 Amps |
| Power | 1200 Watts | 1200 Watts |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Max HP | 2 HP | 3 HP |
| Weight | 128 lbs | 231 lbs |
| Arbor | 1" (25.4mm) & 60mm | 1" (25.4mm) & 60mm |
| Cutting Disc Diameter | 10" - 12" | 12" - 14" |
| Max Cutting Depth | 2-1/4” Single Pass, 3-3/8” Step Cut | 5" |
| Max Cutting Length | Straight 51", Diagonal 33" | 51" |
| Cord | 16.4 ft | 13.1 ft |
| Plug Type | 16A 120V | 16A 250V |
