Arc TrueDEK Linear Shower Bases

Arc TrueDEK Linear Shower Bases

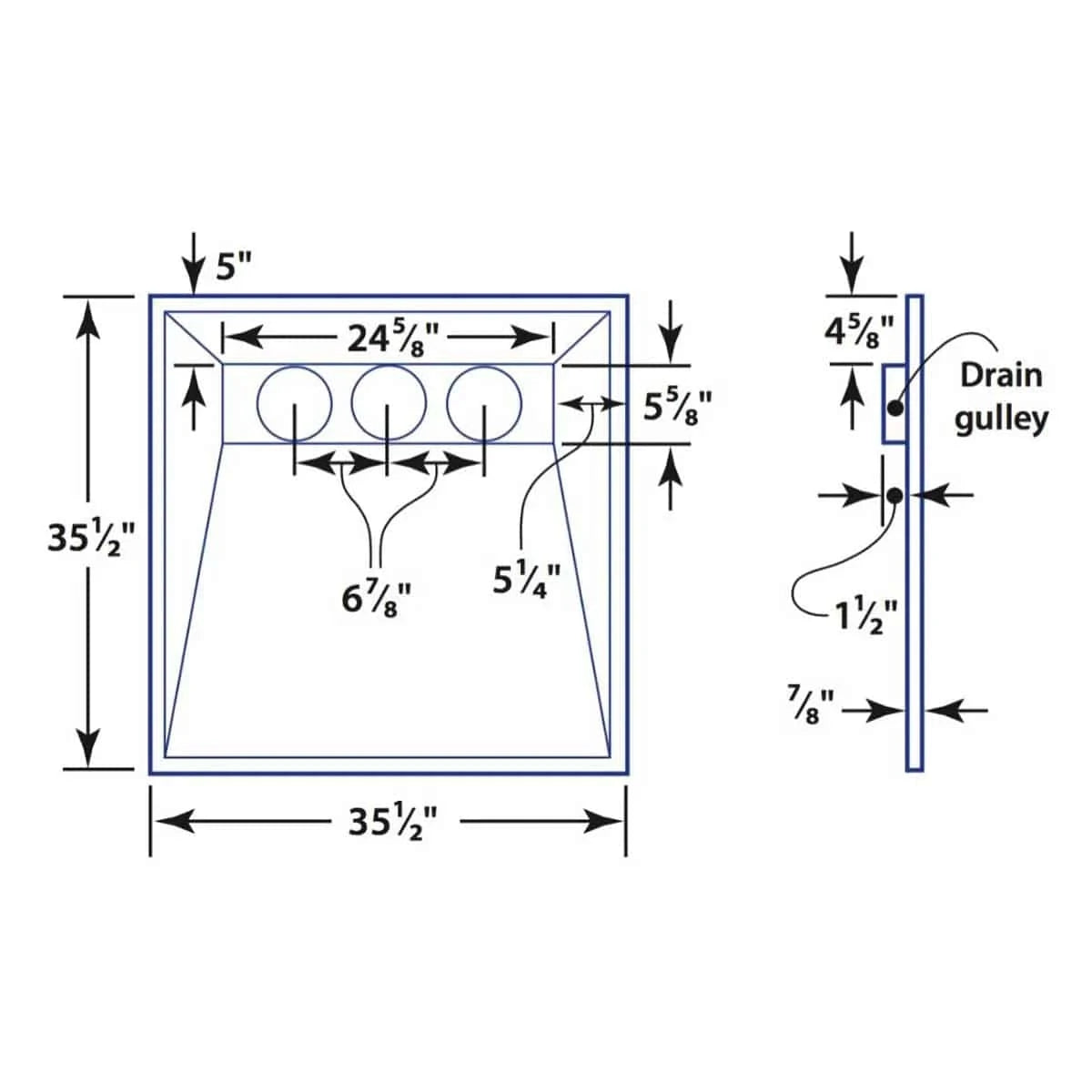

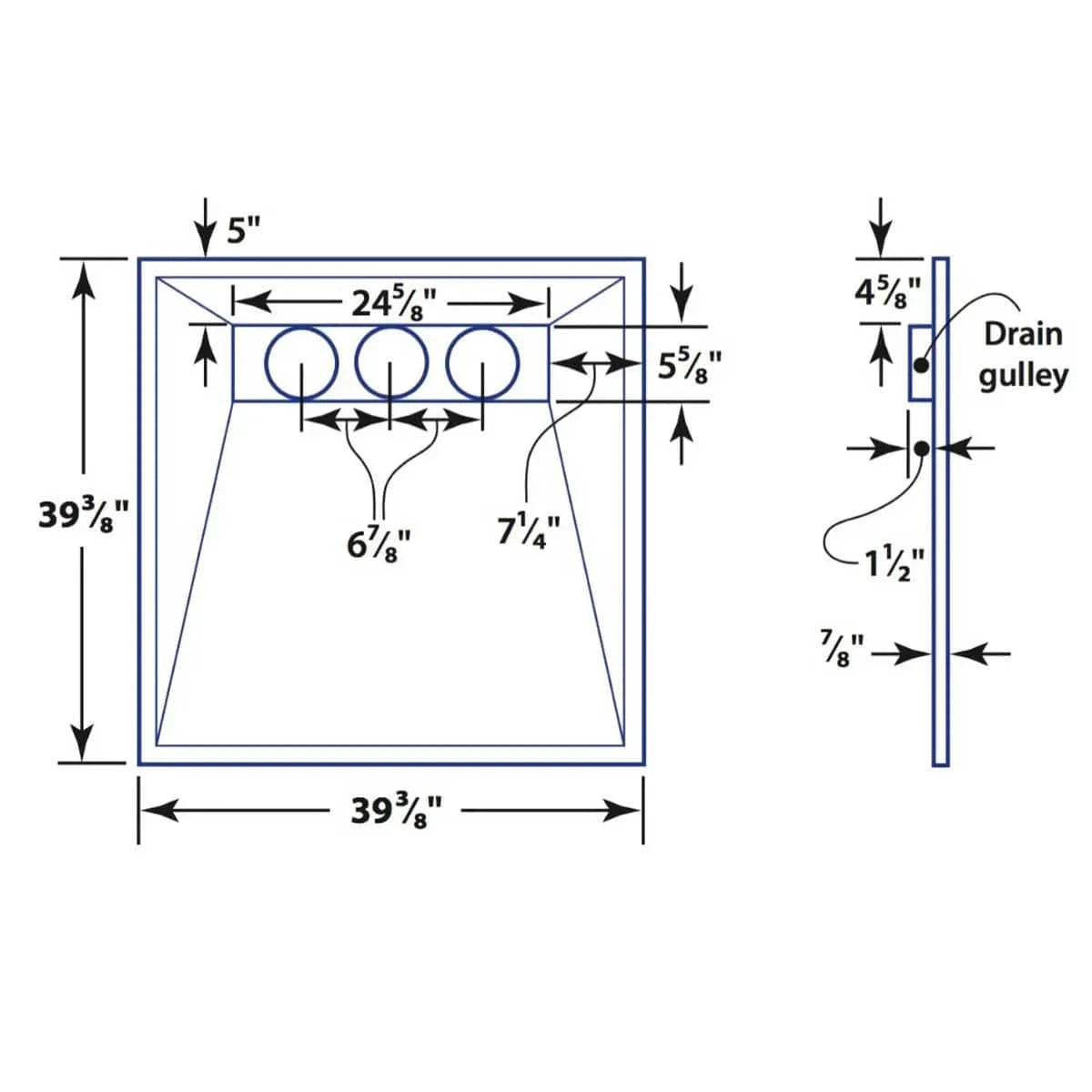

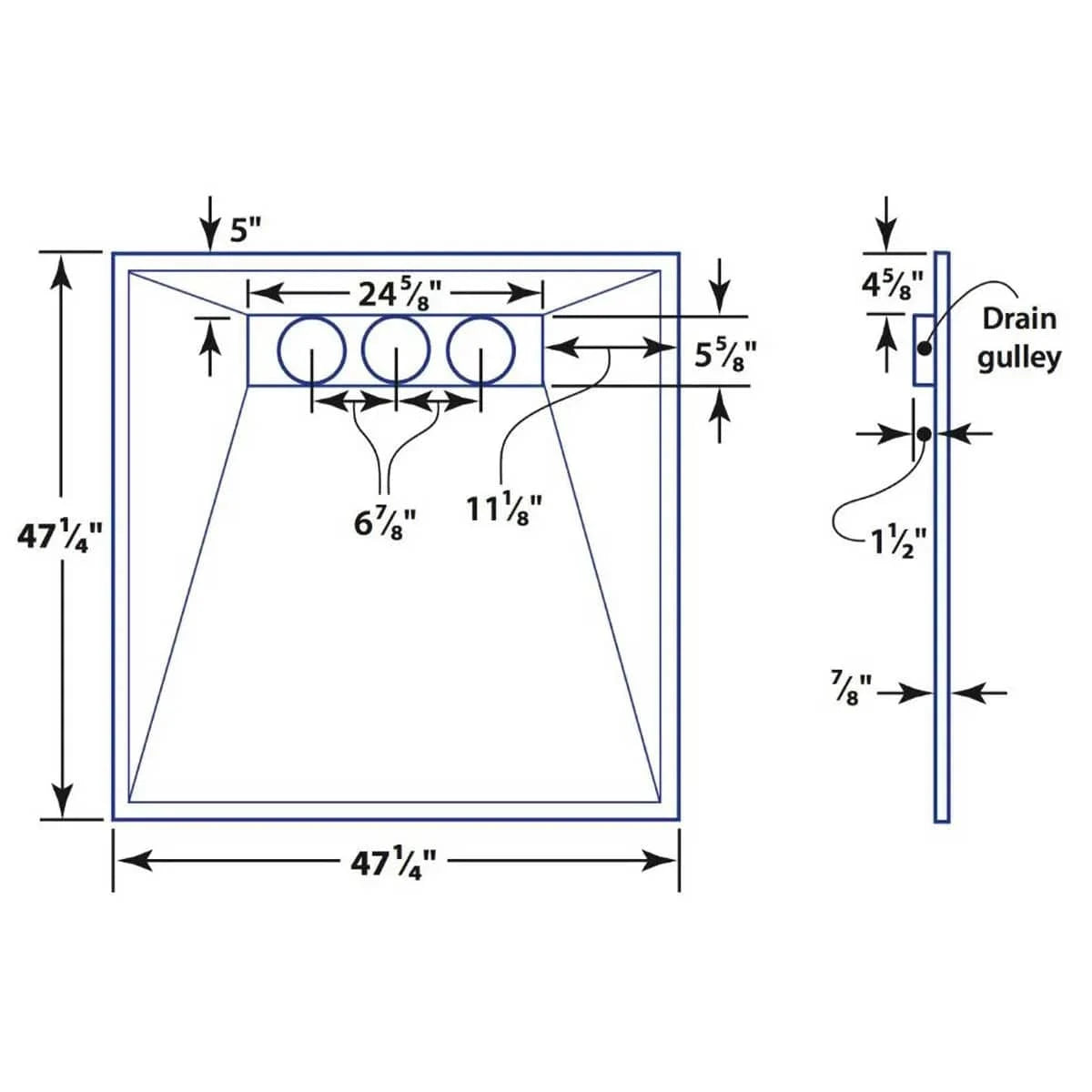

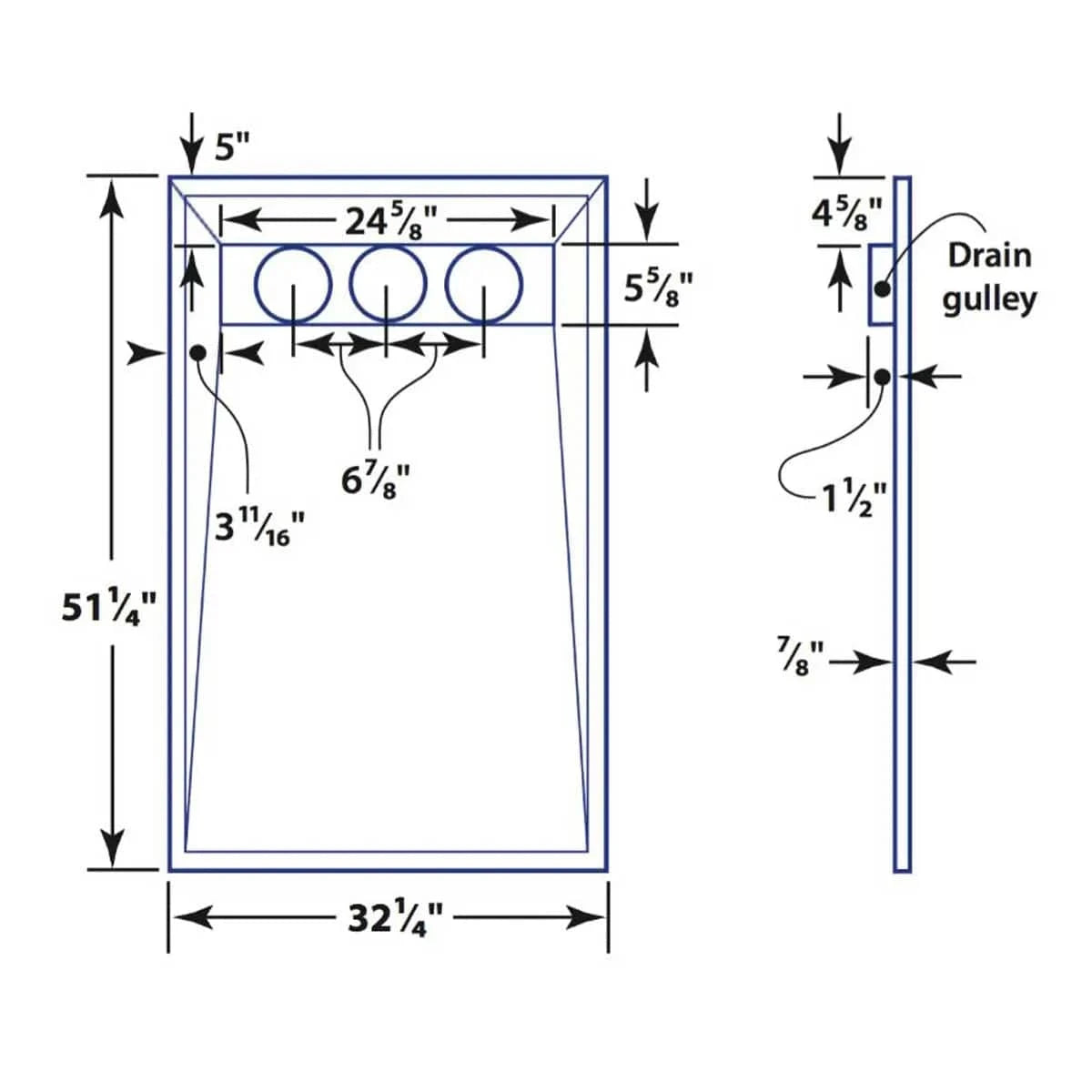

TrueDEK linear shower bases feature a fully integrated drain gulley molded directly into a structural, pre-pitched base. The drain gulley offers three drain connector locations to ease installation—choose the drain location that's best for your job site or install multiple drains to handle high-volume water flow.

Features

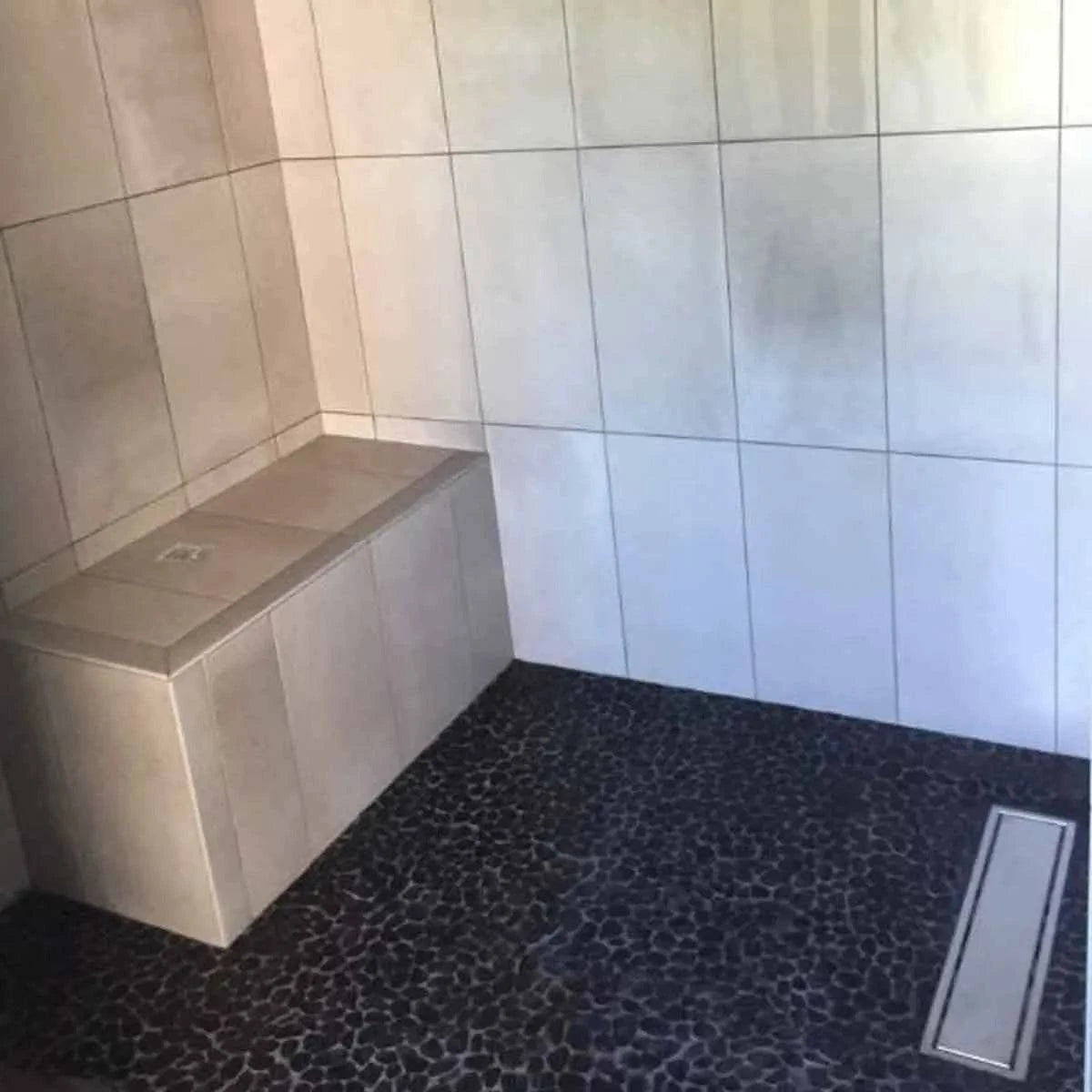

• As a structural shower foundation, a TrueDEK Linear base may be installed directly on joists to make a curbless shower that's flush with the rest of the bathroom floor
• Structural shower foundation with a lifetime warranty
• Pre-pitched and ready for tile or stone
• 7/8" thick at the edges
• The shower bases are so thin and strong expensive joist modifications are unnecessary
• Install on 2x wood joists, truss joists, and TJI joists
• Flat rim for easier leveling
• Supports 560 lbs. on joists and typical blocking; up to 1,100 lbs. with complete blocking underneath
• ICC Certified

What You'll Need for Installation

• TrueDEK Linear foundation
• Drain assembly
• 2″ drain connector

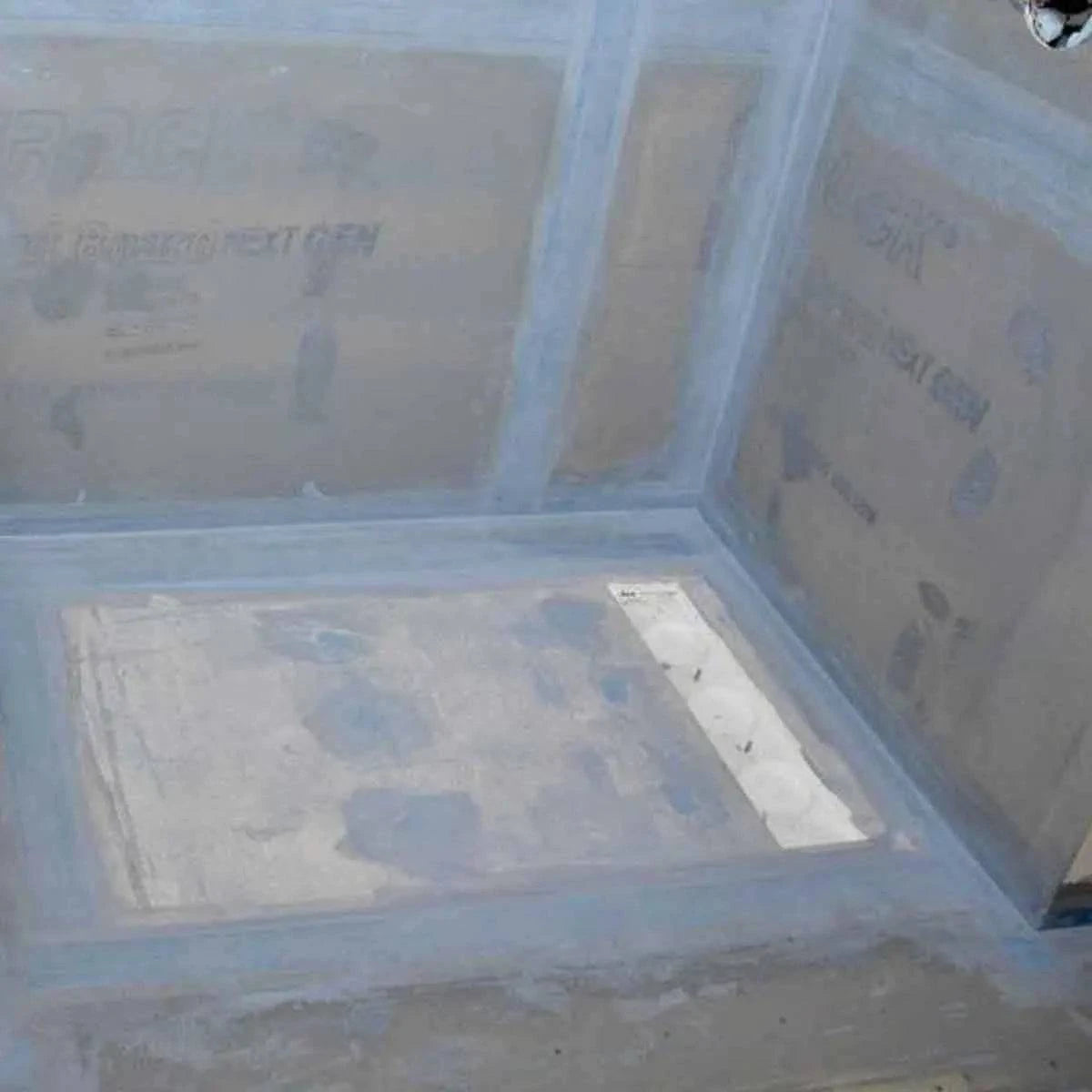

• Waterproofing kit (additional waterproofing supplies may be required depending on the size and complexity of the project)
• Circular saw
• Flush-cutting saw, or reciprocating saw
• Power drill
• Belt sander or orbital sander
• Caulking gun
• 3¼" hole saw with mandrel
• Hammer and a pry bar
• Speed square
• Scissors or utility knife
• 3″ or 4″ paint brush (throw away type)
• Paint roller and cover
• 2× lumber for blocking
• Polyurethane construction adhesive (four to five 10 oz. tubes)–use a product that bonds to plastic and wood
• Acrylic paintable caulk (one 10 oz. tube)
• #9 x 2″ ceramic coated or stainless steel flathead screws
