Bartell SPE Walk Behind Shot Blasters
$32,29900 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Bartell
| SKU: 7795-SPE16ES 16 in
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

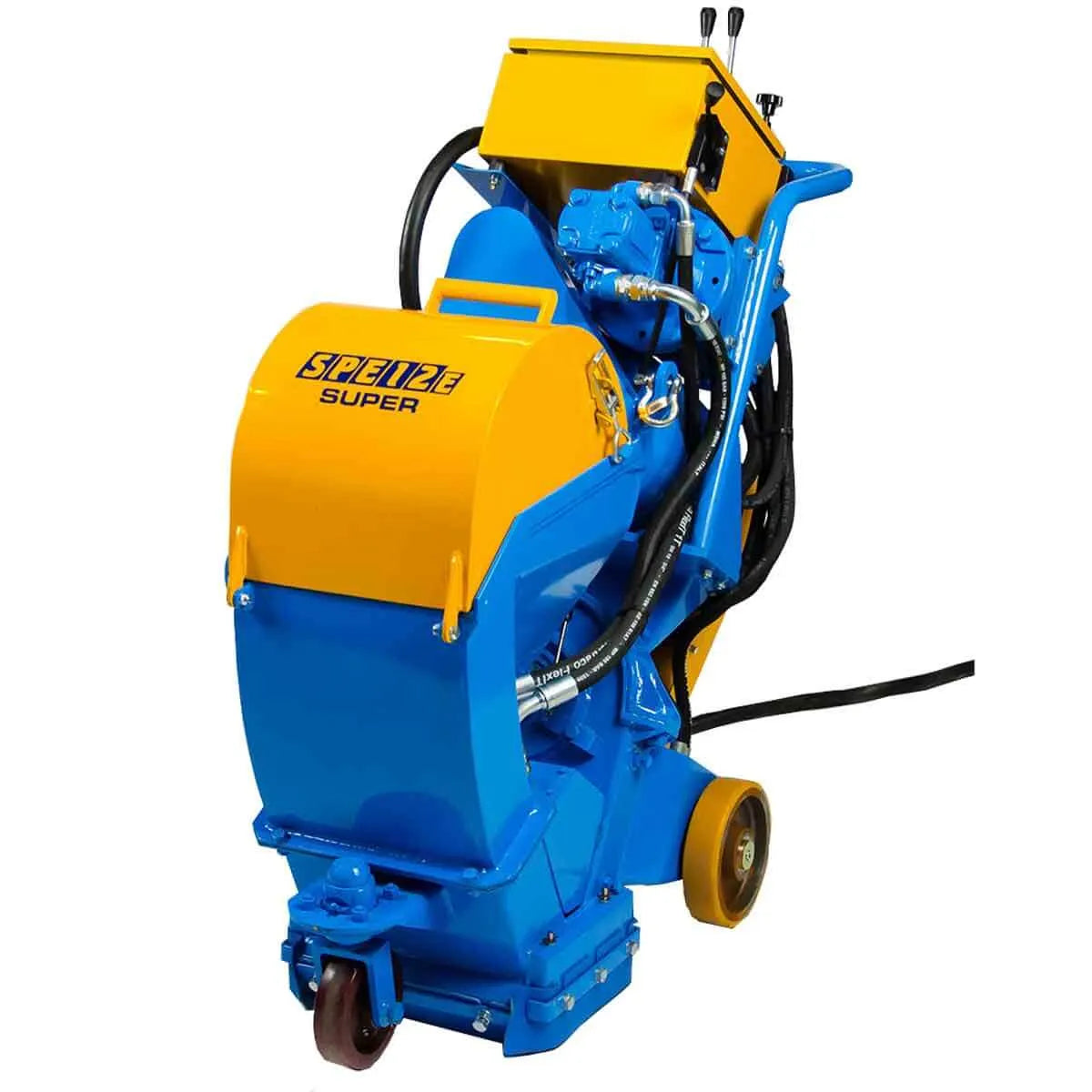

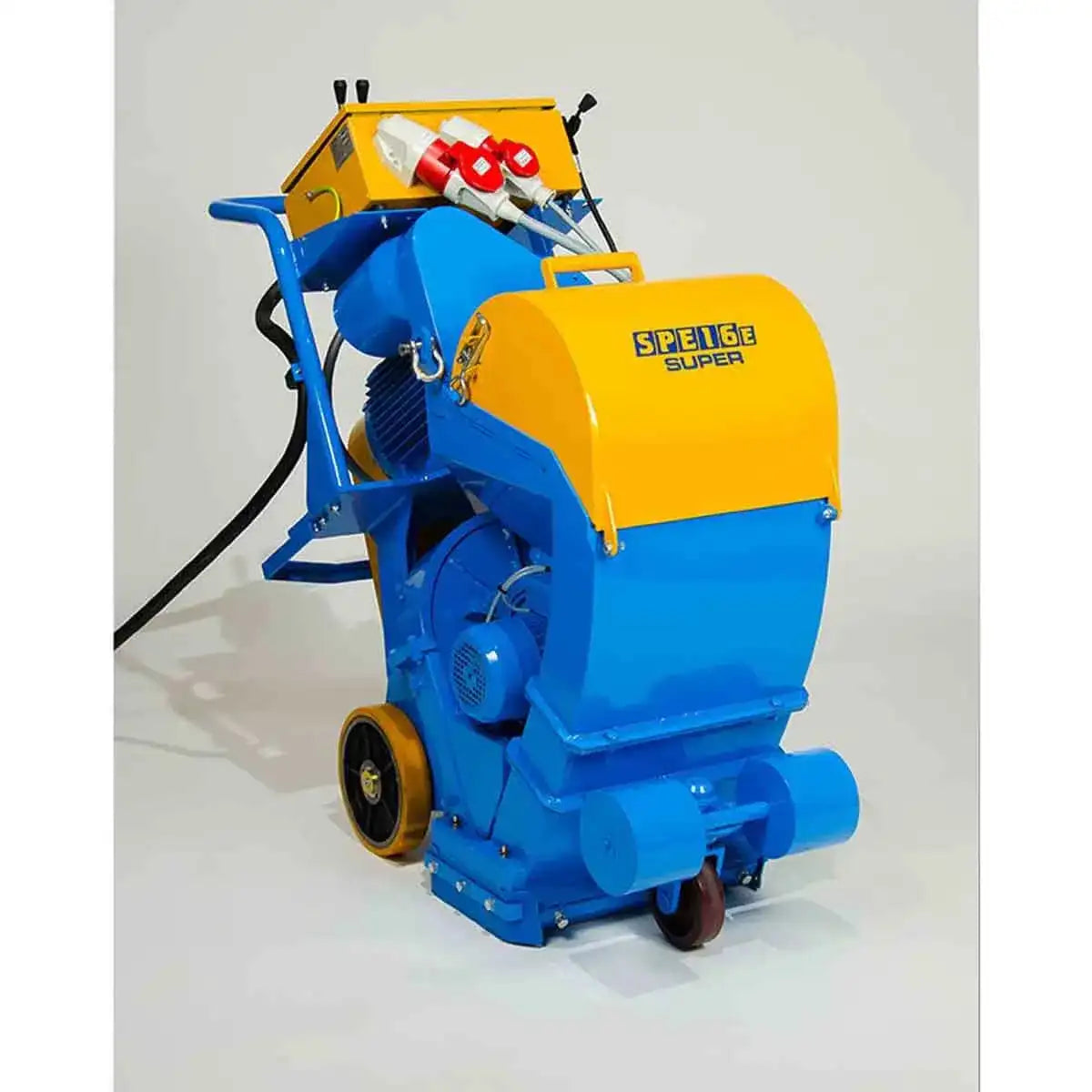

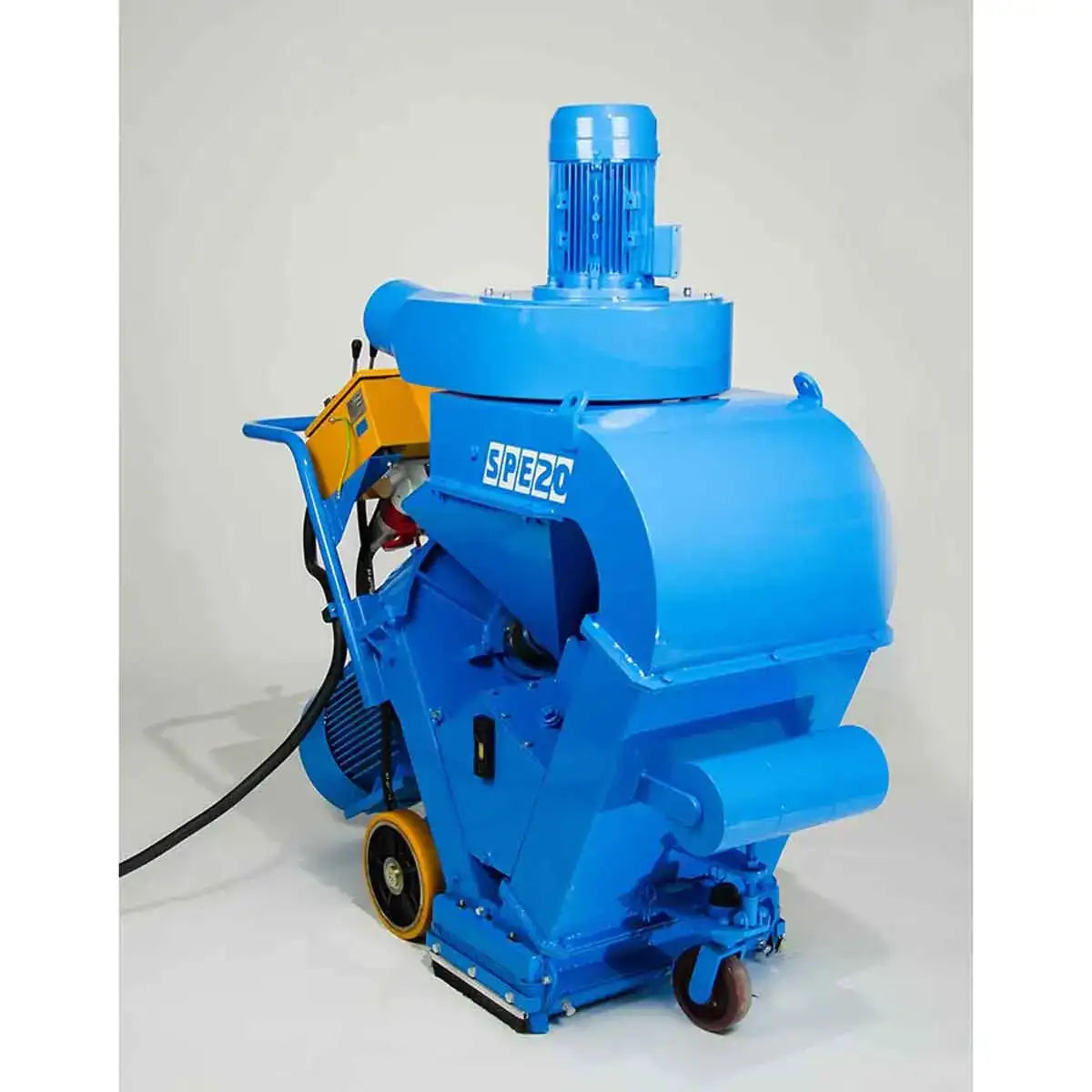

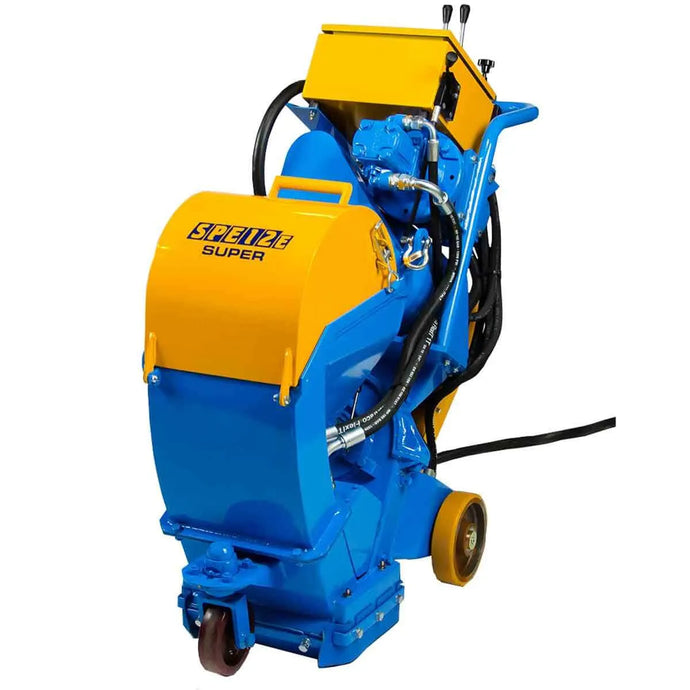

Bartell SPE Series Walk Behind Shot Blasters
Ranging from 12, 16 and 20 inch widths the Bartell shot blasters are electrically powered, medium to large machines that are used for general surface and steel preparation projects. Described as fast, versatile, environmental dust free shot blasters.
Features
- A dust collector fitted with a integral compressor and reverse jet pulsating system to continuous working
- Each machines width can be reduced for line removal and weld inspection
- Variable speed and self propelled drive allows complete control
- Lower level separator hopper unit assembly to eliminate foreign objects to be picked up and preventing any damage to the machine
- Blast wheel can be rotated in both directions
- 3 Phase
Applications
- Removal of old coatings
- Cleaning concrete and tiles
- Exposing aggregates
- Providing non slip surfaces
- Removing rubber deposits
- Steel preparation to SA3 standard
- Laitance removal on new concrete floors
- Multi-storey car parks
- Shopping precincts
- Food processing plants
- Storage tanks roofs and floors
- Ships decks
- Steel plates
- Ferries
| Bartell SPE Walk Behind Shot Blasters Specifications | |||
| Model | SPE12ES | SPE16ES | SPE20ES |
| Motor | 3 Phase - 230V/400V/460V | 3 Phase - 400V/460V | 3 Phase - 400V/460V |
| Blast Motor Output | 10 hp (7.5 kW) | 15 hp/20 hp (11 kW/15 kW) | 30 hp (22.5 kW) |
| Cycles | 50/60 Hz | 50/60 Hz | 60 Hz |
| Cleaning Width | 12" (305 mm) | 16" (406 mm) | 20-1/2" (520 mm) |
| Dimensions | 46.5" x 18.9" x 47.2" | 49.2" x 20.1" x 49.2" | 59.5" x 23.5" x 57" |
| Weight | 704 lb (350 kg) | 882 lb (400 kg) | 1,459 lb (662 kg) |
