BJM R100-115 Submersible Pump 110V
$29400 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: BJM Pumps
| SKU: 201358
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

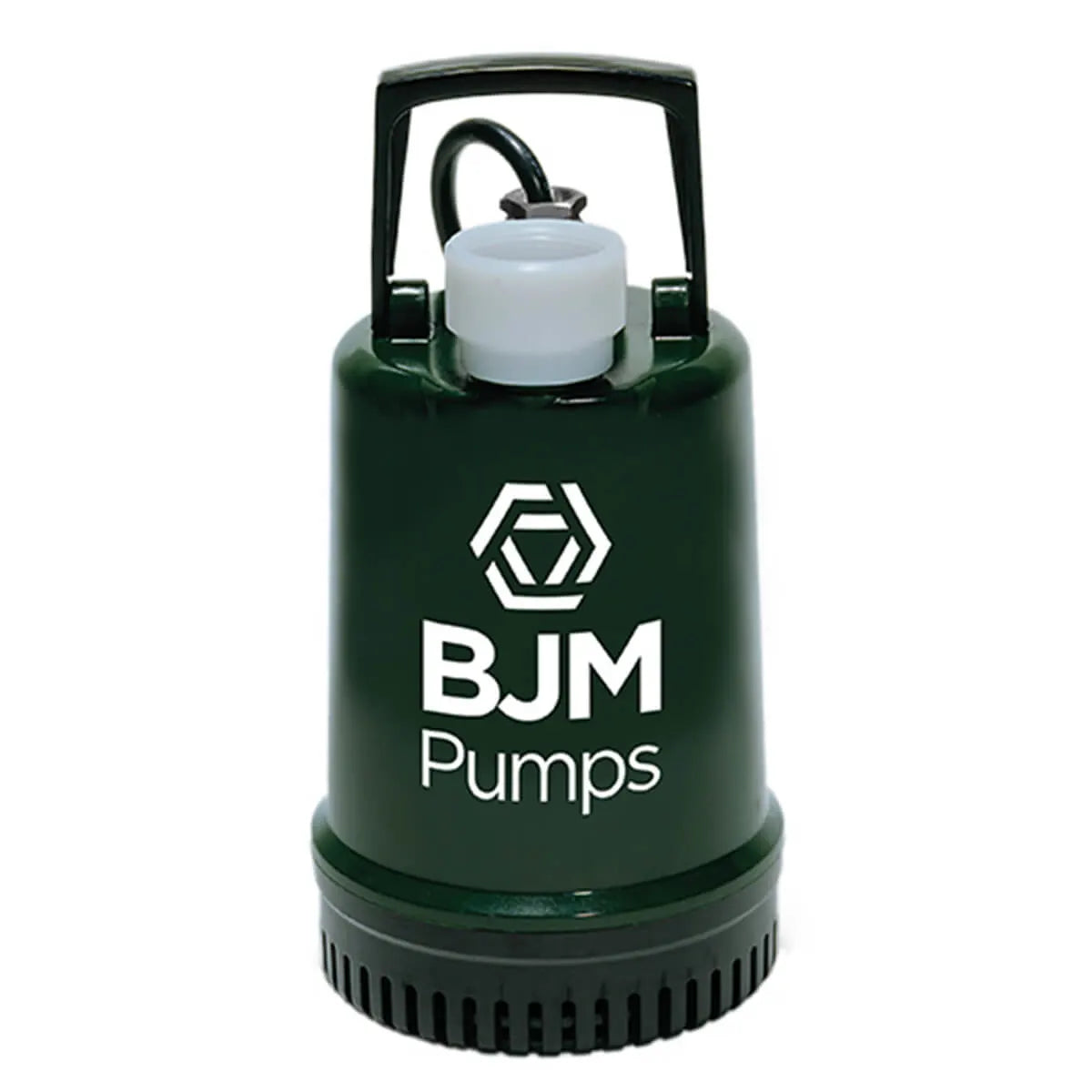

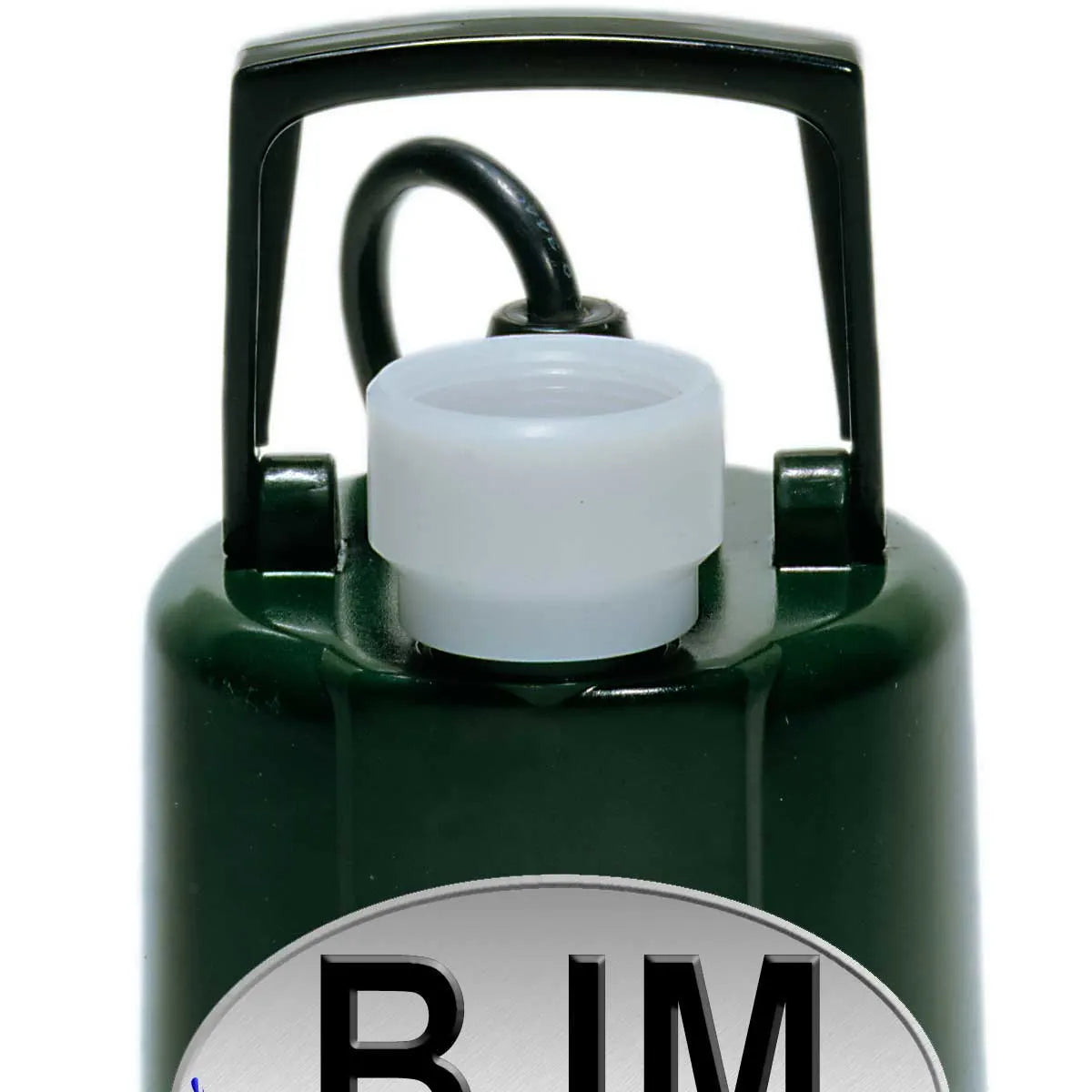

BJM R100-115 110V Submersible Pump
The R100 is ideal for many applications such as light dewatering, pool covers, sump pump applications, and can be used in salt water. It offers features that are normally on larger, more expensive pumps.
Features
- Motor is protected by a heavy duty mechanical seal made of silicon carbide and a lip seal made of oil resistant Buna
- Rotor shaft, motor housing and all hardware are made of 304 stainless steel. All other “wet parts” are made of reinforced plastic. A thermal breaker ensures shut-down should overheating occur
- 1/4 HP, 115V, 2 Full load Amps, single phase
| BJM R100 Specifications | |
| MAX. FLOW: GPM | 21 gpm |
| MAX. HEAD: ft | 19 ft |
| PUMP TYPE | Elec. Submersible, Top Discharge, Dewatering |
| STRAINER OPENING | 1/8" |
| DISCHARGE CONNECTION | 3/4" garden hose adapter |
| SHIPPING WEIGHT:lbs | 13 lbs |
| MECHANICAL SEAL UPPER | None |
| MECHANICAL SEAL LOWER | Sic / Sic |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | ABS Plastic |
| IMPELLER-MULTI VANE | FG Reinf. Plastic |
| STRAINER | ABS Plastic |
| LIPSEAL & O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 9.5 U.S. fl. oz.(seal chamber & stator) |
| Motor Data | |
| MOTOR RATING: HP | 1/4 HP |
| MOTOR RPM | 3450 Rpm |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.0 |
| VOLTAGE | 115V, 1ph-60Hz |
| CURRENT Full Load Amps | 2 Amps |
| MOTOR PROTECTION | Thermal & Breaker |
| POWER CORD GAGE & LENGTH | 16/3; 33 ft. |
| MAXIMUM LIQUID TEMPERATURE | 104 F |
