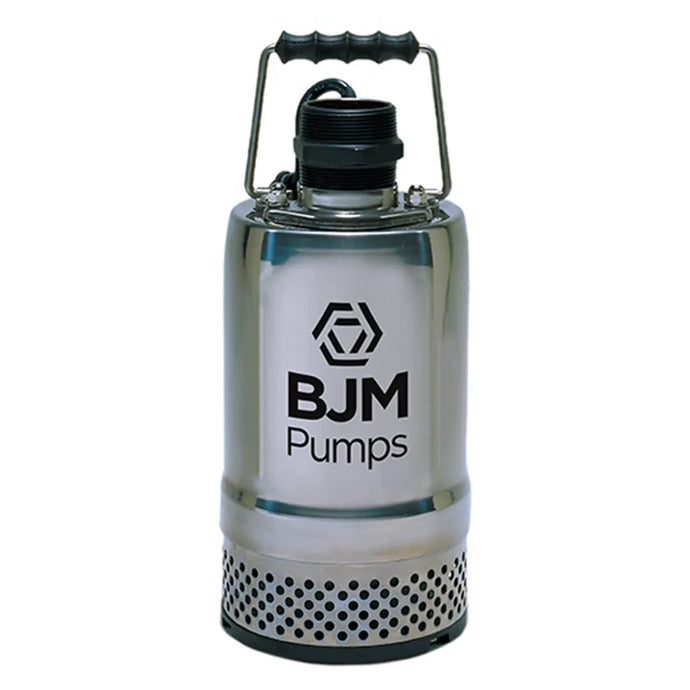

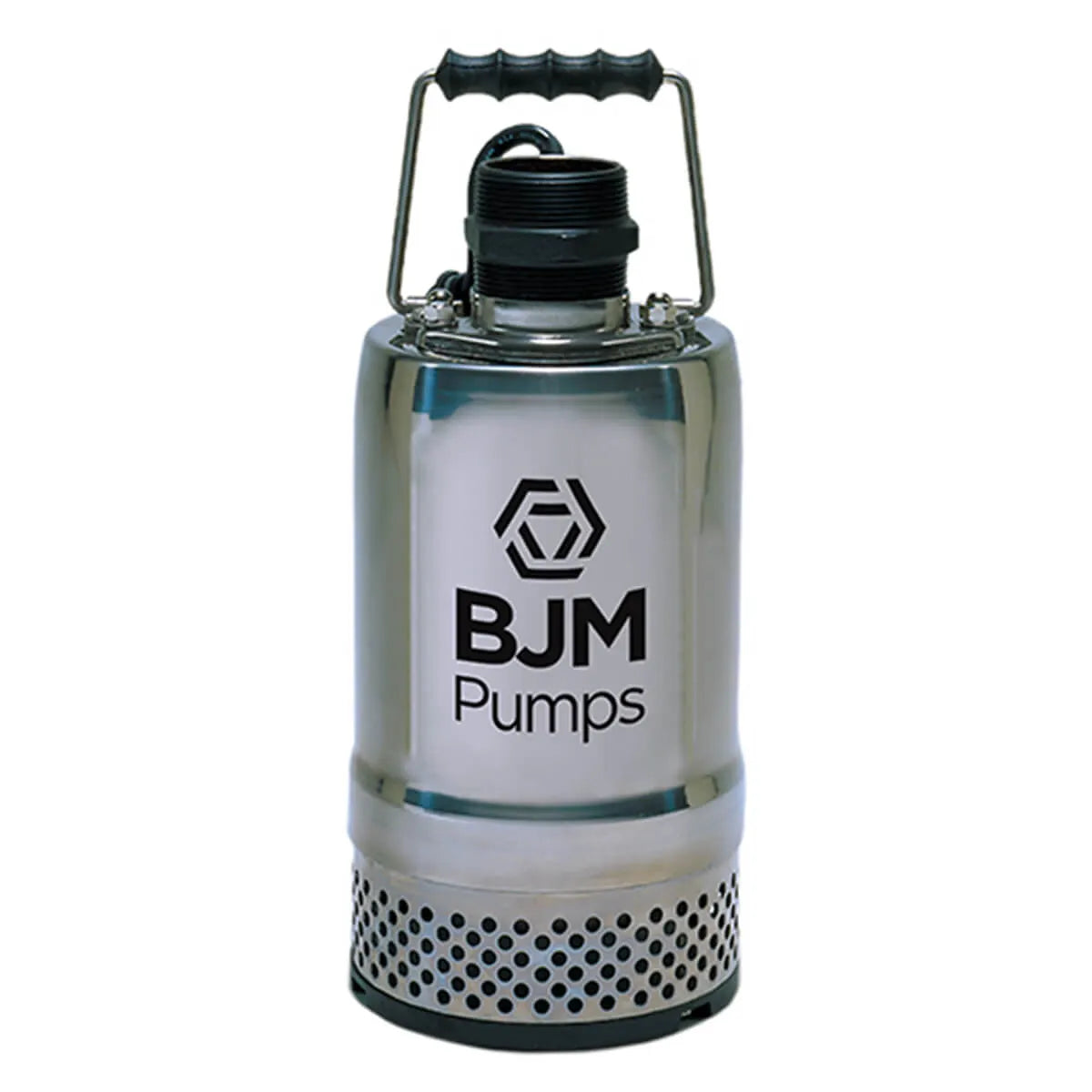

BJM R400-115 Silver Bullet 2 inch Submersible Pump
Features
- Silver Bullet pumps (0.5HP) are ideal for dewatering construction sites, mines, circulating fountain water, or for all-around use in industrial plants and utilities
- Quality engineered for long life, and is built with a silicon carbide seal, class F motor insulation, ABS plastic and SS metal parts and Hi-temp dry run motor protection
- Fits easily into an 8" casing
- Light weight and slim design of the R-400-115 pumps, you get top performance and superior quality for a very modest investment
- Pumps down to 2-1/4"
- 304SS motor housing; superior to pumps with aluminum housings that wear out pumping sandy water
- Hardened cast iron impellers and volutes; superior to pumps with plastic impellers that erode or plastic pump bodies that crack from rough handling
- 1/2 HP, 115V, single phase, 6 Full Load Amp
- 3 seals: Lip seal and (2) mechanical seals
- R400D impeller made of fiberglass reinforced Noryl
- Lower seal made of carbon/ceramic
R400-115 Specifications | |
MAX. FLOW | 66 gpm |
MAX. HEAD | 35 ft |
MAX SUBMERSION DEPTH | 200 ft |
STRAINER OPENING | 1/8 |
DISCHARGE CONNECTION | 2" NPT-M |
PUMP WEIGHT | MAX SOLID SIZE |
MOTOR CASING | 304SS |
PUMP VOLUTE | Cast Iron |
IMPELLER-MULTI VANE | Cast Iron |
STRAINER | 304SS |
LIPSEAL and O-RINGS | Buna-N |
ROTOR SHAFT | EXTERNAL HARDWARE |
ELECTRICAL/MOTOR DATA | RD-400-115 |
MOTOR RATING: HP | 1/2 HP |
MOTOR RPM | 3450 Rpm |
MOTOR INSULATION CLASS | F |
MOTOR SERVICE FACTOR | 1.1 |
VOLTAGE | 115V, 1ph-60Hz |
CURRENT Full Load Amps | 6 Amps |
MOTOR PROTECTION | Thermal and Amp O.L. |
POWER CORD GAGE and LENGTH | 16/3; 33 ft. |
MAXIMUM LIQUID TEMPERATURE | 104 F |
