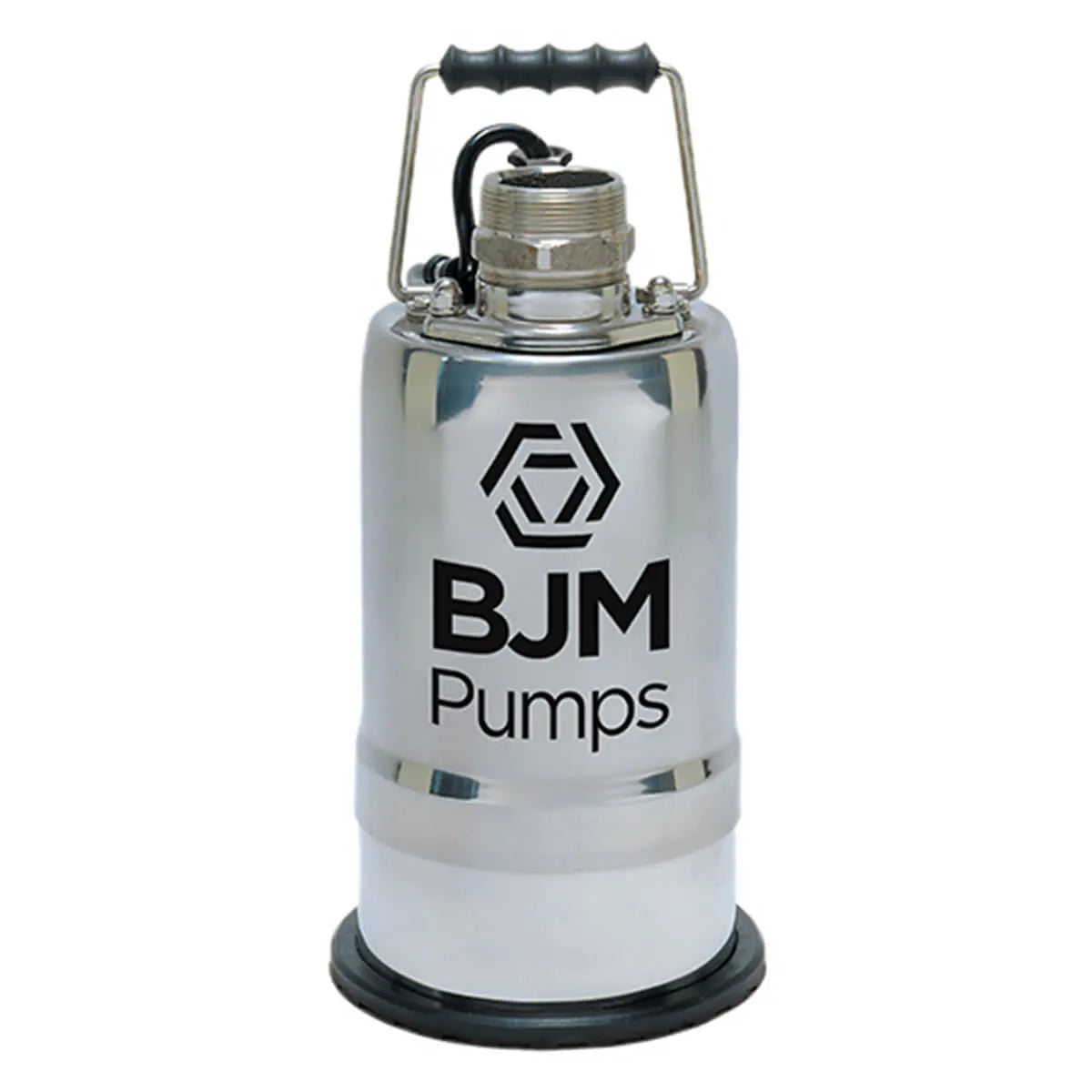

BJM R400D-115 2" Submersible Pump
$75000 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: BJM Pumps
| SKU: 201366
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
BJM R400D-115 2" Mop-Up Submersible Pump
Mopping up after flooding is made easy with the model R400D. The Mop-up features a unique non-return valve built in below the impeller. The rubber clad bottom helps protect against damage to floor surfaces. Pumping down to 1/12 of an inch and starts up in only a small puddle of liquid, and features a special diaphragm valve that prevents water back flow. Perfect for easy clean up of floods, and spills in basements, businesses, industrial and recreation areas.
Features
- Ideal for dewatering construction sites, mines, circulating fountain water, or for all around use in industrial plants and utilities
- Quality engineered for long life, and is built with a silicon carbide seal, class F motor insulation, ABS plastic and SS metal parts and Hi temp dry run motor protection
- Fits easily into an 8" casing
- With the light weight and slim design of the R-400D-115 pumps, you get top performance and superior quality for a very modest investment
- R400D special feature is it will pump down to 1/12th of an inch
- Features a special diaphragm valve that prevents water back-flow
- 304SS motor housing; superior to pumps with aluminum housings that wear out pumping sandy water
- R400D impeller made of fiberglass reinforced Noryl. Lower seal carbon/ceramic
- 1/2 HP, 115V, single phase, 6 Full Load Amp
Technical Specifications
BJM RD-400D Specifications | |
MAX. FLOW | 50 gpm |
MAX. HEAD | 36 ft |
MAX SUBMERSION DEPTH | 65 ft or the length of the cord. |
STRAINER OPENING | N/A |
DISCHARGE CONNECTION | 2" NPT-M |
PUMP WEIGHT | 33 lbs |
MOTOR CASING | 304 SS |
PUMP VOLUTE | Cast Iron |
IMPELLER-MULTI VANE | FG Reinforced Plastic |
LIPSEAL & O-RINGS | Buna-N |
ROTOR SHAFT | 304 SS |
EXTERNAL HARDWARE | 304 SS |
QTY. OIL IN SEAL CHAMBER | 1.35 U.S. fl. oz. |
ELECTRICAL/MOTOR DATA | RD-400D-115 |
MOTOR RATING: HP | 1/2 HP |
MOTOR RPM | 3450 Rpm |
MOTOR INSULATION CLASS | F |
MOTOR SERVICE FACTOR | 1.1 |
VOLTAGE | 115V, 1ph-60Hz |
CURRENT Full Load Amps | 6 Amps |
MOTOR PROTECTION | Thermal & Amp O.L. |
POWER CORD GAGE & LENGTH | 16/3; 33 ft. |
MAXIMUM LIQUID TEMPERATURE | 104 F |
