Contractor Pricing
BJM SV400-115 2" Submersible Pump
$64478 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: BJM Pumps
| SKU: 201528
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

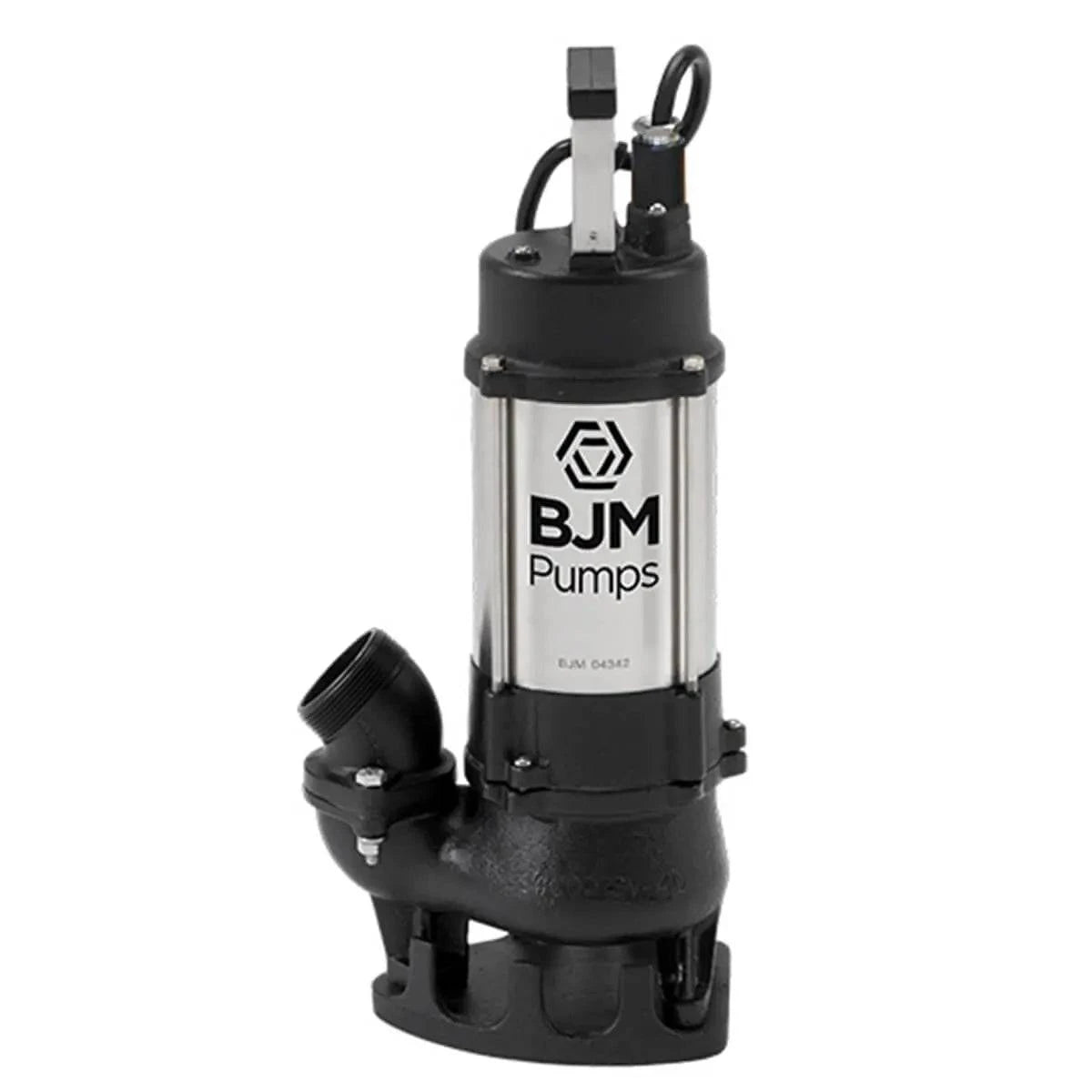

BJM SV400-115 2" Vortex Trash Submersible Pump
The SV family of pumps from BJM offer long life and trouble free performance at a low investment cost. Motor Casing, impeller shaft and all hardware are made of 304 Stainless Steel, with impeller and other exposed parts made of cast-iron. Each pump is tested at the factory for performance as well as safety.
Features
- For non-clog, solids handling pump for sludge, sewage, trash & industrial waste
- Recessed vortex impeller pumps for passing large solids found in sewage and industrial waste
- SV pumps are designed to pass mud, raw sewage, leaves, rags, wood chips and other solids without clogging

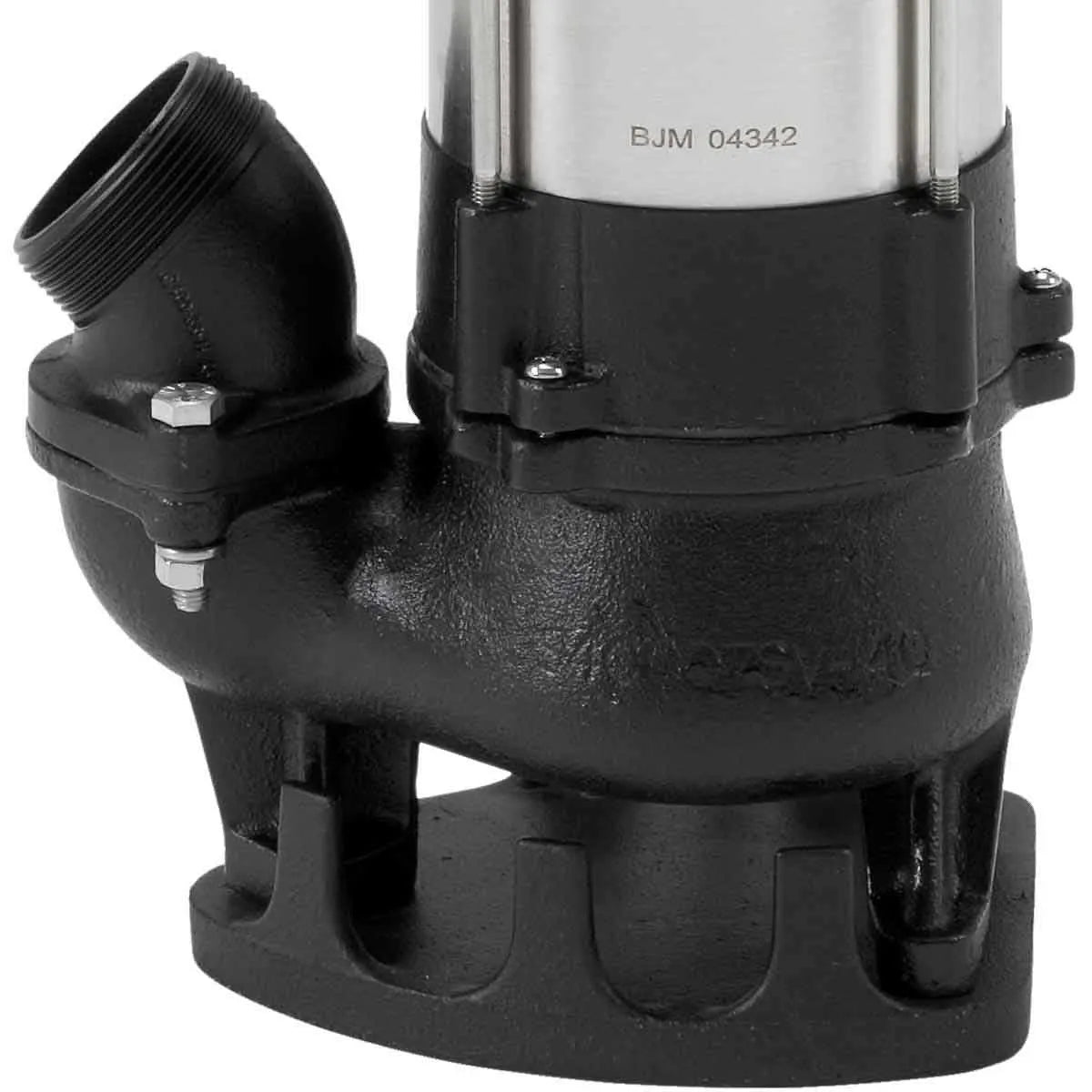

- Constructed with a cast iron volute and fully recessed impeller for pumping solids without clogging
- Rugged construction (no breakable plastic component) and light weight for portability
- Lip Seal and double mechanical seals
- Lower seal is silicon carbide/silicon carbide and upper seal is carbon/ceramic
- Built in high temperature automatic overload switch and class F motor insulation protects against motor failure due to overheating
- 1/2 HP, 110V, single phase, 7.5 Full Load Amp
- Max Solids 1-1/2"
Technical Specifications
| BJM SV400-115 Specifications | |
| MAX. FLOW: GPM | 59 gpm |
| MAX. HEAD: ft | 22 ft |
| PUMP TYPE | Elect.Submersible, Non-Clog Vortex |
| DISCHARGE CONNECTION | 2" NPT-M (45° elbow) |
| SHIPPING WEIGHT:lbs | 40 lbs |
| MECHANICAL SEAL UPPER | Crb / Cer |
| MECHANICAL SEAL LOWER | Sic / Sic |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | Cast Iron |
| IMPELLER-MULTI VANE | Cast Iron |
| LIPSEAL & O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 1.35 U.S. fl. oz. |
| ELECTRICAL/MOTOR DATA | |
| MOTOR RATING: HP | 1/2 |
| MOTOR RPM | 3450 Rpm |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.1 |
| VOLTAGE | 110V, 1ph-60Hz |
| CURRENT Full Load Amps. | 7.5 Amps |
| MOTOR PROTECTION | Thermal breaker |
| POWER CORD GAGE & LENGTH | 16/3, 33 ft |
| MAXIMUM LIQUID TEMPERATURE | 104 F |
