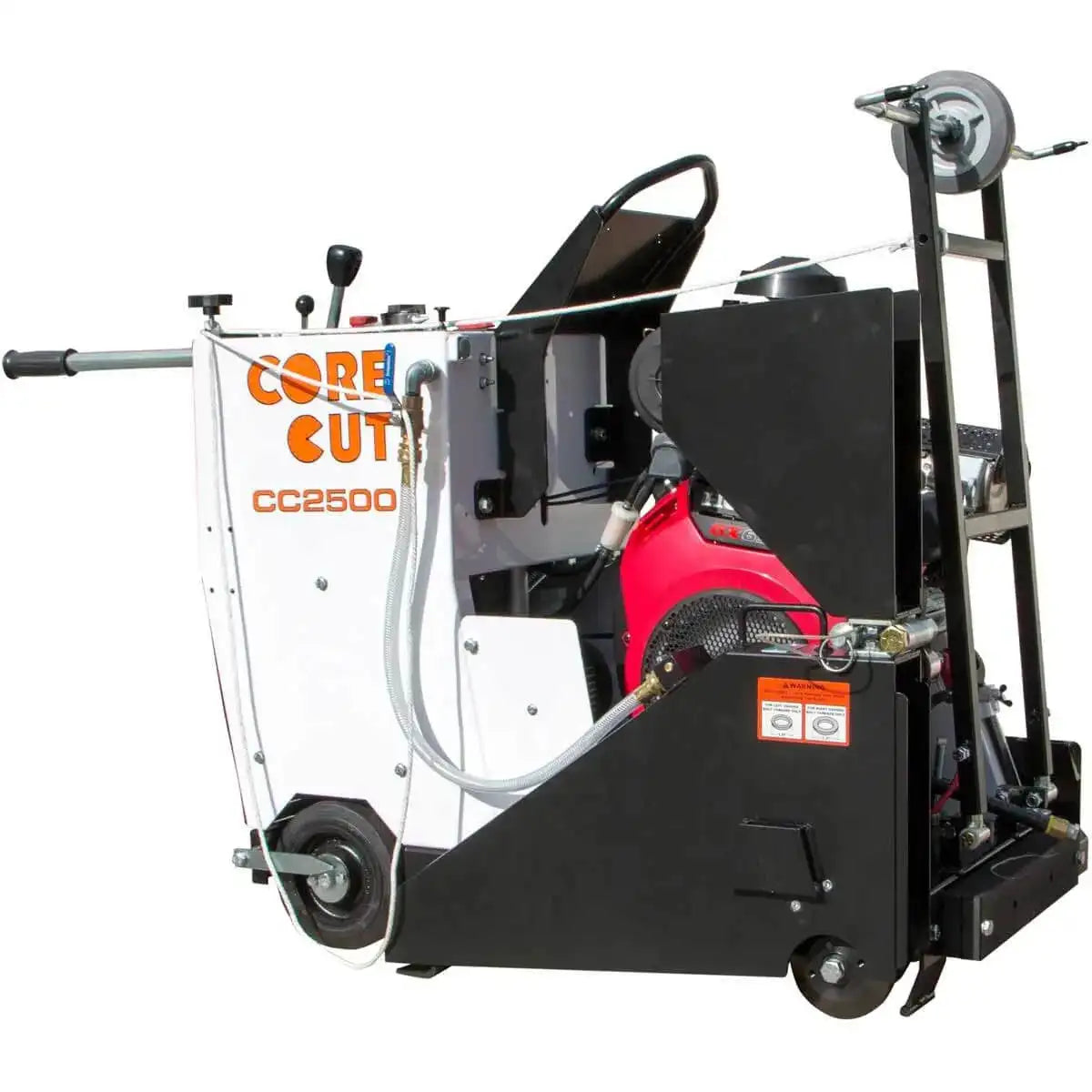

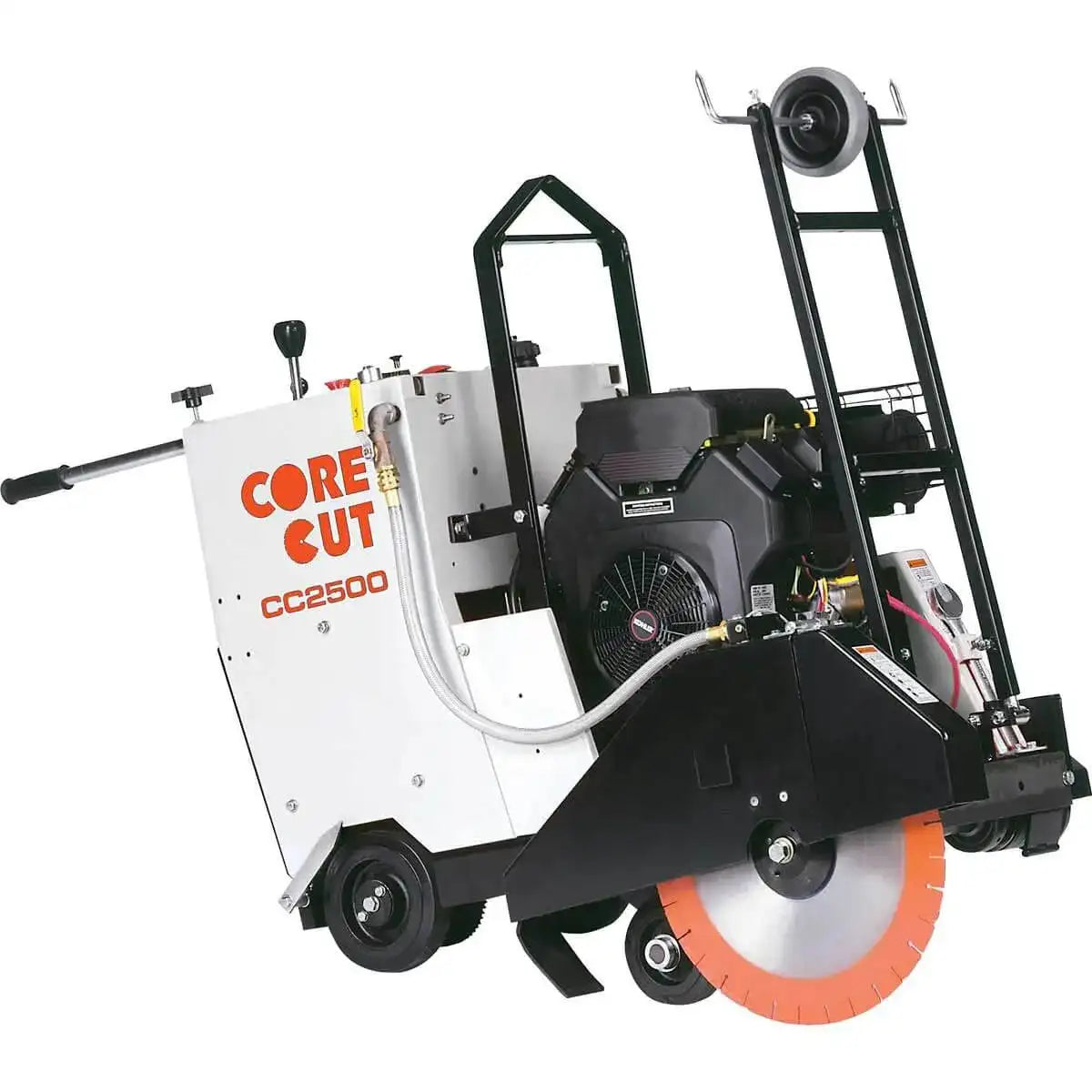

Core Cut CC2500 Self-Propelled Concrete Saws
$11,85800 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Core Cut
| SKU: 9204-15hp Lesson 14in
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Core Cut CC2500 Self-Propelled Concrete Saws
Features
- 1-1/2" diameter blade shaft with bearings that are grease able from top of the frame
- Rigid high strength 3/16" steel box frame with heavy bar reinforcement
- Left or right hand sawing
- Large 5 gallons fuel capacity for longer sawing
- Precision screw feed raise and lower system
- Blade drive is via 5 belts on 27hp Kohler. 25hp or bellow have 4 belts

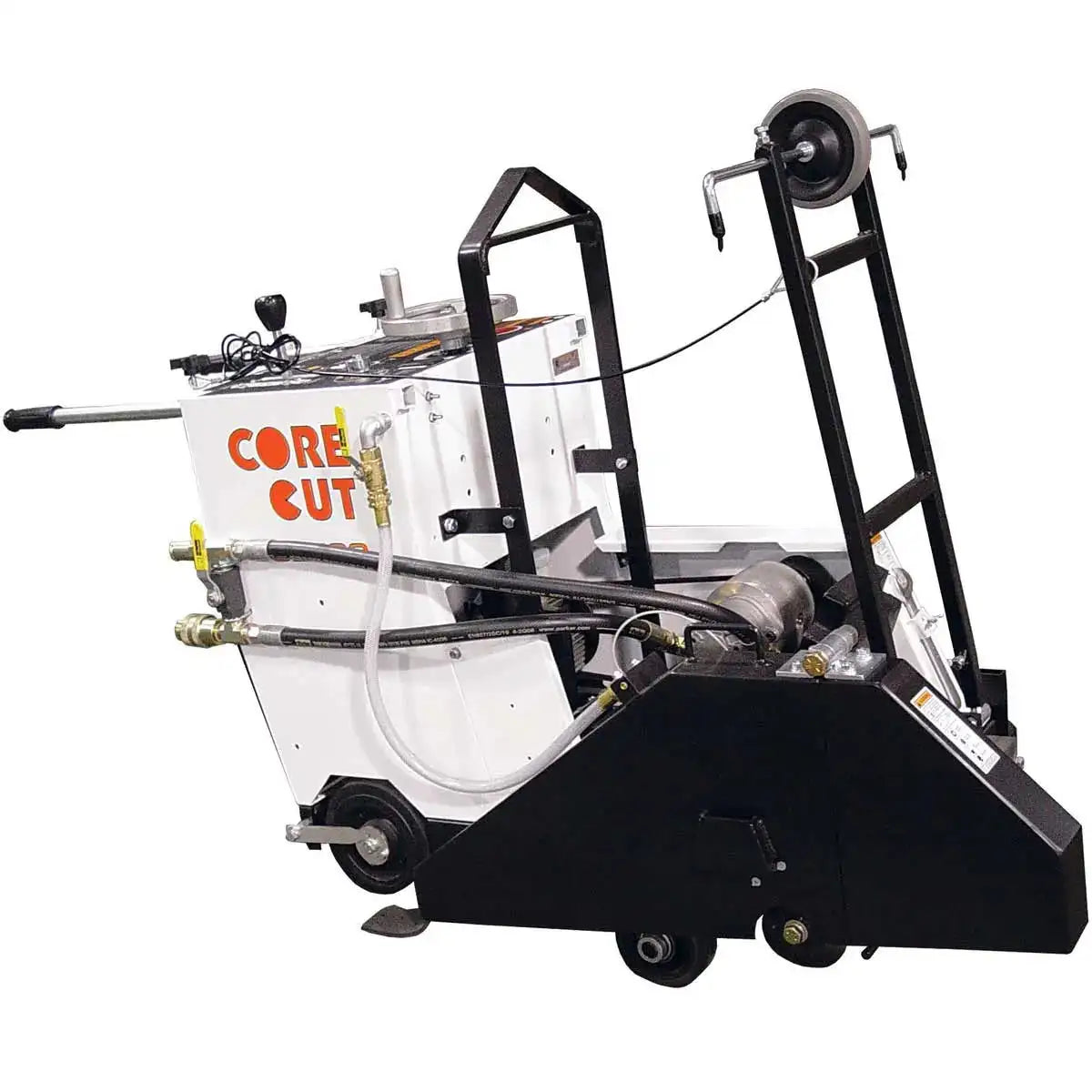

- Hydraulic model input flow 25 GPM 2000 PSI maximum
- Electric models includes motor starter switch-box with amp meter
What's Included?
- Core Cut CC2500 Self-Propelled Concrete Saw

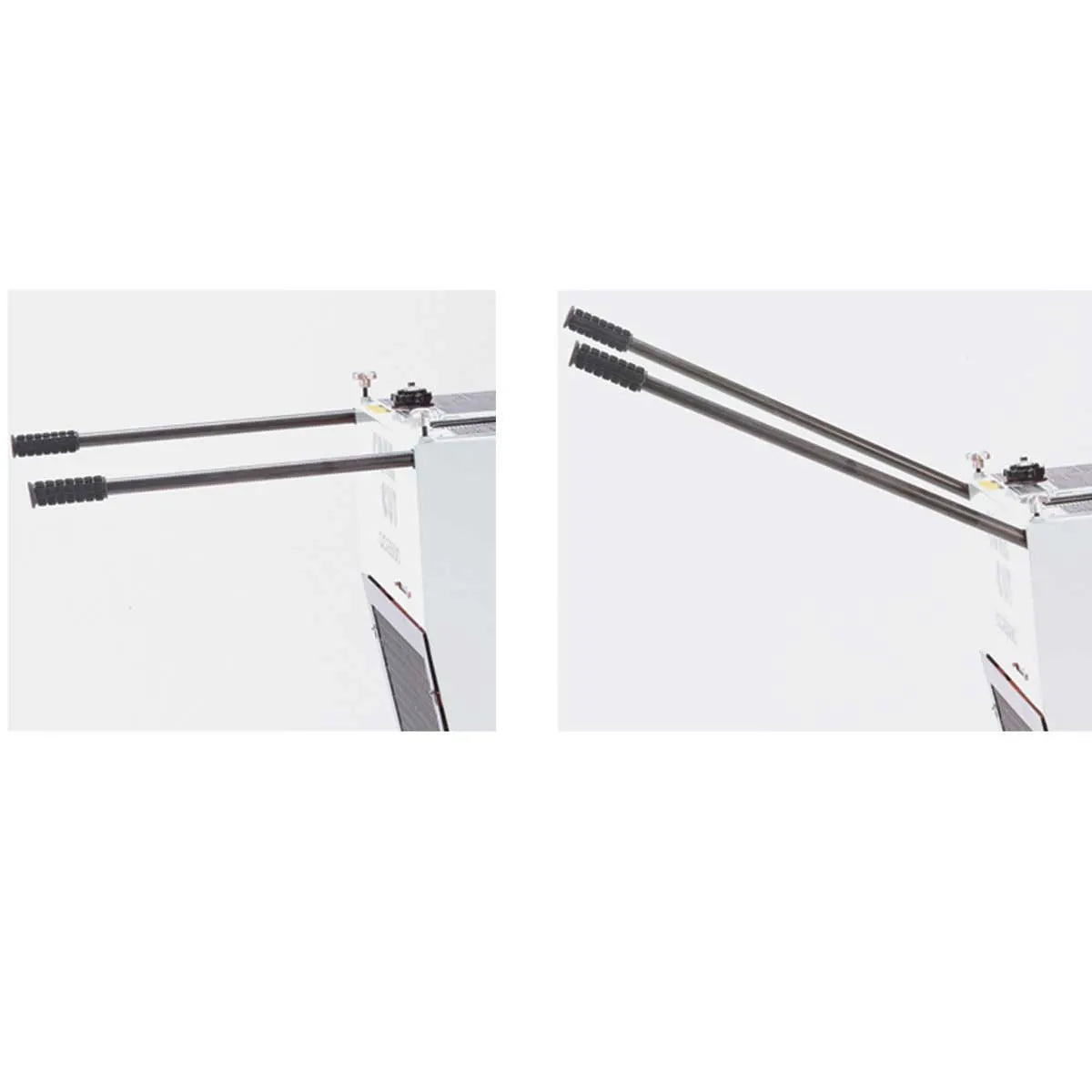

- Telescoping Front Pointer
- Cutting Depth Indicator
- Quick Disconnect Blade Flanges
- Frame Lift
- Tach/Hour Meter (20-22 HP Models)
- Electric Start (20-22 HP Models)
- Low Oil Alert
- Operator's manual
Core Cut CC2500 Blade Specifications | |||
Blade Size | 14 inch | 20 inch | 26 inch |
Depth of Cut | 4-5/8 inch | 7-3/8 inch | 10-3/8 inch |
Arbor | 1 inch | 1 inch | 1 inch |
Core Cut CC2500 Motor Specifications | |||||
Motor Type | Leeson (3-phase) | Honda GX630 | Honda GX690 |
Hydraulic (25 GPM @2000 PSI) |
Kohler Command CH740 |
Power Source | Electric - 230 V | Gas | Gas | Hydro | Gas |
Power | 15 hp | 20.8 hp | 22.1 hp | 25 hp | 27 hp |
Blade Capacity | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in |
Product Weight in lbs. (Based on Blade Capacity) |
700, 670, 705 | 600, 660, 670 | 610, 610, 685 | 610, 610, 650 | 645, 610, 665 |
