Core Cut CC3700 Self-Propelled Concrete Saw
$22,41400 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Core Cut
| SKU: 9209-40hp 460V 20in
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

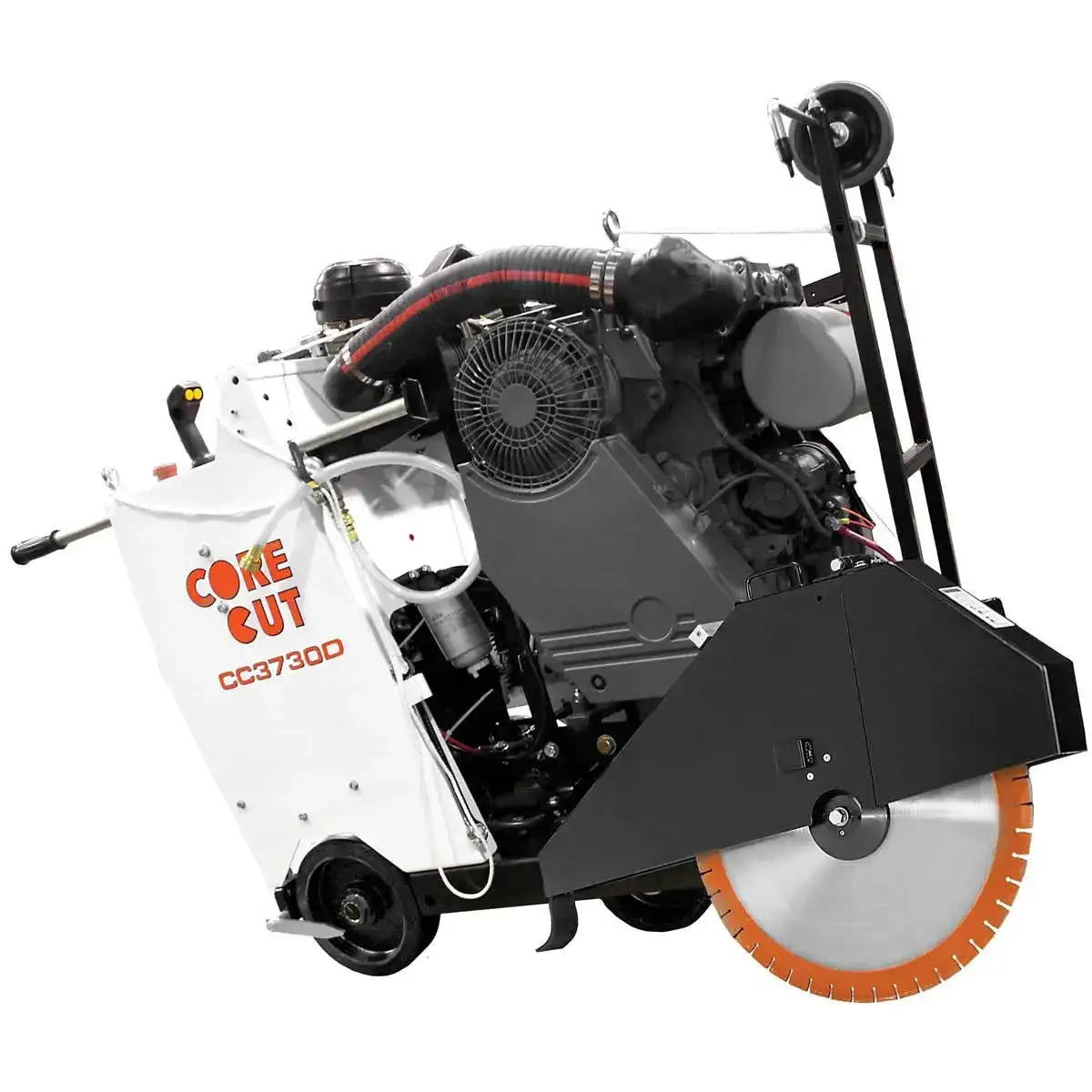

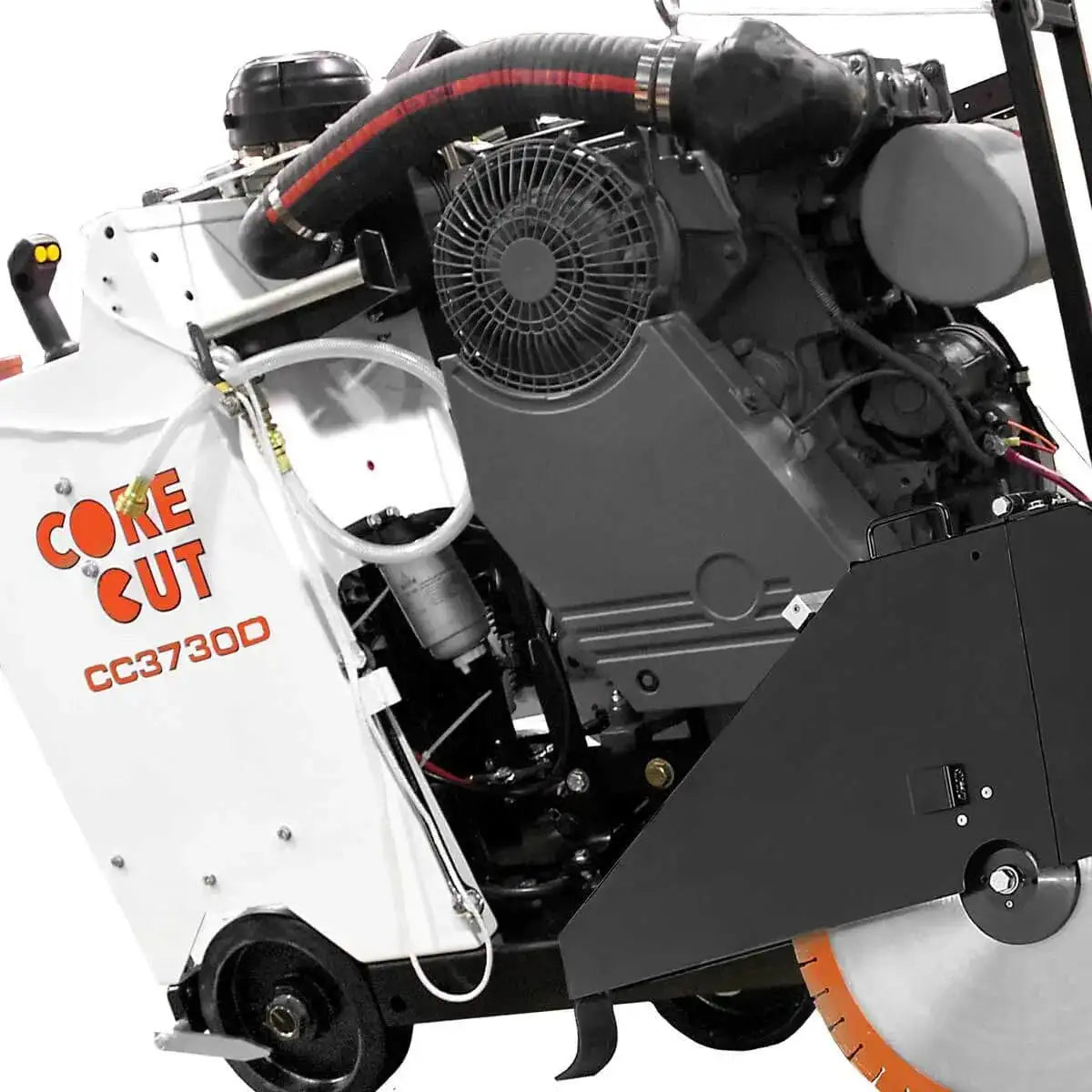

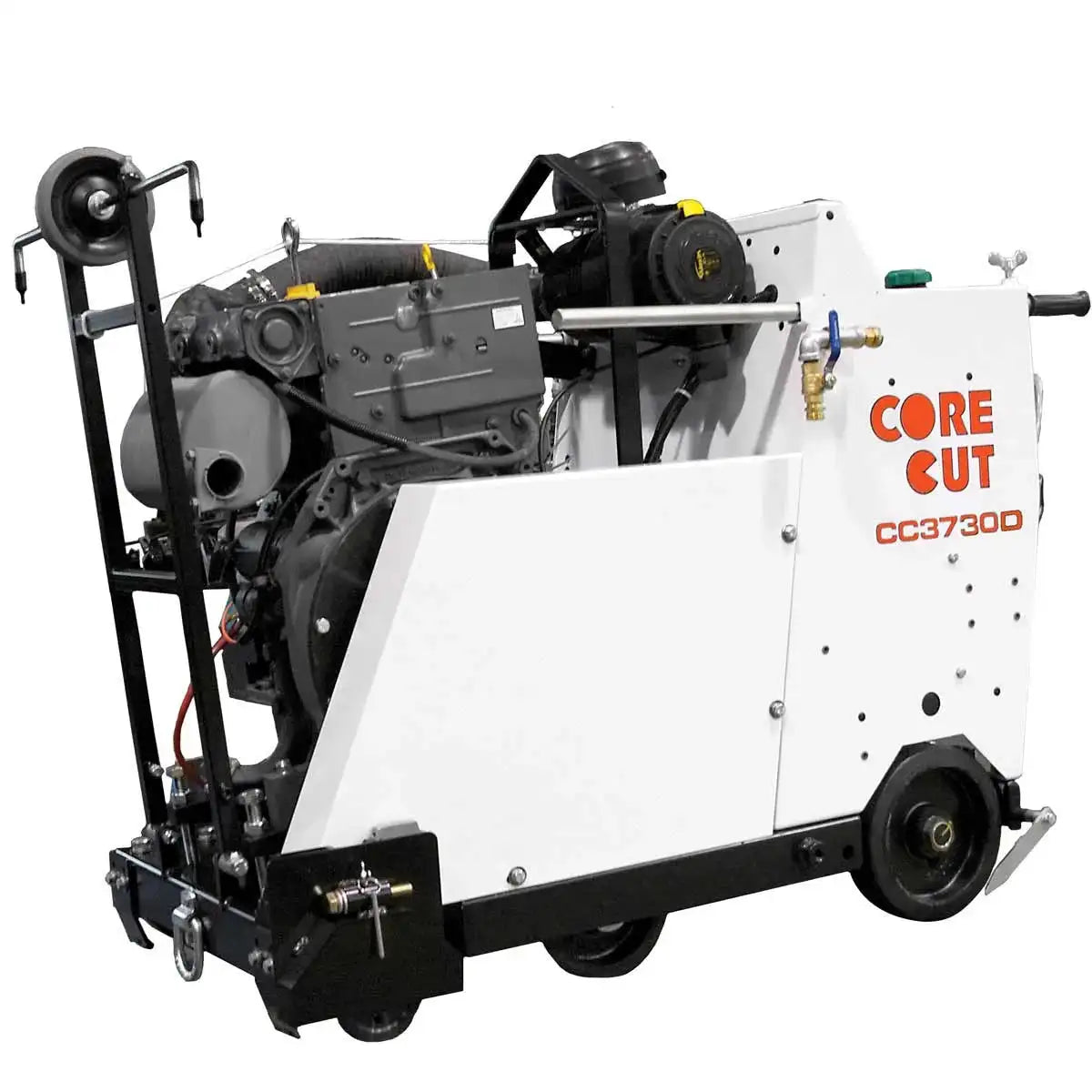

Core Cut CC3700 Self-Propelled Concrete Saw
Features
- Fits through a 30" door
- One hand sawing control
- Forward-positioned motor for more weight at the blade
- Sundstrand-Sauer transmissions standard, Eaton model 10 also available, call to inquire
- Compact frame designed for the higher torque of a large horsepower engine
- 1-3/4" diameter blade shaft with self-aligning bearings
- Strongest frame on the market
- Left or right hand sawing
- Large 6 gallons fuel capacity for longer sawing
- Raise/lower powered by electro-hydraulic pump
- High temperature shut-off standard
- Electric models includes motor starter switch-box with amp meter
- 6 or 8 belts drive shaft
- Slip-on blade guards through 30", 36" is bolt-on
What's Included?
- Core Cut CC3700 Self-Propelled Concrete Saw
- Telescoping Front Pointer
- Cutting Depth Indicator
- Quick Disconnect Blade Flanges
- Frame Lift
- Hour Meter
- Electric Start* (With Purchase of Electric Motor)
- Operator's manual
| Core Cut CC3700 Blade Specifications | |||||
| Blade Size | 14 inch | 20 inch | 26 inch | 30 inch | 36 inch |
| Depth of Cut | 4-1/2 inch | 7-1/2 inch | 10-1/2 inch | 11-3/4 inch | 14-3/4 inch |
| Arbor | 1 inch | 1 inch | 1 inch | 1 inch | 1 inch |
| Core Cut CC3700 Motor Specifications | |||
| Motor Type | Leeson 3-phase |
Lincoln 3-phase |
Lincoln 3-phase |
| Power Source | Electric - 230 V | Electric - 460 V | Electric - 460 V |
| Power | 25 hp | 30 hp | 40 hp |
| Blade Capacity | 14, 20, 26, 30, 36 | 14, 20, 26, 30, 36 | 20, 26, 30, 36 |
| Product Weight in lbs. (Based on Blade Capacity) |
1385, 1395, 1330 1415, 1425 |
1350, 1360, 1370 1380, 1270 |
1435, 1325, 1455, 1345 |
