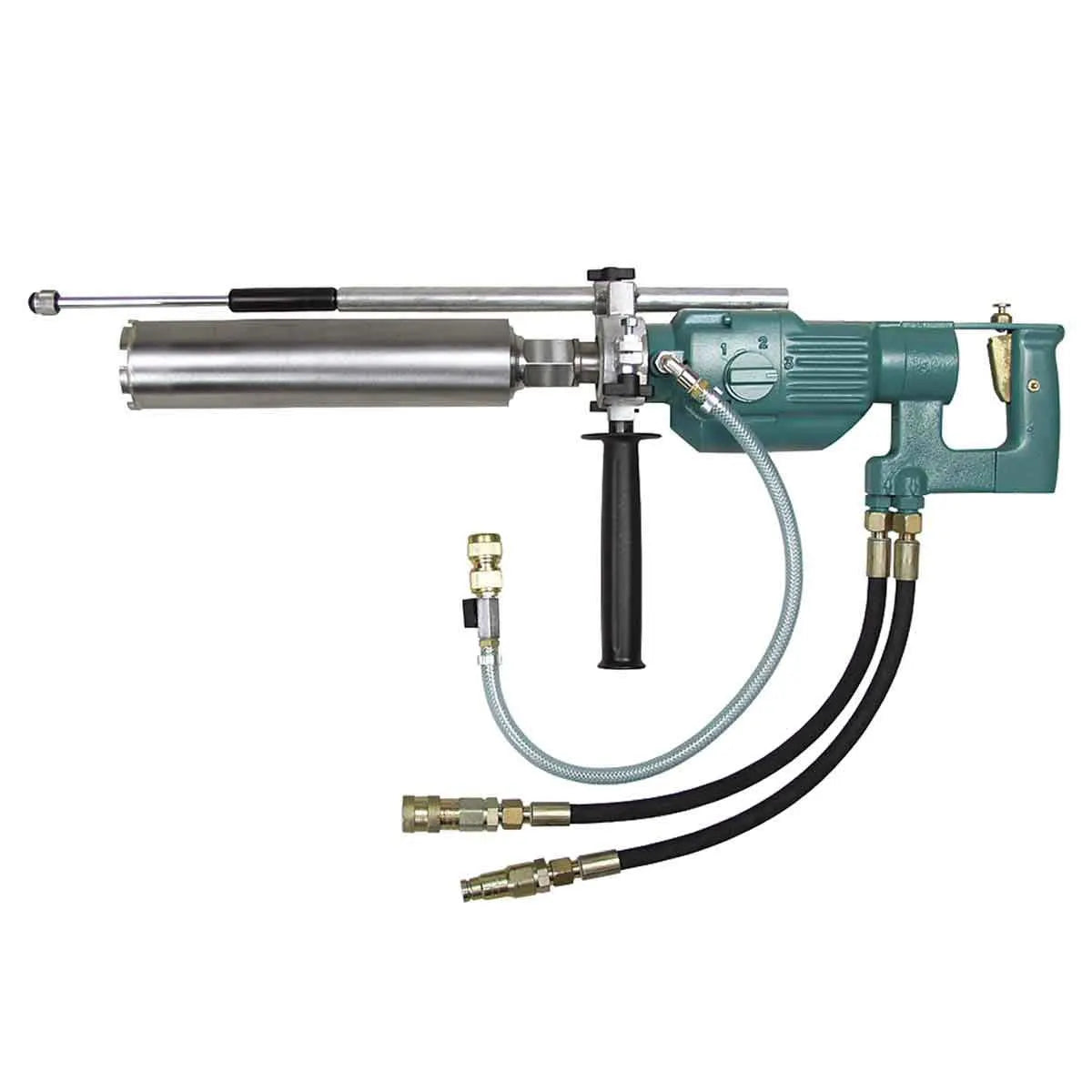

CS Unitec 6" Hydraulic Wet Core Drill
Powerful 3-speed hand-held hydraulic core drill designed for fast, accurate drilling in concrete, reinforced concrete, and other masonry materials. Use it hand-held to 3" diameter or mounted in a drill stand up to 6" diameter.
Features
- The hydraulic motor operates at 2000 PSI oil pressure
- The required flow is 6 GPM. Additional flow is automatically by-passed back to the tank up to a maximum input of 13 GPM
- The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8" x 11 UNC and 1-1/4" x 7 UNC and G 1/2" connecting threads are standard
- Options include an anchor stand (with or without vacuum pump), centering aid, portable water tank, water collection ring kit
- It can be used with a drill rig to keep stationary
What's Included?
- CS Unitec 6" Hydraulic Wet Core Drill
- Heat-treated Gears
- Safety Friction Slip Clutch
- 360° Rota table Handle
- Centering Aid - P/N 2 1315 6800
- Metal Carrying Case - P/N 5 1212 9000
- Operator's manual
| CS Unitec Hydraulic Wet Core Drill Specifications | |
| Motor | Hydraulic - 3 Speed Gear Box with Mechanical Slip Clutch |
| Power | 3.6 hp (2.8 kW) |
| RPM | 380/900/1,800 RPM |
| Bit Capacity | 3 in. Hand-held (6 in. Mounted on Stand) |
| RPM | 300/700/1,350 RPM |
| Oil Flow | 6 GPM (22 LPM) |
| Oil Pressure | 2,000 PSI (140 Bar) |
| Flow Control Valve | Up to 13 GPM (50 LPM) allowed |
| Hose Diameter | 1/2 in. ID Hose with 3/8 in. Couplings |
| Bit Connection | 1-1/4 in. x7 UNC, 5/8 in. x 11 UNC, G 1/2 in. |
| Weight | 16 lbs (motor only) |
