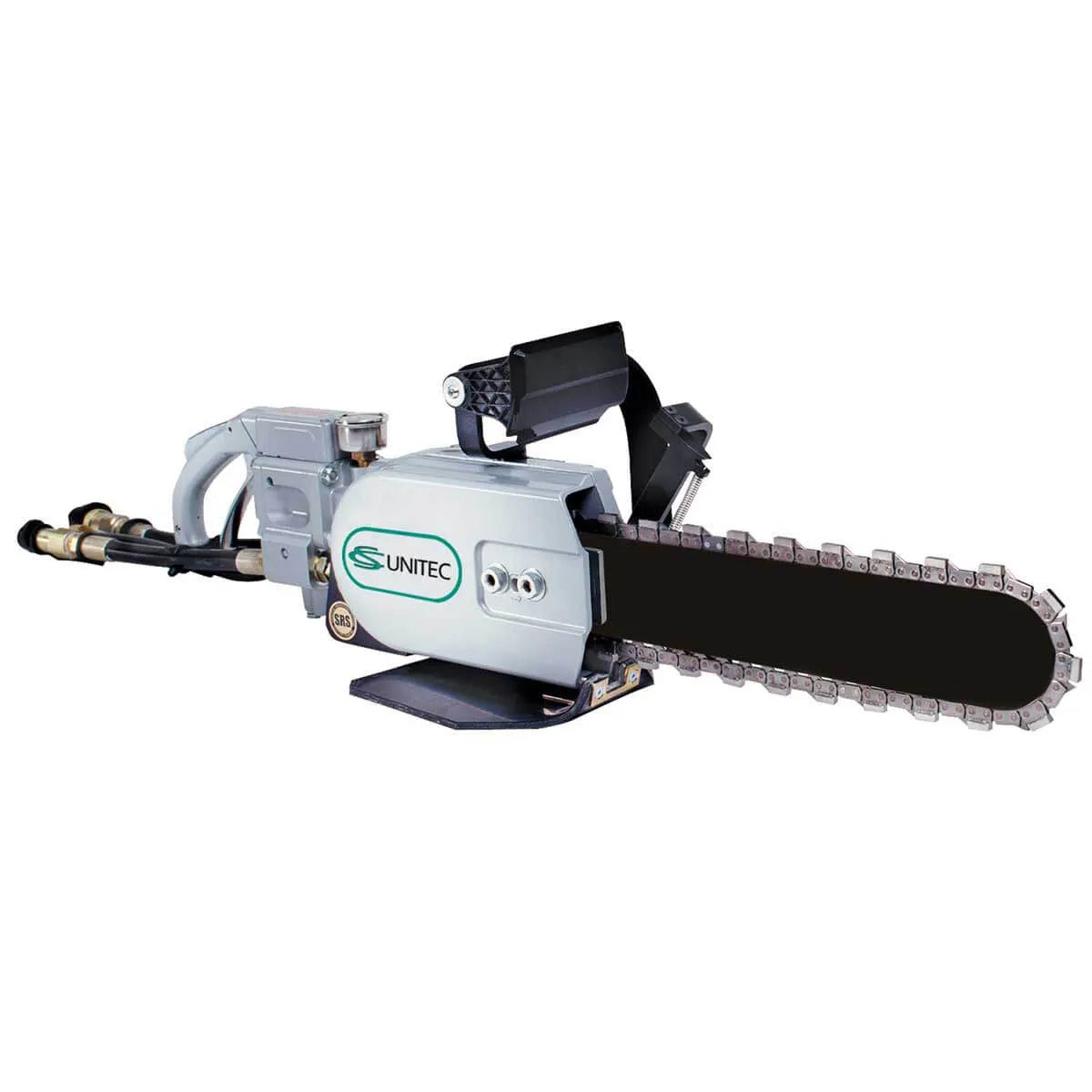

CS Unitec Hydraulic Concrete Chain Saws

CS Unitec Hydraulic Concrete Chain Saws with AirFORCE F4 Diamond Chains are optimized for pneumatic and hydraulic chainsawing. The unique versatility of a concrete cutting chain saw includes the ability to cut small mechanical openings, deep plunge cuts, perfect corners, and an endless variety of irregular shapes that are impossible with circular saws.


Features

  • Cut with ease, speed, and portability through reinforced concrete, brick, block, concrete pipe, and natural stone
  • Designed to cut through walls, floors, and columns in a single pass
  • For the professional concrete cutter built tough to stand up to everyday use in the harsh environment of concrete cutting
  • While other folks are cutting with ordinary saws, you can cut faster, cheaper, and more reliably
  • Dependable, powerful 11 hp Hydraulic power for heavy-duty mining, utility, marine, and construction applications
  • Specifically designed for the demanding requirements of professional sawing and drilling contractors
  • Safety operating trigger prevents accidental starting

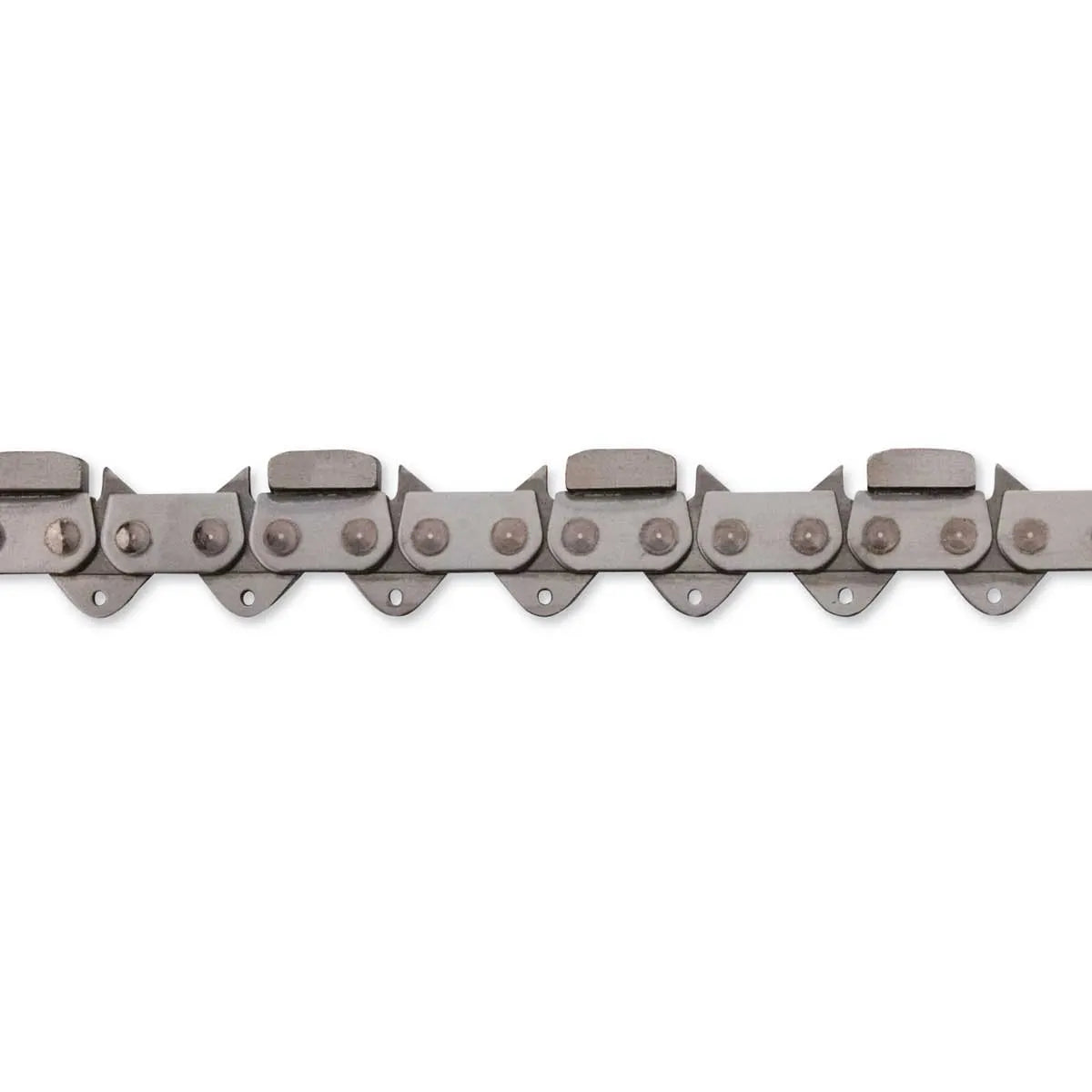

  • Now, with the AirFORCE F4 Diamond chain optimized for use with pneumatic and hydraulic saws
  • Deep plunge cuts up to 10" deep
  • Perfect square corners with no overcuts
  • Cut mechanical openings and irregular shapes
  • The durable industrial finish on the die-cast aluminum body stands up to harsh environments
  • Built-in Wall walker provides leverage advantage to make cutting easier
  • Modular design for easy service, reliable and easy to maintain; no belts, carburetors, or fuel lines to maintain
  • A Stretch Reduction System (SRS) maximizes chain life and reduces the need for adjustments
  • No gas or engine fumes to deal with Low cost of operation pays for itself every time you use it with faster cutting and completion of most jobs in a fraction of the time other saws would take


What's Included?

  • CS Unitec Hydraulic Concrete Chain Saw
  • Guide Bar
  • Force F4 Diamond Chain
  • Operator's manual


CS Unitec Hydraulic Concrete Chain Saw Specifications
Model CS 566110-1 CS 566110-2 CS 566110-3
Motor Hydraulic Hydraulic Hydraulic
Power 11 hp 11 hp 11 hp
No Load RPM 5,700 RPM 5,700 RPM 5,700 RPM
Oil Flow 8 GPM @ 2500 PSI (172 bar) 8 GPM @ 2500 PSI (172 bar) 8 GPM @ 2500 PSI (172 bar)
No Load Torque 95 lbs. 95 lbs. 95 lbs.
Max Depth of Cut 10" 15" 20"
Noise Level (at 3 ft.) 88 dB 88 dB 88 dB
Weight 28 lbs. 29 lbs. 30 lbs.
