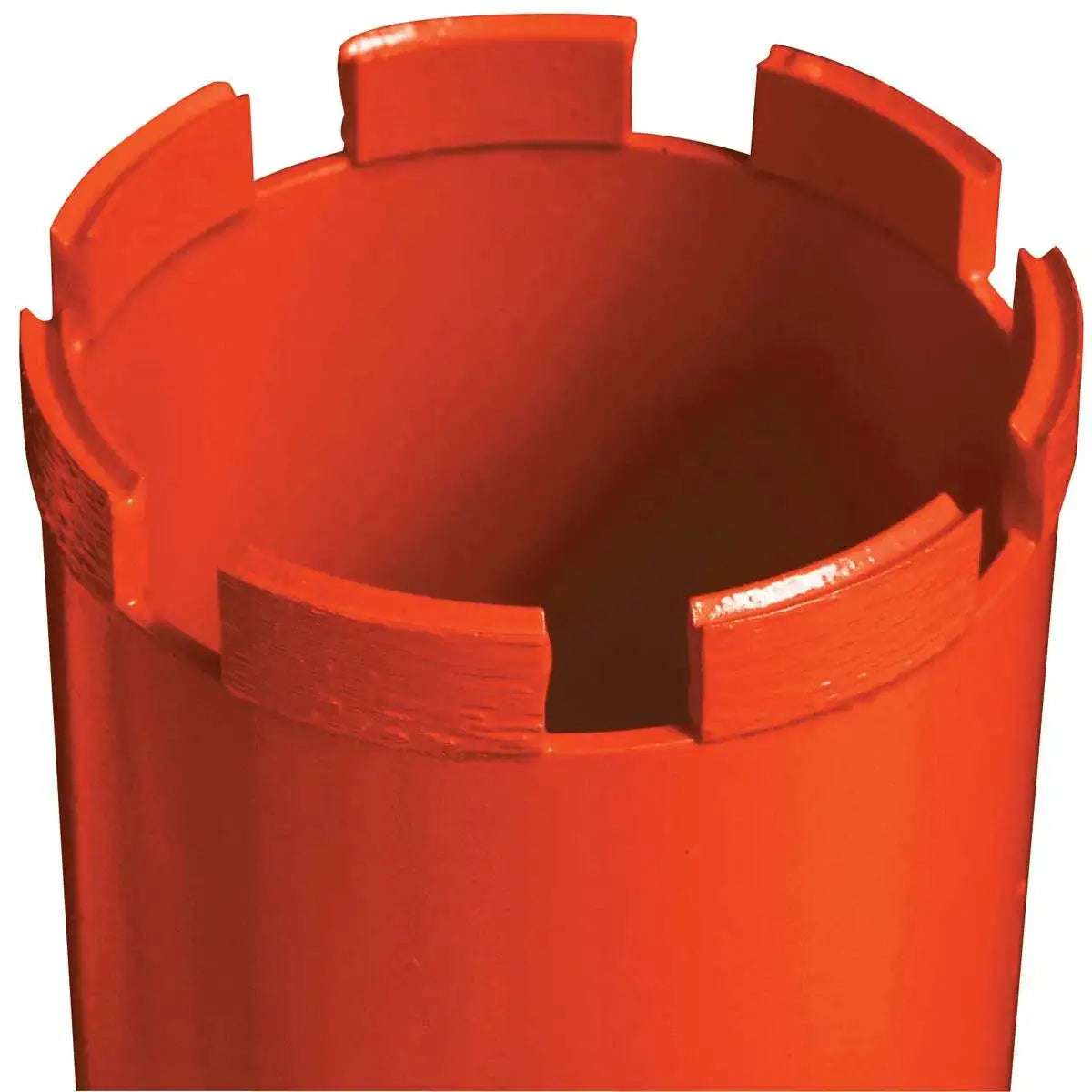

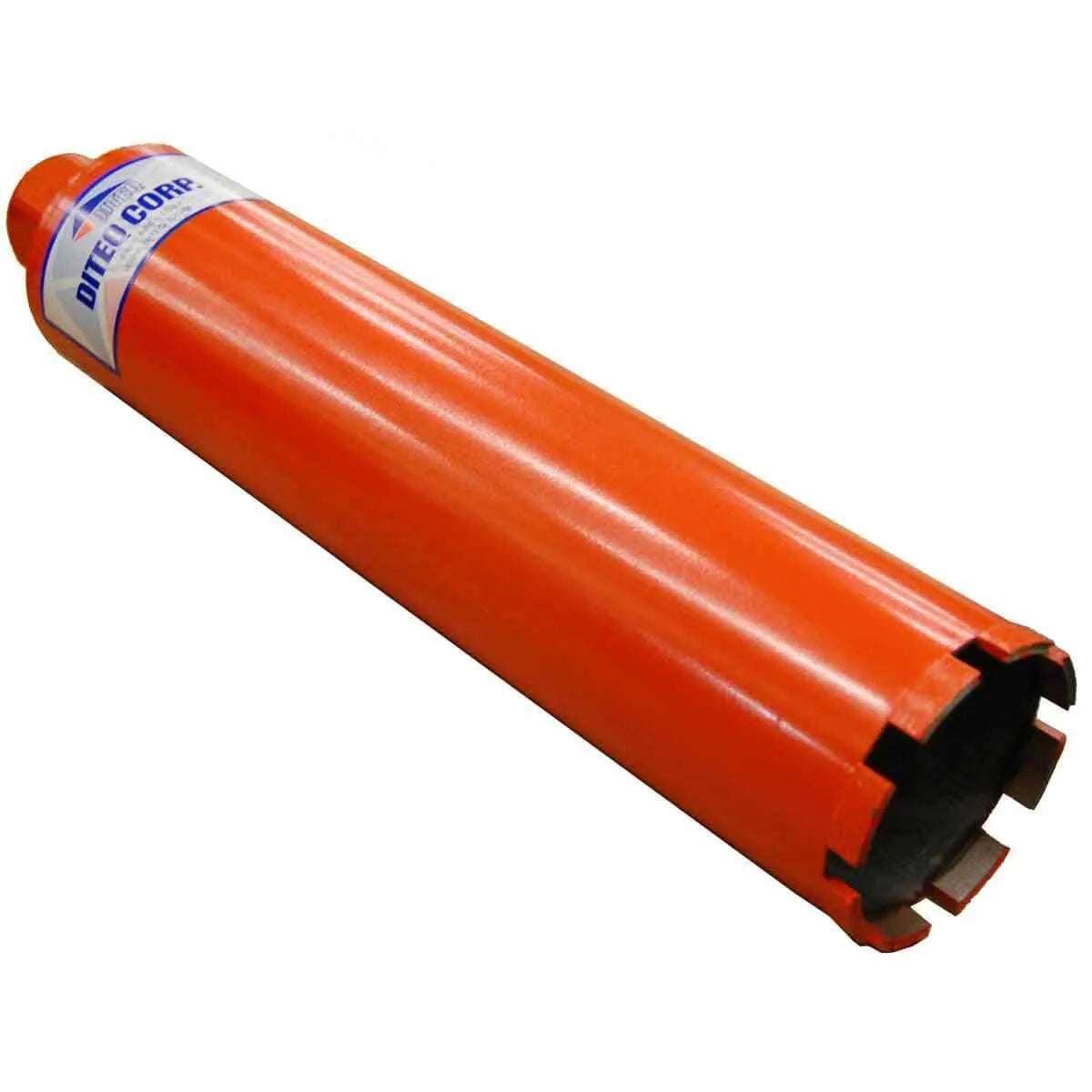

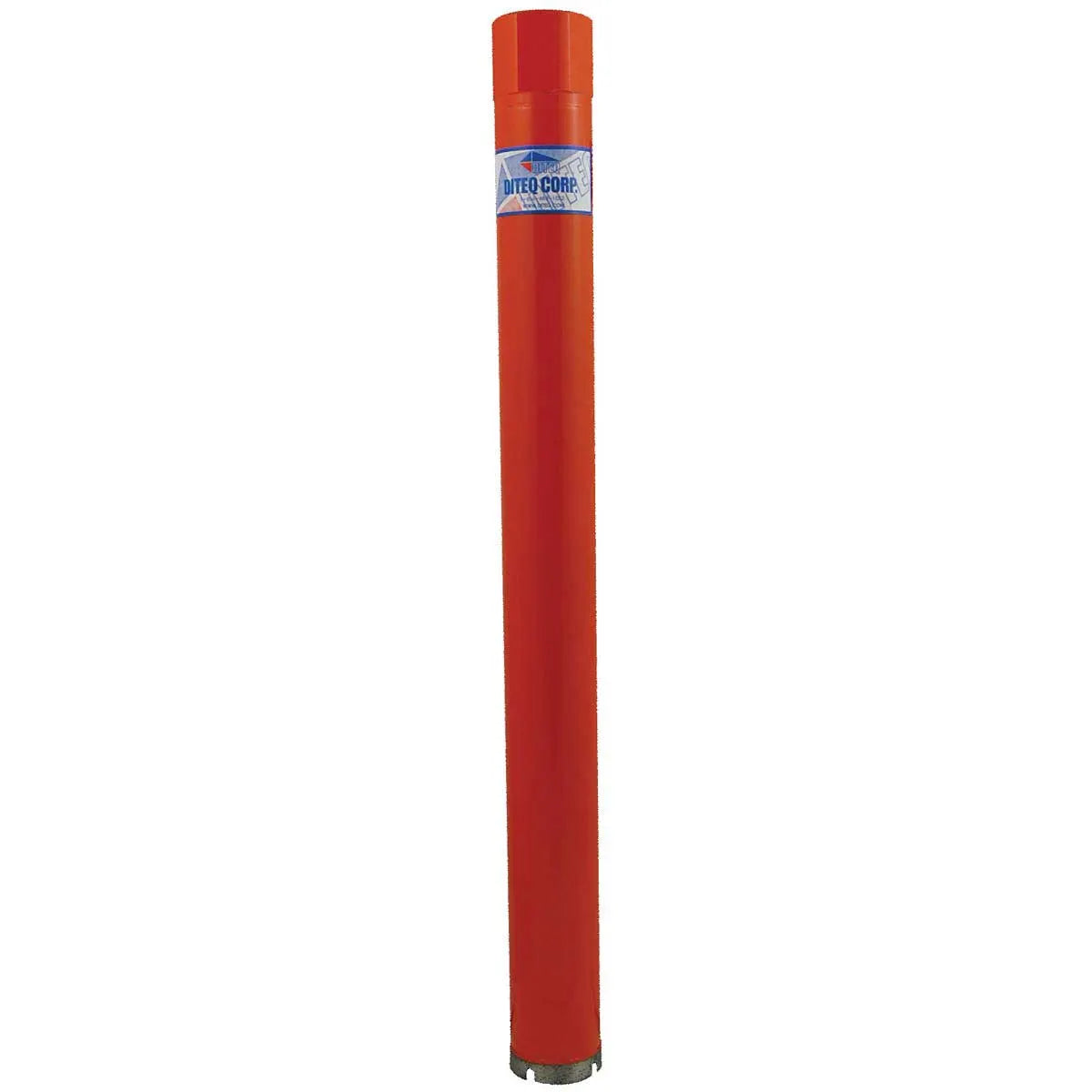

Diteq C-52 Wet Diamond Core Bits

Diteq C-52 Wet Diamond Core Bits

Diteq's C-52 double pointed core bits have specially formulated diamond segments that allows it to drill through cured concrete with hard aggregate and heavy steel quickly and smoothly.

Features

• Faster drilling with the double-pointed segments provide incredibly fast drilling speeds
• Fast seating and reduced vibration, the double-pointed tips penetrate quickly, and hold a straight drilling path to reduce side drag
• Reduced vibration improves drilling efficiency and bit life
• Improved cooling and slurry removal the double pointed segments increases water flow to reduce heat and removed slurry more efficiently
• Specially formulated segments contain high concentrations of quality diamonds combined with a special blend of metal powders to deliver maximum performance with lowest drilling costs
• Wide spaced segment design with tall segments, (.420")
• 1" to 1-1/2" = 5/8"-11 Threaded Hub
• 1-5/8" and up = 1-1/4"-7 Threaded Hub
• 1" to 6" Bits diameter are Laser Welded
• .420" / 10.7mm Segment Height
• Any length available upon request

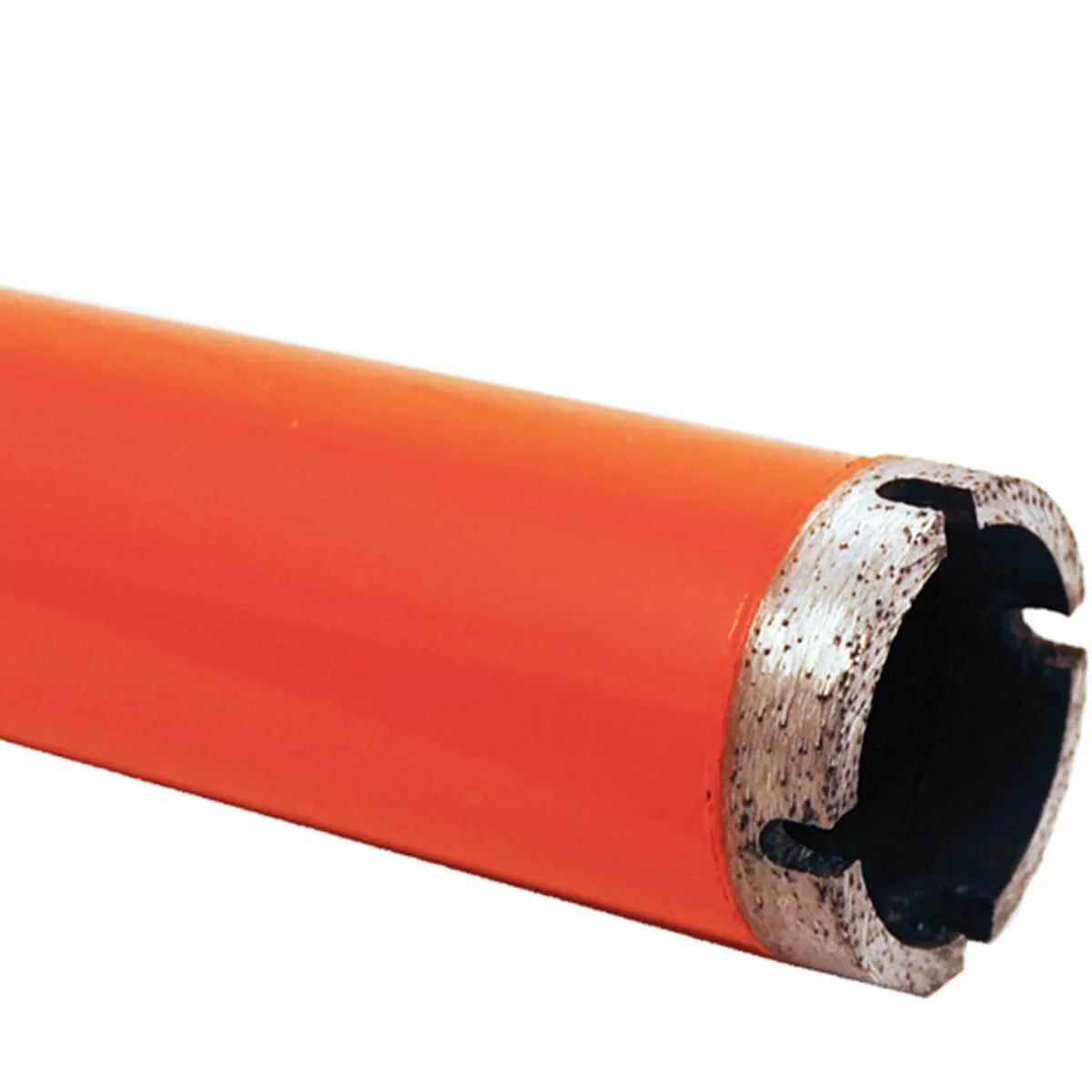

Improved C-52 Small Diameter Core Bits

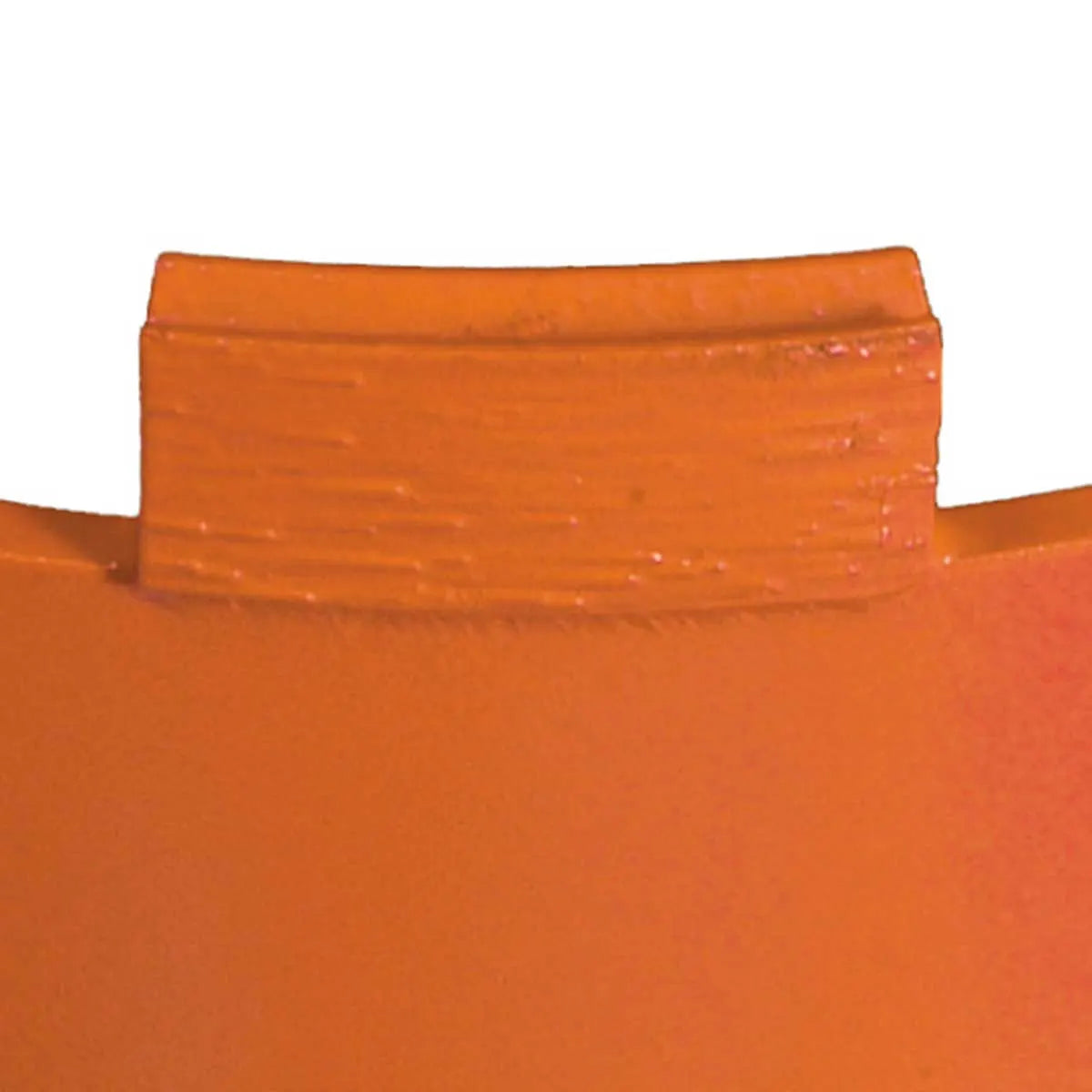

• 1" to 1-7/8" diameter are now crown segments!
• Improved water flow with more water channels
• Improved Cooling and clean out of the cuttings
• Improved segment retention with increased base
• Faster drilling more aggressive segments
• Longer bit life
• Laser-welded

Wet Bit Specifications

• 1" to 14" bit diameter: 14" core travel
• 16" to 17" bit diameter: 20" core travel
• 18" to 19" bit diameter: 22" core travel
• 20" to 31" bit diameter: 24" core travel
