Drains Unlimited Linear Drain with 3 Side Return Flange

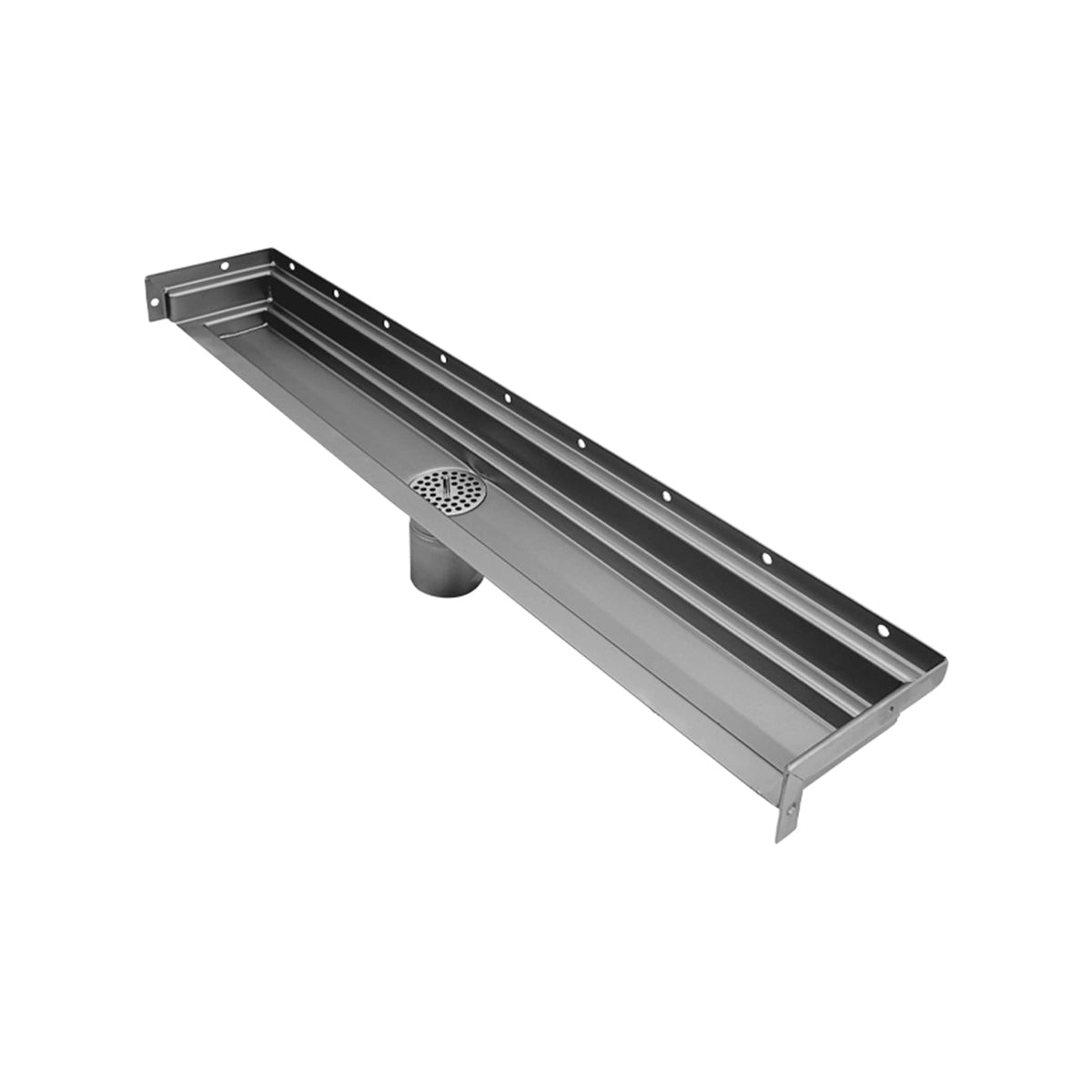

Drains Unlimited DUFR-TF Linear Floor Drain with Three Side Return Flange

The DUFR-TF Series of linear drains are designed to meet the classic appeal of traditional linear drains with the added benefit of a close wall installation. The innovative wall-mounted design eliminates the strip of tile between the back wall and the drain, typically requiring bonding the waterproofing or the need to float the finish tile for the same aesthetic appeal.

Features

• DUFR-TF Drain Grates are available in 3 different styles, with 3 different finishes
• The Three Side Return Flange is ideal for wall to wall installations with 1/8" to 3/8" thick wall tiles
• Made from heavy duty 304 stainless steel
• Textured flange ensures tight waterproof membrane seal between the flange and membrane
• Removable grate for easy cleaning and maintenance
• Single slope to drain
• 2-7/16in (61.13mm) outlet size
• Excellent corrosion resistance
• Shallow V-bottom design for better water flow to the drain outlet
• SANS10400 compliant 75mm water seal
• Textured flange to ensure a tight waterproof membrane seal to the drain body
• ***Full length measured between finish face of framing

Suitable Substrates

• Concrete
• Exterior glue
• Plywood (Interior only)
• Cement backer board
• Cement mortar bed
• Shower pans

What's included

• Drain Body
• Select Grate
• Two (2) Strainers
• Grate Hook
