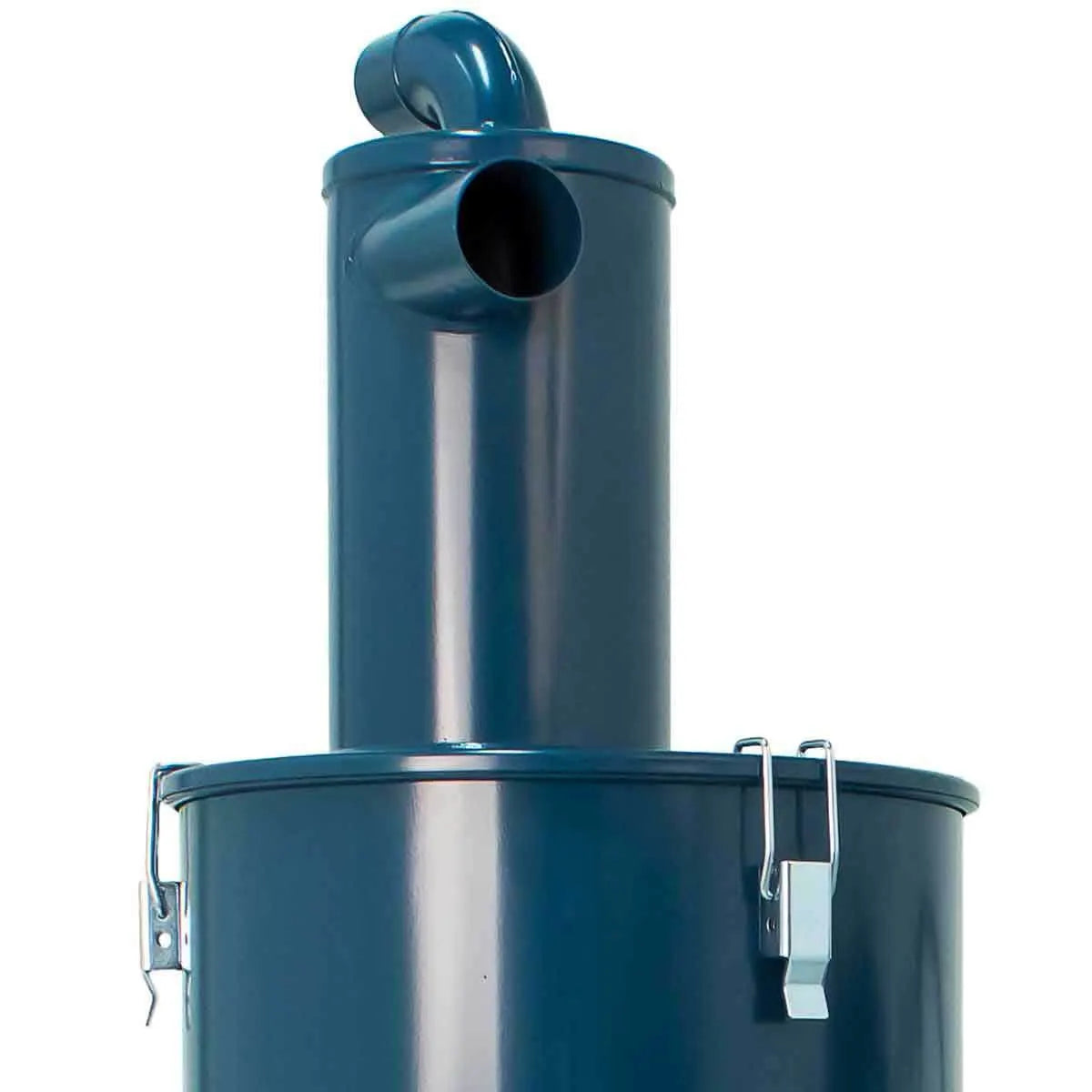

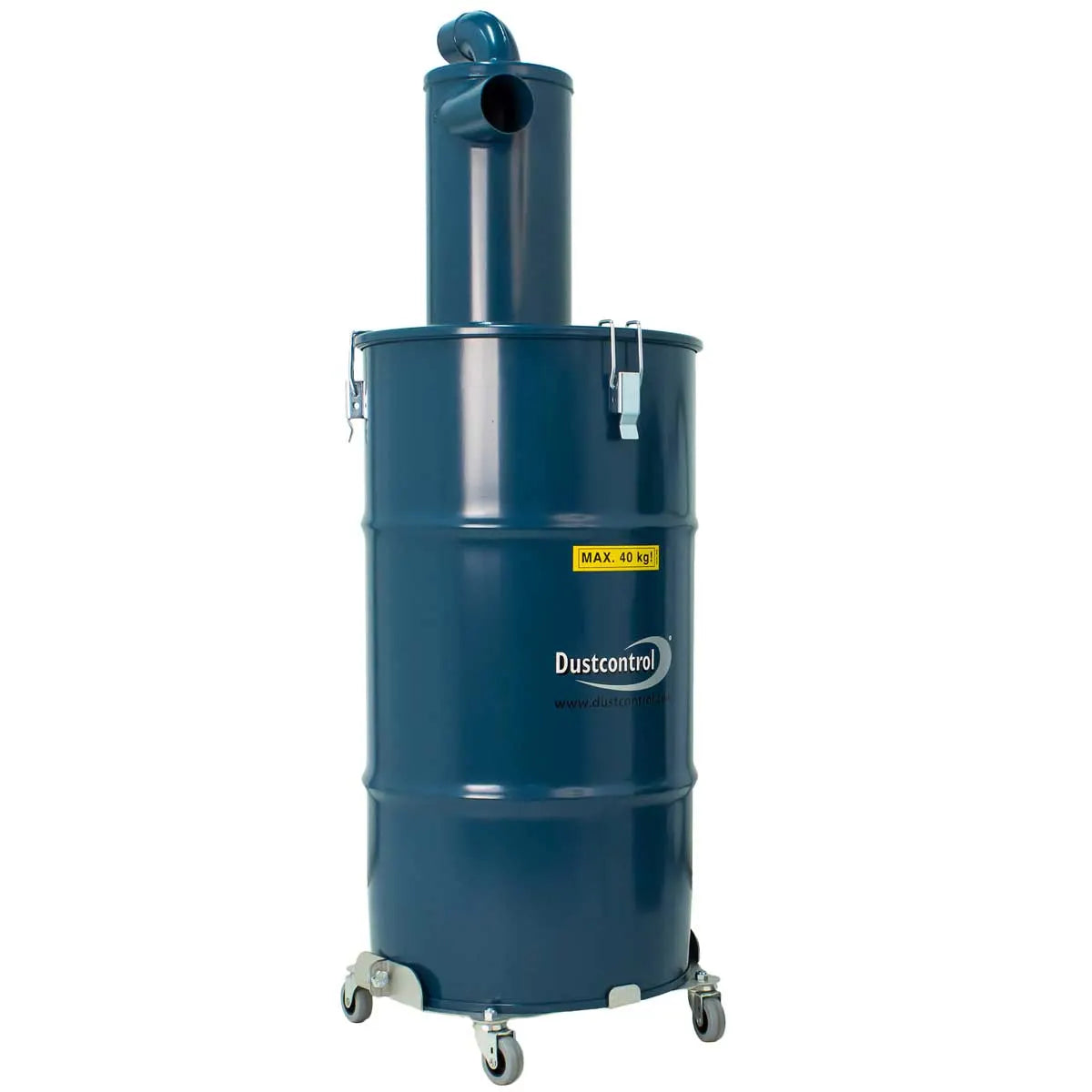

DustControl DCF60 Pre-Separator

DustControl DCF60 Pre-Separator

When large quantities of material are to be separated, it is advisable to use a pre-separator. The pre-separator can be placed at the work place or in conjunction with the central unit.

Features

• Especially suited for parquet grinding
• High speed cyclone
• For an easy transport the lock can be reversed an put into the container
• Robust steel container
• Can be connected to our dust extractors DC 1800 eco, DC 2900a/c eco and DC 3900a/c eco
• The pre-separator DC F60 can handle large quantities of dust, especially in the case of parquet grinding
• Due to its large inlet the pre-separator is also well suited to separate coarse dirt
• Because 90% of the dust is already separated in the DC F60, the number of emptying trips is reduced considerably for the user
• Can also be equipped with our tear-resistant plastic sacks (Part no 42285)

When a pre-separator is to be used the following should be considered

• Type of dust to be handled
• Where the unit should be placed and how emptying will be performed
• Expected airflow

Pre-separators should be used

• For material recovery
• Material transportation
• To reduce the loading on the ducting system
• To relieve loading on the central filter
• To reduce the risk for filter clogging
• When fluids are to be separated
• Pre-separators can be used in all applications where the extracted material is coarse or voluminous
• These can be placed in the actual workplace for separate handling or recovery of the extracted material, or centrally
• Pre-separators separate material from the air-flow using the action of a cyclone or with inertial separation. Inertial separators are generally configured as containers with the inlet and outlet in the same wall of the container
• When the air-flow changes direction abruptly, separation occurs for the particles with higher relative mass
