General Bor-Max Auger Bits

General Bor-Max Auger Bits

General Equipment Company Bor-Max Auger Bits are heat treated alloy steel capable of digging holes up to 30 inches deep without an extension. Offers excellent digging performance for small, hand-held type earth auger products when drilling through unconsolidated soil classifications such as loams, sands, soft clays and granular rubbles.

Features

• 2350 blade-type series earth augers and auger extension
• Designed to be used with the 200 series hole diggers

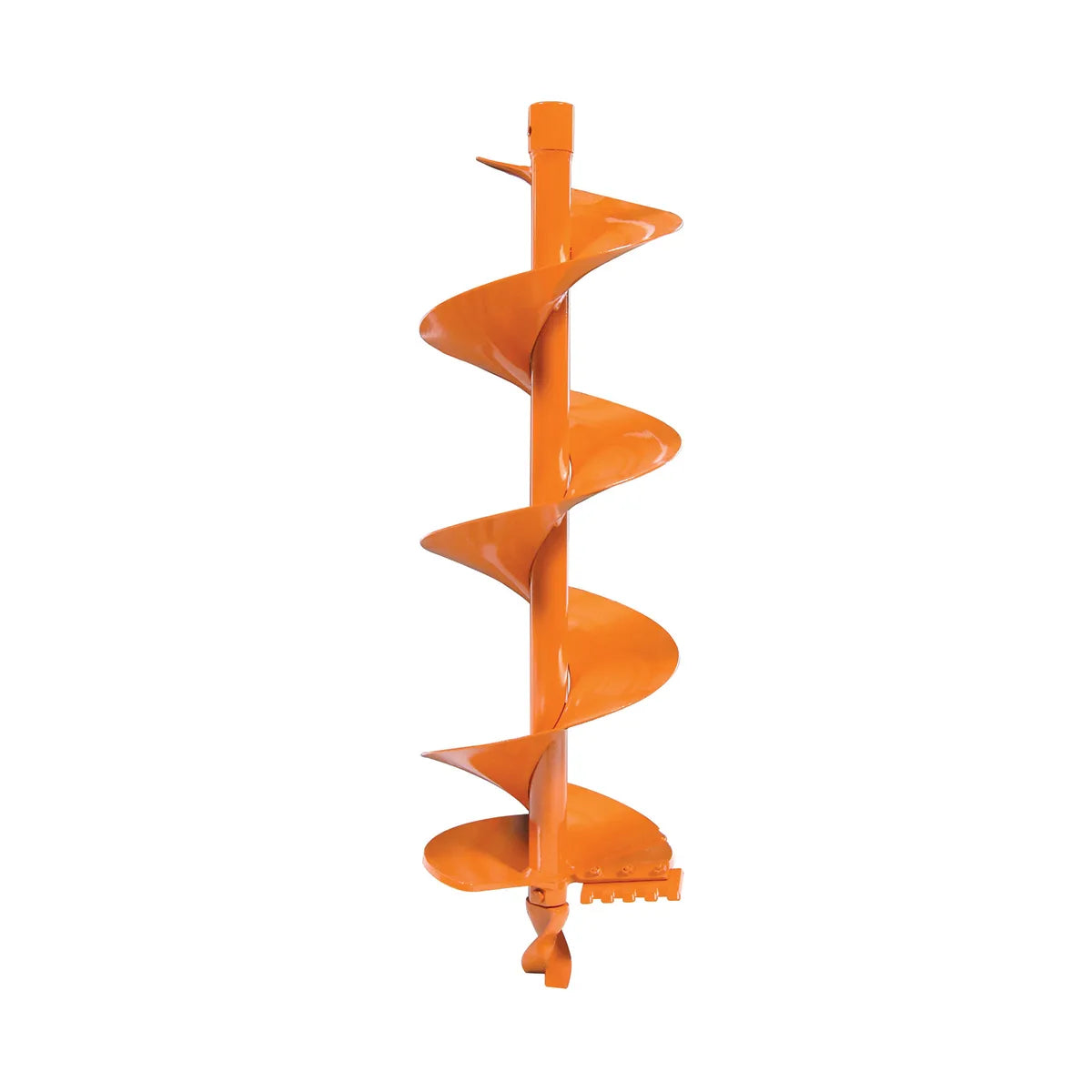

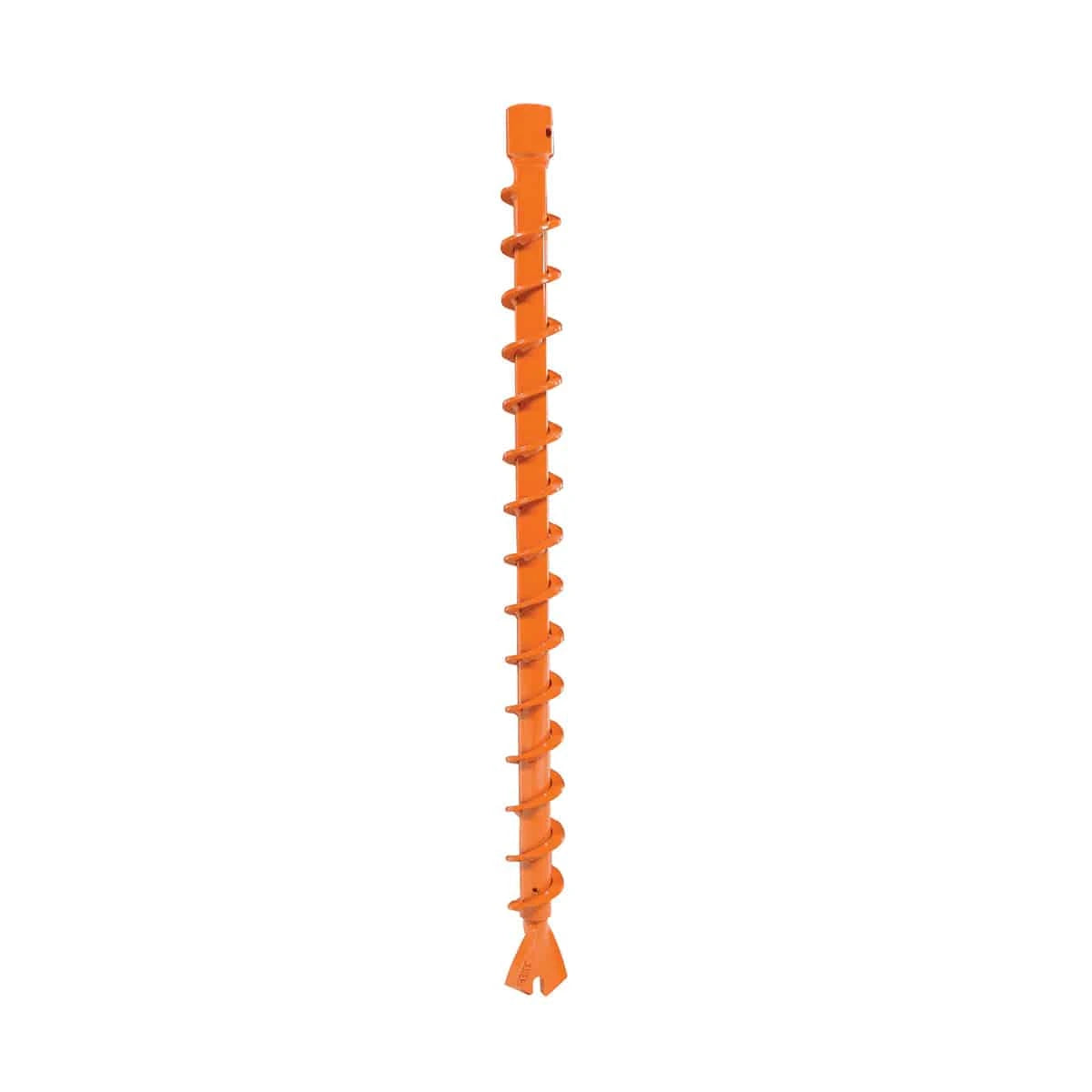

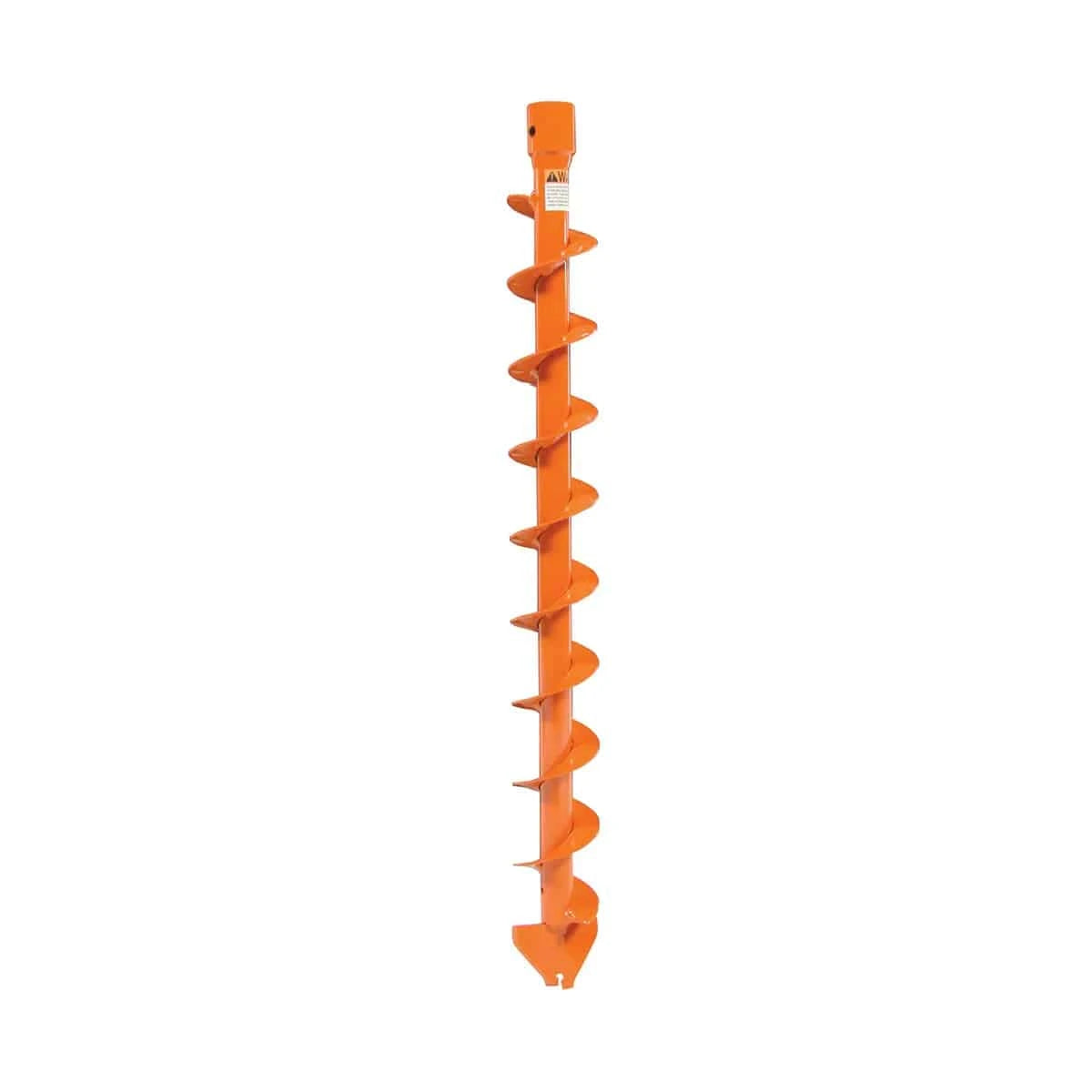

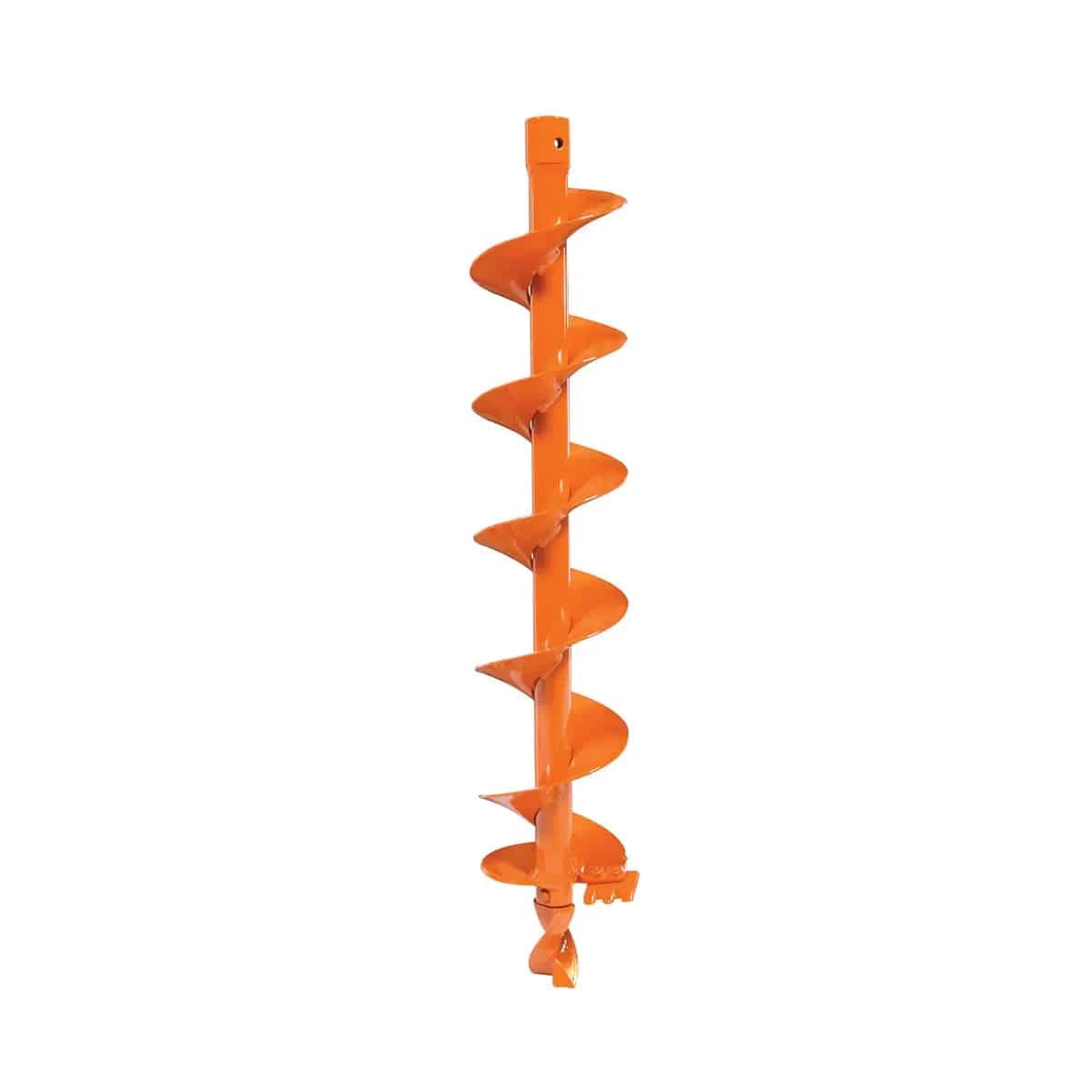

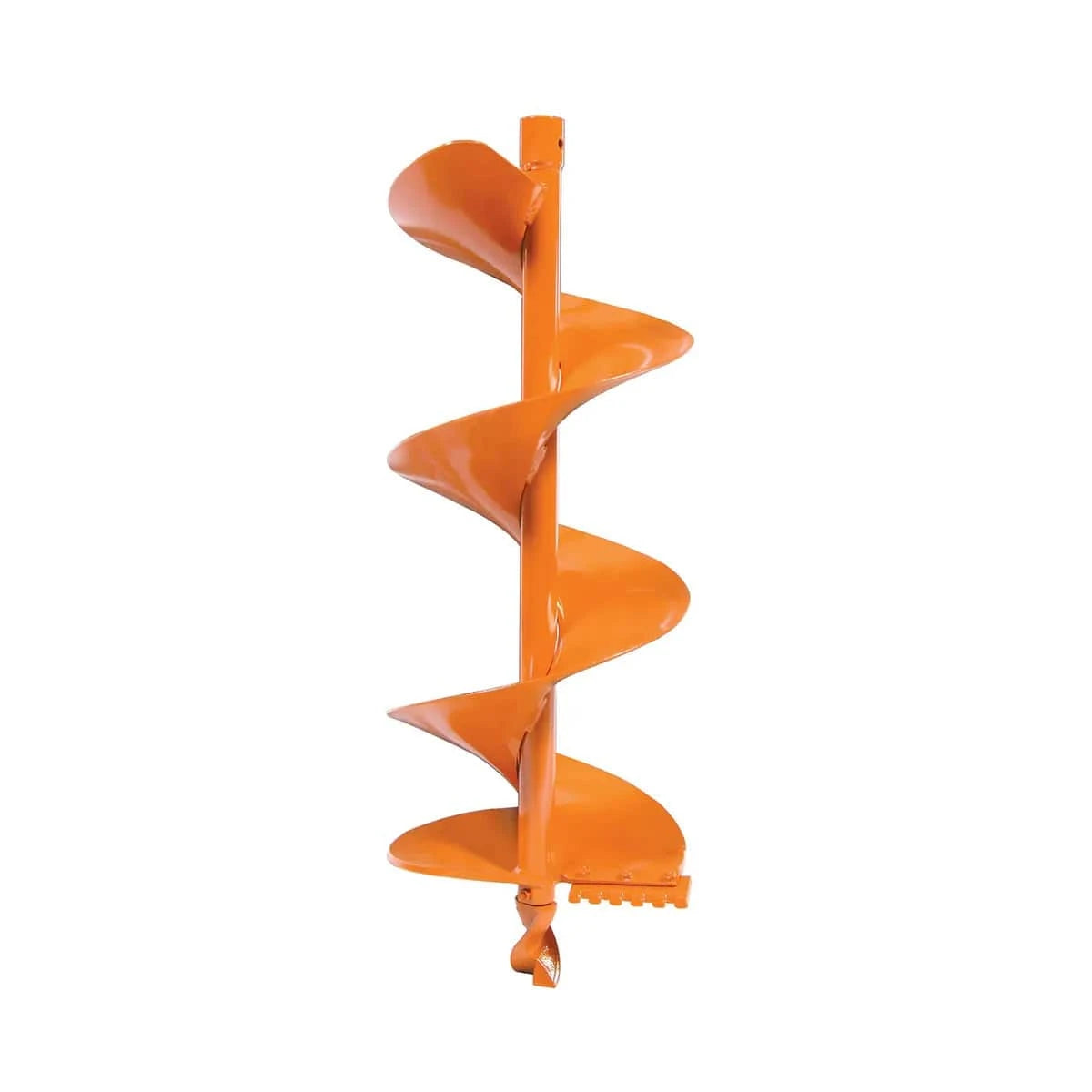

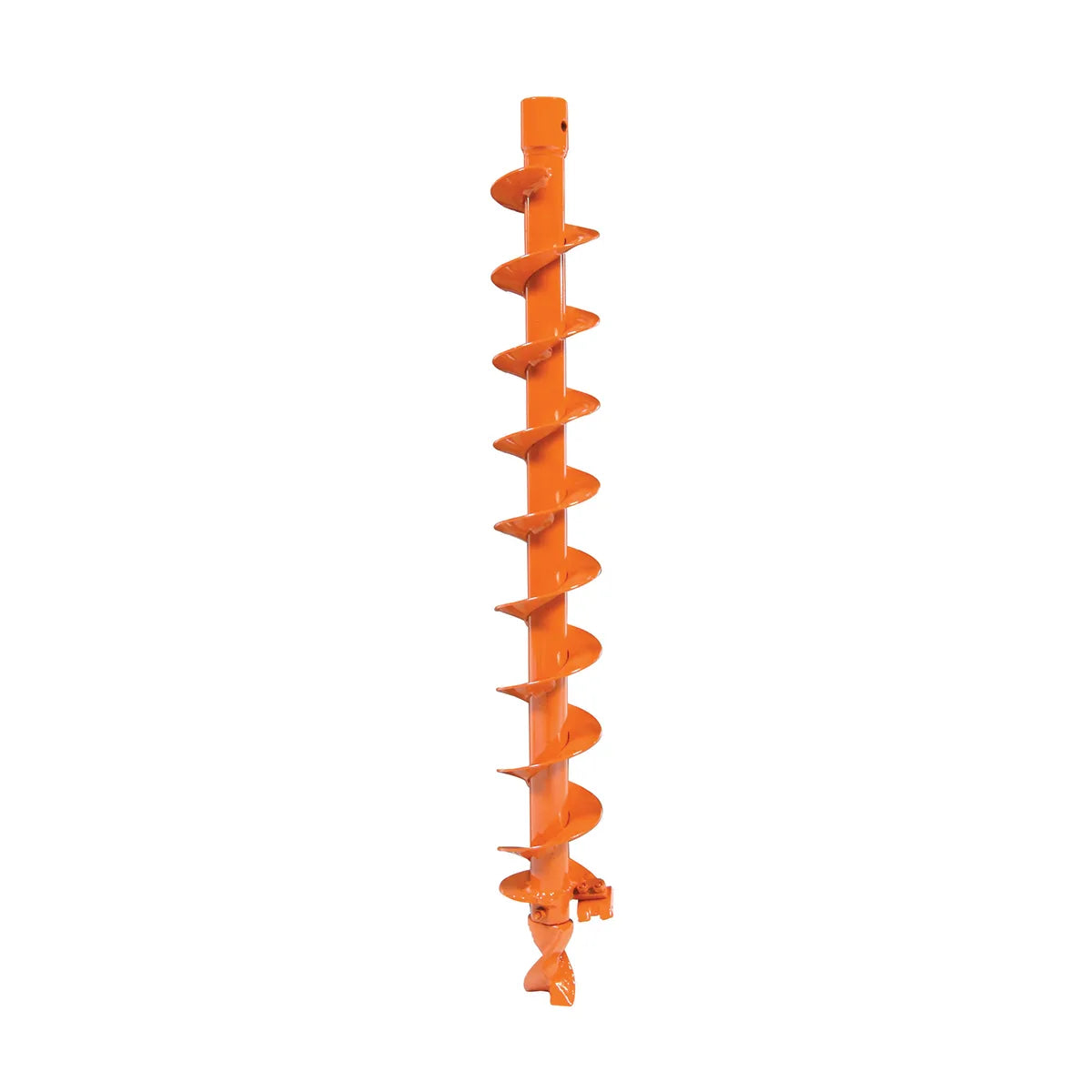

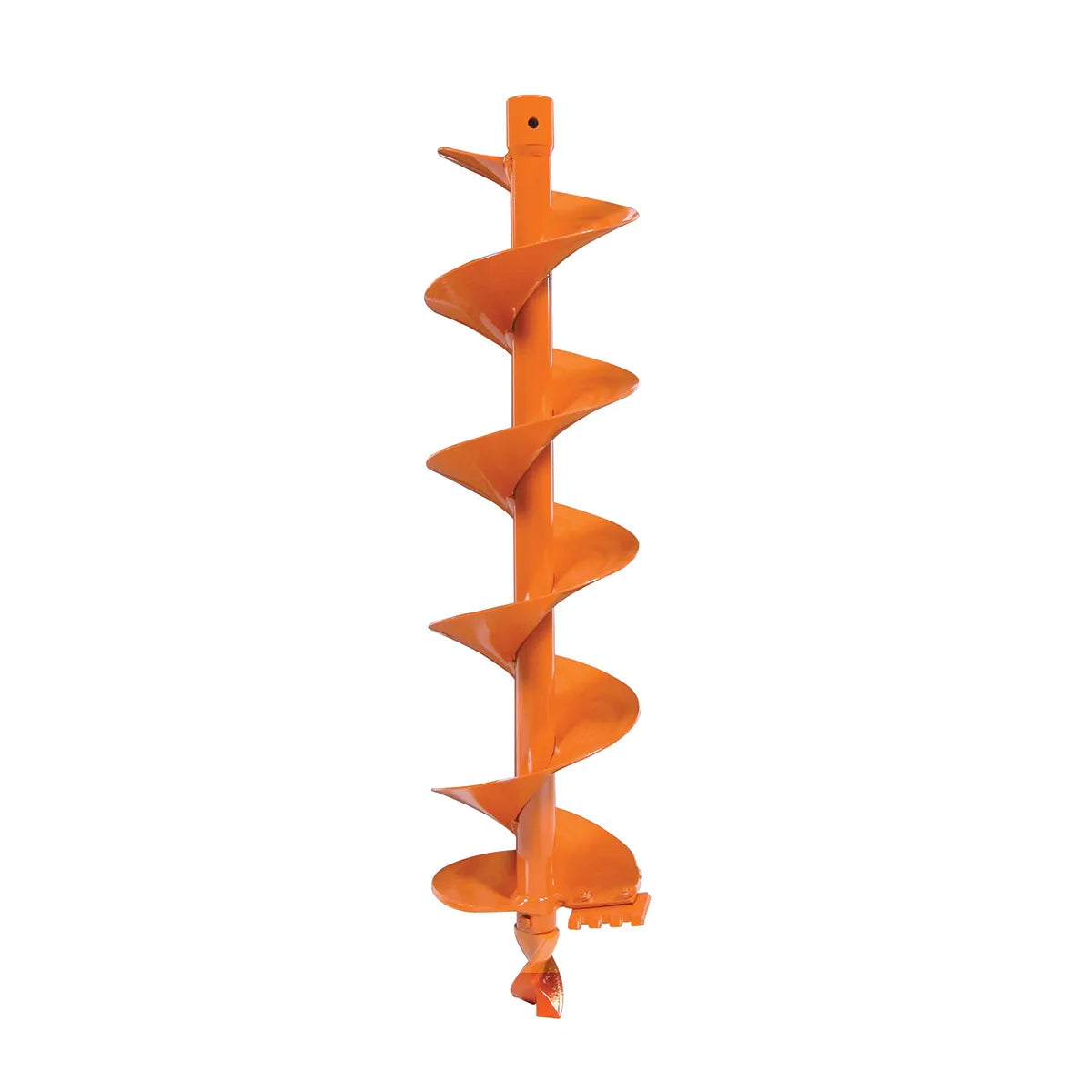

• Available in 2 inch (51mm) to 12 inch (305mm) nominal diameters
• Standard 30 inch (760mm) effective auger digging length without extension

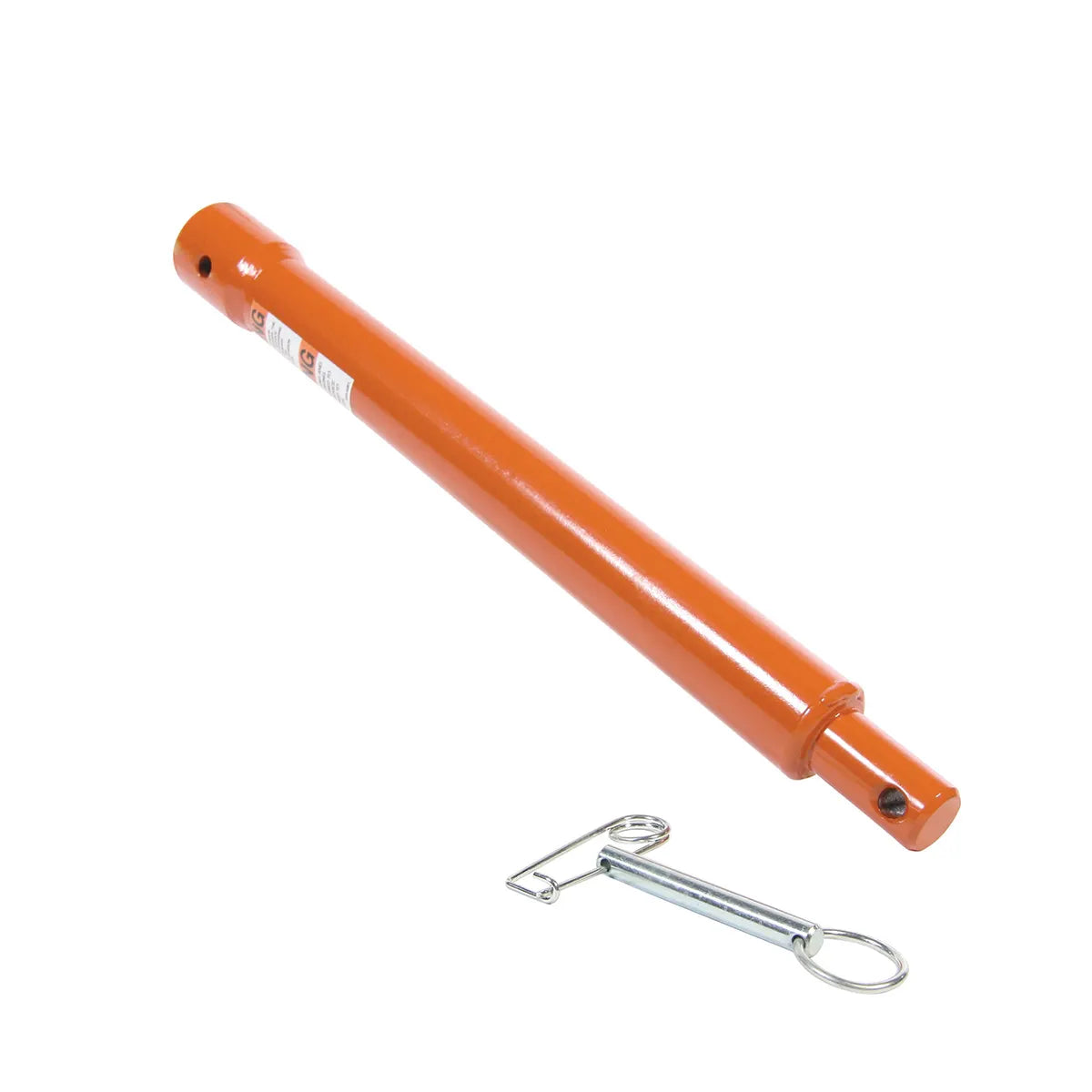

• The plain shaft-type auger extension can be used with all augers and increases the digging depth by 15 inches (381mm) making all bits capable of digging a 45 inch hole (1143mm)
• Heavy-walled axle to better withstand bending and torque loads
• Heavy-gauged helicoid flighting for added structural strength
• Cupped flighting produces cleaner holes with less spill back
• The flighting pitch also minimizes the power required and maximizes the amount of soil removed from the hole
• Cast steel boring head for maximum strength and service life
• Cutting blade side clearance extends out past the flighting to minimize flighting wear and extend service life
• Field replaceable centering screw bit
• Field replaceable steel cutting teeth
• 1 inch (25mm) diameter round auger drive connection
• 3/8 inch (9.5mm) diameter auger pin connection
• All bits are 30 inches in length
• Extension bit is 15 inches in length
• All auger bits and extension come with a pin connection
