Husqvarna T-Line Dust Extractors

Husqvarna T-Line Dust & Slurry Collectors

The Husqvarna T-Line Dust Collectors are industrial-grade dust collectors that pair with Husqvarna planetary grinders in addition to other concrete equipment like scarifiers, shot blasters and saws. They are ideal for heavy-duty applications and high-demand dust extraction. They are equipped with a quiet, yet powerful turbine motor delivering exceptional airflow. Includes a reliable filter system with a high collecting efficiency and a long filter life. It can easily deal with large quantities of fine dust.

Features

• Equipped with two oversized, certified HEPA (class H13) filters
• Pre-filters can be cleaned from outside of the tank via the Jet Pulse negative air pressure
• Sock-style pre-filters that allow for nonstop grinding and a long service life
• Longopac® bag hose system ensures simple, dustfree bag changes
• Easy-to-read airflow monitoring alerts you when the filter needs to be cleaned or changed.
• Excellent stability and mobility The slim design, solid non-marking tires, swivel casters and hitch for attaching a separator allows for excellent mobility and stability.

Husqvarna T-Line Dust Collectors

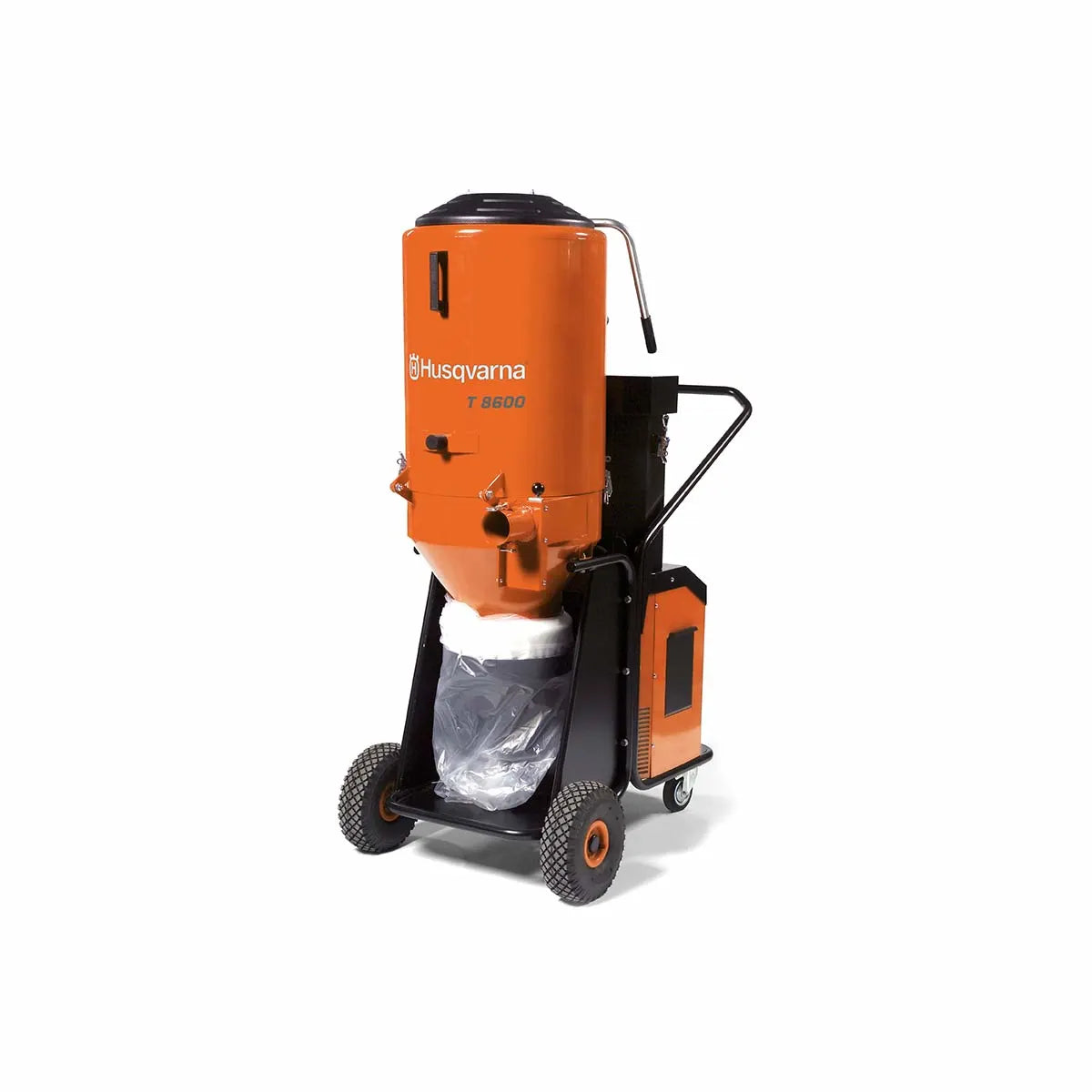

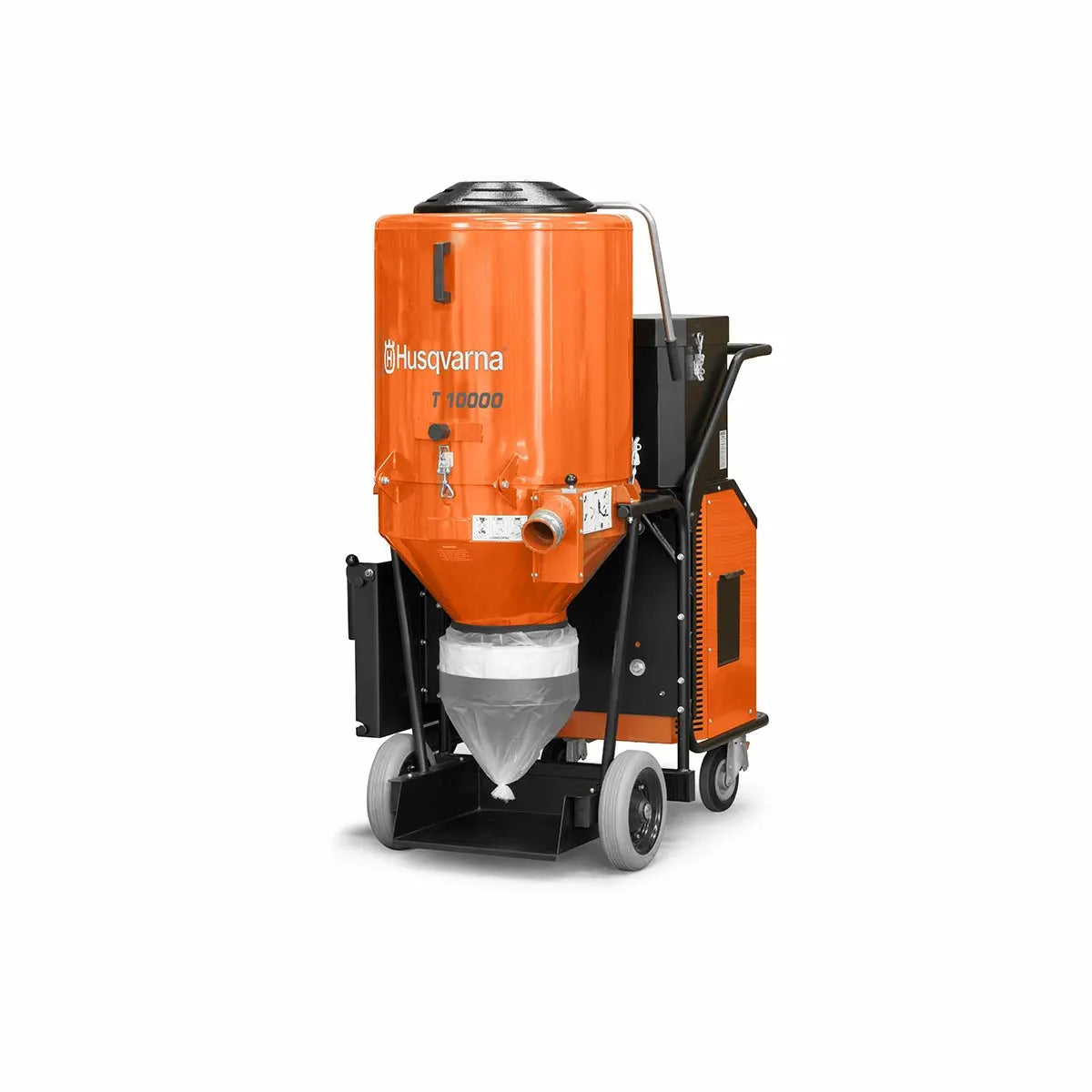

Model	T7500 230V	T8600 480V	T10000 480V	T18000 480V
Voltage (3-phase)	230V	480V	480V	480V
Power	7.5 kW | 10.1 HP	8.6 kW | 11.5 HP	12.6 kW | 16.9 HP	18 kW | 24.1 HP
Airflow	600m3/h | 353 cfm	600m3/h | 353 cfm	816m3/h | 480 cfm	1206m3/h | 710 cfm
Vacuum	28kPa | 110 in	24kPa | 110 in	30kPa | 120 in	35kPa | 140 in
Main Hose	32' x 3"	32' x 3"	32' x 3"	32' x 3"
Inlet	3" Camlock	3" Camlock	3" Camlock	3" Camlock
Sound Level	74dB(a)	74dB(a)	74dB(a)	78dB(a)
Dust Collection	Longopac	Longopac	Longopac	Longopac
Dimensions (LxWxH)	49 x 27 x 69 in	55 x 29 x 68 in	55 x 29 x 68 in	55 x 31 x 71 in
Weight	206 kg | 454 lbs	336 kg | 740 lbs	336 kg | 740 lbs	408 kg | 900 lbs
