ICS 695XL-F4 Concrete Chain Saw Package
$3,61179 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: ICS
| SKU: 3179-16in Bar
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

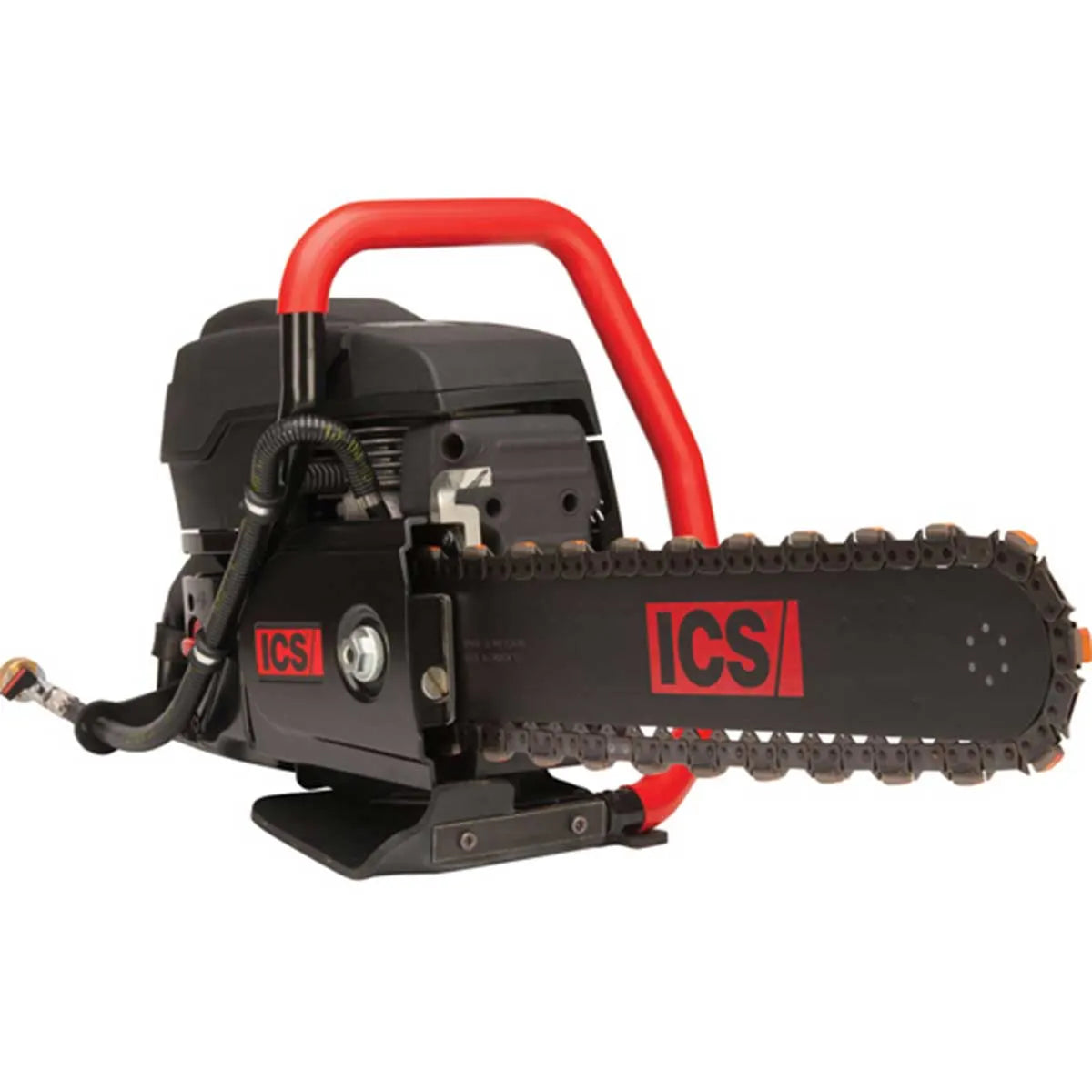

ICS 695XL-F4 Concrete Chain Saw
The 695XL-F4 concrete chain saw is a versatile gas power saw for cutting concrete and ductile iron. Based on the best-selling 695 saw platform, it features many upgraded components, including an easy-to-start engine ignition system, easy-to-tune carburetor, reinforced muffler, and redesigned cylinder and piston. This ICS concrete chain saw has 12" or 16" guide bars and can be equipped with any MAX, ProFORCE, or PowerGrit diamond chain.
Features
- Highly versatile concrete chain saw used to cut concrete, masonry, stone, cast iron pipe, ductile iron pipe, and more
- Redesigned piston and cylinder for cooler engine temperature
- Upgraded muffler with reinforced internal baffle
- Easy to start, high-energy ignition system
- The new carburetor is easy to tune
- Advanced rear-ported intake keeps airflow slurry-free
- Retained single-nut bar clamp provides simplified bar clamping with no parts to lose
- Polyester air filter designed specifically for wet cutting
- Patented Wall-Walker for straighter cuts and lessened operator effort
- Available with 12" (30 cm) or 16" (40 cm) guide bars for deep penetration
- Extended drive sprocket adapter offers easier chain assembly
- Over-sized tension screw for easier chain tensioning
- Great for irregularly shaped holes or concrete pipe, minimizing the patchwork associated with breaking and chipping
ICS 695XL-F4 Concrete Chain Saw Advantages
- Versatile and easy to use in tight spaces
- Deep cuts up to 16"
- Can cut irregular shapes and square corners without over-cuts
- No power pack is required
- Safe to operate, no "kickback"
- Wet-cut, no hazardous dust
| 695XL-F4 Concrete Diamond Chain Saw Specifications | |
| Blade Size | 14 or 16-inch guide bars |
| Power (Gas) | 6.4 hp |
| No Load RPM | 9,000 |
| Depth of Cut | 16 inch |
| Dimensions | 18" x 14" x 12" |
| Weight | 21 lbs (powerhead only) |
ICS 695XL-F4 Technical Data
- Engine Type: 2-stroke, air-cooled
- Displacement: 5.7 cu.-in. (94 cc)
- Horsepower: 6.4 hp (4.8 kW) at 9,000 rpm
- Torque: 50.4 in-lbs (5.7 Nm) at 7,200 rpm
- Engine Speed: 9,300 +/- 150 rpm (max), 2,700 +/- 100 rpm (idle)
- Maximum Chain Speed: 5,500 ft./min. (28 m/s)
- Starter: Recoil, dust and water resistant
- Ignition: Special water-resistant electronic ignition
- Fuel Ratio: 50:1 (2%) gas-to-oil
- Fuel Capacity: 0.26 gallon (1.0 liter)
- Minimum Water Supply: 20 psi (1.5 bar)
- Minimum Water Flow: 1 GPM (4 lpm)
What's Included?
- (1) ICS 695XL-F4 Power-head
- (1) ICS 12" or 16" FORCE4 Guide-bar
- (1) ICS ProFORCE Chain
