Can the small 50 pump continuously ?

Yes, the small 50 uses a 100% duty motor that can truly run continuously 24/7. The inverted features a high temp shut down if ever needed.

How do I adjust the stator?

The small 50 as an adjustable stator, as abrasive material containing sand go thru will wear the stator over time. The adjustable bolts on the stator will squeeze a tighten the rubber inside the stator to maintain proper pressure.

How long will a rotor and stator last?

It s material dependent, when using a silky smooth material such as straight Portland cement very little wear will occur but If using a product that is very abrasive such as Euchoshot or with silica fume then maybe just a few hundred bags. Routine maintenance should be performed at the end of each work day to ensure that the rotor & stator are well calibrated. Tip-- To calibrate the stator, fill the hopper with water, set the speed to 50Hz, attach the material hose to the end of the pressure gauge. Kink the hose as you would a water hose and turn on the pump. The pressure gauge should read 120 to 140 PSI. if not then tighten evenly the 3 adjustable bolts on stator. If the pressure can t be reach then it s time to replace rotor and stator.

What is the max aggregate size can I pump?

Do not use the stator with aggregate over 3/16", Sharp stone can also wear rubber stator prematurely. A rounded gravel would work best using no more than 30% stone per batch.

How many fireproofing bags can it pump per hr ?

You will spray 7 to 10 bags per hour depending on the density and the strator used.

Can I operate the pump remotely?

Yes the included wired control remote when plugged in will override the start and stop, when the pump is on. Reverse and stop will still function from panel. When using the compressor and a gun kit, the wire remote is not needed, opening the gun air valve will trigger and start the pressure switch on the compressor. Pump needs to be on forward mode, a flashing number and display "stop" indicating that the pump is on standy.

What is the max hose length I can use?

Depending on the application, self leveling underlayment can travel long distance over 150 ft. horizontally, while other upward pumping like mortar applications would be limited to 60 ft. vertically. Consider the hardening time of the product used, fast setting materials would require shorter hose length. Different rotor and stator can increase distance but deliver lower flow rate.

How many 50 lb. bags can it pump per hour?

The Small 50 with the standard stator can pump one 50 lb bag per minute or 60 bags per hour. Different materials may have different yield per bag depending on the density and water volume. A bag of non-shrink grout is about .45 CF per bag. A bag of fireproofing material could yield 4+ CF per 50 lb. bag. The fow rate with the standard stator is 3.5 GPM. Adding more hose or pumping higher can reduce the flow rate causing a higher working pressure and friction in the line.

Does the hose need to be primed ?

Yes for grout, mortar, stucco any material contenting sand. Lower compressible materials calls for the hose to be primed. To prime the hose fill the mixing chamber with water and add 2 shovels of portland cement into the chamber. Add material to the hooper, switch on the feeding wheel and start the pump pushing the cement slurry followed by the material or pour mixed up cement directly into the hose before attaching to the pump. Failure to prime the hose can result in clog in the hose. Slurry priming not needed with fireproofing self leveling underlayment, acrylics and epoxies.

What is the maximum pressure that I can pump with?

Depending on the stator, the green 2L3 stator can achieve up to 300 PSI.

What is the vibrating hopper used for?

The screen is there to filter out any large stones that might make their way into the pump. The Feeding hopper is like the Vibrating Screen but it allows you to open the grill to gain access to the hopper sides, allowing for tamping or scraping the hopper sides without stopping the pump.

1 8

Imer Small 50 Pumping & Spraying Machines

Name: Imer Small 50 Pumping & Spraying Machines
Brand: Imer
SKU: 1106344
Price: 7999.0 USD
Availability: InStock

$7,999⁰⁰ USD

Shipping calculated at checkout.

Brand: Imer | SKU: 1106344 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Imer Small 50 Multipurpose Pumping, Spraying Machines

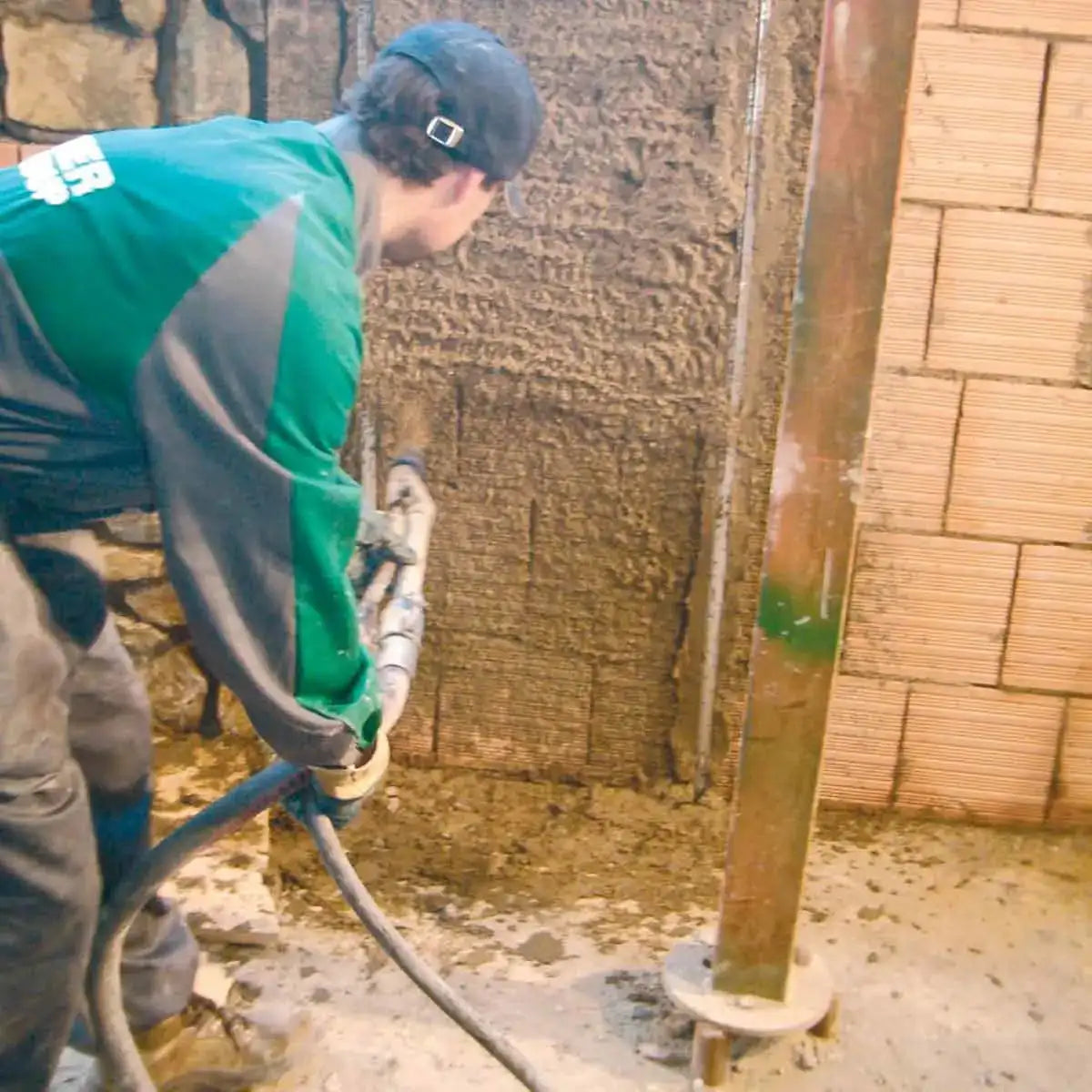

Use with all types of finish coatings. Quickly and easily apply materials such as plasters, mortars, stucco (cement and synthetic based) fire proofing, sound proofing and paint. Pump grout to fill blocks, metal door bucks, self leveling materials, epoxy, almost any material with aggregate no bigger than 1/4"

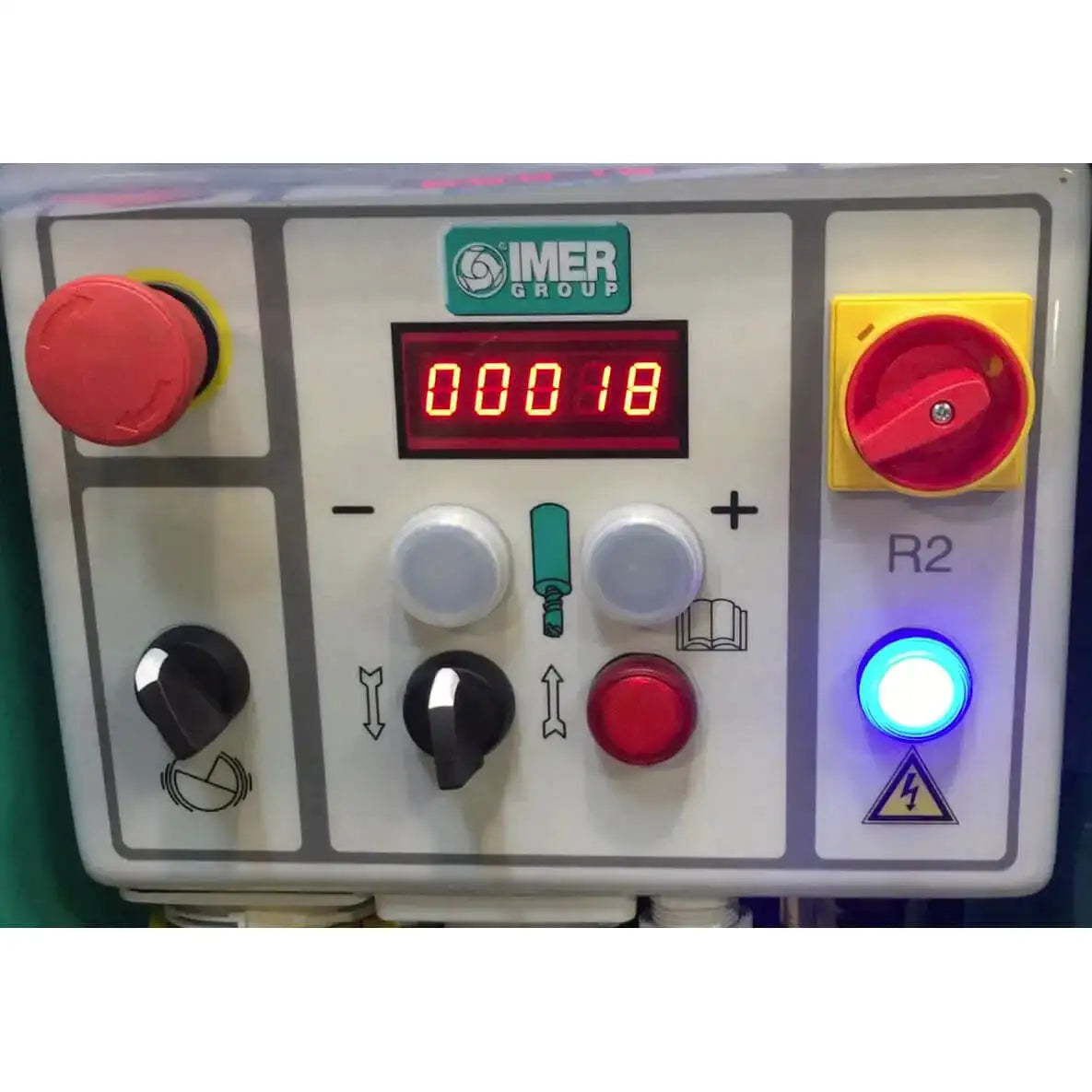

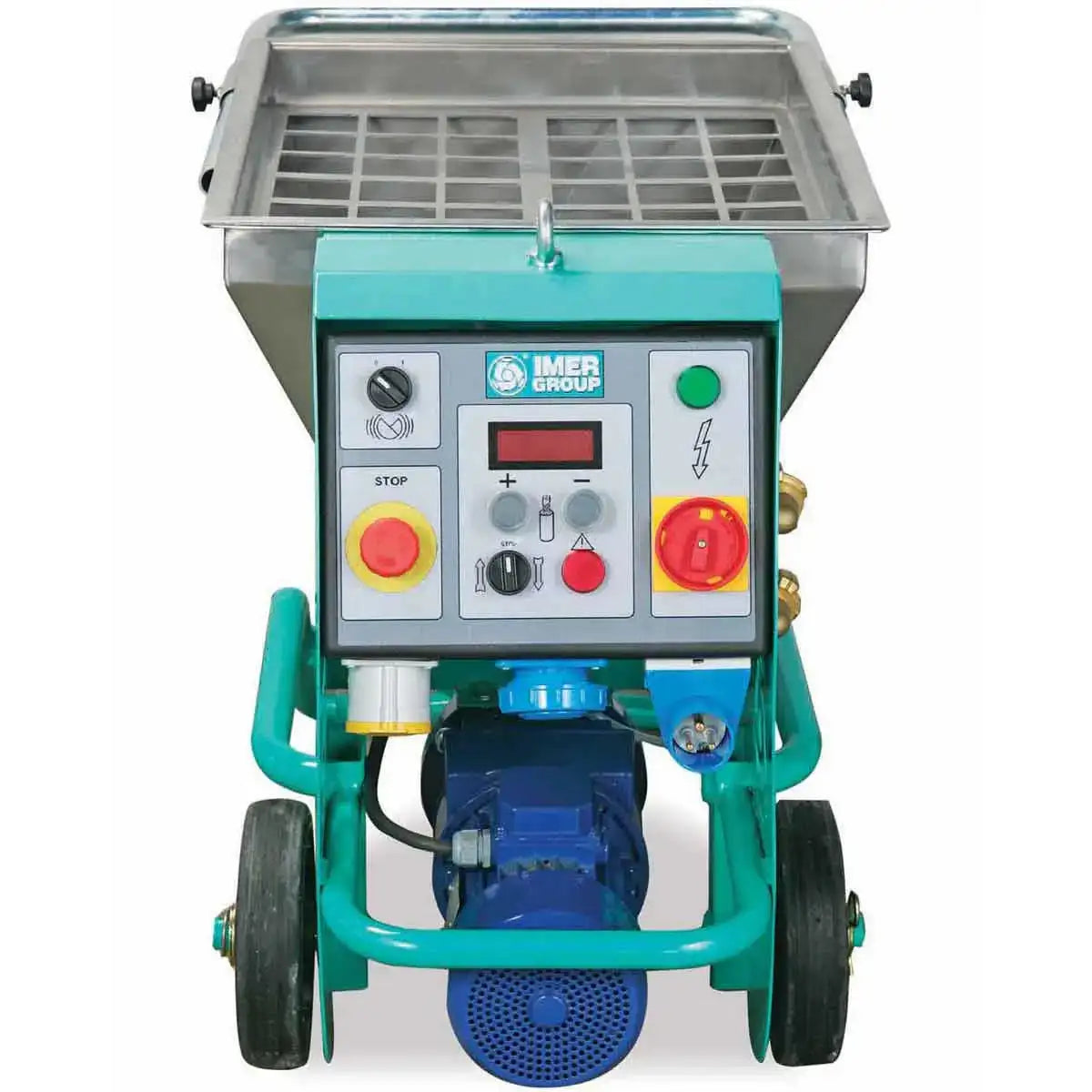

The pump is controlled by the operator either with the 5 volt remote start/stop or, when used with the optional diaphragm compressor, is controlled with the open and closing of the valve at the gun. A rheostat controls the motor RPM which means that you have total control of the flow to match with the material being applied. All of the operation is controlled by the panel which can detect the wrong voltage and shut down as a safety. The unit will sense a jamb and cut the power to the pump. Thermal overloads are in place on the 100% duty cycle motor. This means that the motor can run all day, every day. The control panel will sense an overload before the thermal protection on the motor. This is just the level of how safe, secure and sophisticated this machine is.

The optional IM250 Small 50 Compressor is needed when used for spraying applications. The oil-less, continuous flow, low PSI high CFM compressor is the lungs of the unit. The pumping action is all on the operator. With the air valve closed the compressor senses back pressure and turns off the compressor and the pump motor. When the valve is re-opened the compressor and the pump kick on again to start where you left off.

There are 2 different nozzles for spraying. One is for heavy materials that needs to be built up such as fire proofing materials and mortars. The other nozzle is used for spraying of thinner coats such as acrylic stucco and coatings. This nozzle comes with different orifice sizes and when used without the compressor, makes a great tool for pointing, filling in cracks and joints in between stone walls.

Note: The pump is sold separately from the application kits as the kit chosen depends upon the work needed to be performed.

Features

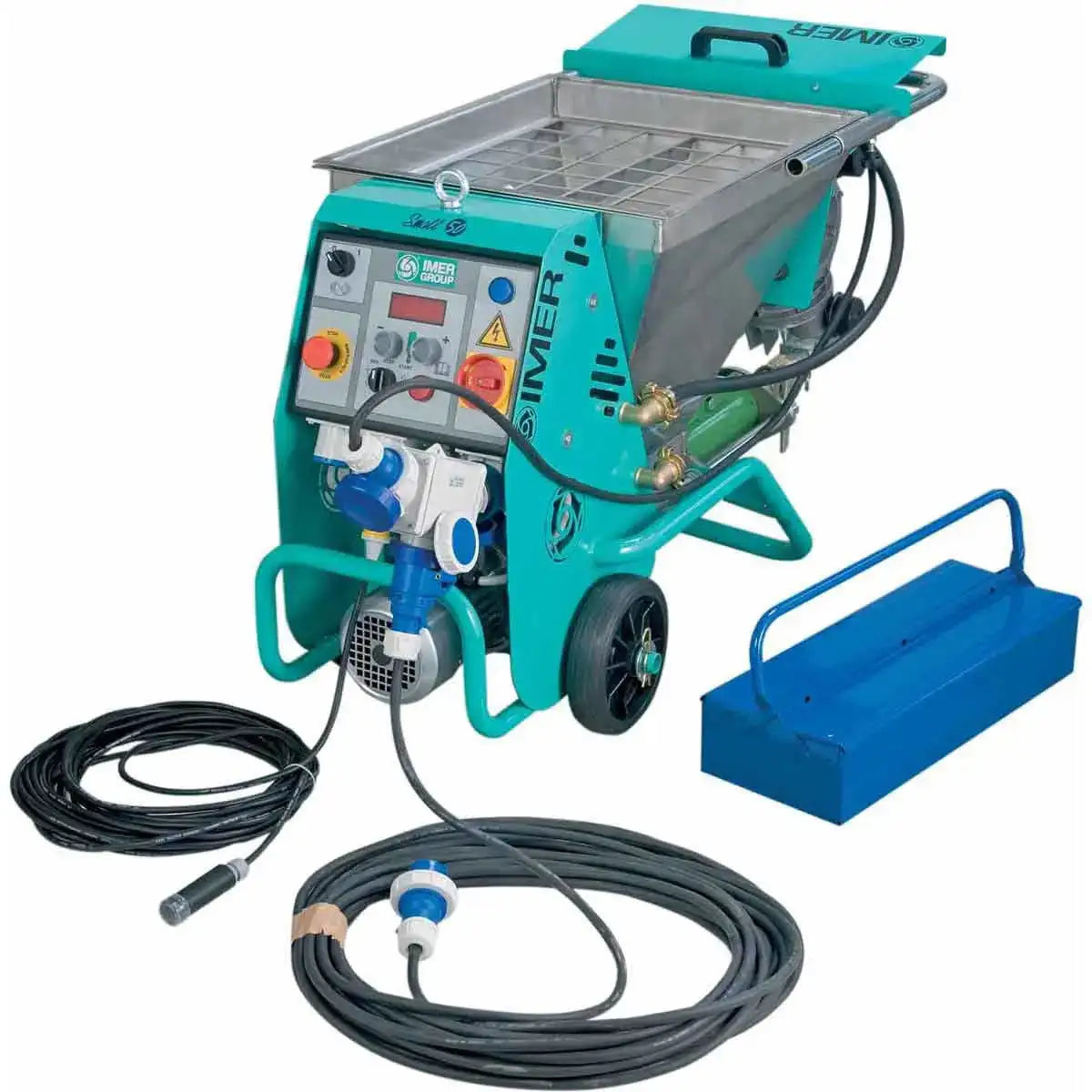

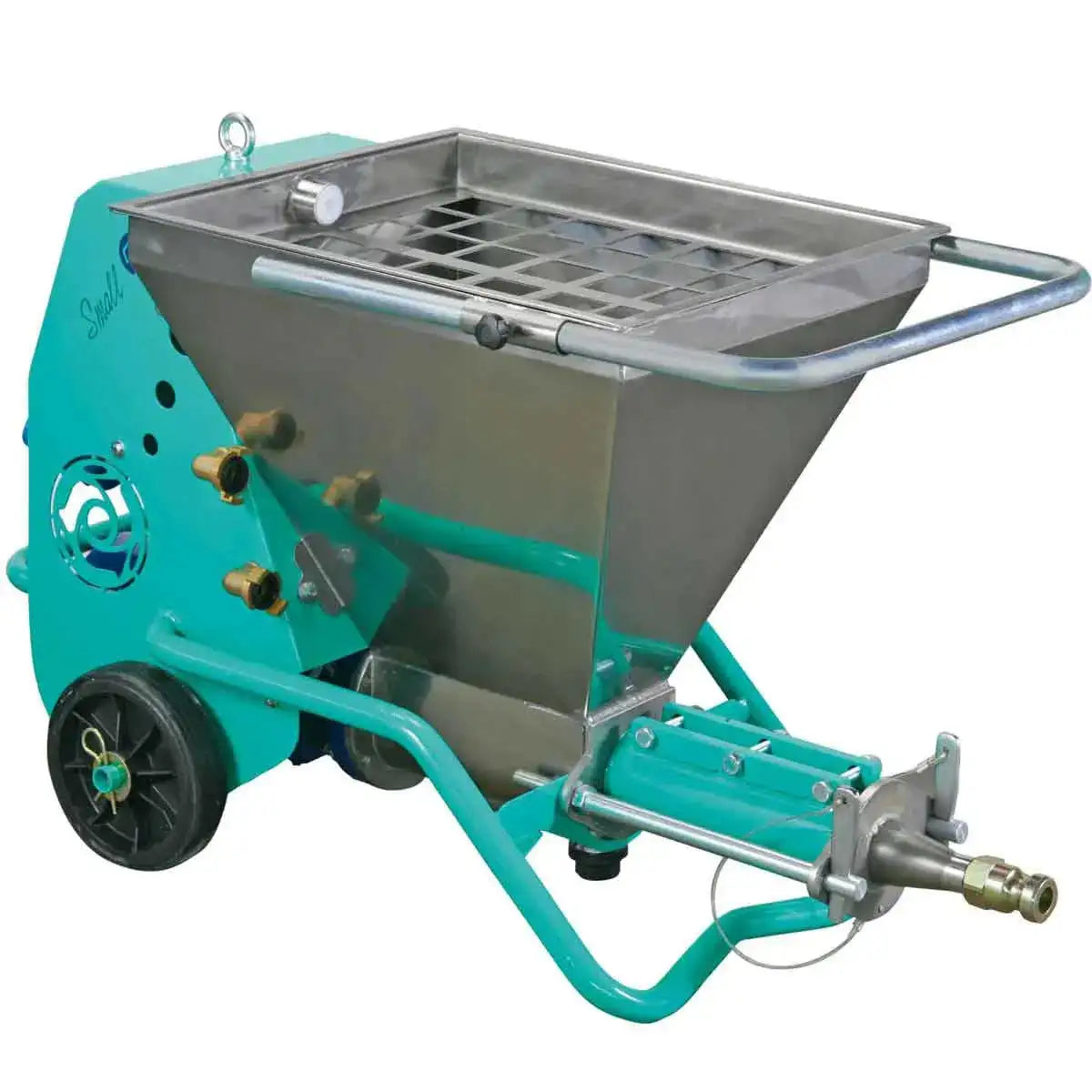

Stainless steel hopper, Stator and screw, Electric 5 volt remote with 53' of cable, Provision for pneumatic control, Provision for vibrating screen, Pressure meter unit, Accessory box (cleaning tool, clean-out foam ball, tips)
Hooper capacity 12.5 Gallons
Load height 25"
1-3/4 hp., 18 Amp 110 Volts motor
Stator screw RPM controlled by variable rheostat 8-140 RPM
Maximum pumping distance with 3/4" hose 50ft. with 1" hose 85 ft
Discharge head 50-60 ft. vertical lift
Weight 150lbs
Easy to use, easy to clean, it's a money making machine!
An on board computer balances the spray rate with the pumping volume, this prevents clogging, an error message followed by a number will display to help you with the troubleshooting
