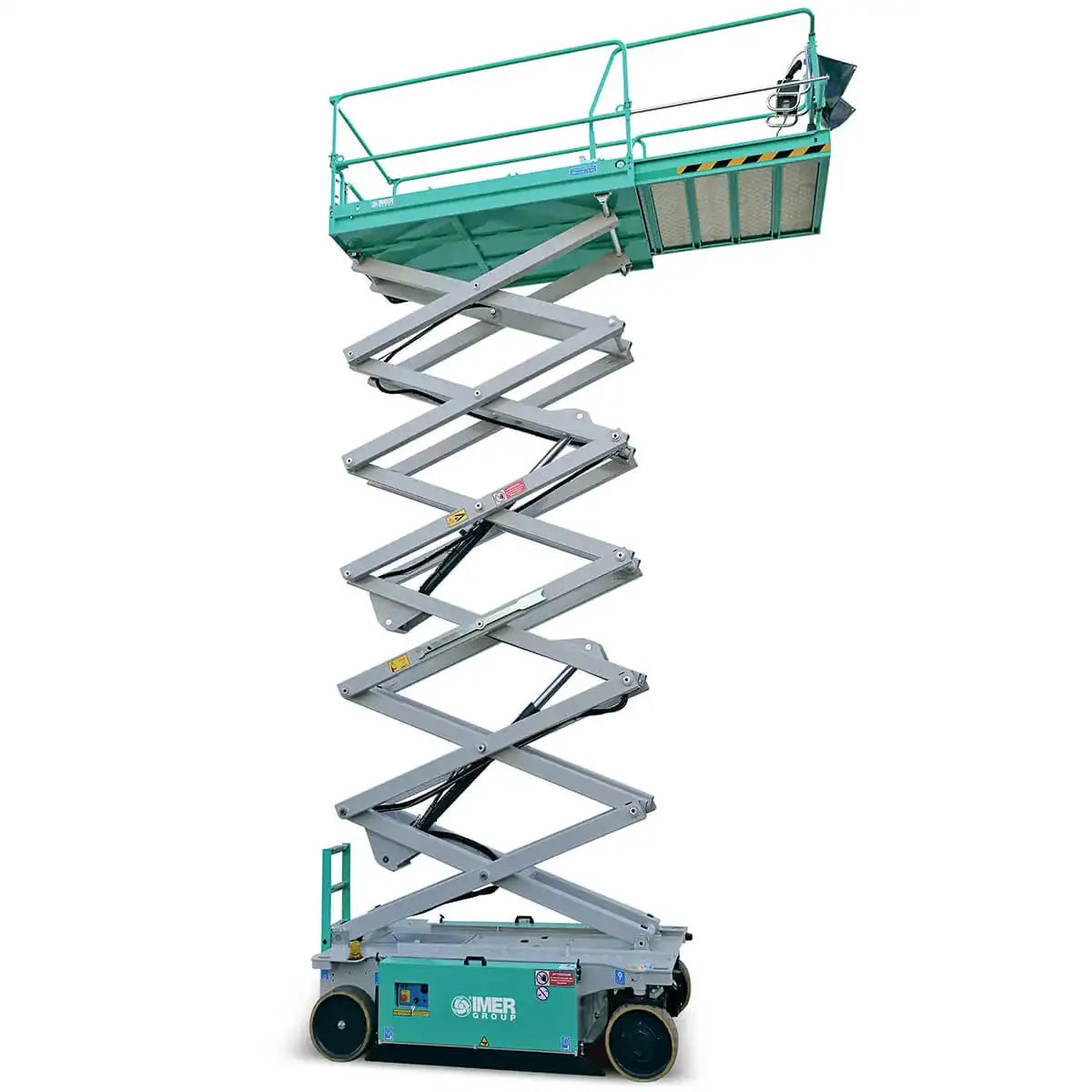

Imer IM 47 Electric Scissor Aerial Lift
Imer Electric Scissor Lifts lead the industry with innovative technologies as a direct result of years of experience, concentrated research, and a goal to provide superior products that deliver unparalleled productivity and safety.The IMER IM Series includes five models of scissors which all fill a unique void in the market and share innovative technologies plus a commonality of parts, which simplifies maintenance and improves parts costs and accessibility.Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.The IM Series scissors ensure the maximum capacity in both the platform and on the manual deck extension. Delivering traction and stability at maximum height, even with two workers on the fully extended platform.
Features

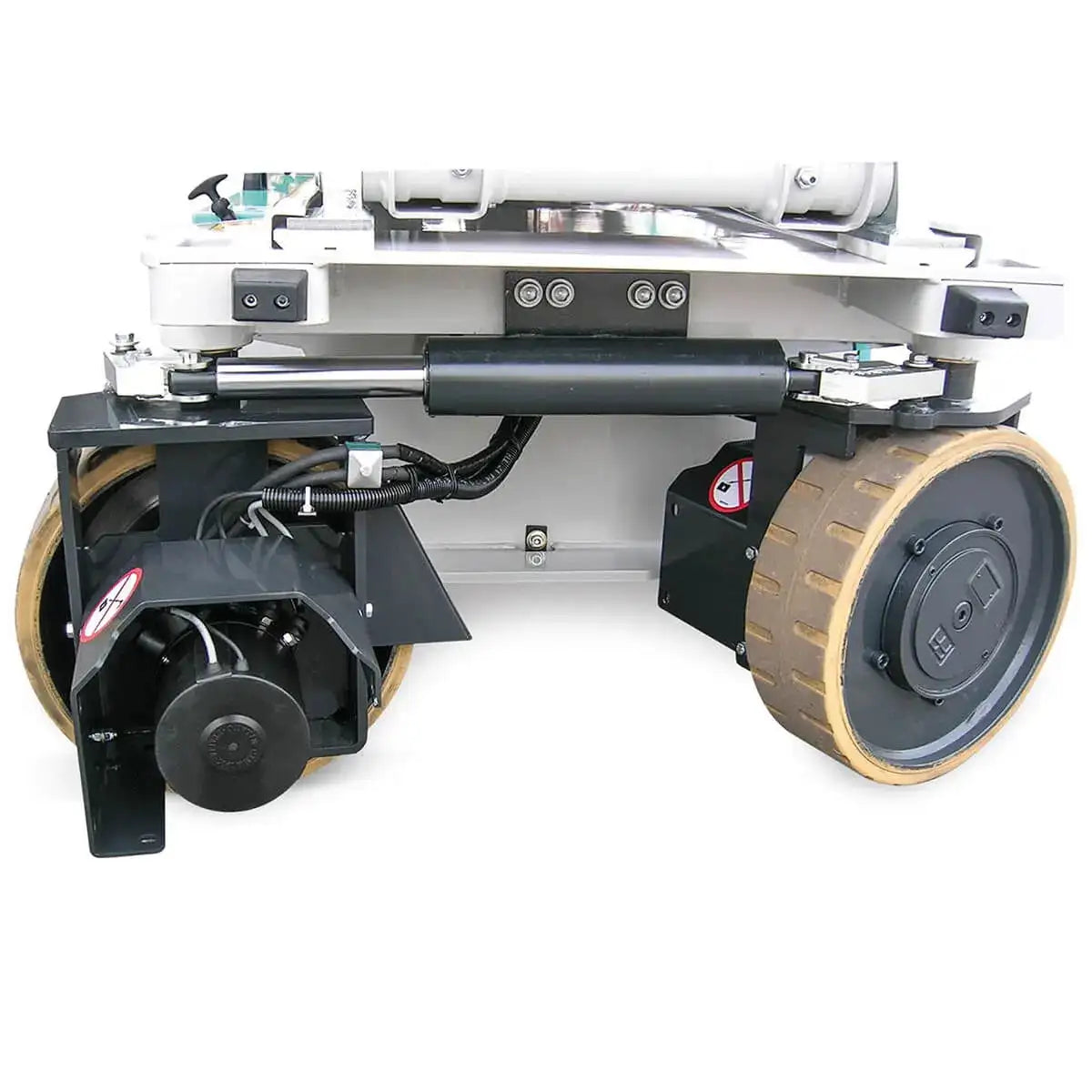

- Electric front wheel drive motors
- Negative electromagnetic parking brakes with electric disengagement
- 90° steering
- Manual deck extension of 51 in

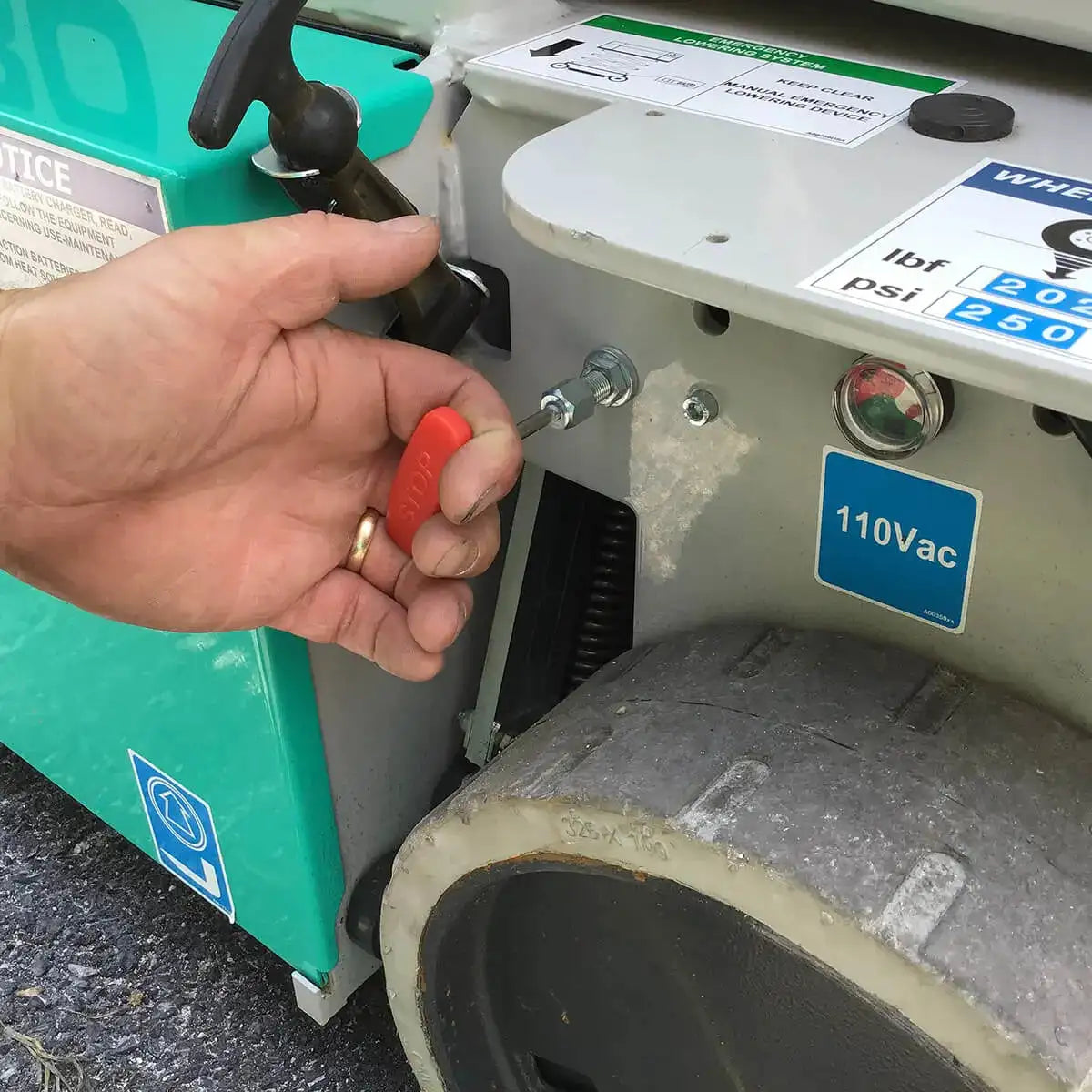

- Manual emergency lowering device
- Cylinder holding valve
- Heavy duty traction batteries 24V-250Ah/300Ah (c5)
- Battery charger with automatic switch-off
- Audible motion alarm, horn, hour meter
- Inclinometer with motion cut out and alarms
- Mechanical wheel drive release for emergency hauling
- Cushioned non-marking tires
- Electrical scissor protection
- Pothole protection
- Battery control system with low-voltage cut-out protection

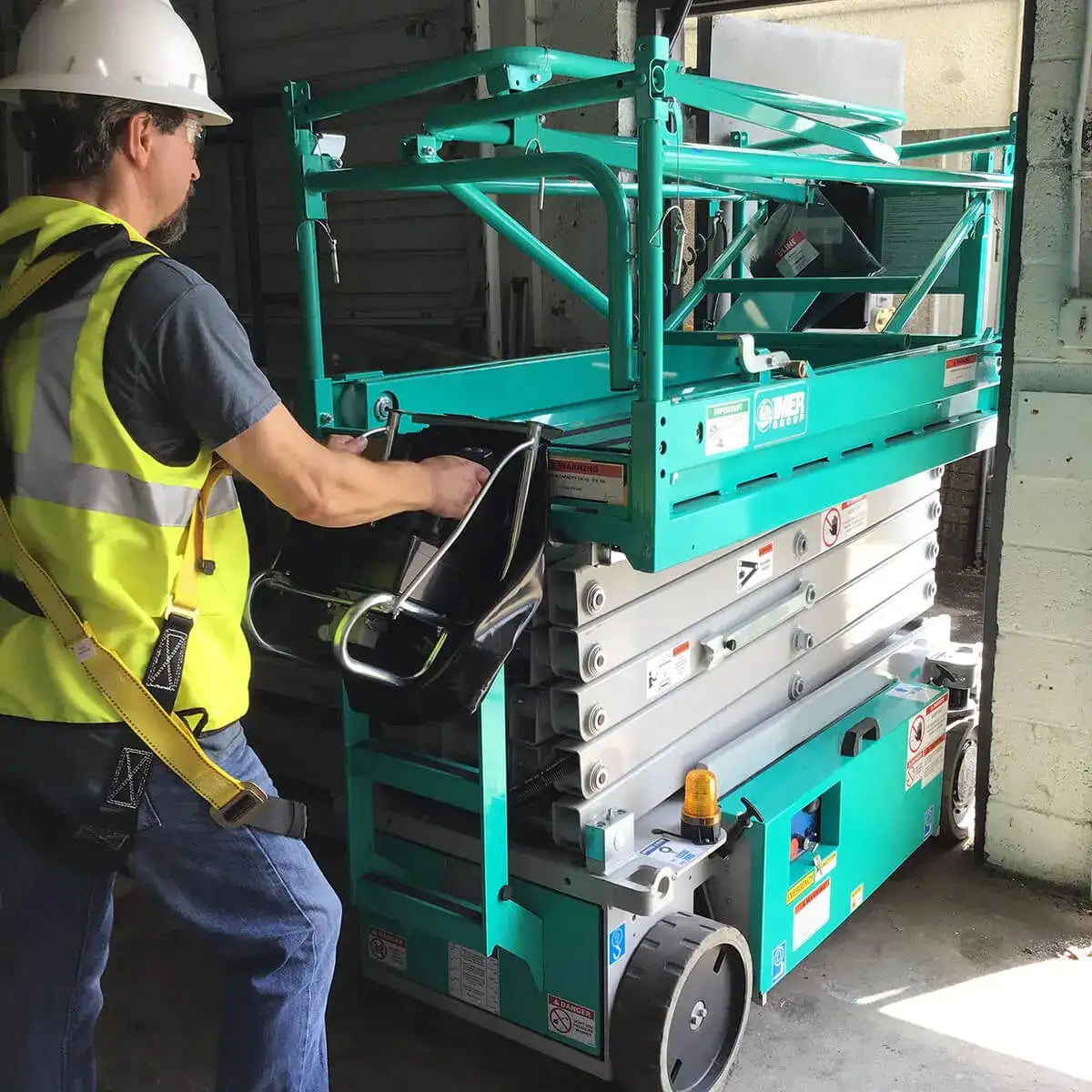

- Fold down railings
- Overload sensor
- AC power to platform
- Flashing beacon
- Free shipping from IMER factory warehouse
Imer IM 47 Specifications | ||
Model | IM 4746 | IM 4752 |
Number of scissors | 6 | 7 |
Working height | 45 ft | 52 ft |
Platform Height | 39 ft | 45 ft |
Motor Rating | 24V | 4 hp | 24V | 4 hp |
Lifting | Lowering time (loaded) | 68 | 55 sec | 68 | 67 sec |
Battery charger | 24 | 30A | 24 | 30A |
Weight | 6,430 lbs | 6,614 lbs |
