Imer Tracked Atrium Lift, IM R 13, 42 ft.
IMER was one of the first companies to introduce tracked aerial units to the international market years ago. In compliance with strict European safety standards, the IM R Series was engineered with safety features that far exceeded Western regulations of that time. Today, with an increased focus on US safety codes engineered with safety in mind, user experience, maneuverability, and versatility were also a priority.The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.
Features
- Automatic outrigger leveling system
- 360° rotation (not continuous)
- Emergency hand pump & 12 V emergency pump
- Cylinder holding valve
- Hour meter
- Load and tip detection sensor
- Load cell
- Hydraulic jib
- Outrigger pads
- Electric motor for indoor use
- Air / Water outlet in the platform basket
- AC power to platform
- Three travel speeds
- Removable wired control box
- Remote battery charger
- Removable basket with 1 pin detach
- Overload sensor
- 120V battery charger

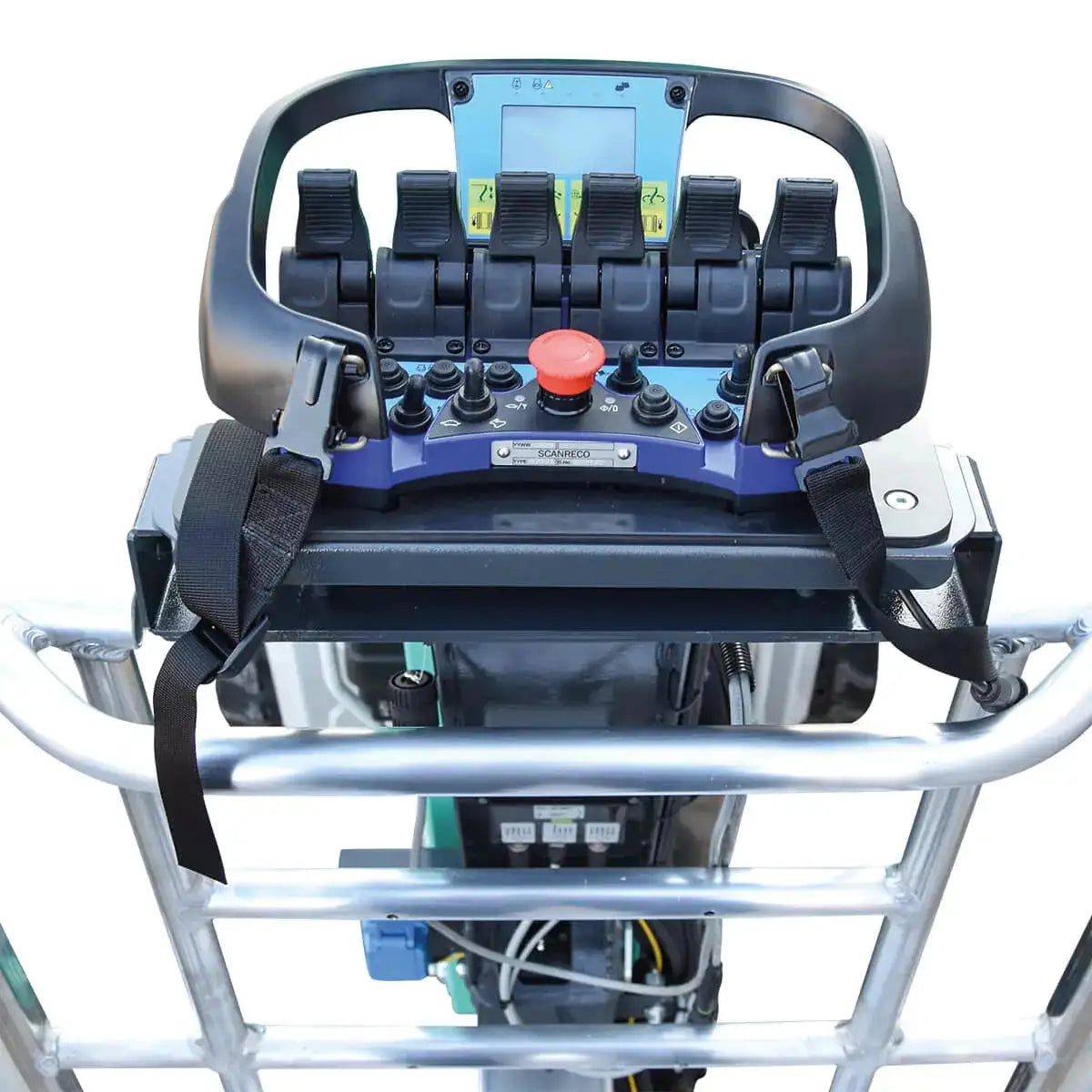

- Proportional controls with diagnostics

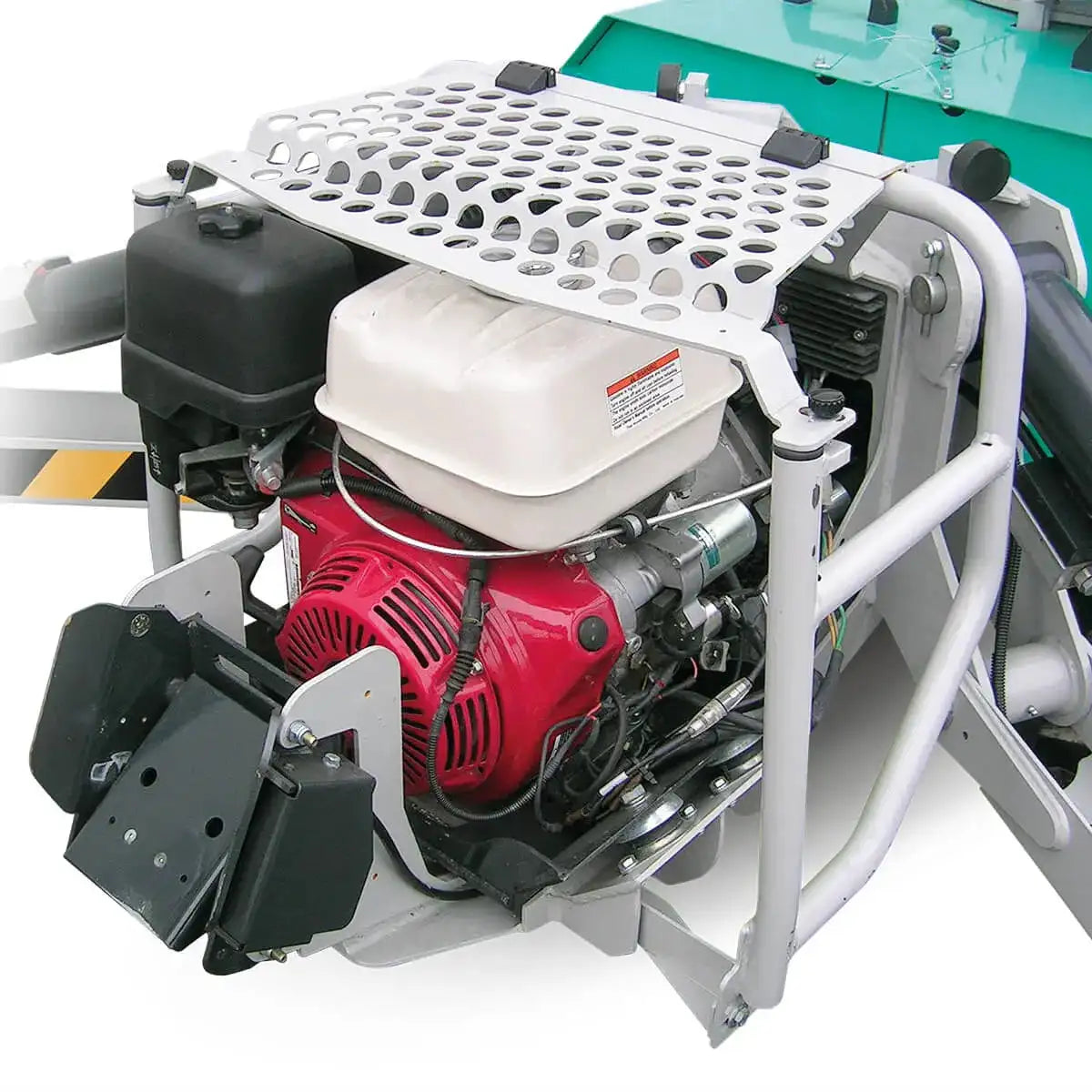

- Honda GX390 - 11 HP 3600 rpm
- Free shipping from IMER factory warehouse
| Imer IM R 13 Lift Specifications | ||
| Specification | Metric | Standard |
| Working Height | 13 m | 42.6" ft |
| Platform Height | 11 m | 36 ft |
| Basket Dimensions | 1300 x 750 x 1100 mm | 51” x 28” x 43” |
| Gradeability | 30 % | 30 % |
| Platform capacity | 230 kg | 507 lbs |
| Overall outrigger footprint | 2896 x 2946 mm | 9’ 6” x 9’ 8” ft |
| Weight | 1495 kg | 3296 lbs |
