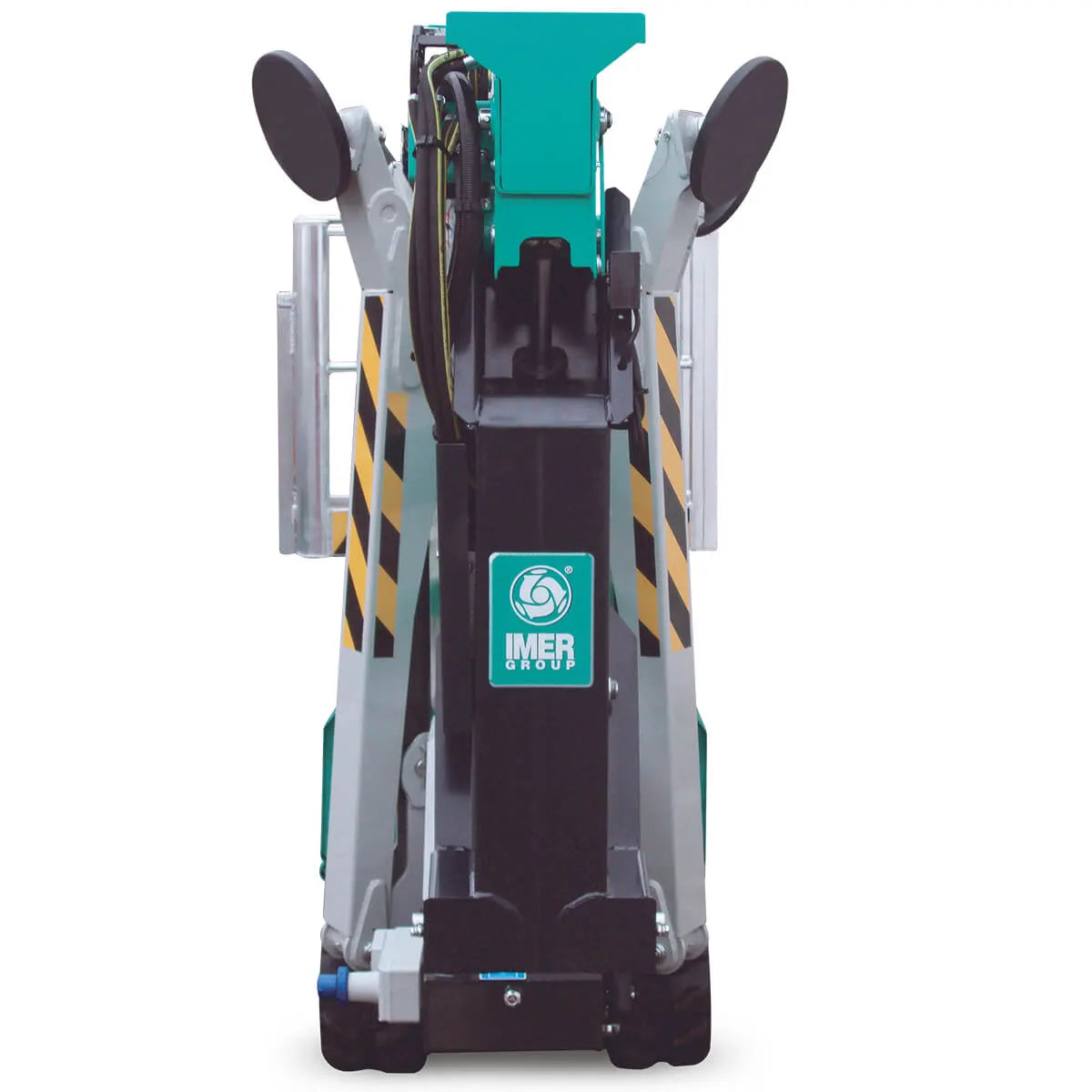

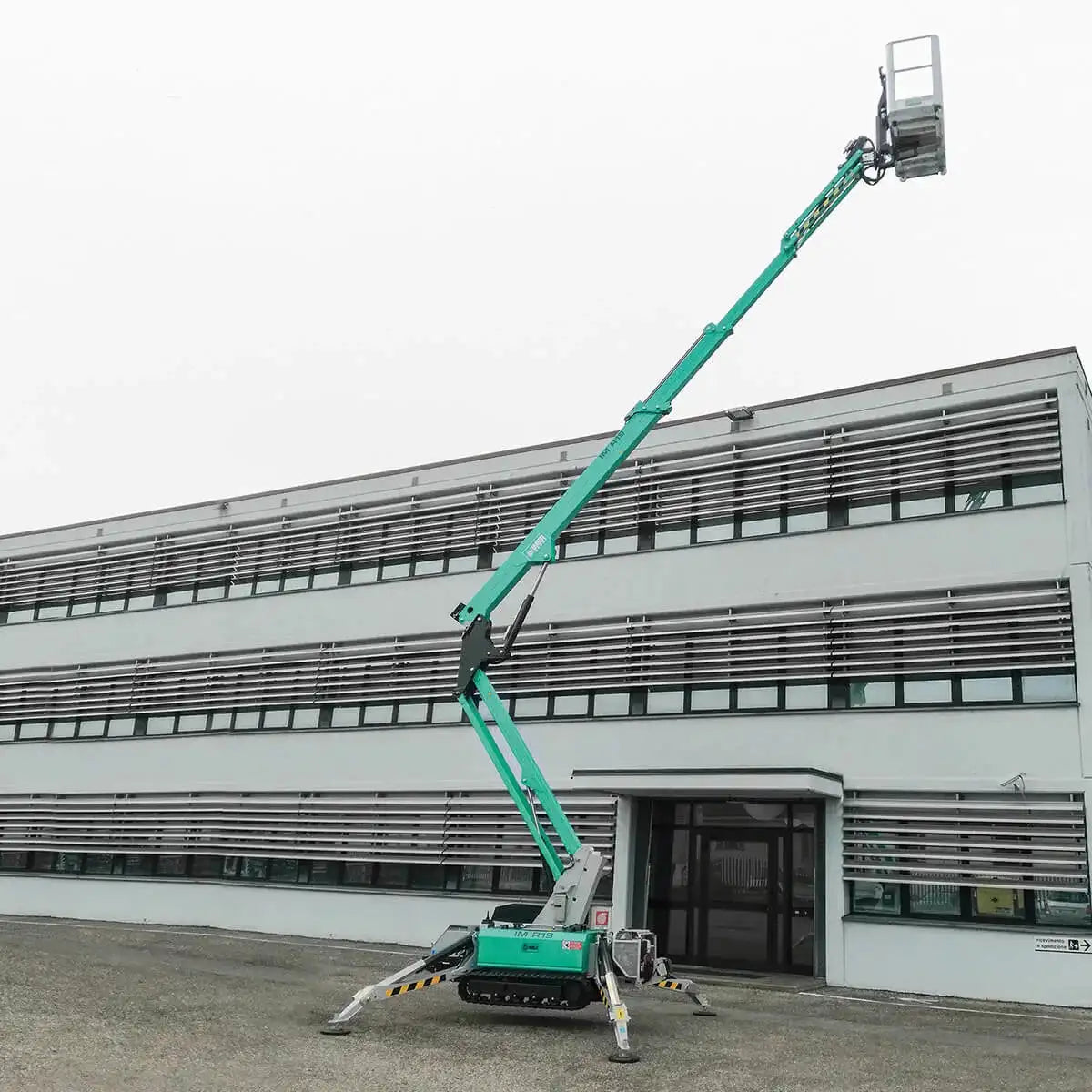

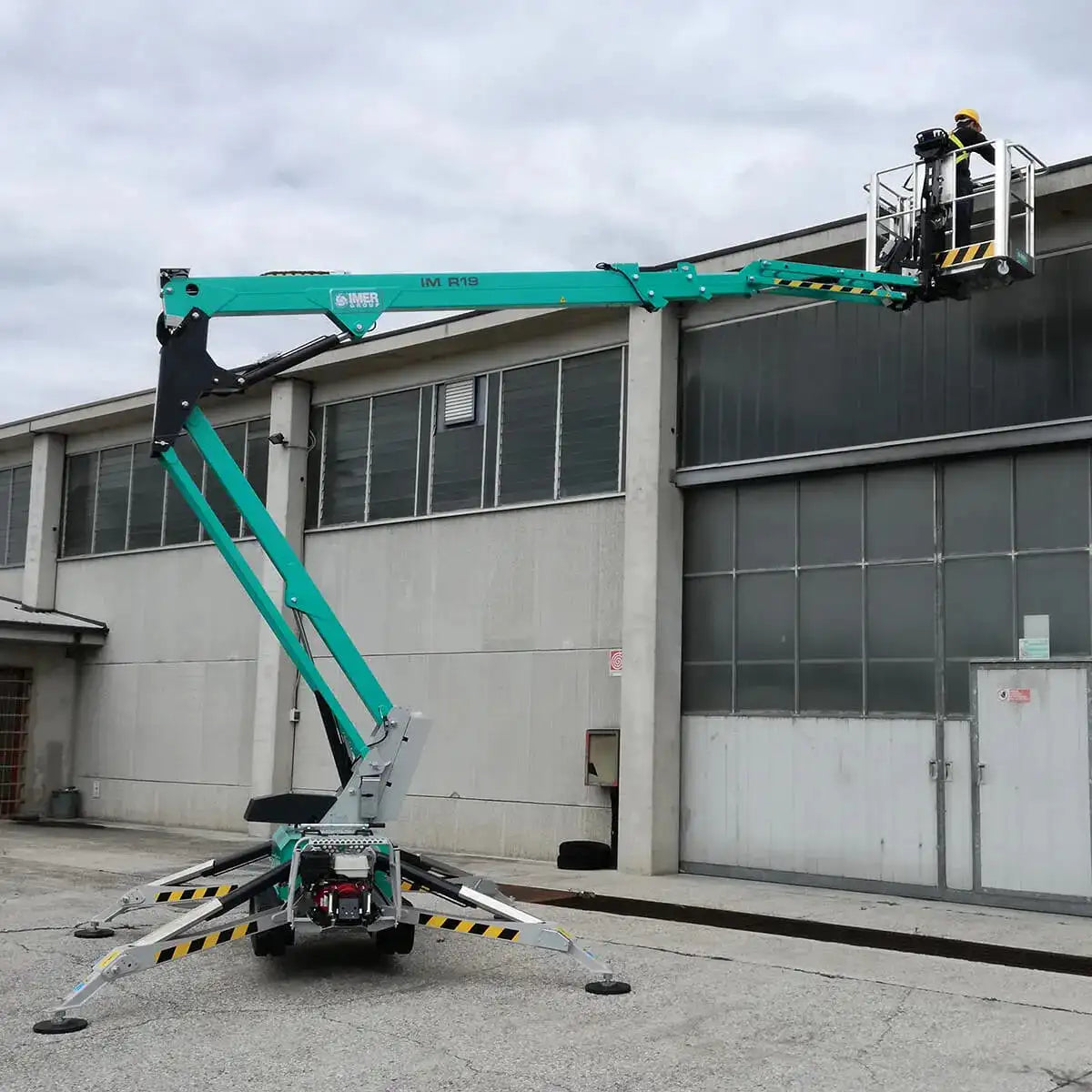

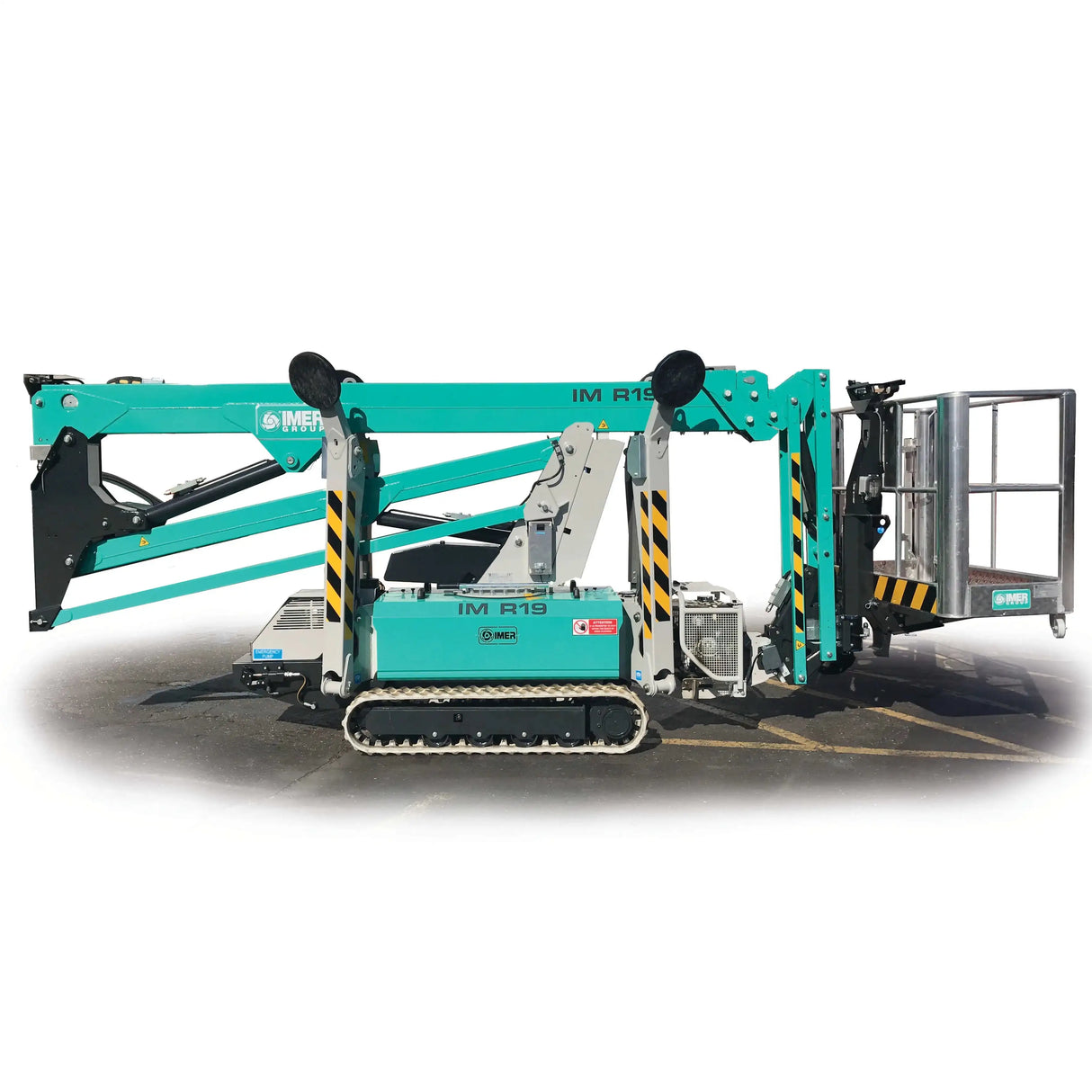

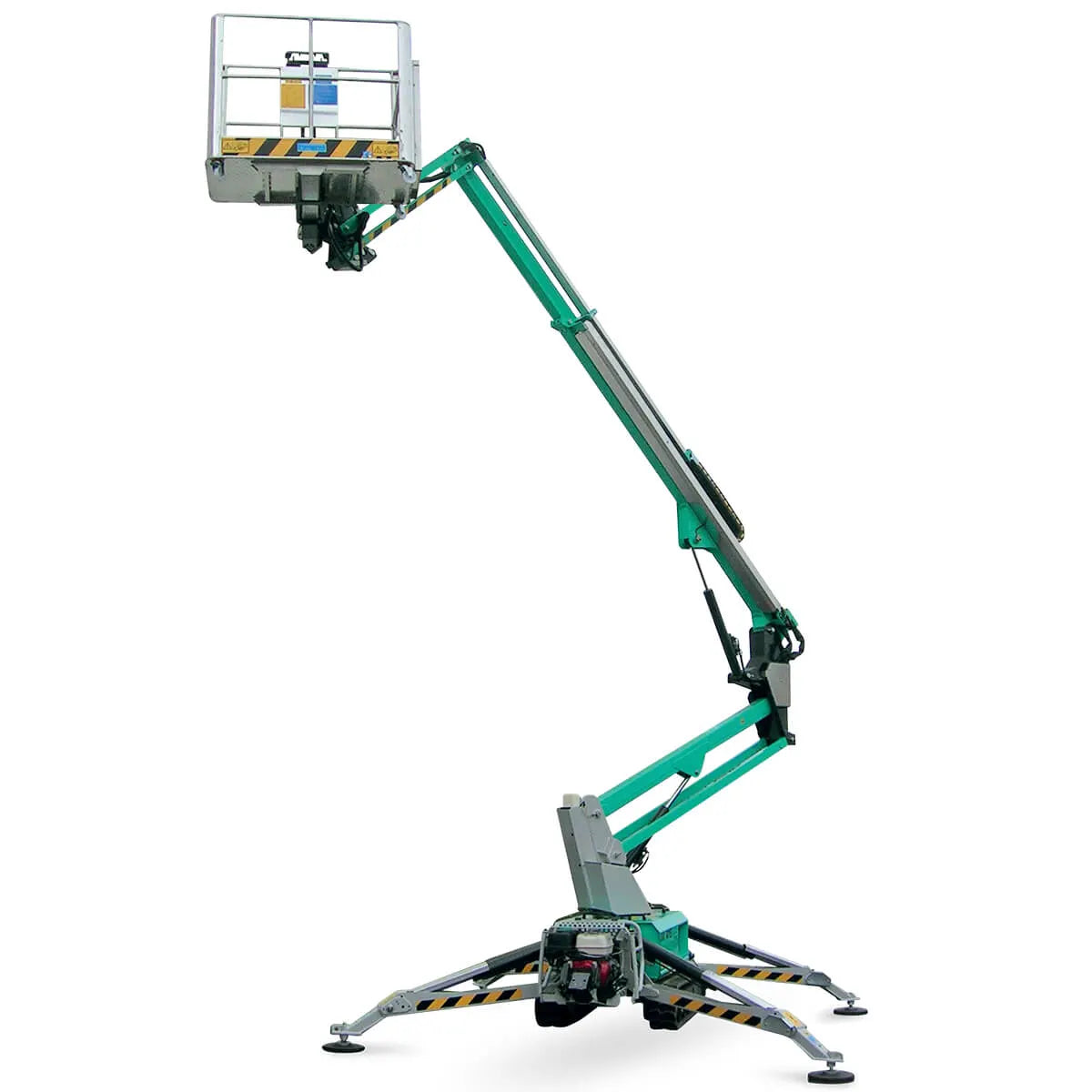

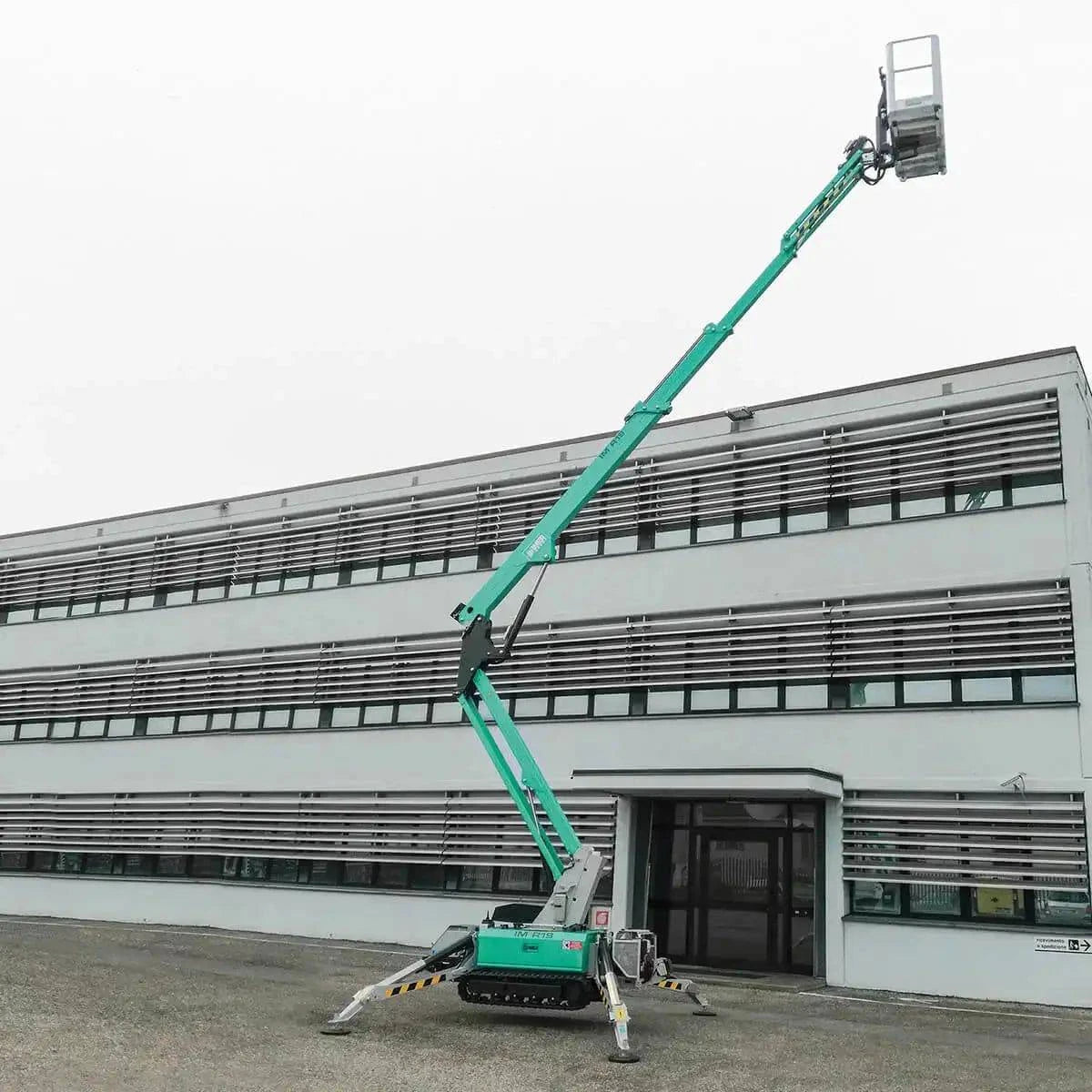

Imer Tracked Atrium Lift, IM R 19, 62 ft.

IMER was one of the first companies to introduce tracked aerial units to the international market years ago. In compliance with strict European safety standards, the IM R Series was engineered with safety features that far exceeded Western regulations of that time. Today, with an increased focus on US safety codes engineered with safety in mind, user experience, maneuverability, and versatility were also a priority.The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.


Features

  • Automatic outrigger leveling system
  • 360° rotation (not continuous)

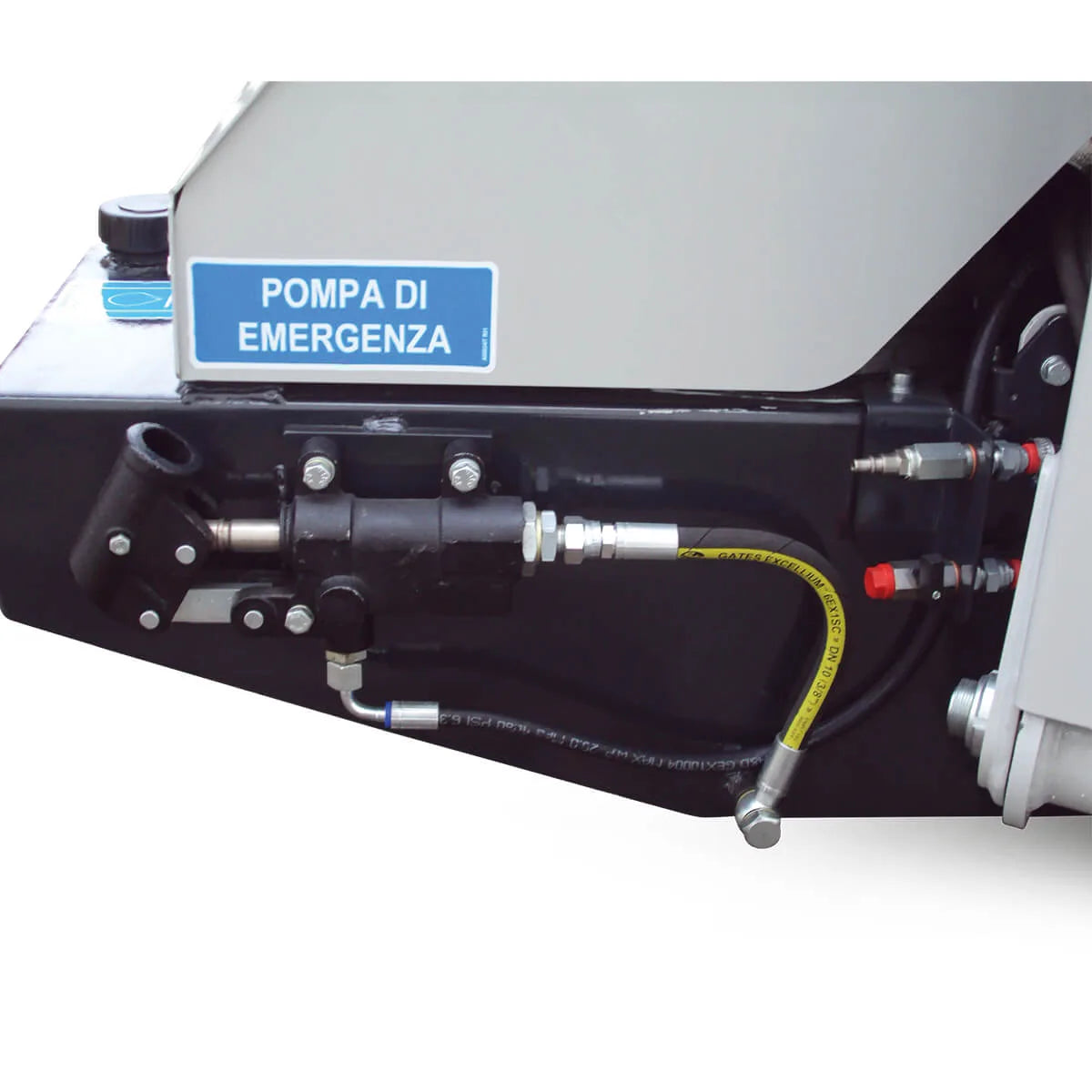

  • Emergency hand pump & 12 V emergency pump
  • Cylinder holding valve
  • Hour meter
  • Load and tip detection sensor
  • Load cell
  • Hydraulic jib
  • Oversized 14 outrigger pads
  • Electric motor for indoor use
  • Air / Water outlet in the platform basket
  • AC power to platform
  • Wireless radio remote control bo
  • Three travel speeds
  • Wireless radio remote control box
  • Remote battery charger

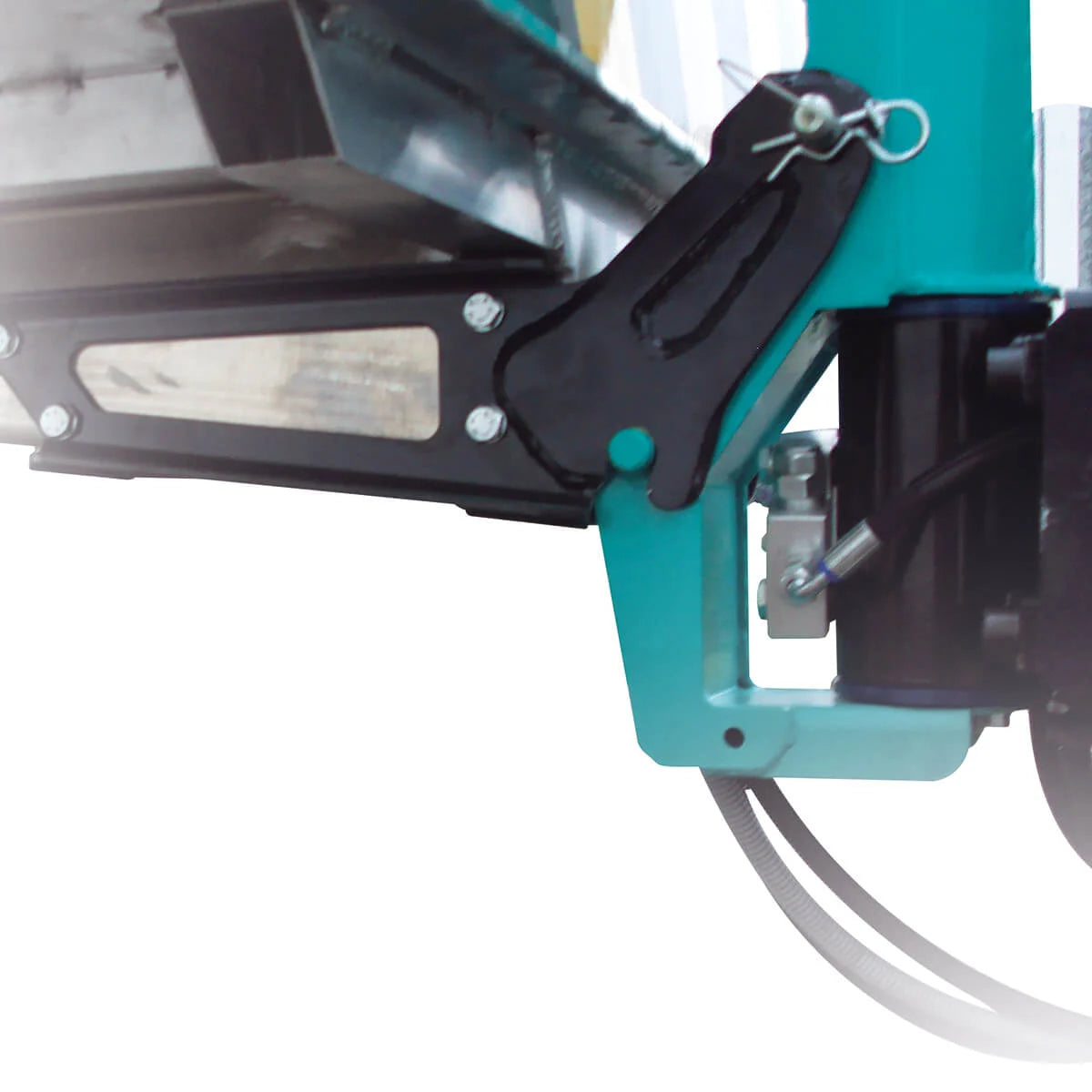

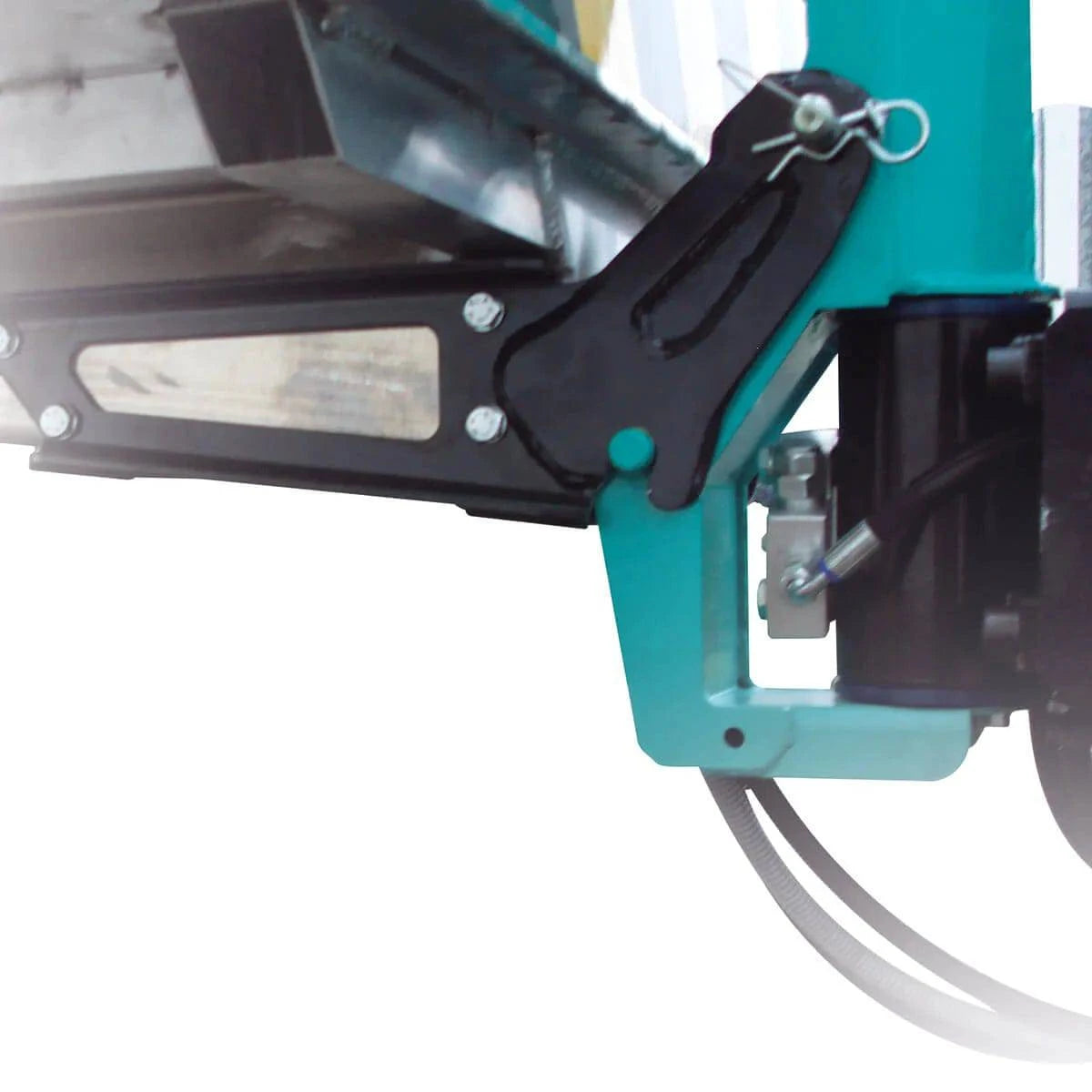

  • Removable basket with 1 pin detach
  • Overload sensor
  • 120V battery charger
  • Proportional controls with diagnostics
  • Honda GX390 - 11 HP 3600 rpm

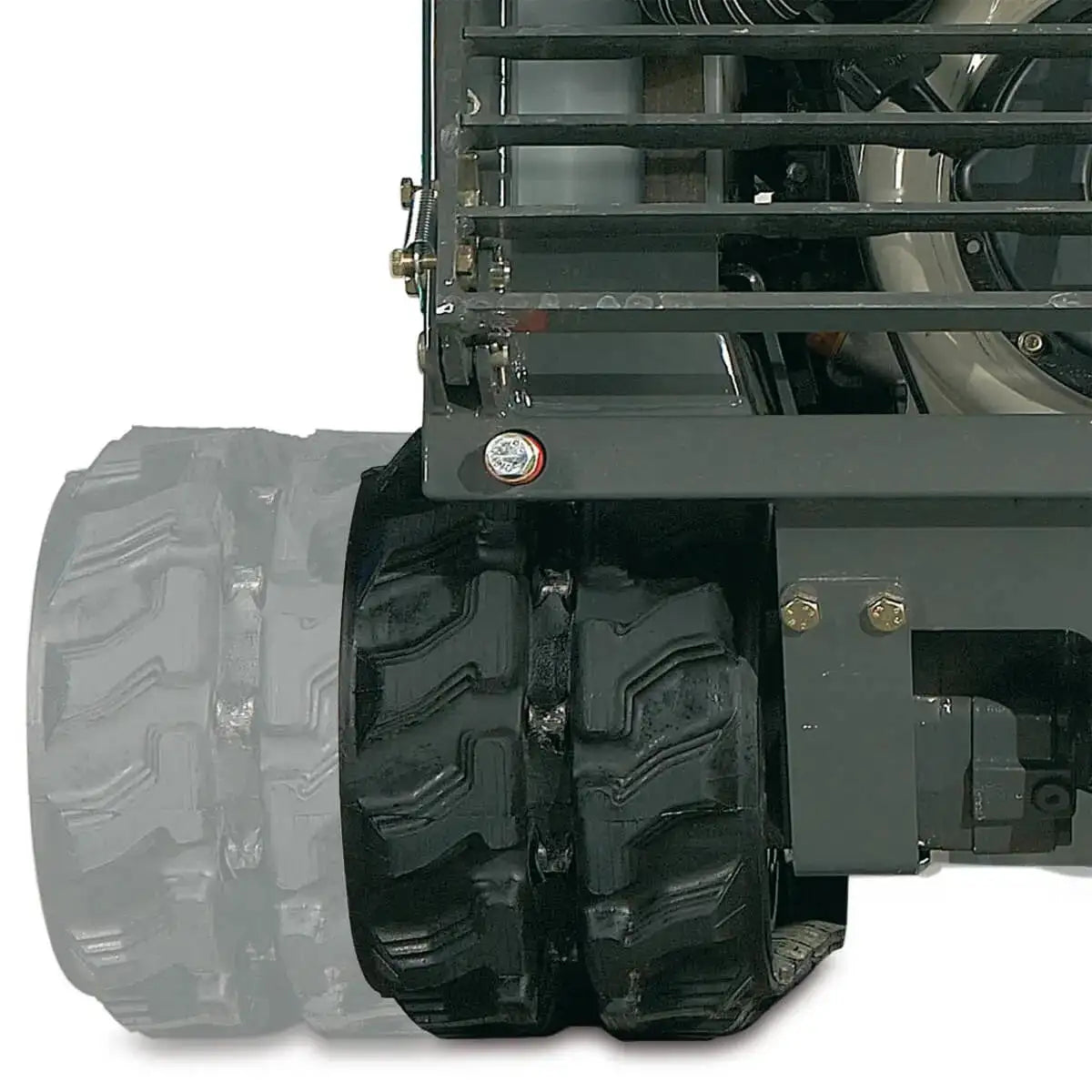

  • Hydraulically adjustable track width
  • Free shipping from IMER factory warehouse

Imer IM R 19 Lift Specifications
Specification Metric Standard
Working Height 19 m 62 ft
Platform Height 17 m 56 ft
Basket Dimensions 1448 x 711 x 1092 mm 57 x 28 x 43 in
Gradeability 32 % 32 %
Max. hydraulic pressure 220 bar 3190 psi
Overall outrigger footprint 2896 x 2946 mm 9' 6" x 9' 8"
Weight 2435 kg 5370 lbs
