What king of material can be used? How long is the average mix time?

Use pre-blend bagged material. Mixing time can vary for the polymer to react with water.

What is the water booster used for?

The water booster raises the water pressure and volume so that you always have a higher level than what can be used like a backup. The water booster pump increases the pressure by 65 PSI. So if you have 30 PSI coming in then with the water booster you will have 95 PSI. The water booster pump can also be used to syphon water from a tank when a water source is not readily available.

What is the max aggregate size can I pump?

Do not use the stator with aggregate over 3/16", Sharp stone can also wear rubber stator prematurely. A rounded gravel would work best using no more than 30% stone per batch.

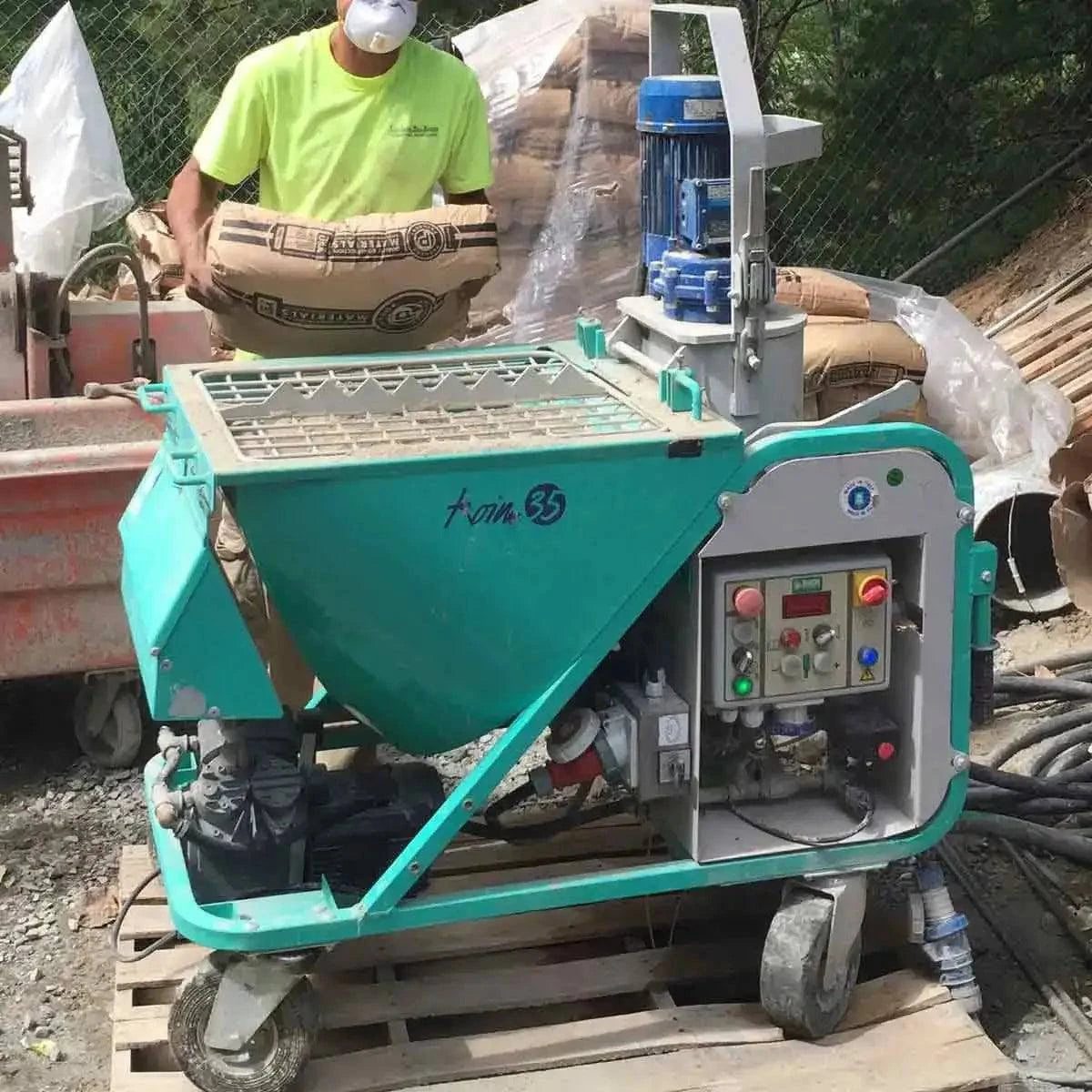

Can I leave material in the hopper?

Yes, if you are finished pumping for the day or taking a break. By switching it off, you will not be feeding anymore material into the mixing chamber. Just be sure not to get the material in the hopper wet.

How long will a rotor and stator last?

It s material dependent, when using a silky smooth material such as straight Portland cement very little wear will occur but If using a product that is very abrasive such as Euchoshot or with silica fume then maybe just a few hundred bags. Routine maintenance should be performed at the end of each work day to ensure that the rotor & stator are well calibrated. Tip-- To calibrate the stator, fill the hopper with water, set the speed to 50Hz, attach the material hose to the end of the pressure gauge. Kink the hose as you would a water hose and turn on the pump. The pressure gauge should read 120 to 140 PSI. if not then tighten evenly the 3 adjustable bolts on stator. If the pressure can t be reach then it s time to replace rotor and stator.

How many fireproofing bags can it pump per hr ?

You will spray 7 to 10 bags depending on the density and the strator used.

Can the Koine 35 pump continuously?

Yes, the Koine-35 uses a 100% duty motor that can truly run continuously 24/7. The inverted features a high temp shut down if ever needed.

Can I operate the pump remotely?

Yes using the compressor and a gun kit, opening the gun air valve will trigger and start the pressure switch on the compressor. Pump needs to be on forward mode, a flashing number and display "stop" indicating that the pump is on standy.

Does the hose need to be primed ?

yes for grout, mortar, stucco any material contenting sand. Lower compressible materials calls for the hose to be primed. To prime the hose fill the mixing chamber with water and add 2 shovels of portland cement into the chamber. Add material to the hooper, switch on the feeding wheel and start the pump pushing the cement slurry followed by the material or pour mixed up cement directly into the hose before attaching to the pump. Failure to prime the hose can result in clog in the hose. Slurry priming not needed with fireproofing self leveling underlayment, acrylics and epoxies.

Can I use the water booster to clean out my hose?

Yes, actually this is the preferred method for cleaning out the hoses. Add the supplied geka to hose adapter to the water booster outlet. Add a sponge ball to the hose and connect the hose to the geka to hose adapter. Turn the valve and pressurized water will push the material out of the hose. This is the easiest and fastest way to clean up. All that is left to do is flush out what is left in the mixing chamber.

What is the max hose length I can use?

Depending on the application, self leveling underlayment can travel long distance over 150 ft. horizontally, while other upward pumping like mortar applications would be limited to 60 ft. vertically. Consider the hardening time of the product used, fast setting materials would require shorter hose length. Different rotor and stator can increase distance but deliver lower flow rate.

1 10

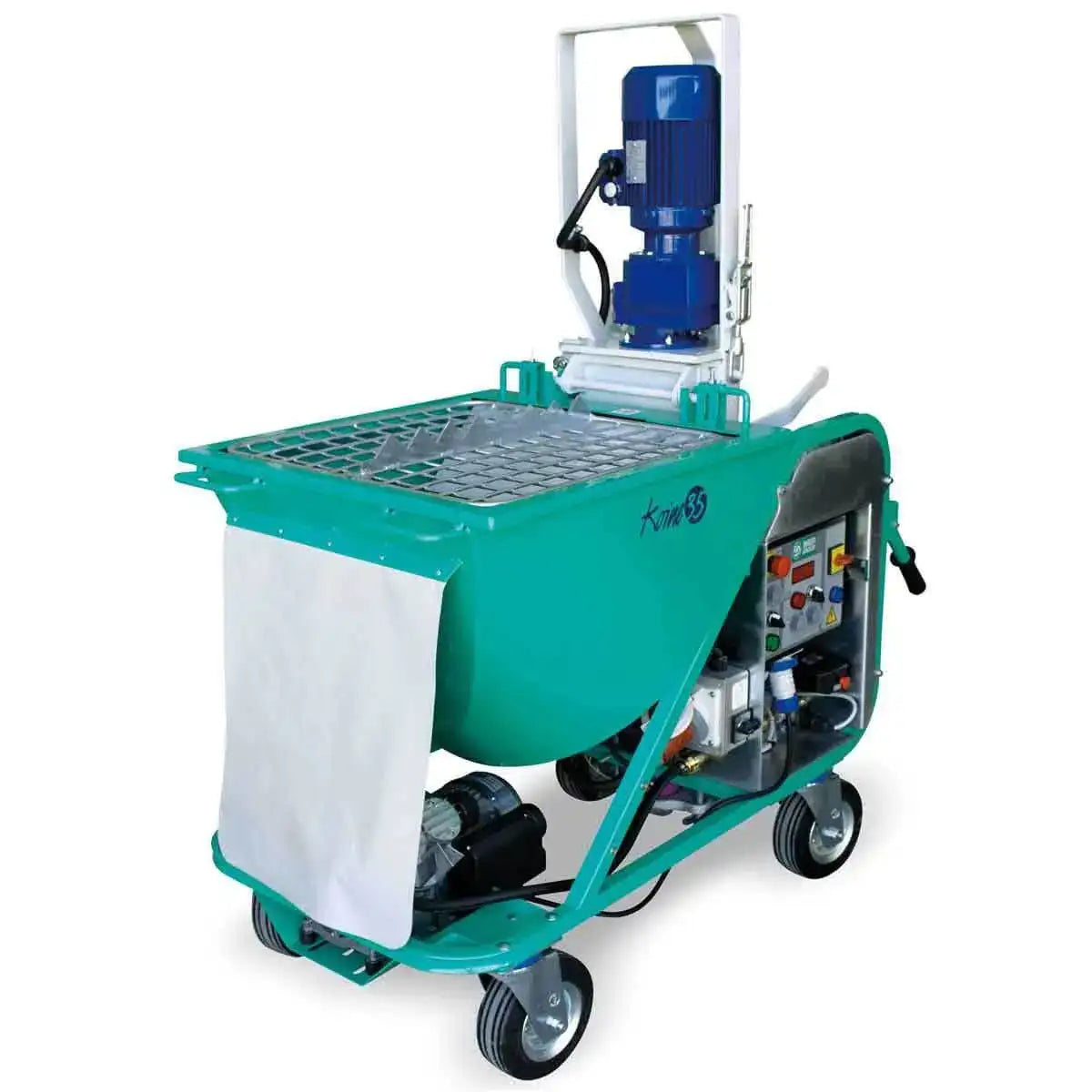

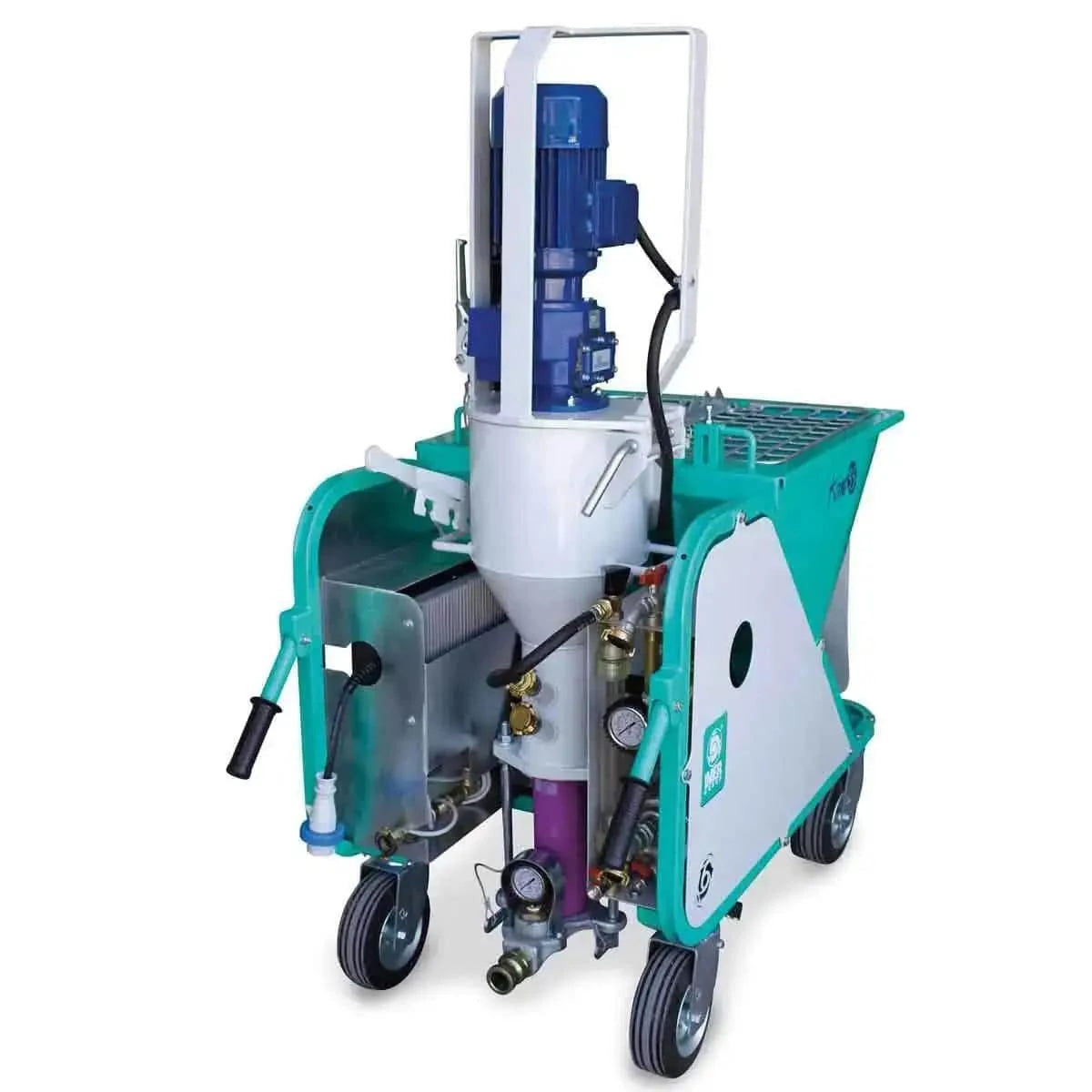

Imer Koine 35 Single Phase Mortar and Plaster Sprayer

Name: Imer Koine 35 Single Phase Mortar and Plaster Sprayer
Brand: Imer
SKU: 1106051
Price: 20524.99 USD
Availability: InStock

$20,524⁹⁹ USD

Shipping calculated at checkout.

Brand: Imer | SKU: 1106051 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

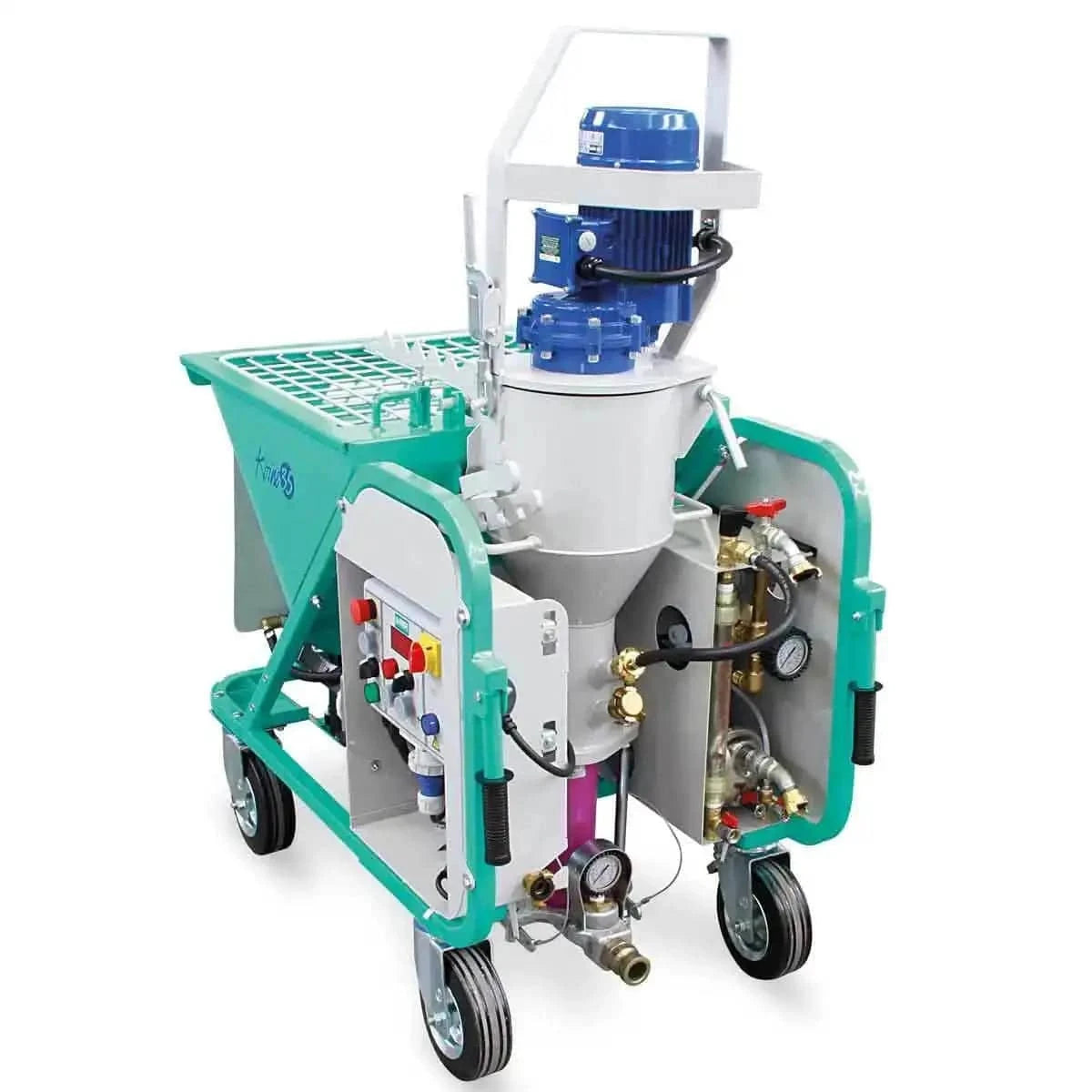

Imer KOINE 35 Single Phase, 220V Mortar and Plaster Sprayer

Single-phase mortar plaster sprayer for dry premixed materials.

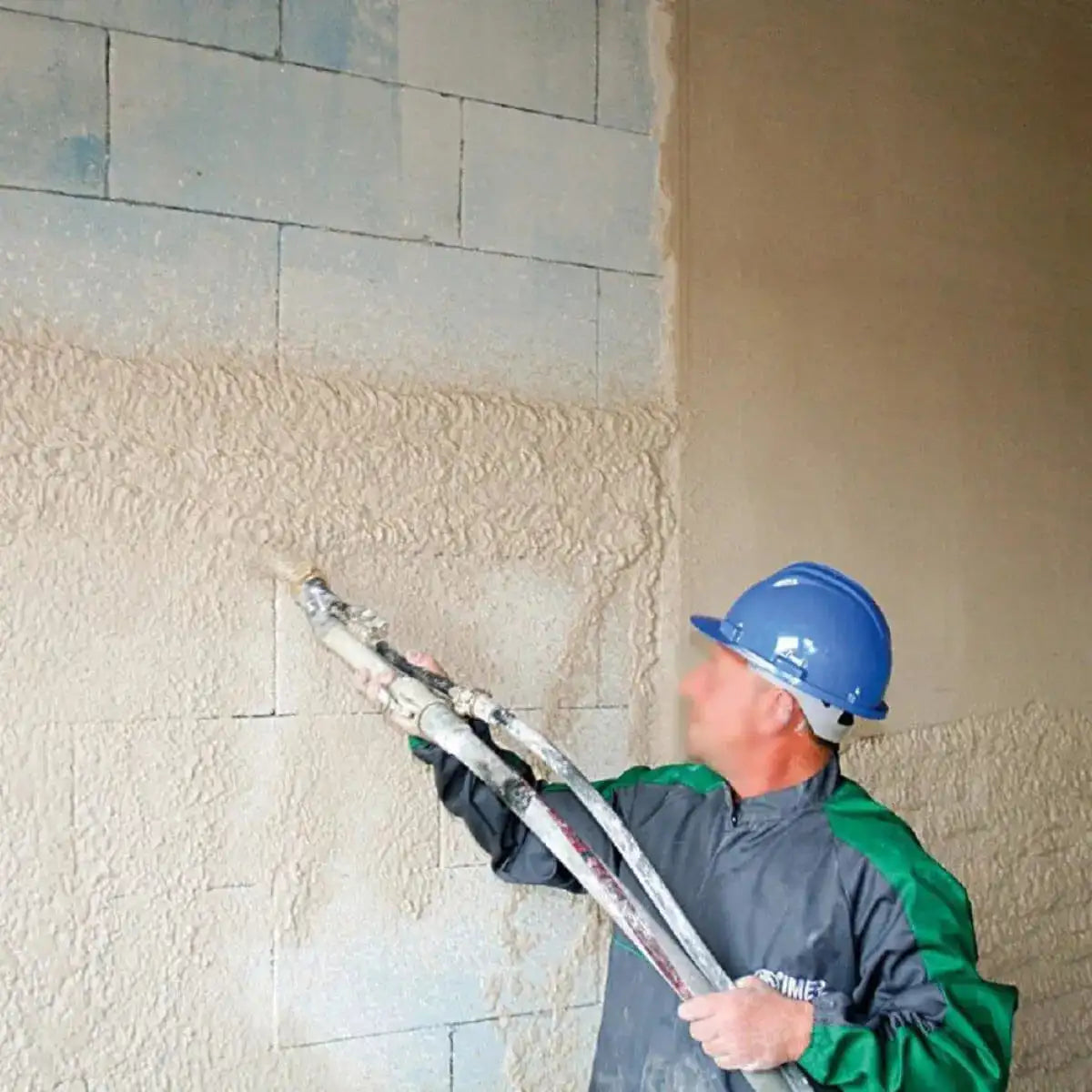

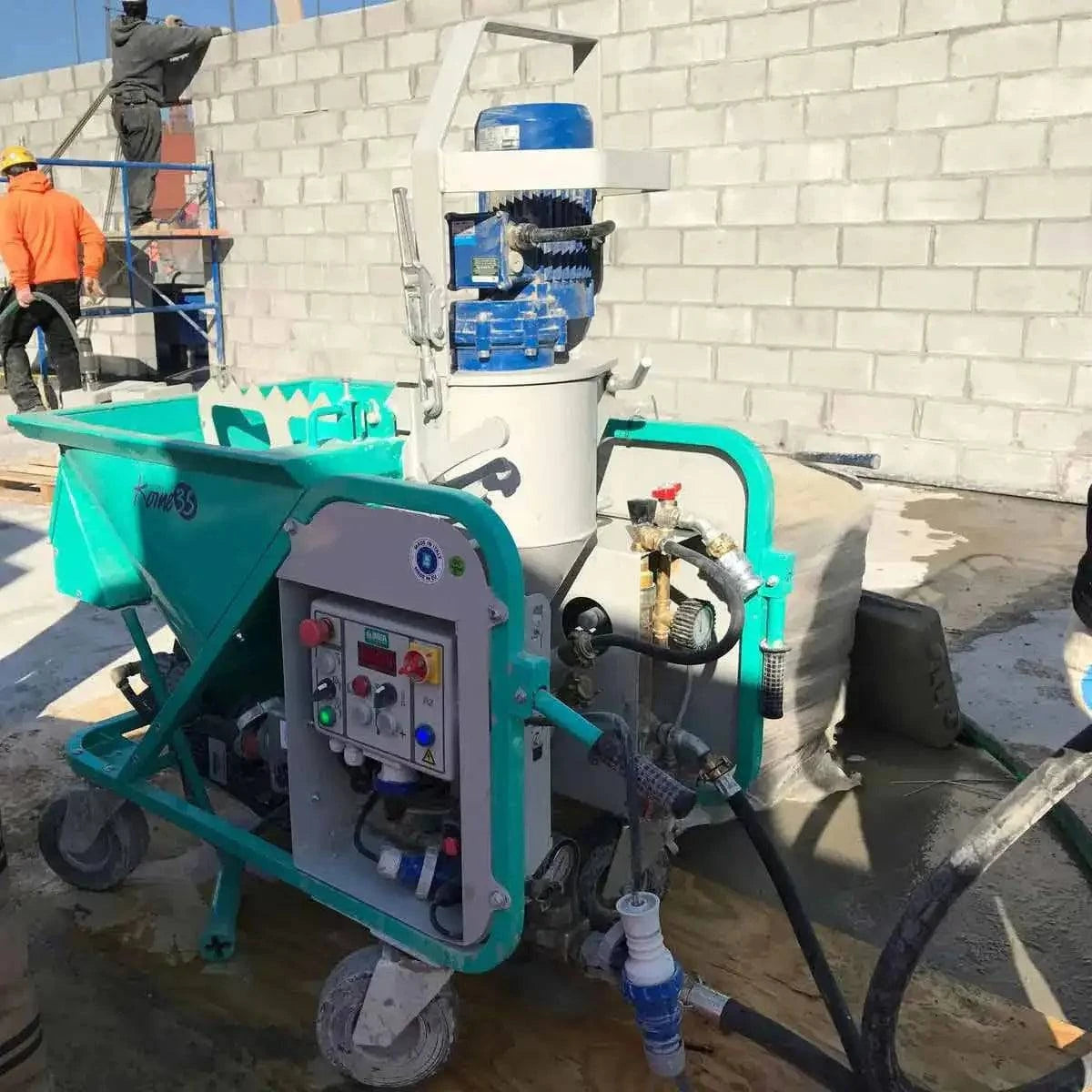

For the continuous mixing, spraying and pumping of pre-blended cement and gypsum based mortars, stucco, fireproofing, self-leveling under-layments and grouts.

Features

Mixing chamber access is quick and easy. Clean up at the days end is simple
Continuous operation means that production is very efficient and effective. Run fast and run hard!
Self-priming water pump with stainless steel housing and brass impeller. A reliable and long lasting design
Continuous feed impeller, break a bag and get going automatically
Single-phase 5 HP motor with a gearbox drive reduction system
Modular design means you can knock it down into 4 pieces. Take it anywhere!
Handles for transport, for mobility throughout the job-site
Pump and spray up to 125 feet!
Continuous feed impeller blade makes sure that materials are broken up and ready to be mixed
4 speed material flow rate delivers 17, 23, 30 or 36 cubic feet per hour

Standard Equipment

Continuous mixer
ECO-STAR stator and rotor
Material delivery pressure gauge

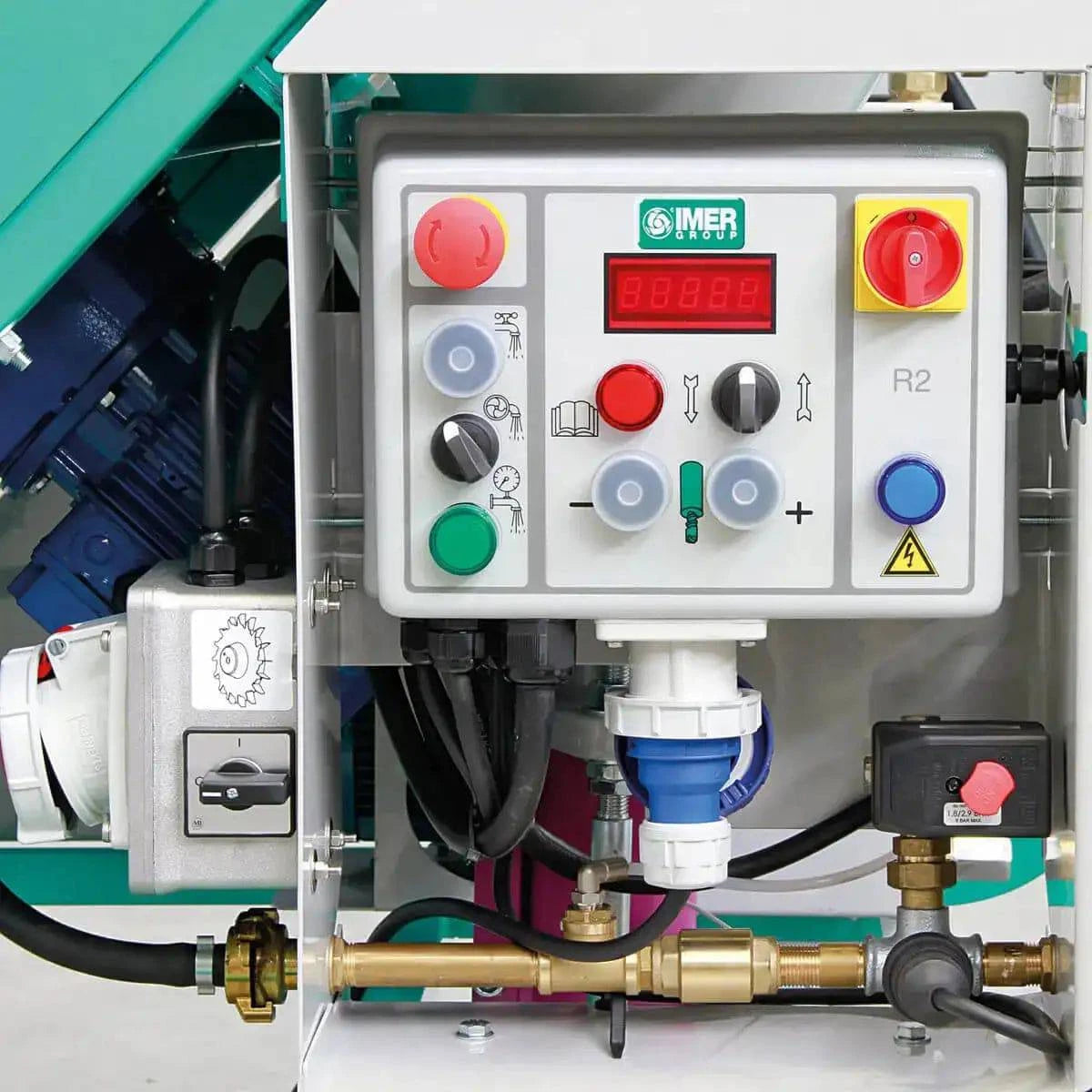

Control panel with exclusive IMER 4 speed inverter
Self-priming water pump

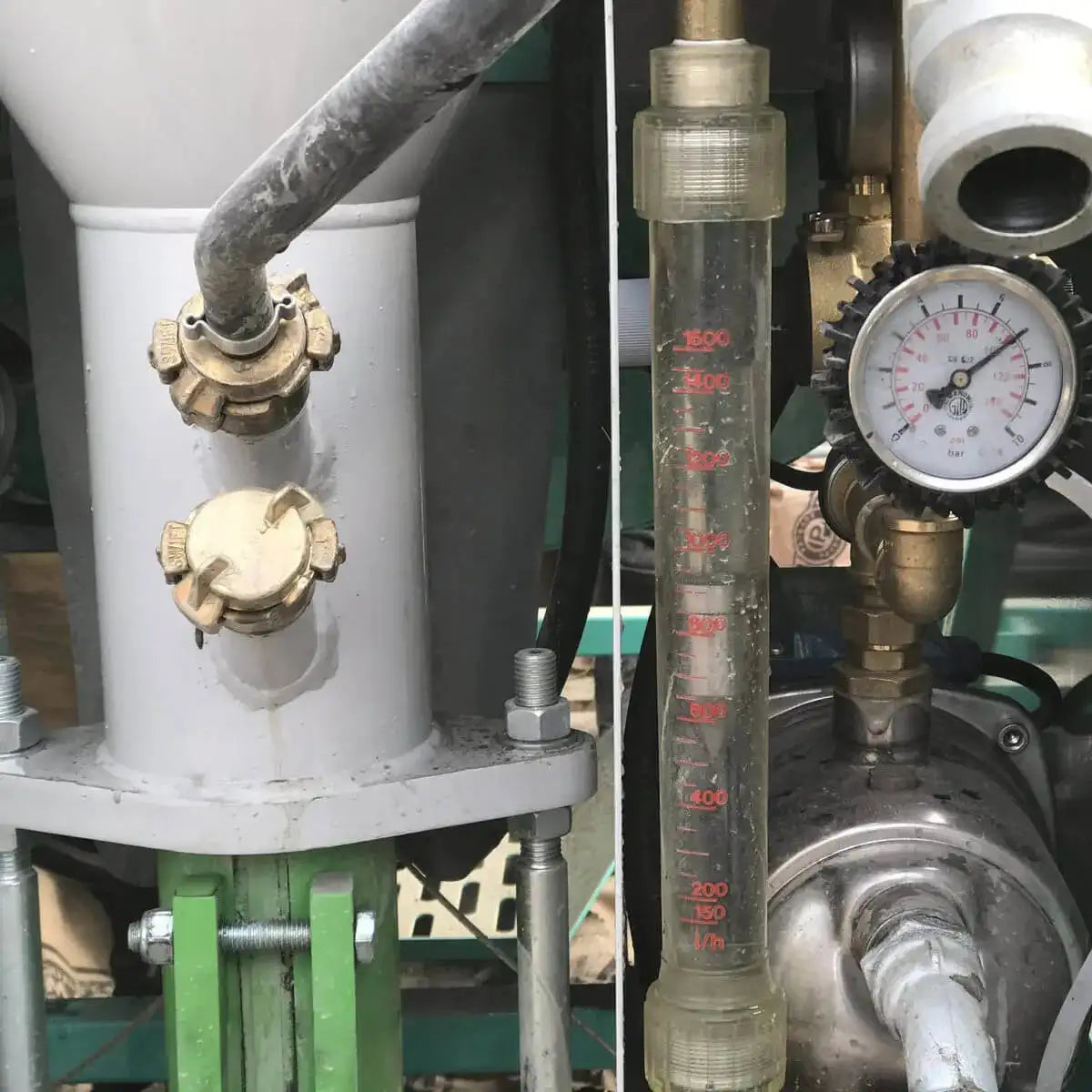

Water system with flow meter and NOFREEZE discharge valve
64â€™ of electric cord
64â€™ of water hose 13 mm (9/16)
50â€™ of air hose 13 mm (9/16)
50â€™ of material hose 50 mm (2)
Spray gun with nozzles
Hose cleaning kit with tool-box
Mixing chamber clean out tool
Remote pneumatic control

Technical Data

Power supply 220V/60Hz, 1 phase
Mixing and pumping motor 3 HP
Feeding impeller motor 1/2 HP
Electric compressor 1HP, 9 CFM
Material flow rate CF/h 17, 23, 30, 36
Maximum pumping distance* Ft. 125

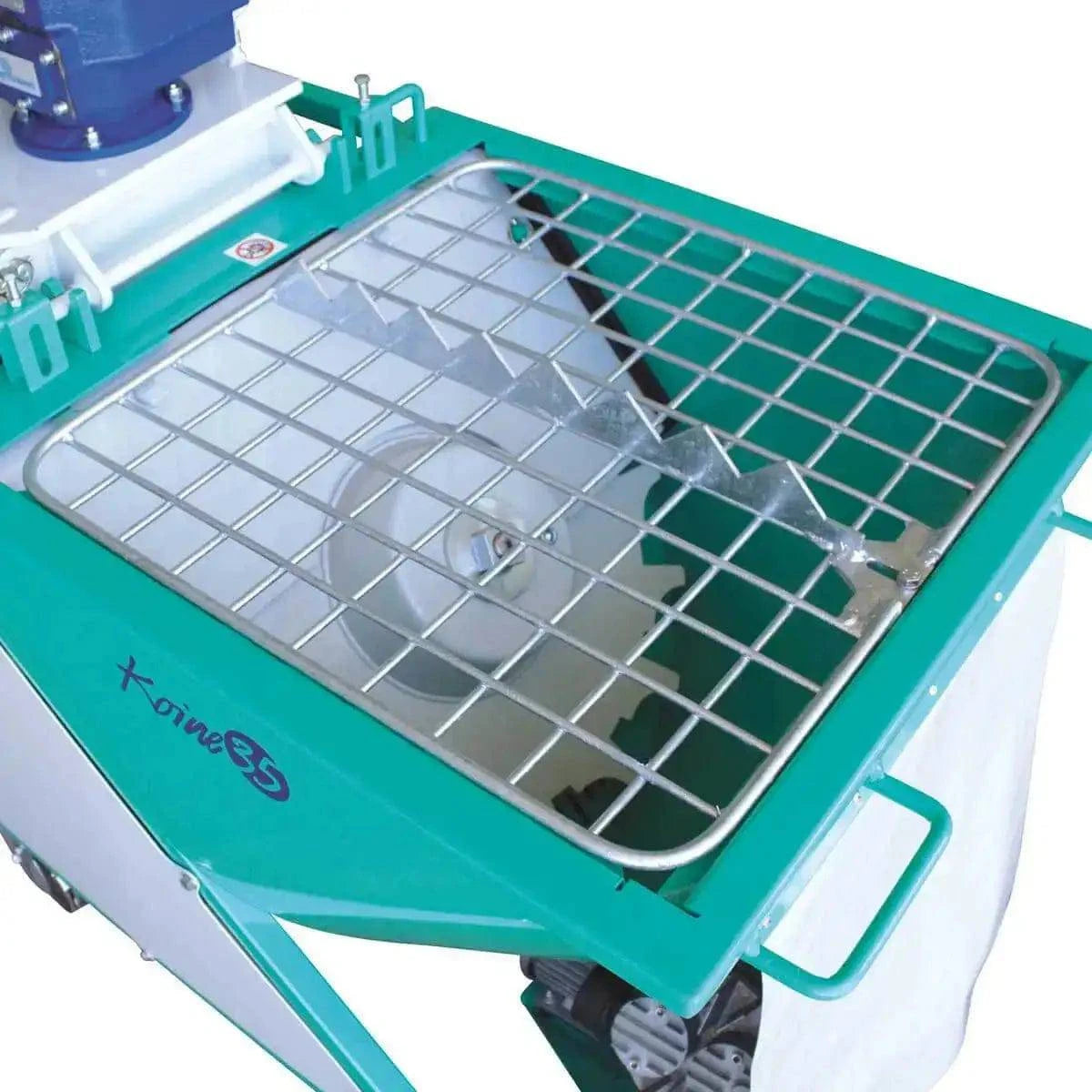

Hopper capacity CF 4
Loading height In. 36
Dimensions width/length/height In. 27/62/47
Weight Lbs. 561
Sound pressure level dB(A) 76
