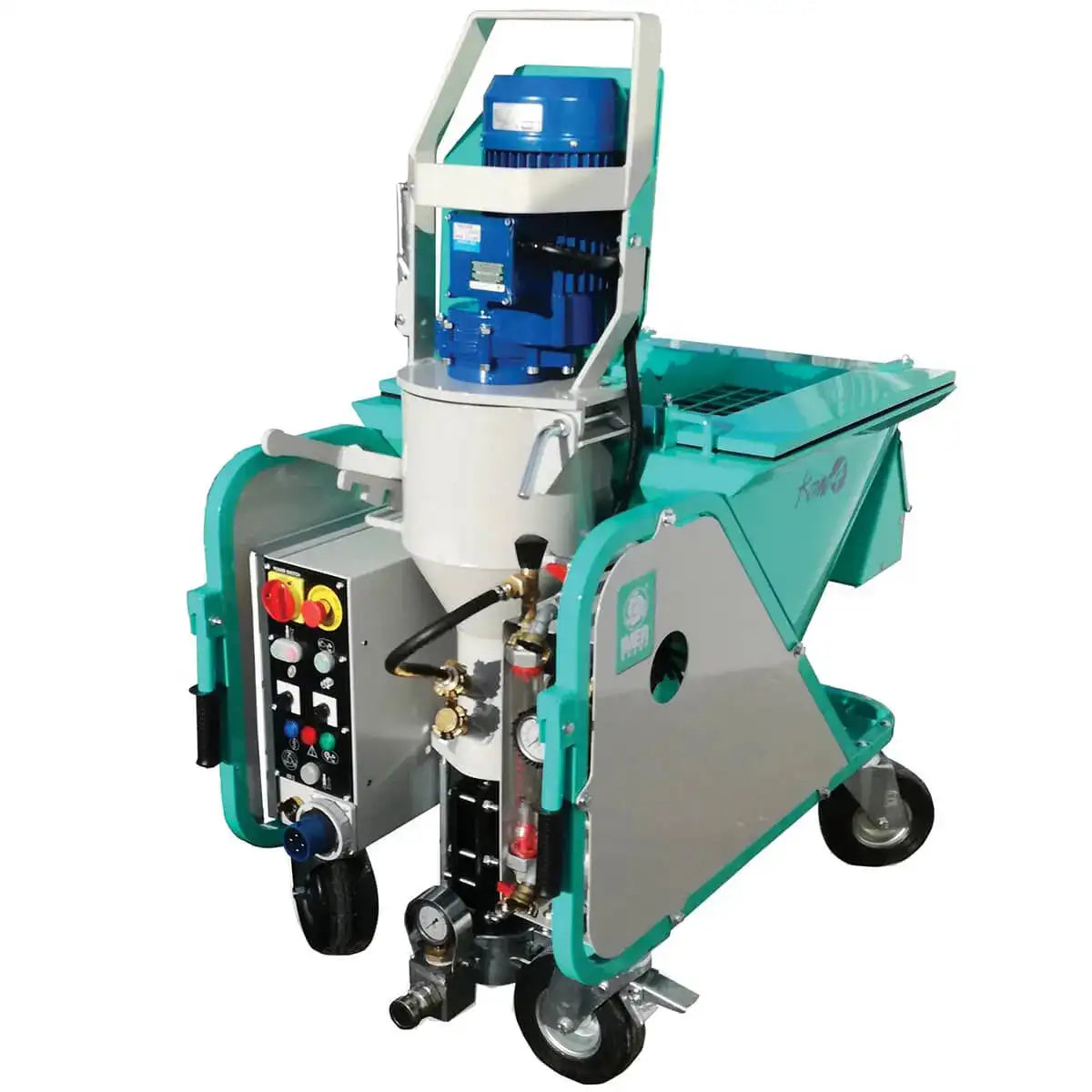

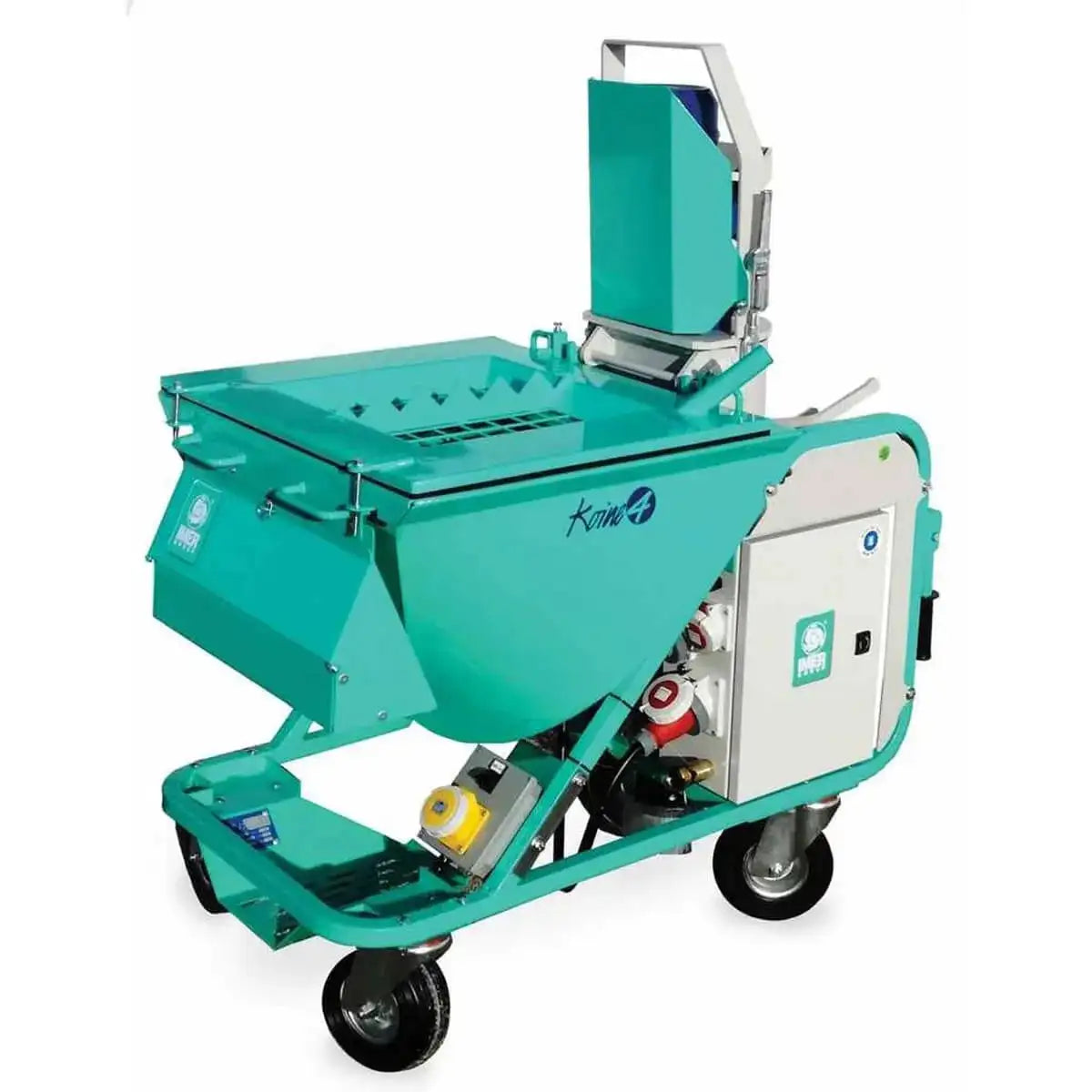

Imer Koine 4 Continuous Mixer & Pump

Imer Koine 4 Continuous Mixer & Pump

Ime Koine 4 is a Hi-FLOW continuous mixing, pumping for premixed bagged materials. Designed for mixing and pumping wall grouts and self leveling underlayments when you need tremendous production. The Koine 4 does the work of 2-3 mixers as well as runners walking with buckets hundreds of feet away back and forth. Once the water is adjusted to the desired consistency, continuously feed the bags for a uniform batch from start to finish.

Features

• Pump self leveling underlayments or fill blocks with grouts
• Hopper and feeding wheel can handle up to 9 50 lb. bags of dry material at one time, delivering dry material at a constant rate to the mixing chamber to be mixed and then pumped out
• Gear driven continuous feed impeller wheel provides dry material to mixing chamber

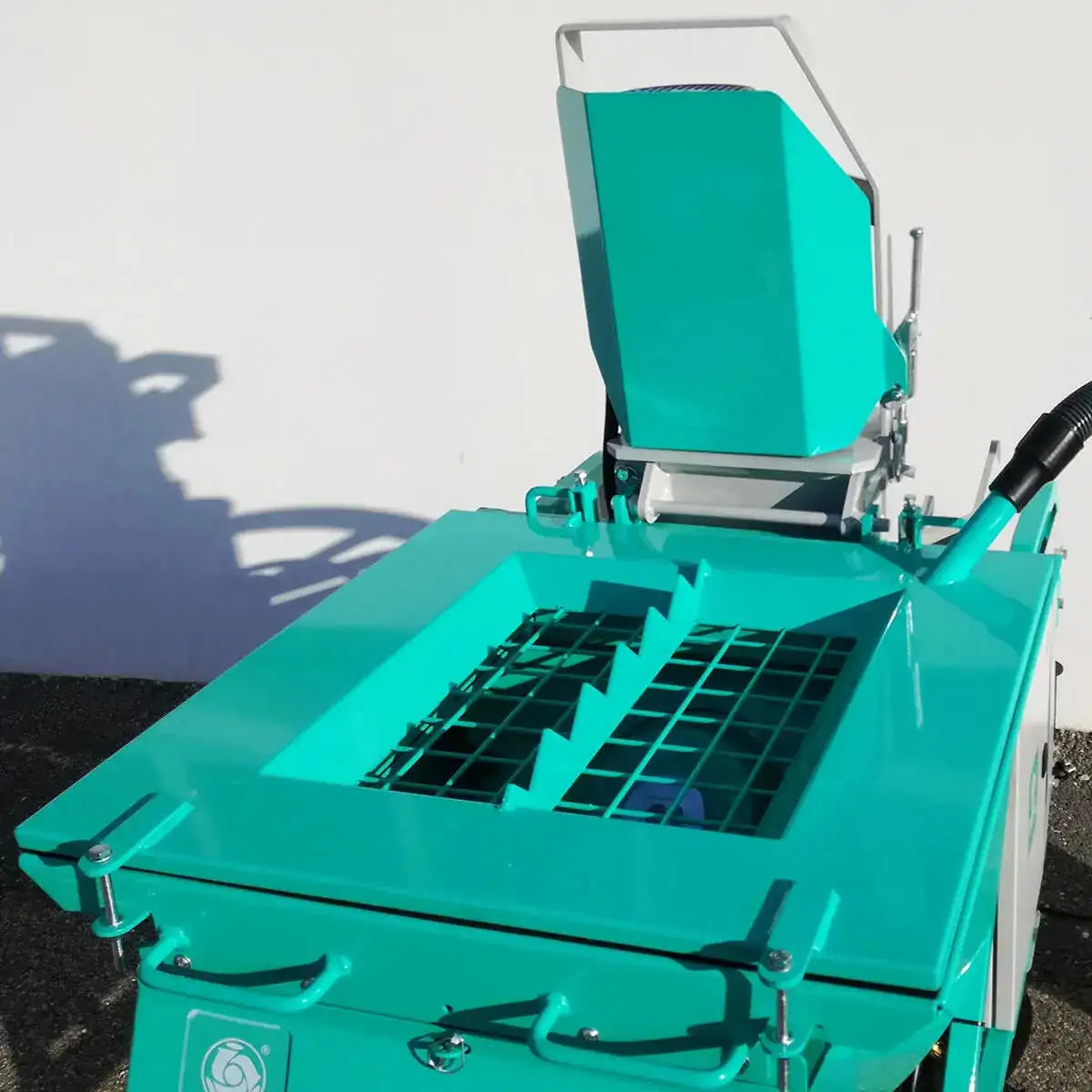

• Dust control grate with vacuum port helps eliminate dust
• Upgraded self priming water pump can pull water from external tank, no water hook up required
• Heavy duty motor drives the gearbox, main shaft, mixing paddle, rotor, and standard turbo mixer
• Included is a 1 hp water booster pump to boost the water pressure and flow and also siphon water from a tank if needed
• Boosting the water provides a surplus in which a regulator injects the water into the mixing chamber at a controlled rate
• Booster pump is also used to flush out the hoses so that your quick setting materials do not set up
• Wired remote control works from over 100' away allowing you to see how much flow is filling up your void or floor
• If you need to stop for a break or end of day you can leave the dry, unmixed material in the hopper just switch off the feeding wheel and use out what is in the mixing chamber
• Optional dual diaphragm compressor can be added to spray mortars, stucco, plasters, etc.
• 2500 liter per hour water system allows for precisely metered flow for different materials based on requirements
• Easy clean up mixing chamber with different material paddles available
• Switchable 3 phase connection via phase converter switch for forward and reverse
• Only 27 inches wide to fit thru any doorway
• Motor with 410 RPM gear reduction drive system to the paddle
• Powerful 100% duty cycle high torque motor
• Low 36" hopper loading height

• Imer Koine 4 Continuous Mixer & Pump
• R8 Rotor / Stator with drive tab for Turbo Mixer

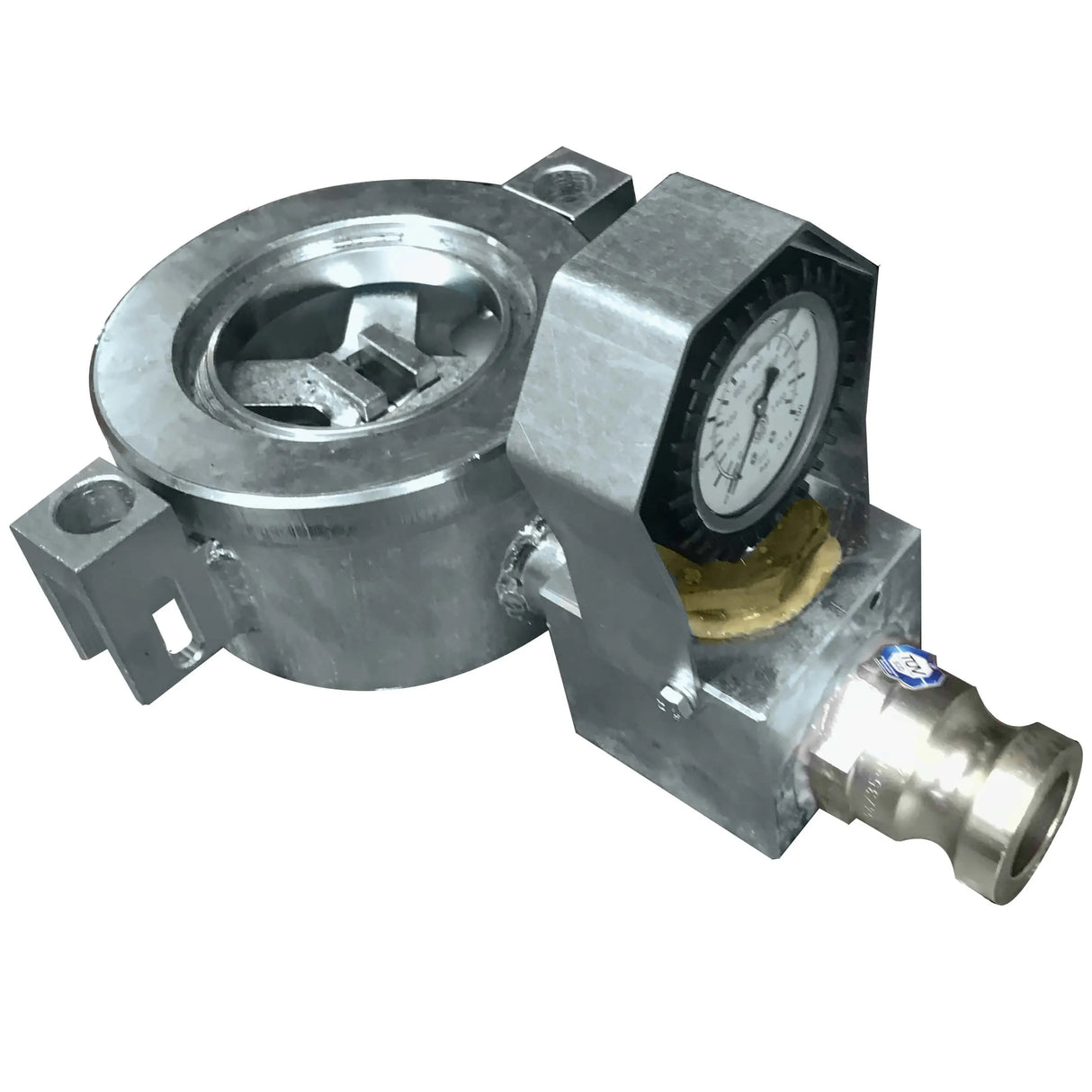

• Turbo mixer with pressure gauge
• Hi Flow mixing chamber with standard mixing paddle

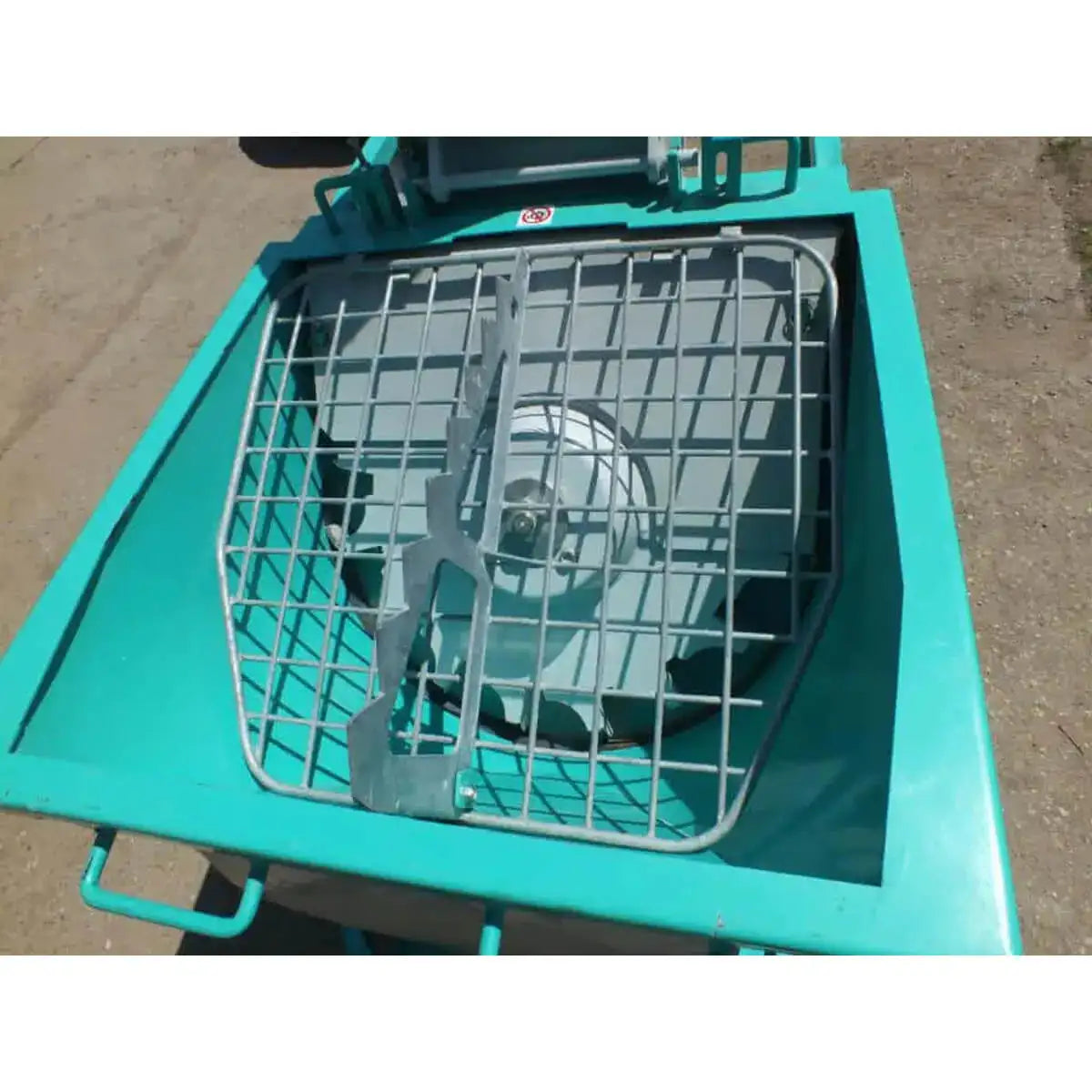

• Dust control grate over hopper and feeding wheel

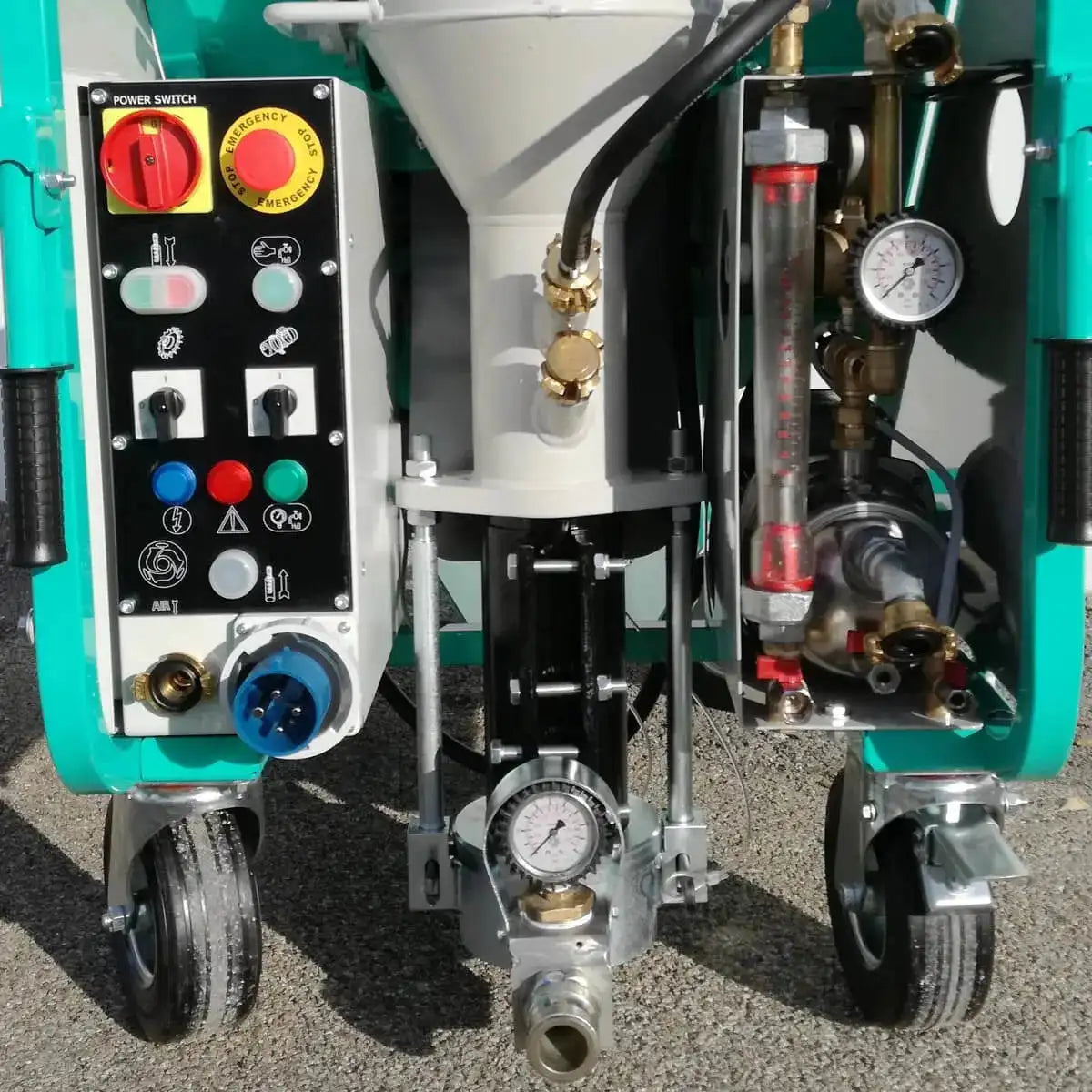

• Water booster pump with advanced adjustable water flow system
• 130' of electrical cord
• 130' of 3/4" water hose
• 33' of 35mm / 1-3/8" material hose
• Hose cleaning kit with tool box
• Mixing chamber clean out tool
• Operator's manual
