Schluter KERDI-Line Linear Drain Channel Body

Schluter KERDI-Line Linear Drain Channel Body

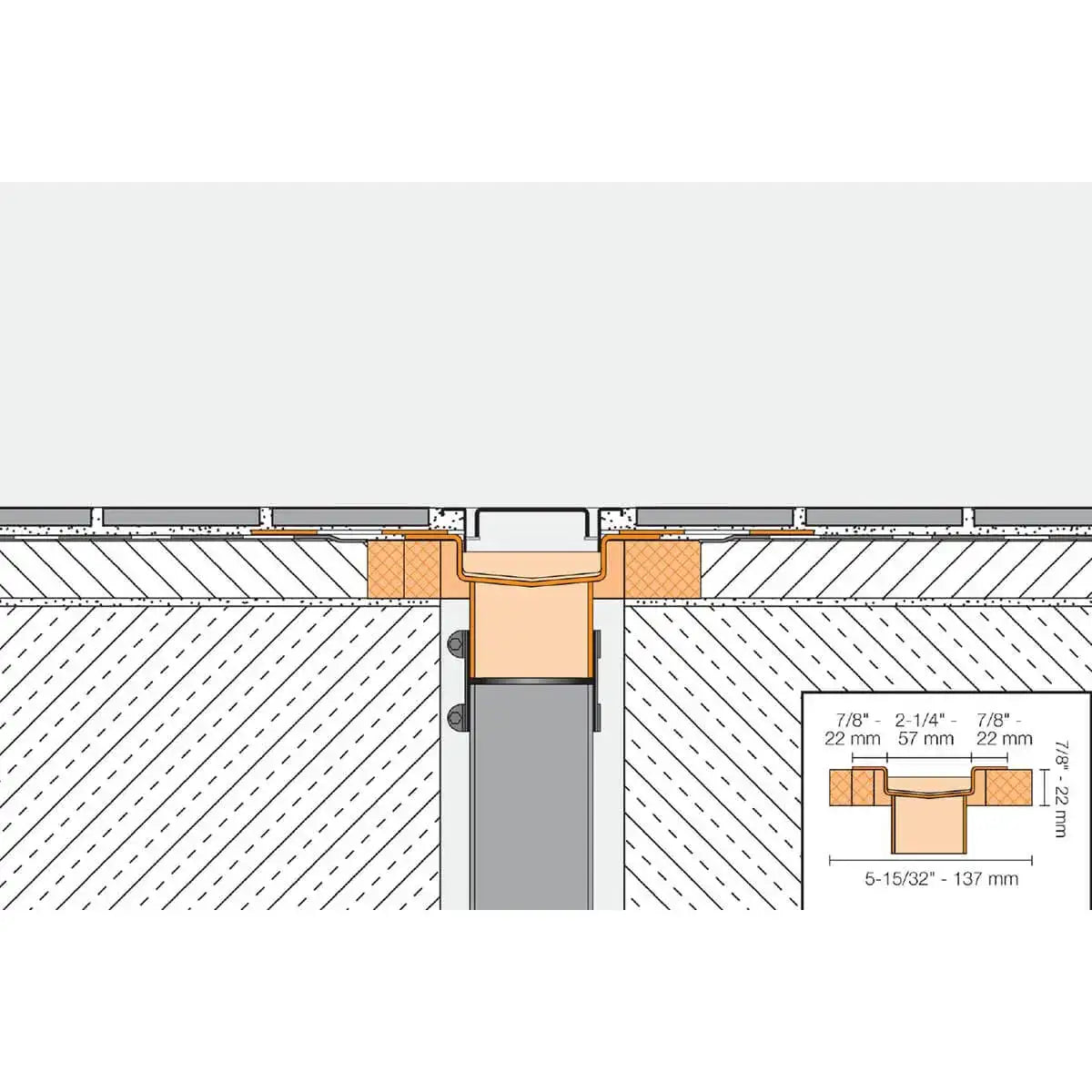

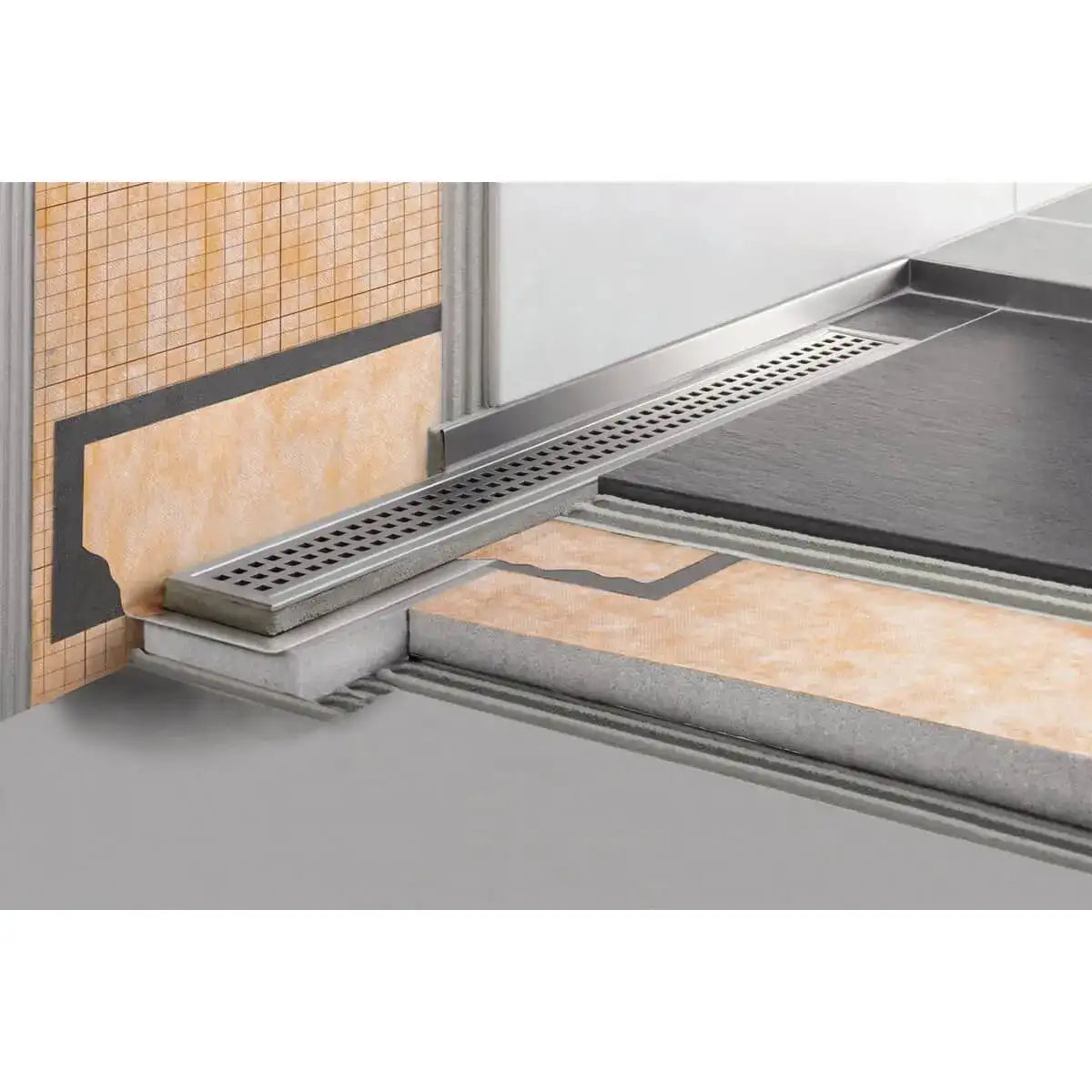

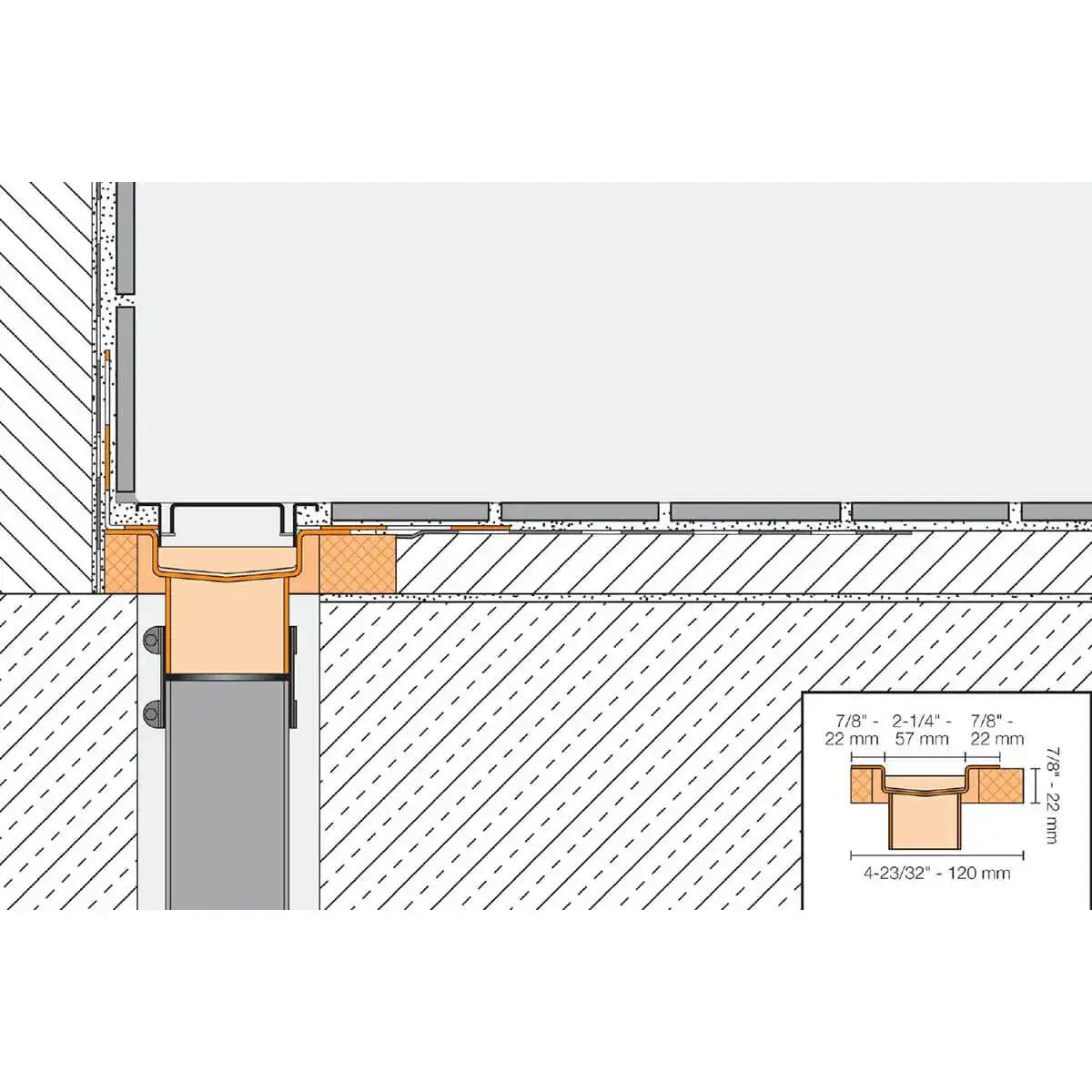

Schluter KERDI-LINE is a low-profile linear floor drain specifically designed for bonded waterproofing assemblies. It can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

Features

• Create curbless, open-concept spaces
• Floors can be sloped on a single plane to KERDI-LINE, enabling the use of large-format tiles
• The channel body is made of formed stainless steel and features a KERDI collar to create a secure, waterproof connection
• Off-set and center outlets are available
• Accommodates all common thicknesses of ceramic tiles and stone coverings
• Available in lengths ranging from 20" (50 cm) to 72"(180 cm)
• Grate assemblies are sold separately

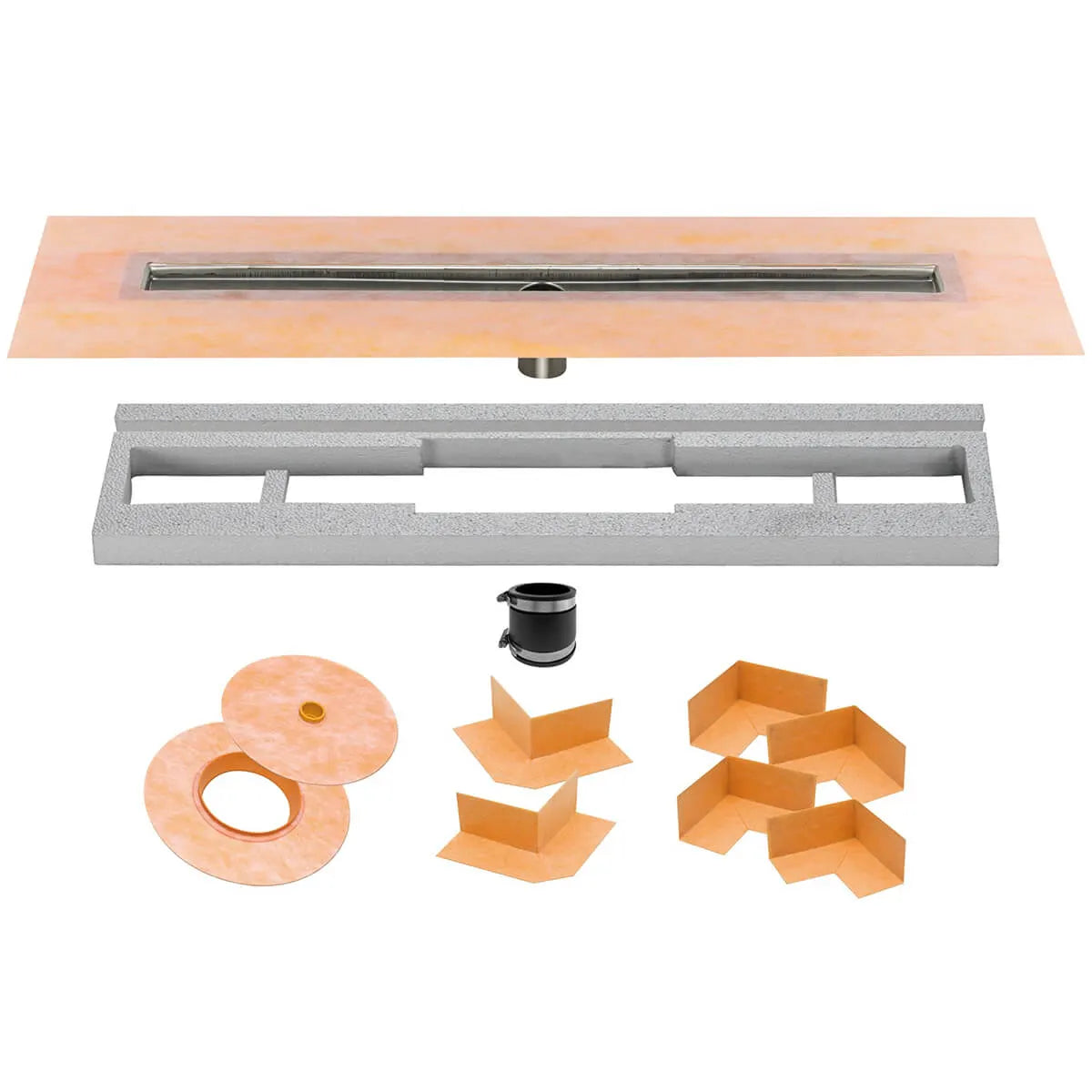

What's Included?

• 1 channel body with integrated KERDI collar
• 1 channel body support
• 1 no-hub coupling
• 2 KERDI-KERECK waterproofing outside corners
• 4 KERDI-KERECK waterproofing inside corners
• 1 KERDI-SEAL-PS 3/4" pipe seal
• 1 KERDI-SEAL-MV 4-1/2" mixing valve seal

Common Questions

How far from the wall should the Kerdi line linear drain be installed?

The distance from the wall to the Kerdi-Line linear drain installation can vary depending on the specific requirements of your tile shower project. Please consider factors such as distance from the wall, tile layout, and slope and pitch.

What is an excellent way to keep a linear shower drain clean?

You can flush your drain with hot water, vinegar, and baking soda every 4-6 weeks to control mold and soap scum buildup.
