How thick is the outer edge of the shower pan for the 48 x 72 size?

The 48" x 72" pan goes from 1-1/2" thickness down to 1" where the flange drain will be assembled.

Can i easily modify it to fit my size. I plan to make small 27 inches by 40 inches shower cabin. would i be able to do so with your kit? And if yes what size kit would you recommend ? Thanks Deniss

Yes, the pan can be easily modified. The pan selection should be big enough to cover your largest side and correct drain placement needs, whether that is center or offset drain. If the pan needs to be site adjusted to fit the shower, use a circular saw or utility knife to cut the pan to the proper shower dimensions. Using a circular saw or utility knife recut the rabbet joints into the edges of the pan where required. The rabbet joint lip should be 3/4" 19 mm thick and 1/2" 12 mm wide.

Can the wall membrane be thinsetted over drywall? Also, can I wet-shim the hydroban board to obtain a plumb/level wall?

Yes, the wall membrane can be installed using thinset over dry wall. The manufacturer states that you can use the wall membrane to wet shim but not the hydroban board itself.

What are the rough in dimensions for the drain on the 32x60 shower pan kit?

The Outer Flange ring is 11 7/8".The opening on the Outer Flange for the Inner Flange is 5 3/4".The Drain connector is 2 1/4". The Inner Flange ring is 7 7/8".

Can I modify this pan to accommodate a linear drain?

These pre-sloped pans can easily be modified to fit the shower size on site but please note that they are pitched for a center drain and would require mudding in the rest of the pitch plane. Laticrete does offer hydro ban linear drain shower pans.

Hello, I am interested in purchasing a 48" x 48" Laticrete Shower Kit. However, I notice that the kit only comes with one curb, but I will be needing two since this will be a two-wall corner shower. Will I have to make an order for an additional curb? Or is there a shower kit that accommodates my needs (which I cannot find yet)?

These shower kits only come with one curb to fit the longest side length of the shower pan. You can purchase another shower curb from Laticrete here.

1 4

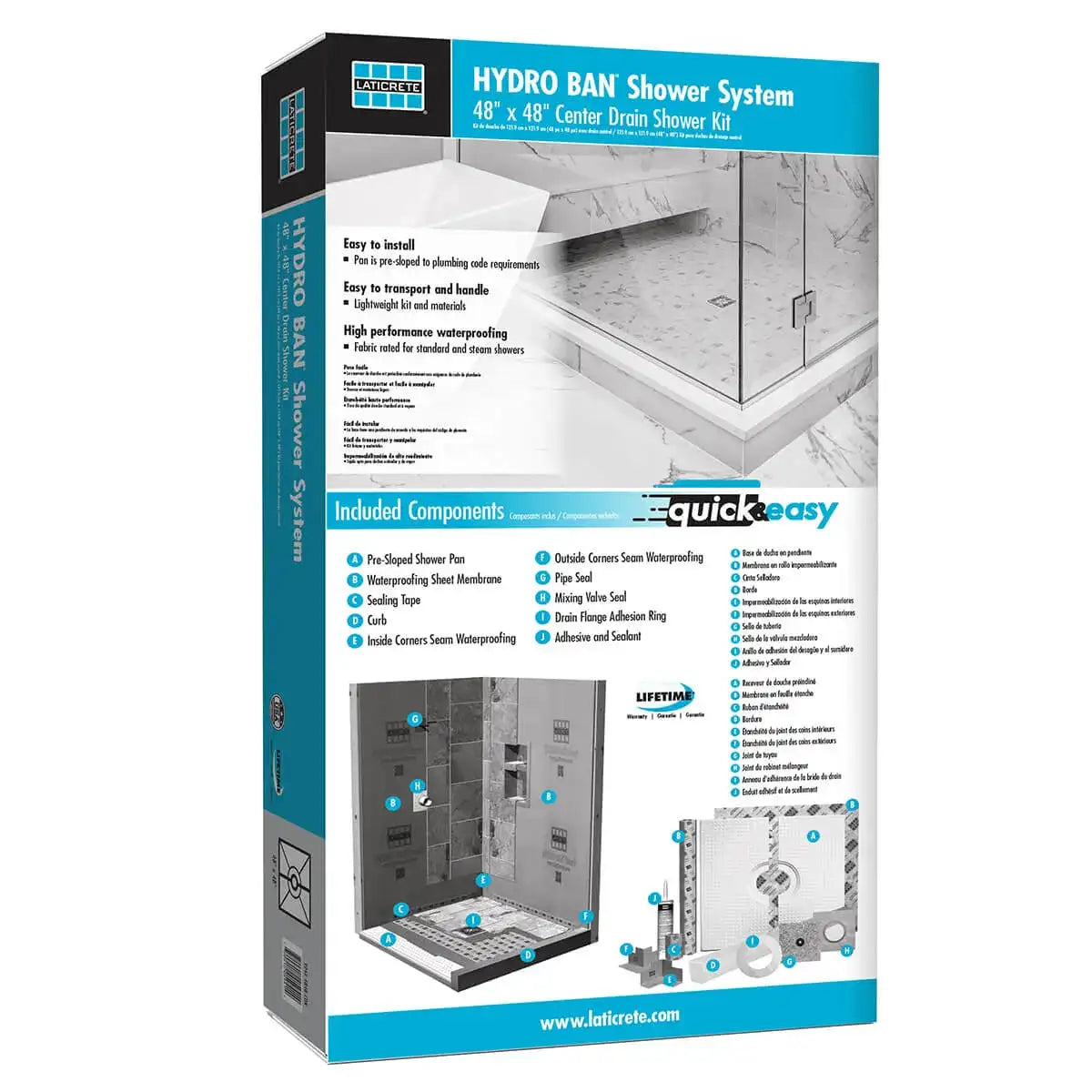

Laticrete Hydro Ban Shower Kits

Name: Laticrete Hydro Ban Shower Kits
Brand: Laticrete
SKU: 4256-48x48 CenterKit
Price: 349.77 USD
Availability: InStock

$349⁷⁷ USD

Shipping calculated at checkout.

Brand: Laticrete | SKU: 4256-48x48 CenterKit | MPN:

Option

48" x 48" Center Drain Kit 72" x 72" Center Drain Kit 48" x 72" Center Drain Kit 32" x 60" Center Drain Kit 32" x 60" Offset Shower Kit

Product variants

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Laticrete Hydro Ban Pre-Sloped Shower Kits

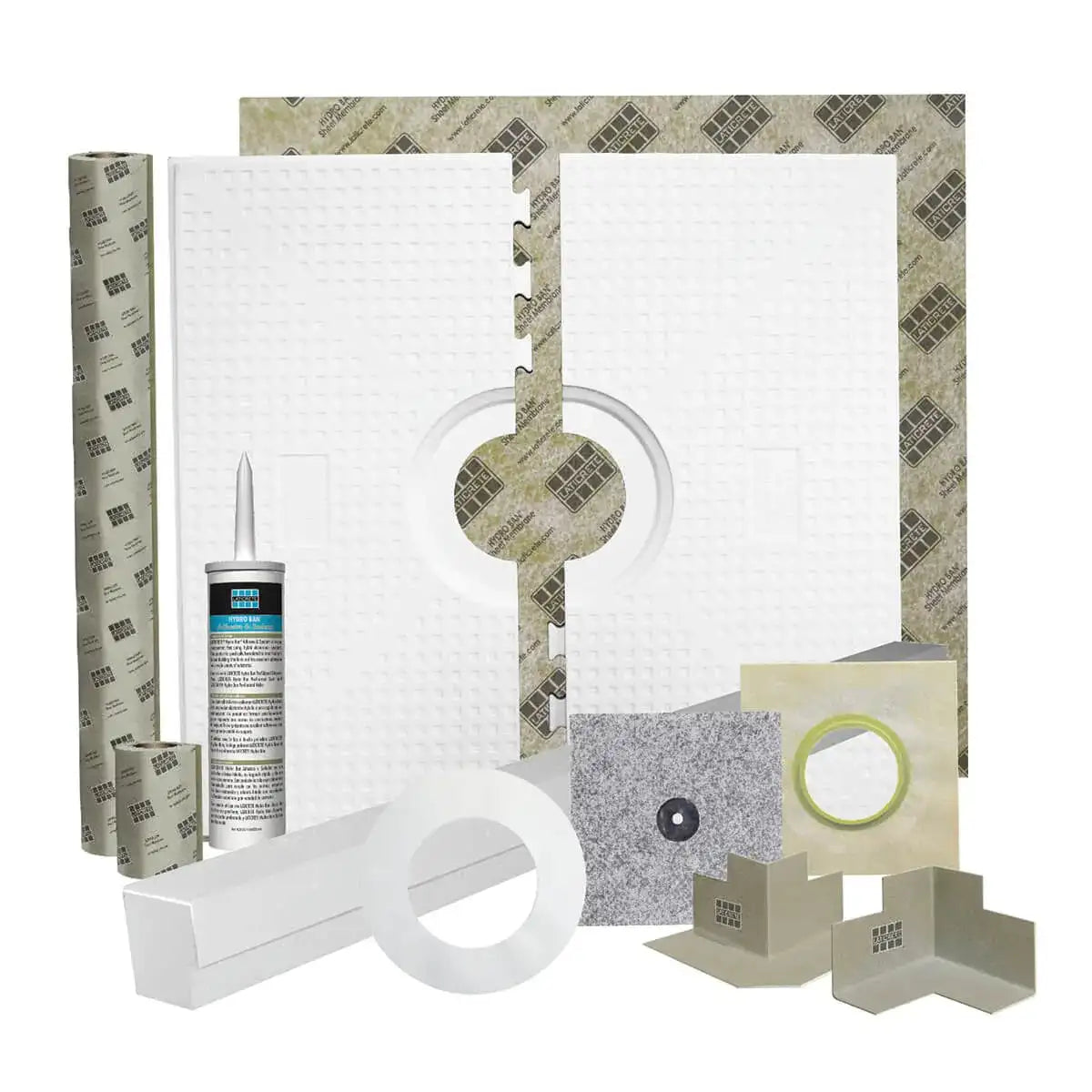

Laticrete now offers a cost-effective solution for quickly and efficiently installing a fully waterproof shower pan with the Hydro Ban Shower Kits. These kits include all the components required to create a pre-sloped shower system and come in 6 different sizes. They are a lightweight, easy-to-use alternative to traditional mud bed shower floors.

Features

Shower pans work in industrial, commercial, and residential applications
Pre-sloped shower pans are ready-to-tile
Made of lightweight, durable material that is easily handled during installation
It can easily be modified to fit the shower size on-site
The pliable membrane forms easily to substrate and works with modified or un-modified thin set
For use with the Hydro Ban Bonding Flange Drains (sold separately)
Suitable substrates are cement backer board, concrete, exterior glue plywood (interior only), and OSB board (interior only)
It can be used to create stalled gang showers and pet showers
The membrane exceeds ANSI A118.10 requirements
Membrane tested to ASTM E96/E96M Procedure E0.06 Perms - approved for steam showers/rooms as a single membrane
Membrane is IAPMO-approved
