Laticrete Strata Heat 120V Spliceless Heating Wire

$17520 USD
Shipping calculated at checkout.
Brand: Laticrete | SKU: 9020-50 Ft | MPN:
Length

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

Laticrete Strata Heat 120V High-Performance Spliceless Wire

The new and improved STRATA_HEAT System is the most advanced radiant floor heating system available in the world!


Features

  • New, high-performance spliceless wire
  • Spliceless design with ETFE inner jacket for an easier installation
  • Single diameter, burying the cold lead is no longer needed
  • Heavy duty construction, the outer jacket provides exceptional performance and durability
  • There is no minimum on a straight run length like other systems – it is more manageable to layout
  • Highly conductive copper wiring offers maximum heat transfer
  • Component of the Laticrete system lifetime warranty

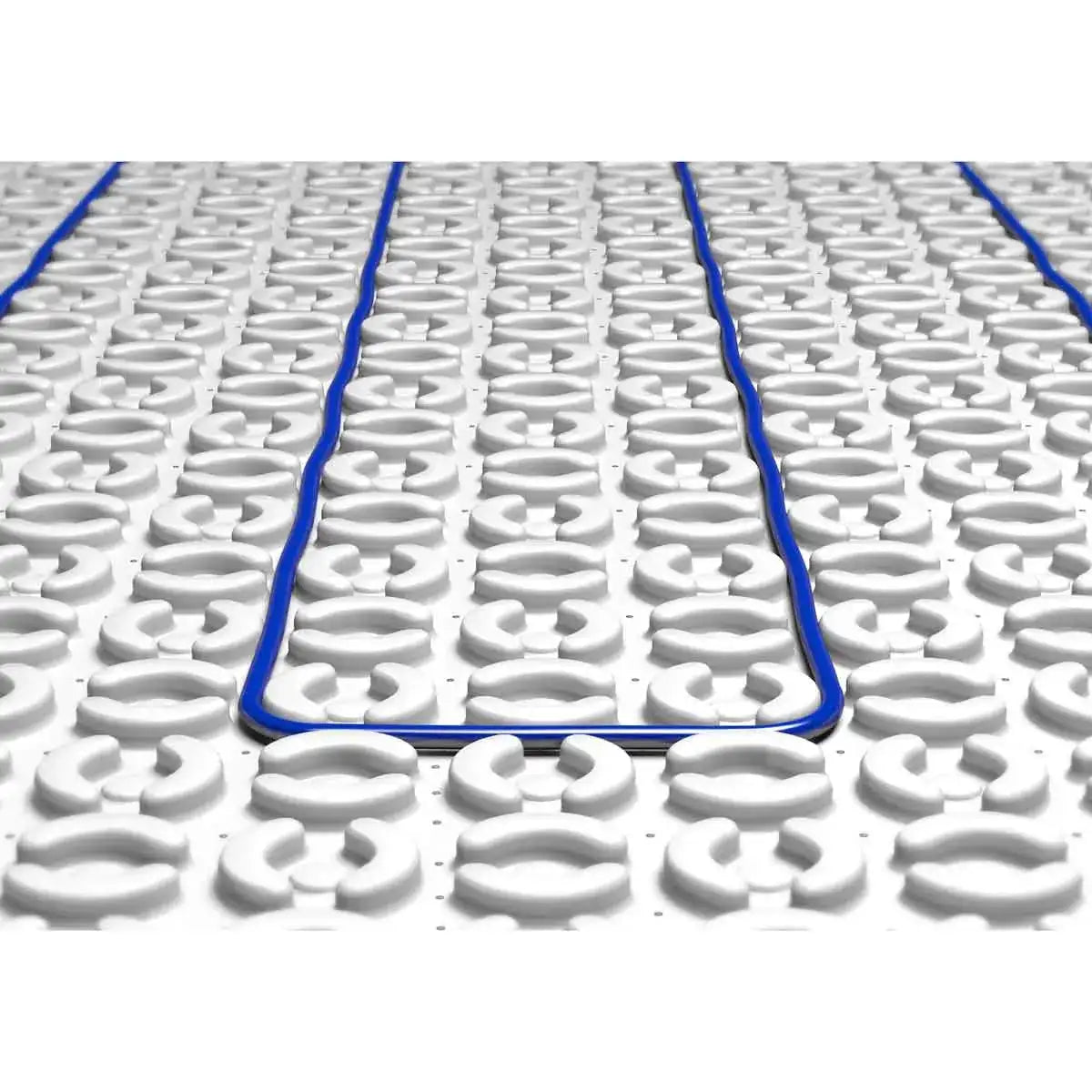

  • Different spacing of wire allows for variable heat output that can be spread out or put closer together


 Please see the conversion chart for cable in square feet below


Suitable Substrates

  • Interior Horizontal Surfaces Only
  • Hydro Ban Board
  • Concrete
  • Mortar Beds
  • Exterior Glue Plywood (interior only)
  • Existing Ceramic Tile and Stone
  • Cement Terrazzo
  • Cement Backer Board


Limitations

  • Interior floor installations only
  • Adhesives/mastic, mortars, and grouts for ceramic tile, pavers, brick, and stone are not replacements for waterproofing membranes


Floor Heating Spacing

Coverage varies based on the cable's chosen spacing pattern.

  • Standard Coverage - 17 watts per sq ft. with 3/2/3 pillar spacing on uncoupling systems


Returns

***In addition to our normal return policy, please be advised that heating wires are not eligible for return if the seal is broken and the item is not in brand-new condition.

Floor Heat Coverage Chart
Item Number Cable Length
(ft)
Uncoupling Systems
3-2-3 pegs
16 W/sqft
Uncoupling Systems
3 pegs
13 W/sqft
Uncoupling Systems
4 pegs
10 W/sqft
Strata_Heat Spacing Strips
3in space
13 W/sqft
Strata_Heat Spacing Strips
4in space
10 W/sqft
AMPS
0804-0050-2 50 ft 12.5 sq ft 15 sq ft 20 sq ft 12 sq ft 17 sq ft 1.6
0804-0067-2 67 ft 16.5 sq ft 20 sq ft 27 sq ft 17 sq ft 22 sq ft 2.2
0804-0084-2 84 ft 21 sq ft 25 sq ft 34 sq ft 21 sq ft 28 sq ft 2.7
0804-0100-2 100 ft 25 sq ft 30 sq ft 40 sq ft 25 sq ft 33 sq ft 3.3
0804-0133-2 133 ft 33.5 sq ft 40 sq ft 53 sq ft 33 sq ft 44 sq ft 4.4
0804-0166-2 166 ft 41.5 sq ft 50 sq ft 67 sq ft 42 sq ft 55 sq ft 5.5
0804-0200-2 200 ft 50 sq ft 60 sq ft 80 sq ft 50 sq ft 66 sq ft 6.5
0804-0233-2 233 ft 58.5 sq ft 70 sq ft 94 sq ft 58 sq ft 77 sq ft 7.7
0804-0266-2 266 ft 66.5 sq ft 80 sq ft 107 sq ft 66 sq ft 88 sq ft 8.8
0804-0299-2 299 ft 75 sq ft 90 sq ft 120 sq ft 75 sq ft 100 sq ft 9.8
0804-0332-2 332 ft 83.5 sq ft 100 sq ft 133 sq ft 83 sq ft 111 sq ft 11
0804-0365-2 365 ft 91.5 sq ft 110 sq ft 147 sq ft 91 sq ft 122 sq ft 12
0804-0398-2 398 ft 100 sq ft 120 sq ft 160 sq ft 99 sq ft 133 sq ft 13.1

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Hails H.I.
Easier than Schluter

Love Laticrete Products. Cable is perfect to snap into strata heat mat. No big coupler like the orange brand. Just follow directions and install is a breeze.

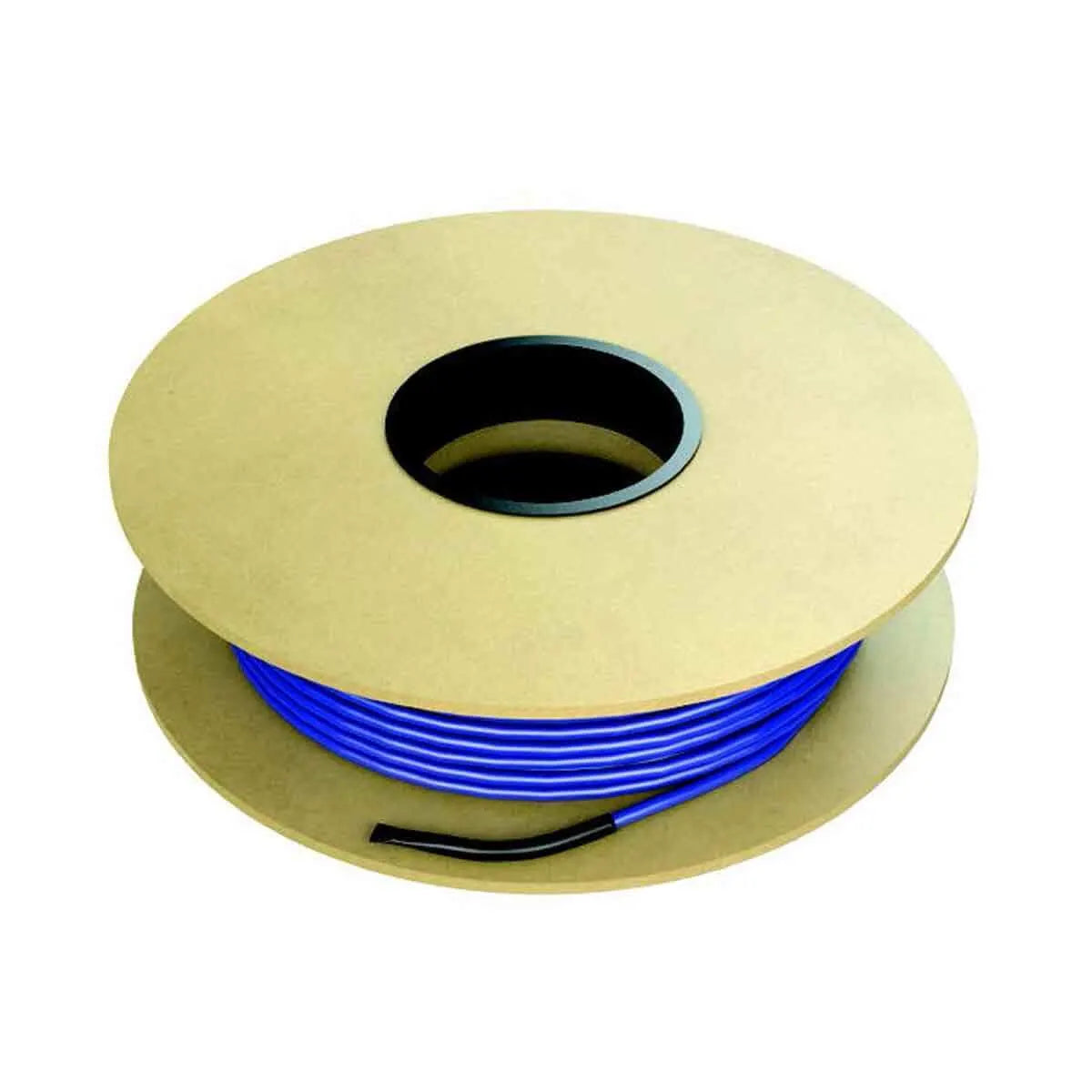

Laticrete Strats_Heat 120V Spliceless Wire Spool
