Laticrete Strata Heat 240 Volt Spliceless Wire

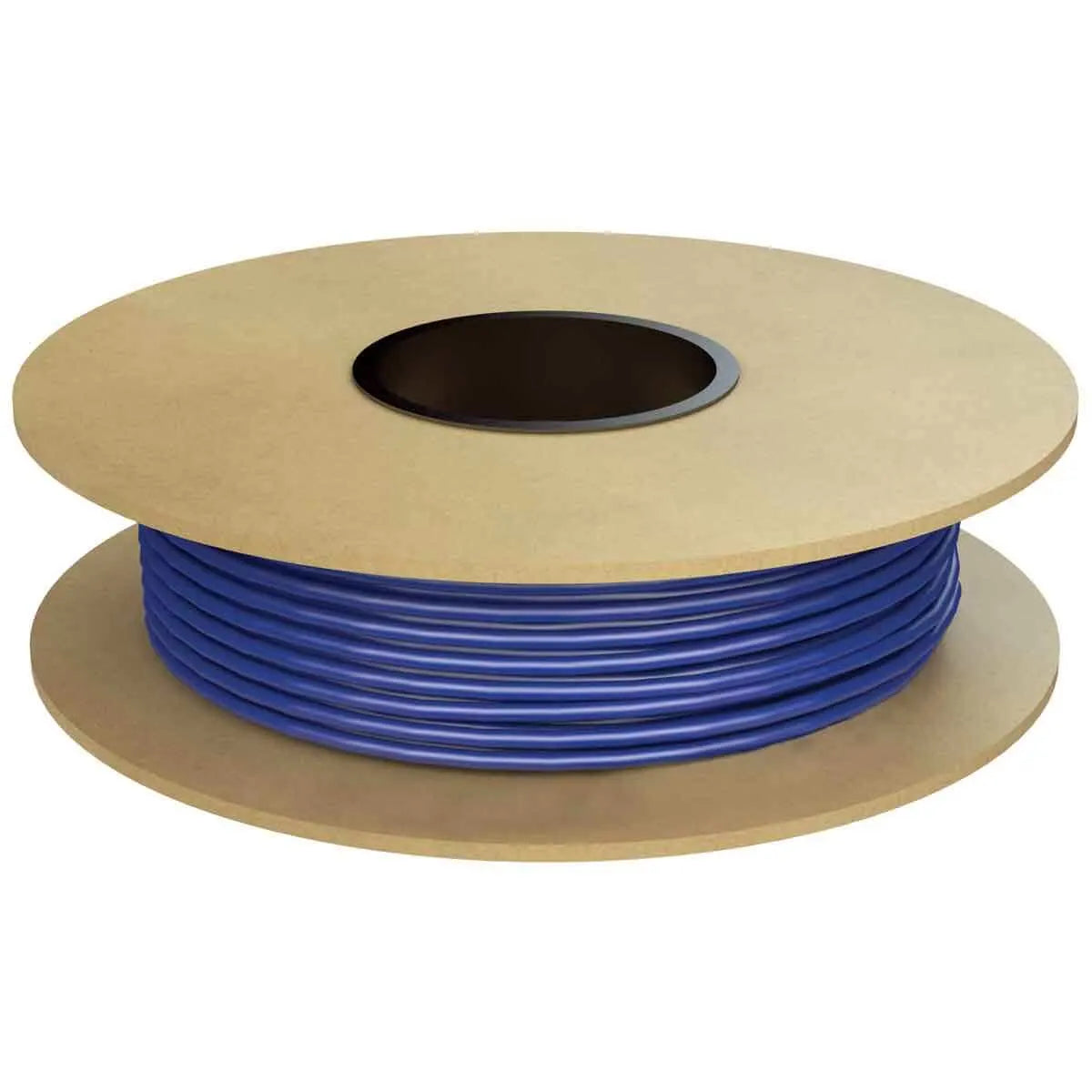

Laticrete Strata Heat 240V High Performance Spliceless Wire

The new and improved STRATA_HEAT System is the most advanced radiant floor heating system available in the world!

Features

New, high performance spliceless wire
Spliceless design with ETFE inner jacket for an easier installation
Single diameter, burying the cold lead is no longer needed
Heavy duty construction, outer jacket provides exceptional performance and durability
No minimum on a straight run length like other systems – easier to layout
Highly conductive copper wiring provides maximum heat transfer
Component of the Laticrete system lifetime warranty
Different spacing of wire allows for variable heat output that can be spread out of put closer together

Please see conversion chart for cable in square feet below

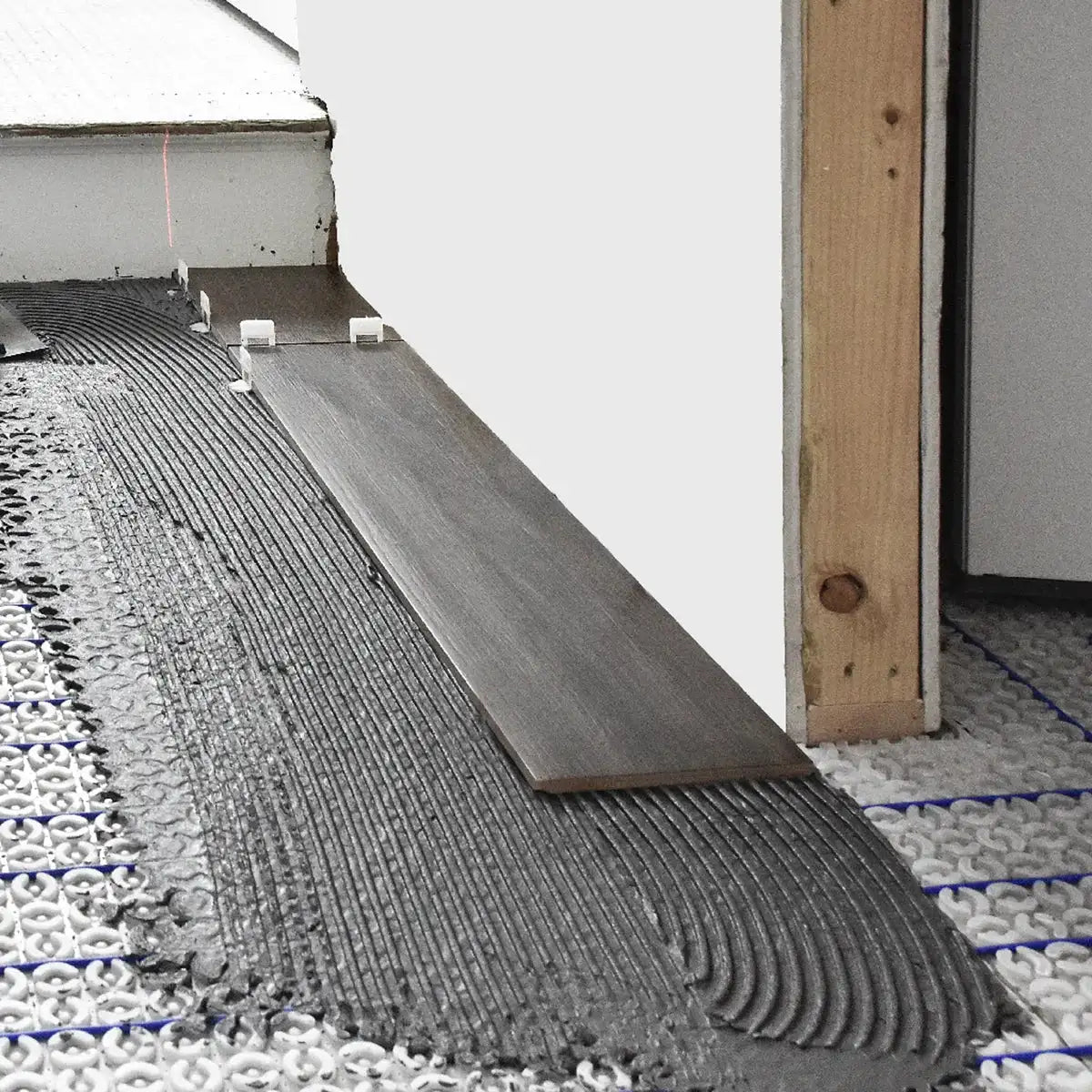

Suitable Substrates

Interior Horizontal Surfaces Only
Hydro Ban Board
Concrete
Mortar Beds
Exterior Glue Plywood (interior only)
Existing Ceramic Tile and Stone
Cement Terrazzo
Cement Backer Board

Limitations

Interior floor installations only
Adhesives/mastic's, mortars and grouts for ceramic tile, pavers, brick and stone are not replacements for waterproofing membranes

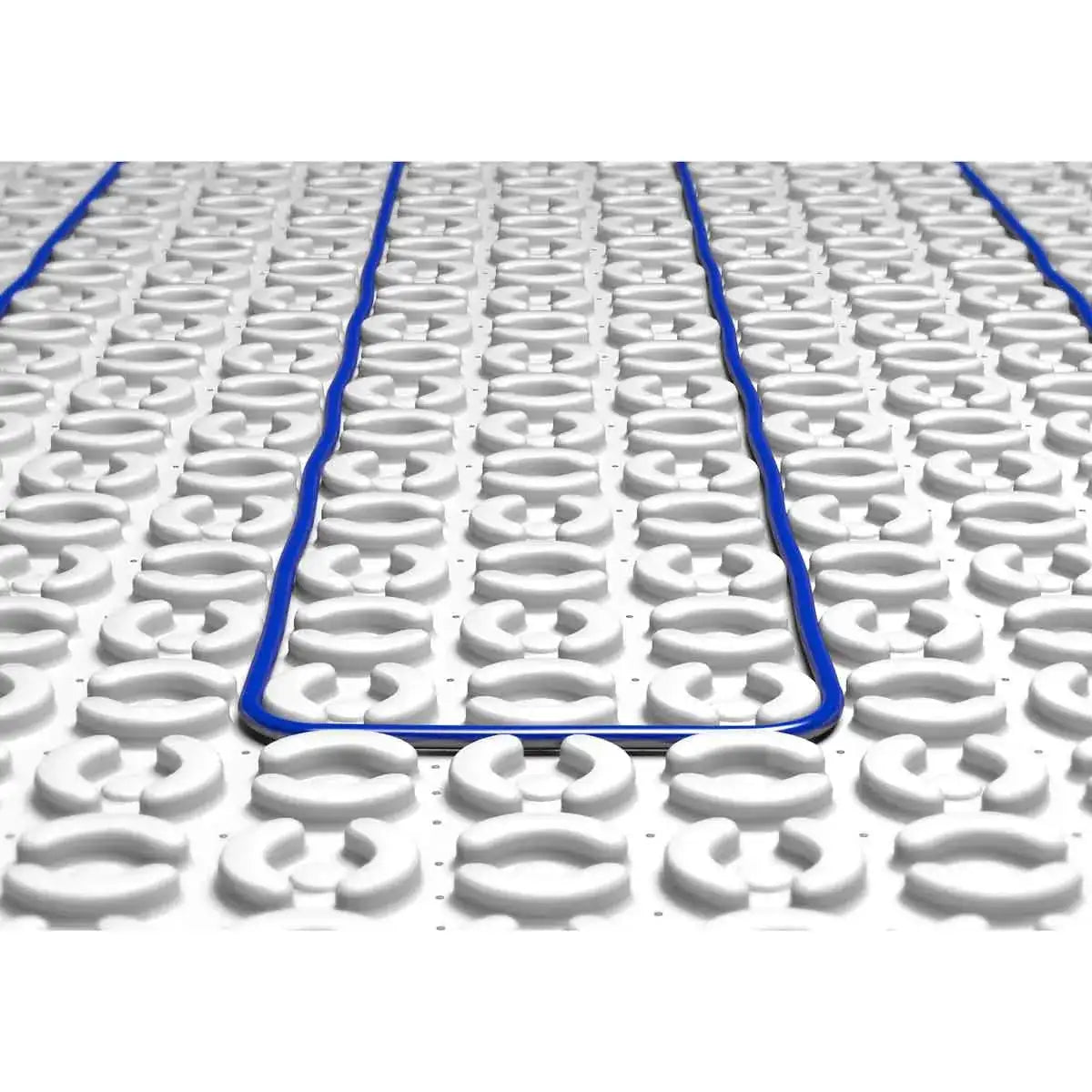

Floor Heating Spacing

Coverage varies based on the chosen spacing pattern of the cable.

Standard Coverage - 17 watts per sq ft. with 3/2/3 pillar spacing on uncoupling systems

Returns

***In addition to our normal return policy, please be advised that heating wires are not eligible for return if the seal is broken and the item is not in brand new condition.

Item Number	Cable Length (ft)	Uncoupling Systems 3-2-3 pegs 16 W/sqft	Uncoupling Systems 3 pegs 13 W/sqft	Uncoupling Systems 4 pegs 10 W/sqft	Strata_Heat Spacing Strips 3in space 13 W/sqft	Strata_Heat Spacing Strips 4in space 10 W/sqft	AMPS
0804-0083-4	83 ft	21 sq ft	25 sq ft	33 sq ft	21 sq ft	28 sq ft	1.4
0804-0100-4	100 ft	25 sq ft	30 sq ft	40 sq ft	25 sq ft	33 sq ft	1.6
0804-0133-4	133 ft	33.5 sq ft	40 sq ft	53 sq ft	33 sq ft	44 sq ft	2.2
0804-0166-4	166 ft	41.5 sq ft	50 sq ft	67 sq ft	42 sq ft	55 sq ft	2.7
0804-0200-4	200 ft	50 sq ft	60 sq ft	80 sq ft	50 sq ft	66 sq ft	3.3
0804-0233-4	233 ft	58.5 sq ft	70 sq ft	93 sq ft	58 sq ft	77 sq ft	3.8
0804-0266-4	266 ft	66.5 sq ft	80 sq ft	107 sq ft	66 sq ft	88 sq ft	4.4
0804-0299-4	299 ft	75 sq ft	90 sq ft	120 sq ft	75 sq ft	100 sq ft	4.9
0804-0332-4	332 ft	83.5 sq ft	100 sq ft	133 sq ft	83 sq ft	111 sq ft	5.5
0804-0415-4	415 ft	104 sq ft	125 sq ft	167 sq ft	104 sq ft	138 sq ft	6.8
0804-0498-4	498 ft	125 sq ft	150 sq ft	200 sq ft	124 sq ft	166 sq ft	8.2
0804-0581-4	581 ft	146 sq ft	175 sq ft	233 sq ft	145 sq ft	194 sq ft	9.6
0804-0664-4	664 ft	166.5 sq ft	200 sq ft	266 sq ft	166 sq ft	221 sq ft	11
0804-0747-4	747 ft	187.5 sq ft	225 sq ft	300 sq ft	187 sq ft	249 sq ft	12.3
0804-0830-4	830 ft	208.5 sq ft	250 sq ft	333 sq ft	207 sq ft	276 sq ft	13.5
