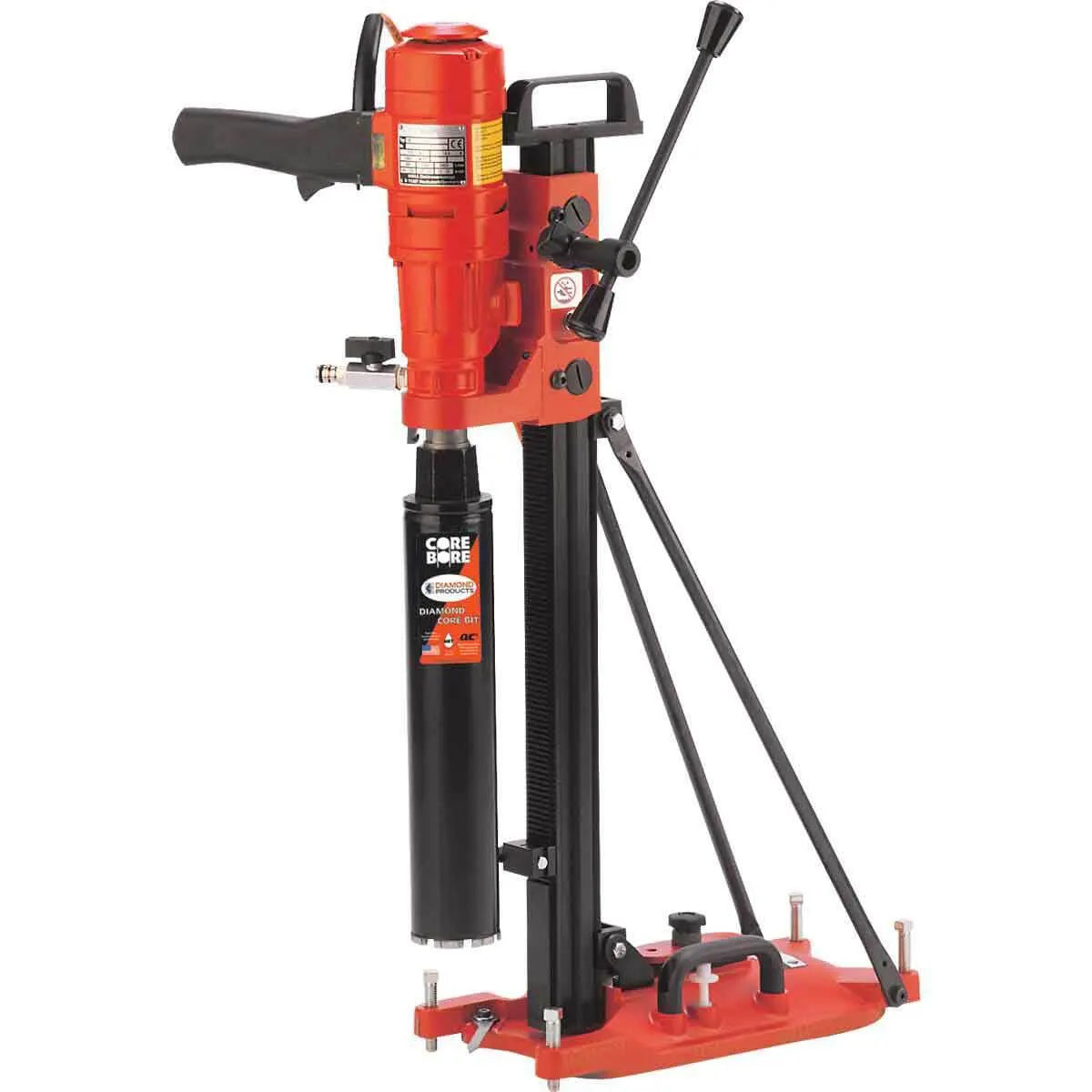

Core Bore M-4 Complete Core Driller Rig

Core Bore M4 Electric Core Drill Rigs

This core driller is great for the everyday contractor. It allows for coring holes from 1in to 6in and even has a handheld feature. Its lightweight and portable features make it a great rig to bring to the job site.

Features

• 6" bit capacity (3" hand-held)
• Converts to hand held drill motor in seconds
• Combination stand quickly angles to 45 degrees
• Reversible slide handle, (use on left side or right side of rig)
• High strength, hard anodized, 1-1/2" x 2" aluminum mast
• 4 Adjustable slide bearings provide superior carriage rigidity
• Carriage lock
• Optional swivel stand, mast can rotate 360 degrees
• Drill bits sold separately
• Product may differ from image shown depending on model purchased

What's Included?

• Core Bore M-4 Complete Core Drill Rig
• Combo Anchor/Vacuum Base
• Drill Motor
• Mast (Column)
• Carriage
• Vacuum Pump (if purchasing model with a "V" ending)
• Operator's Manual

Core Bore M4 Specifications
Model	Motor	RPM	Weight
M4C-14-DK12-V	16 Amp Weka DK12	580/1400/2900	74 lbs.
M4C-14-DK12	16 Amp Weka DK12	580/1400/2900	67 lbs.
M4C-14-DK13-V	16 Amp Weka DK13	970/2330/4830	74 lbs.
M4C-14-DK13	16 Amp Weka DK13	970/2330/4830	67 lbs.
M4C-14-DK16-V	18 Amp Weka DK16	970/2330/4830	74 lbs.
M4C-14-DK16	18 Amp Weka DK16	970/2330/4830	67 lbs.
M4C-15-MW4097-V	15 Amp Milwaukee	500/1000	85 lbs.
M4C-15-MW4097	15 Amp Milwaukee	500/1000	68 lbs.
M4C-20-MW4004-V	20 Amp Milwaukee	300/600	85 lbs.
M4C-20-MW4004	20 Amp Milwaukee	300/600	68 lbs.
M4C-20-MW4005-V	20 Amp Milwaukee	600/1200	85 lbs.
M4C-20-MW4005	20 Amp Milwaukee	600/1200	68 lbs.
M4C-7-DK12-V	8 Amp Weka DK12 (230V)	580/1400/2900	74 lbs.
M4C-7-DK12	8 Amp Weka DK12 (230V)	580/1400/2900	66 lbs.
