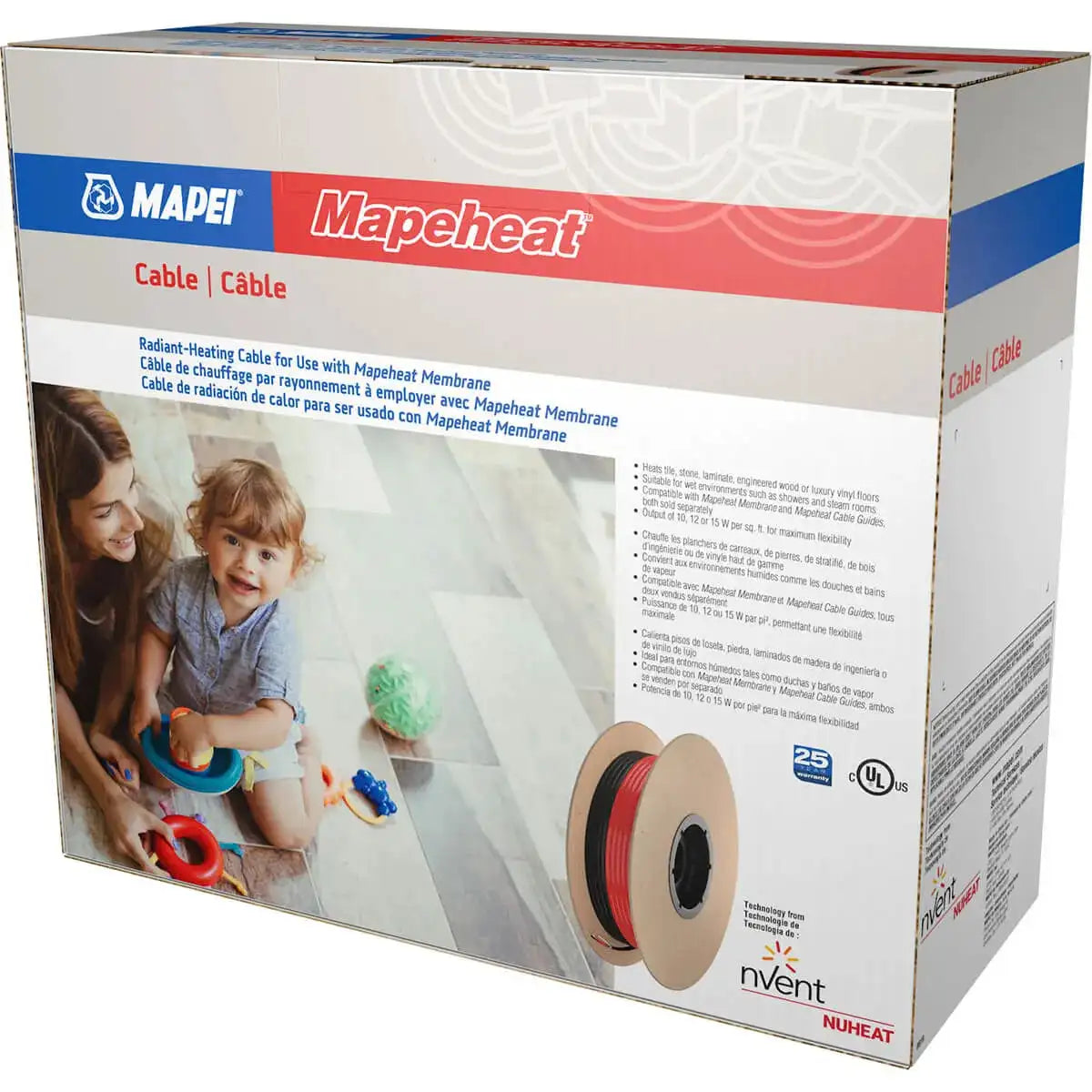

Mapeheat 120V Radiant-Heating Nuheat Cable
$20862 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Mapei
| SKU: 8542-29 ft.
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Mapeheat 120V Floor Heating Cable
Mapeheat partnered with Nuheat and brought you a cable that offers flexible spacing for varying watt density, allowing installers flexibility on the jobsite. The coverage in the chart below are estimated based on a square area with an unheated border of 2" (5 cm). Actual coverage will vary depending on the number of turns in the cable path (with more turns resulting in slightly less coverage).
Features

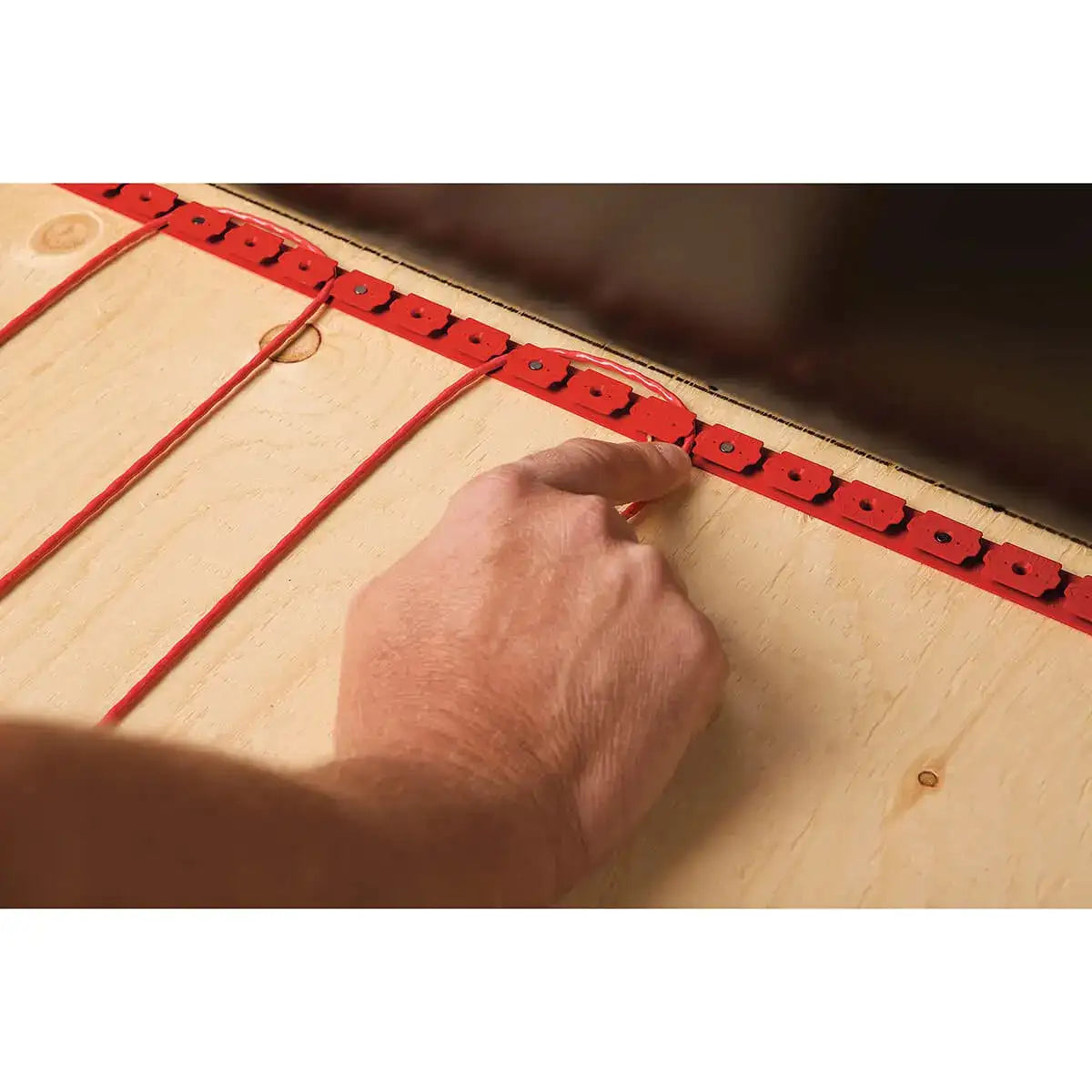

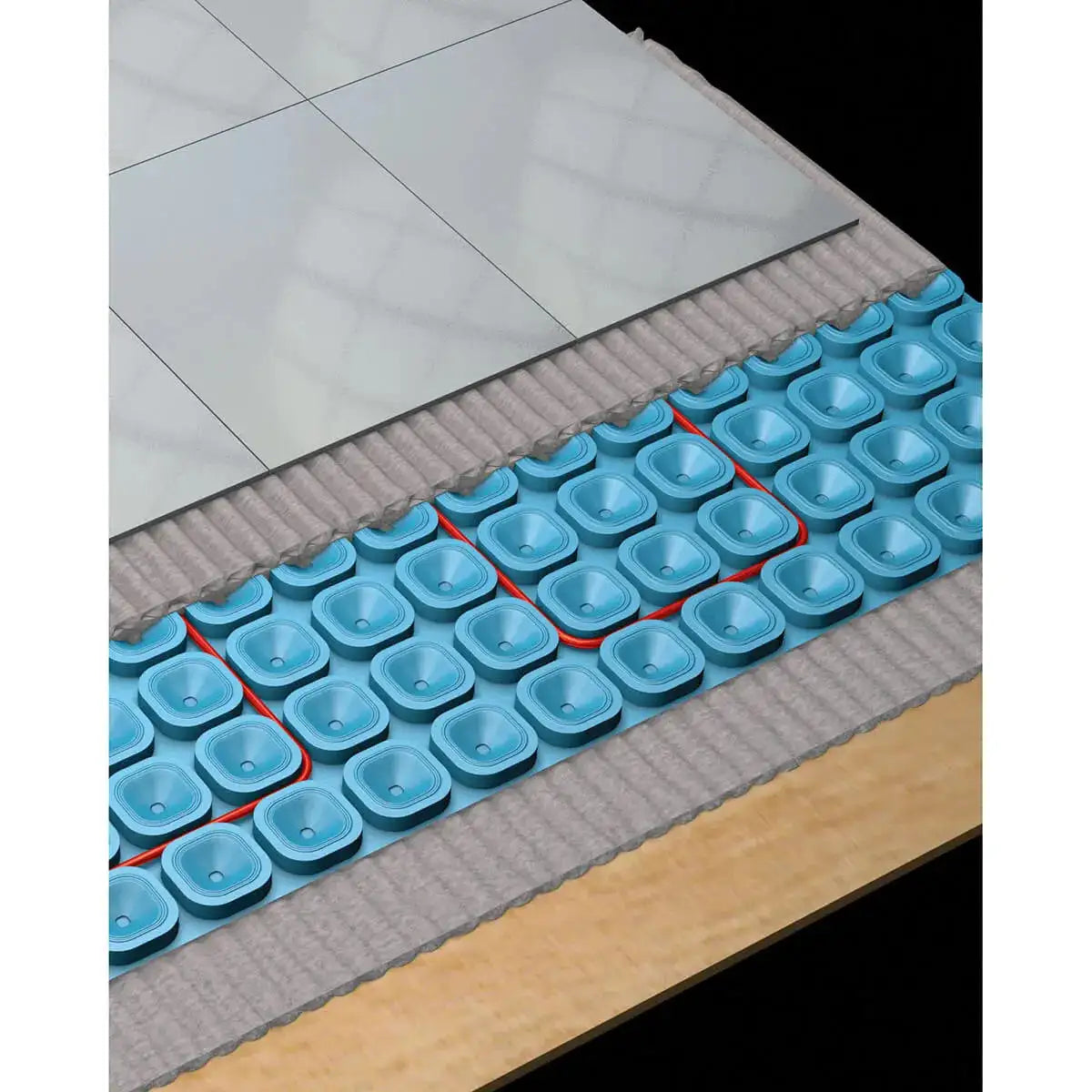

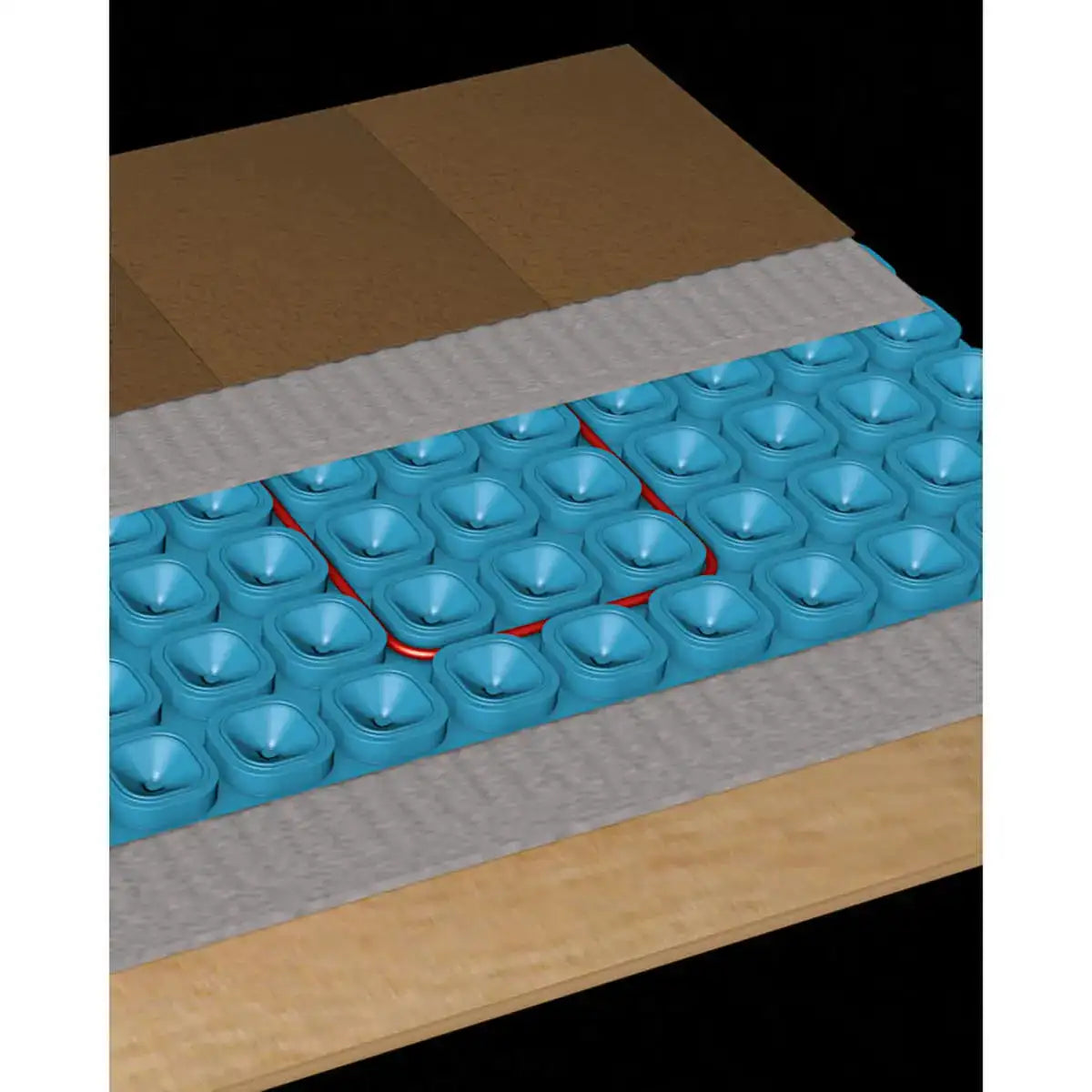

- For use with Mapeheat uncoupling and waterproofing floor heat membrane
- Snaps directly into the mambrane
- Once heat cable is set, the surface is ready for thinset and tiling
- Power output is 10 to 15 W per sq. ft. (depending on wire spacing)
- Minimum bending radius is 1/2" (12 mm)
- Heating cables are 2-wire, grounded, twisted pair with PVC outer jacket
Note: A professional tile setter or licensed electrician must install the Mapeheat Cable onto the subfloor. A licensed electrician must connect a Mapeheat floor-heating system to household wiring.
| Mapeheat 120V Heating Cable Specifications | ||||||
| Model | Heating Cable Length | Currency | Total Power | Coverage for 3-Pillar Spacing
(Low Output) |
Coverage for 2/3/2-Pillar Spacing
(Standard Output) |
Coverage for 2-Pillar Spacing
(High Output) |
| 2855101 | 29 ft. (8.8 m) | 0.7 amps | 80 W | 9 sq. ft. (0.8 m²) | 8 sq. ft. (0.7 m²) | 6 sq. ft. (0.6 m²) |
| 2858101 | 47 ft. (14.3 m) | 1.2 amps | 138 W | 14 sq. ft. (1.3 m²) | 12 sq. ft. (1.1 m²) | 10 sq. ft. (0.9 m²) |
| 2858201 | 57 ft. (17.4 m) | 1.4 amps | 170 W | 17 sq. ft. (1.6 m²) | 15 sq. ft. (1.4 m²) | 12 sq. ft. (1.1 m²) |
| 2858301 | 98 ft. (29.9 m) | 2.5 amps | 299 W | 30 sq. ft. (2.8 m²) | 25 sq. ft. (2.3 m²) | 21 sq. ft. (2.0 m²) |
| 2858401 | 120 ft. (36.6 m) | 2.9 amps | 343 W | 36 sq. ft. (3.3 m²) | 31 sq. ft. (2.9 m²) | 25 sq. ft. (2.3 m²) |
| 2858501 | 148 ft. (45.1 m) | 3.7 amps | 442 W | 45 sq. ft. (4.2 m²) | 38 sq. ft. (3.5 m²) | 31 sq. ft. (2.9 m²) |
| 2858601 | 188 ft. (57.3 m) | 4.7 amps | 562 W | 57 sq. ft. (5.3 m²) | 48 sq. ft. (4.5 m²) | 39 sq. ft. (3.6 m²) |
| 2858701 | 234 ft. (71.3 m) | 6 amps | 719 W | 71 sq. ft. (6.6 m²) | 60 sq. ft. (5.6 m²) | 49 sq. ft. (4.6 m²) |
| 2858801 | 265 ft. (80.8 m) | 6.8 amps | 810 W | 81 sq. ft. (7.5 m²) | 68 sq. ft. (6.3 m²) | 55 sq. ft. (5.1 m²) |
| 2858901 | 318 ft. (96.9 m) | 7.9 amps | 947 W | 97 sq. ft. (9 m²) | 82 sq. ft. (7.6 m²) | 66 sq. ft. (6.1 m²) |
| 2859101 | 334 ft. (101.8 m) | 8.5 amps | 1,021 W | 102 sq. ft. (9.5 m²) | 86 sq. ft. (8 m²) | 69 sq. ft. (6.4 m²) |
| 2859201 | 377 ft. (114.9 m) | 9.7 amps | 1,161 W | 115 sq. ft. (10.7 m²) | 97 sq. ft. (9 m²) | 78 sq. ft. (7.2 m²) |
| 2859301 | 423 ft. (128.9 m) | 10.8 amps | 1,299 W | 129 sq. ft. (12 m²) | 109 sq. ft. (10.1 m²) | 88 sq. ft. (8.2 m²) |
| 2859401 | 474 ft. (144.5 m) | 12.2 amps | 1,461 W | 145 sq. ft. (13.5 m²) | 122 sq. ft. (11.3 m²) | 98 sq. ft. (9.1 m²) |
