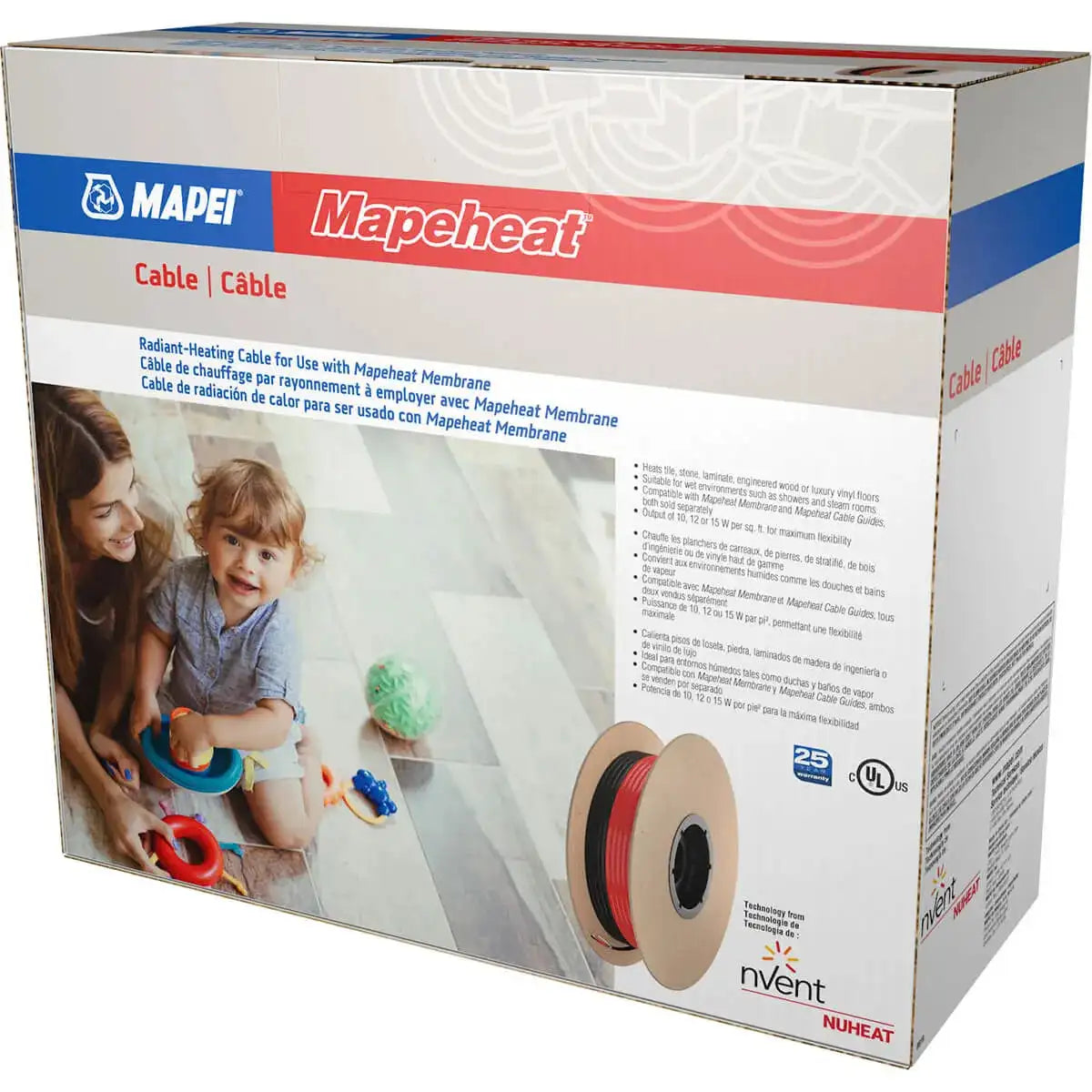

Mapeheat 240V Radiant Heating Nuheat Cable
$23427 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: Mapei
| SKU: 8544-56 ft.
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here
Mapeheat 240V Floor Heating Cable
Mapeheat Cable partnered with Nuheat to offer a flexible spacing for varying watt density, allowing installers flexibility on the jobsite. The coverage in the chart below are estimated based on a square area with an unheated border of 2" (5 cm). Actual coverage will vary depending on the number of turns in the cable path (with more turns resulting in slightly less coverage).
Features

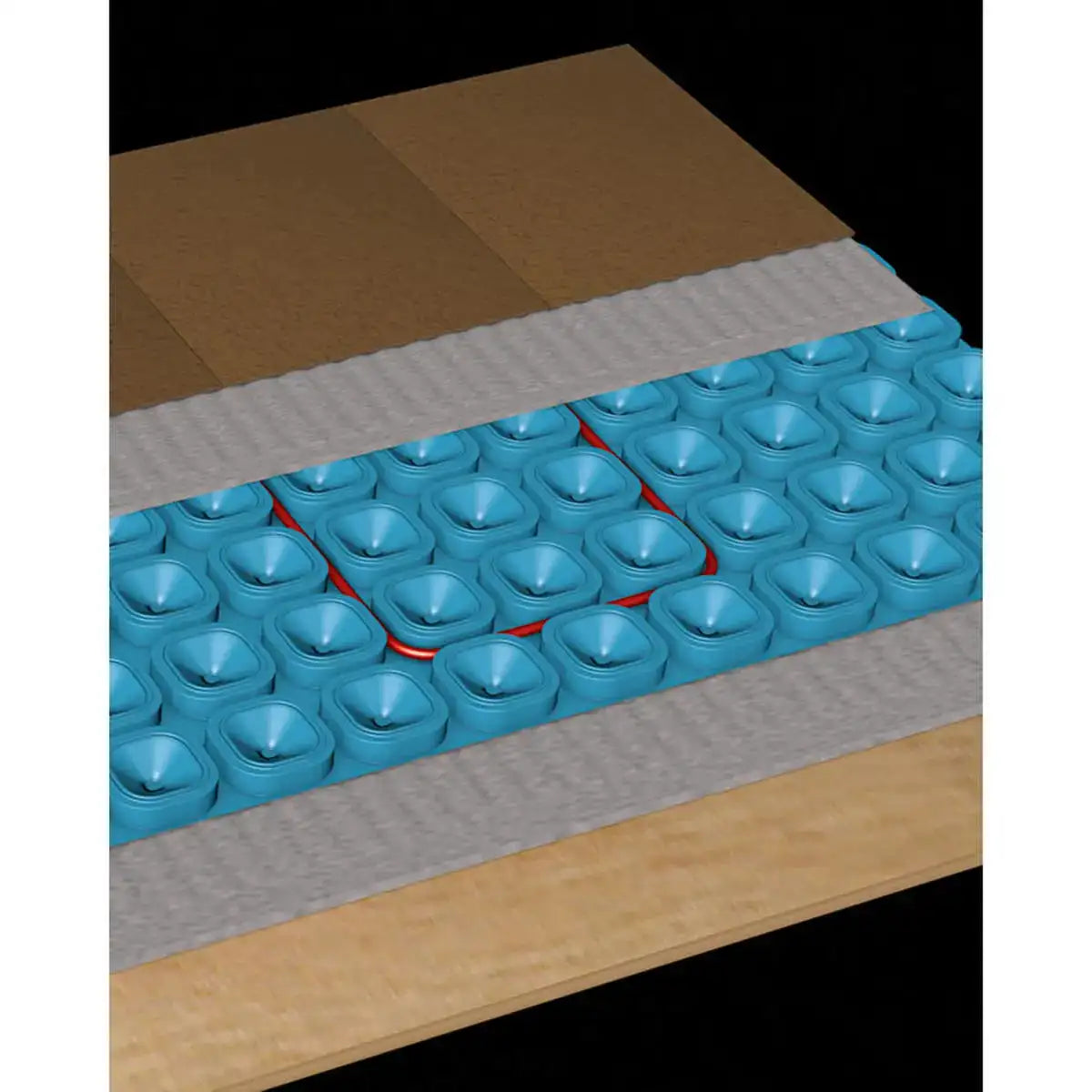

- For use with Mapeheat uncoupling and waterproofing floor heat membrane
- Snaps directly into the mambrane

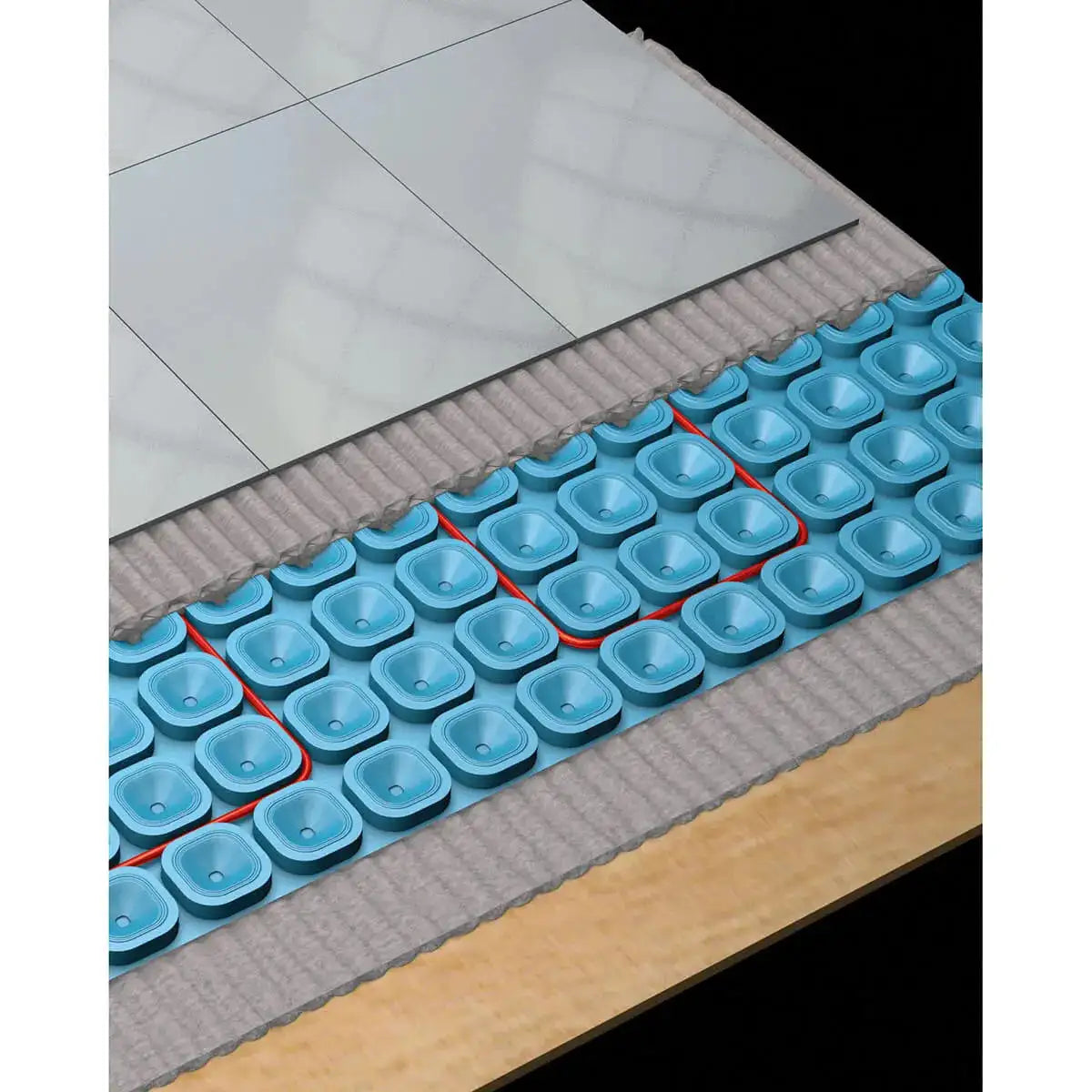

- Once heat cable is set, the surface is ready for thinset and tiling
- Power output is 10 to 15 W per sq. ft. (depending on wire spacing)
- Minimum bending radius is 1/2" (12 mm)
- Heating cables are 2-wire, grounded, twisted pair with PVC outer jacket
Note: A professional tile setter or licensed electrician must install the Mapeheat Cable onto the subfloor. A licensed electrician must connect a Mapeheat floor-heating system to household wiring.
| Mapeheat 240V Heating Cable Specifications | ||||||
| Model | Heating Cable Length | Currency | Total Power | Coverage for 3-Pillar Spacing
(Low Output) |
Coverage for 2/3/2-Pillar Spacing
(Standard Output) |
Coverage for 2-Pillar Spacing
(High Output) |
| 2859501 | 56 ft. (17.1 m) | 0.7 amps | 165 W | 17 sq. ft. (1.6 m²) | 14 sq. ft. (1.3 m²) | 12 sq. ft. (1.1 m²) |
| 2859601 | 80 ft. (24.4 m) | 0.9 amps | 224 W | 24 sq. ft. (2.2 m²) | 21 sq. ft. (2.0 m²) | 17 sq. ft. (1.6 m²) |
| 2859701 | 102 ft. (31.1 m) | 1.3 amps | 302 W | 31 sq. ft. (2.9 m²) | 26 sq. ft. (2.4 m²) | 21 sq. ft. (2.0 m²) |
| 2859801 | 136 ft. (41.5 m) | 1.7 amps | 403 W | 41 sq. ft. (3.8 m²) | 35 sq. ft. (3.3 m²) | 28 sq. ft. (2.6 m²) |
| 2859901 | 178 ft. (54.3 m) | 2.2 amps | 523 W | 54 sq. ft. (5.0 m²) | 46 sq. ft. (4.3 m²) | 37 sq. ft. (3.4 m²) |
| 2860201 | 207 ft. (63.1 m) | 2.6 amps | 632 W | 63 sq. ft. (5.9 m²) | 53 sq. ft. (4.9 m²) | 43 sq. ft. (4.0 m²) |
| 2860301 | 250 ft. (76.2 m) | 3.1 amps | 742 W | 76 sq. ft. (7.1 m²) | 64 sq. ft. (5.9 m²) | 52 sq. ft. (4.8 m²) |
| 2860401 | 277 ft. (84.4 m) | 3.5 amps | 842 W | 84 sq. ft. (7.8 m²) | 71 sq. ft. (6.6 m²) | 58 sq. ft. (5.4 m²) |
| 2860501 | 334 ft. (101.8 m) | 4.3 amps | 1,020 W | 102 sq. ft. (9.5 m²) | 86 sq. ft. (8.0 m²) | 69 sq. ft. (6.4 m²) |
| 2860601 | 358 ft. (109.1 m) | 4.6 amps | 1,102 W | 109 sq. ft. (10.1 m²) | 92 sq. ft. (8.5 m²) | 74 sq. ft. (6.9 m²) |
| 2860701 | 393 ft. (119.8 m) | 5 amps | 1,211 W | 120 sq. ft. (11.1 m²) | 101 sq. ft. (9.4 m²) | 82 sq. ft. (7.6 m²) |
| 2860801 | 472 ft. (143.9 m) | 5.9 amps | 1,427 W | 145 sq. ft. (13.5 m²) | 121 sq. ft. (11.2 m²) | 98 sq. ft. (9.1 m²) |
| 2860901 | 529 ft. (161.2 m) | 6.8 amps | 1,621 W | 162 sq. ft. (15.1 m²) | 136 sq. ft. (12.6 m²) | 110 sq. ft. (10.2 m²) |
| 2861101 | 561 ft. (171.0 m) | 7.1 amps | 1,704 W | 172 sq. ft. (16 m²) | 144 sq. ft. (13.4 m²) | 116 sq. ft. (10.8 m²) |
| 2861201 | 630 ft. (192 m) | 8 amps | 1,914 W | 193 sq. ft. (17.9 m²) | 162 sq. ft. (15.1 m²) | 131 sq. ft. (12.2 m²) |
| 2861301 | 665 ft. (202.7 m) | 8.6 amps | 2,054 W | 204 sq. ft. (19.0 m²) | 171 sq. ft. (15.9 m²) | 138 sq. ft. (12.8 m²) |
| 2861401 | 757 ft. (230.7 m) | 9.6 amps | 2,314 W | 233 sq. ft. (21.6 m²) | 195 sq. ft. (18.1 m²) | 157 sq. ft. (14.6 m²) |
| 2861501 | 849 ft. (258.8 m) | 10.8 amps | 2,589 W | 261 sq. ft. (24.2 m²) | 219 sq. ft. (20.3 m²) | 176 sq. ft. (16.4 m²) |
| 2861601 | 953 ft. (290.5 m) | 12.1 amps | 2,905 W | 293 sq. ft. (27.2 m²) | 246 sq. ft. (22.9 m²) | 198 sq. ft. (18.4 m²) |
