MBW GP15 1000 Series Plate Compactor 16" x 22.5"
$2,36085 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: MBW
| SKU: GP15GHC
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

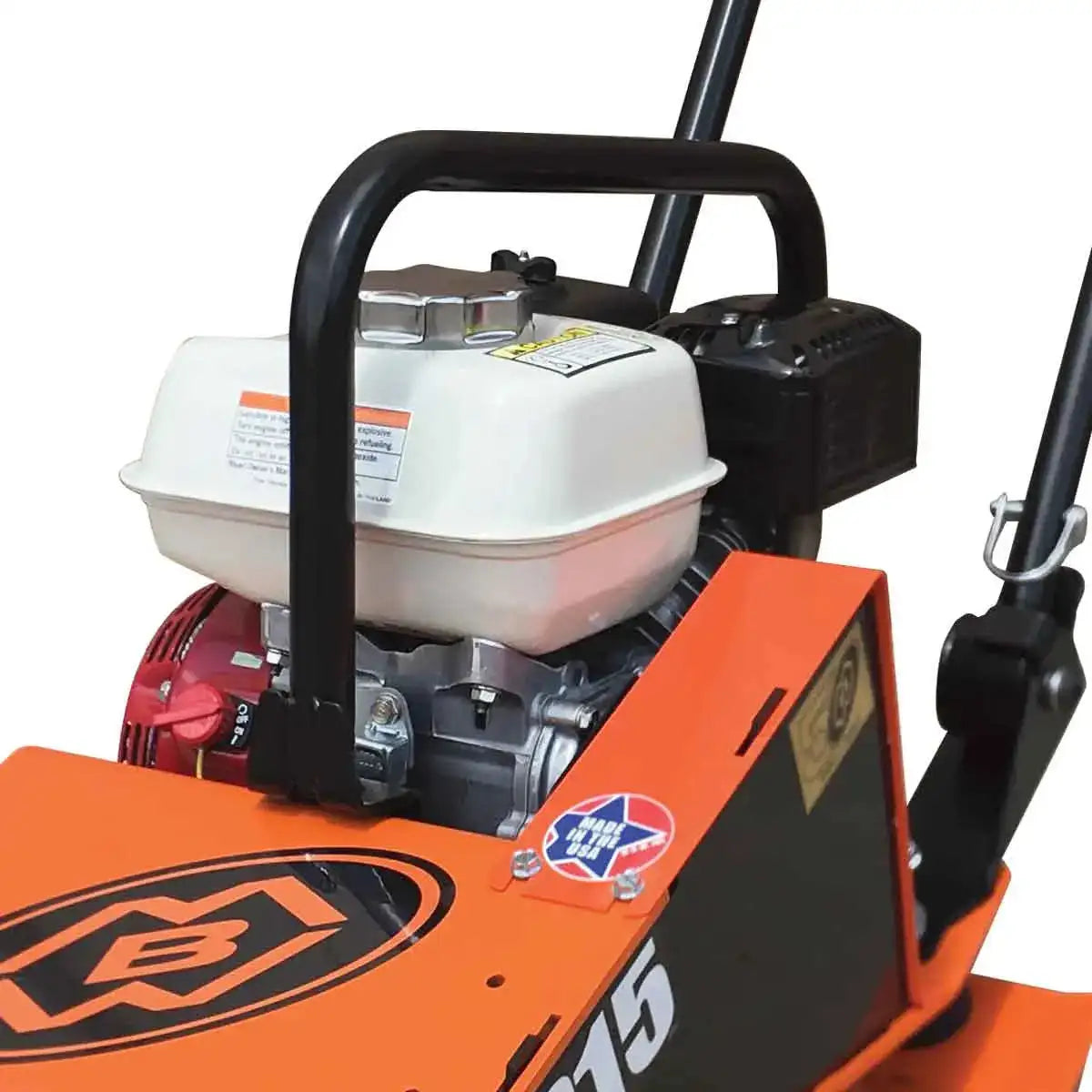

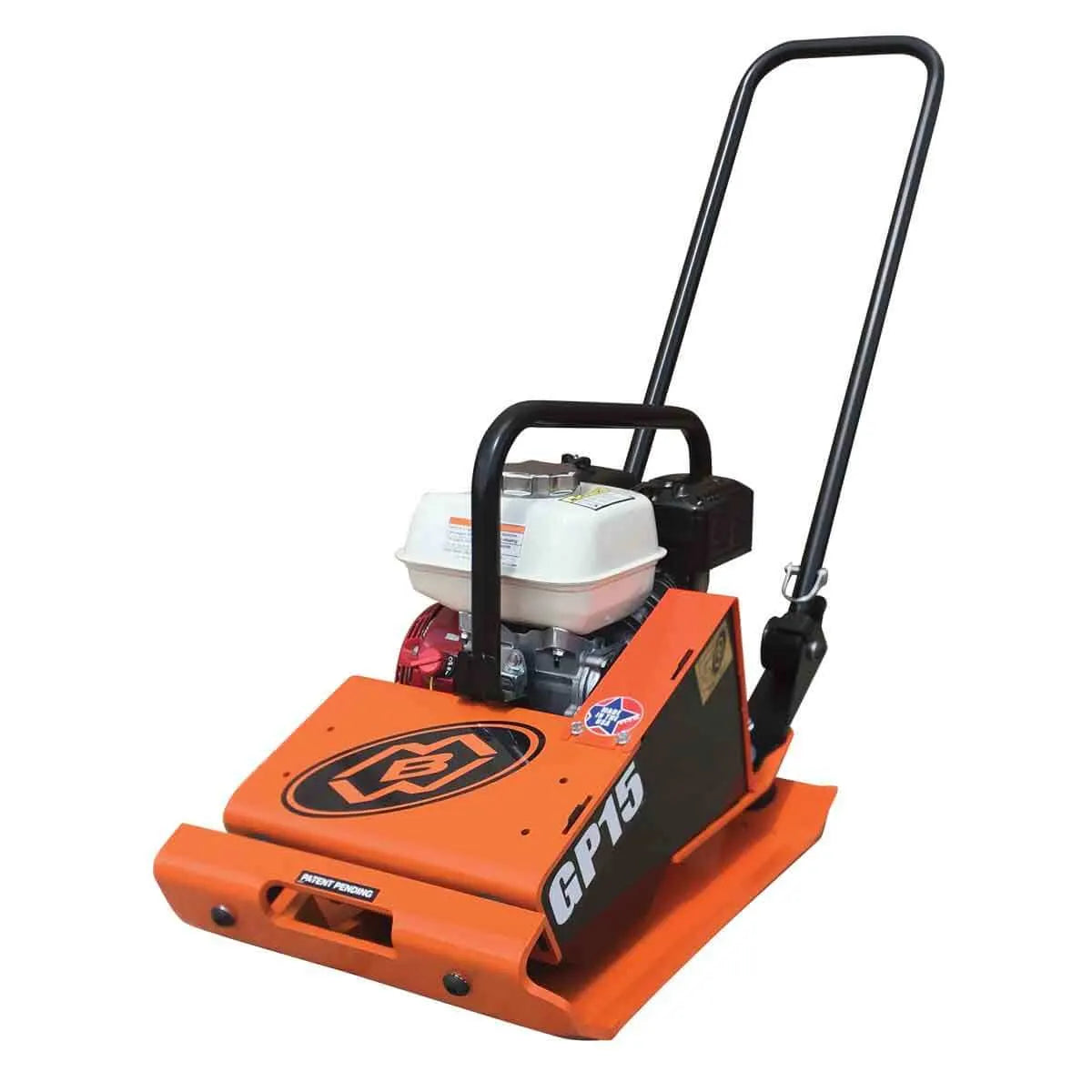

MBW Plate Compactor GP15 16" x 22.5"
The GP15GHC Plate Compactor is a portable and highly economical vibratory plate that performs unmatched compaction in granular soils. It was fabricated and assembled in the USA!
Features
- Reduces hand-arm vibration and also better isolates all upper mass components, including the engine, from vibrations produced by the machine's exciter
- Travel speed to 75 ft. per minute
- Ideal in confined areas on materials like granular soils including sands, bank run, gravels
- Capable of achieving lift depths of up to 10" (25 cm)
- Lightweight plate weighing 138 lbs (63 kg)
- Ideally suited as an economical alternative for small to medium soil compaction applications
- Heavy-duty, one-piece exciter
- Lift cage included
- Optional water tank, paving block, and wheel kit available
- Proudly Made in the USA
| MBW GP15GHC Plate Compactor Specifications | |
| Horse Power | 3.5 hp |
| Motor | Honda GX120 - Gas |
| Plate Size | 16 in. x 22.5 in. |
| Amplitude | .058 in. |
| Centrifugal Force | 2000 lbs. |
| Exciter Speed | 5350 vpm |
| Compaction Depth | Up to 10 in. |
| Travel Speed | Up to 75 ft./min. |
| Compaction Area | 6000 sq. ft./ hr. |
| Operating Weight | 138 lbs. |
