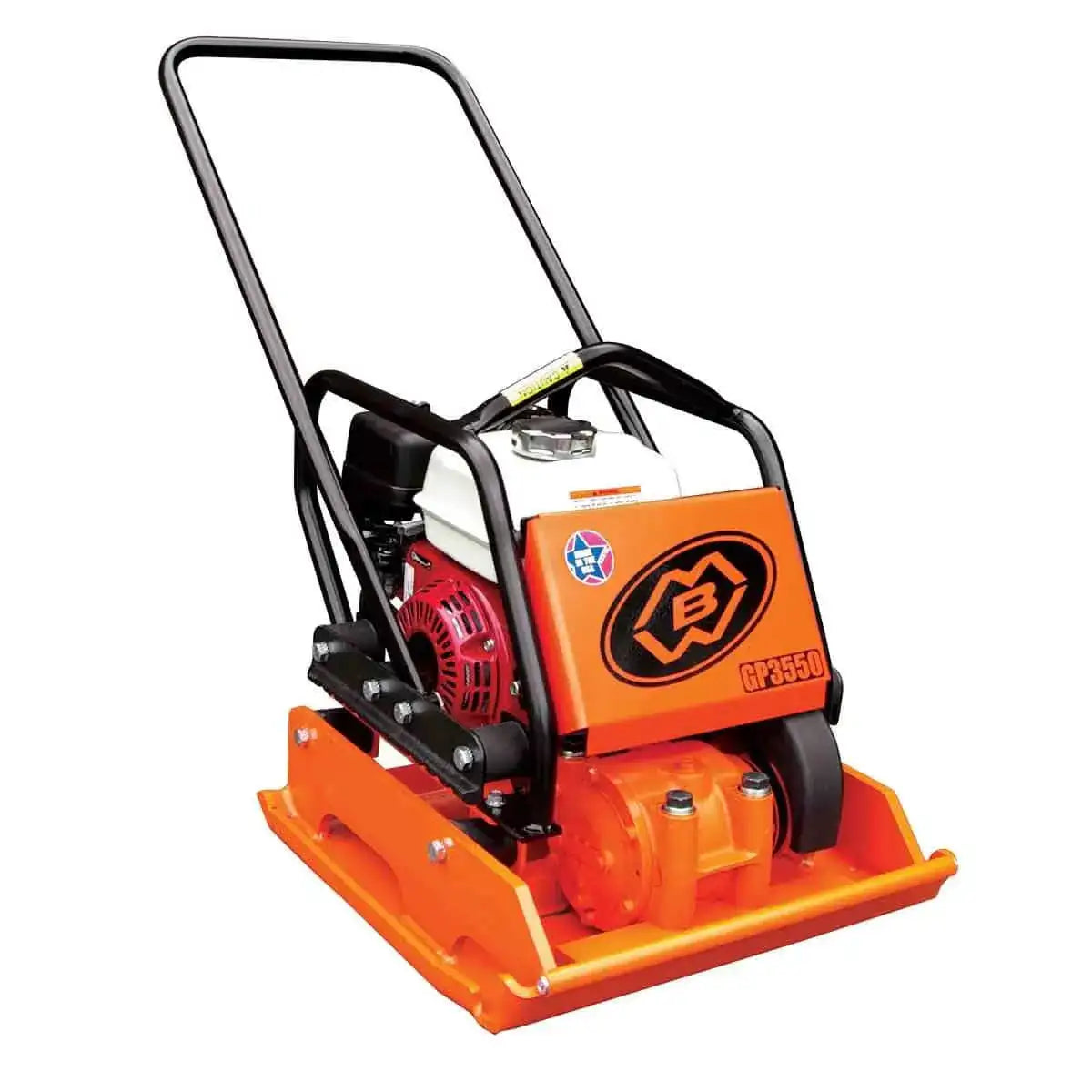

MBW 3000 Series Plate Compactor 21" x 22"

$2,655⁹⁰ USD

Shipping calculated at checkout.

Brand: MBW | SKU: GP3550GH | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Premium, high-production compactor with a life expectancy that runs for decades with reasonable maintenance.

Operating weight is over 220 lbs. (103 kg) and produces compaction depths up to 18 in. (47 cm)
Travel speed of 110 ft/min (34 m/min)
Full roll cage as standard equipment with provisions for a water tank for asphalt compaction on AP3550
The base plate is self-cleaning with an open-sided plate design that allows the material to flow out and away from the belt/pulley assembly during the operation
Reduced hand/arm vibration, full roll cage protection, enhanced amplitude, faster travel speed, and updated yet rugged appearance
Extra heavy-duty housings, precision ground ductile eccentric shafts, over-sized application matched bearings
Oil mist lubrication system and custom lubricants to withstand high operating temperatures
Stress-relieved steel tamping plates are crack-resistant and provide years of useful service
Quality shock mounts and double-isolated guide handles
Optional neoprene paving pad accessory for interlocking paving blocks
Proudly Made in the USA

MBW GP3550H Plate Compactor Specifications
Horse Power	4.8 hp
Motor	Honda GX160 - Gas
Plate Size	21 in. x 22 in.
Amplitude	.087 in.
Centrifugal Force	3550 lbs. (15.8 kN)
Exciter Speed	4400 vpm
Compaction Depth	Up to 18 in.
Travel Speed	Up to 110 ft./min.
Compaction Area	11000 sq. ft./ hr.
Operating Weight	226 lbs.
