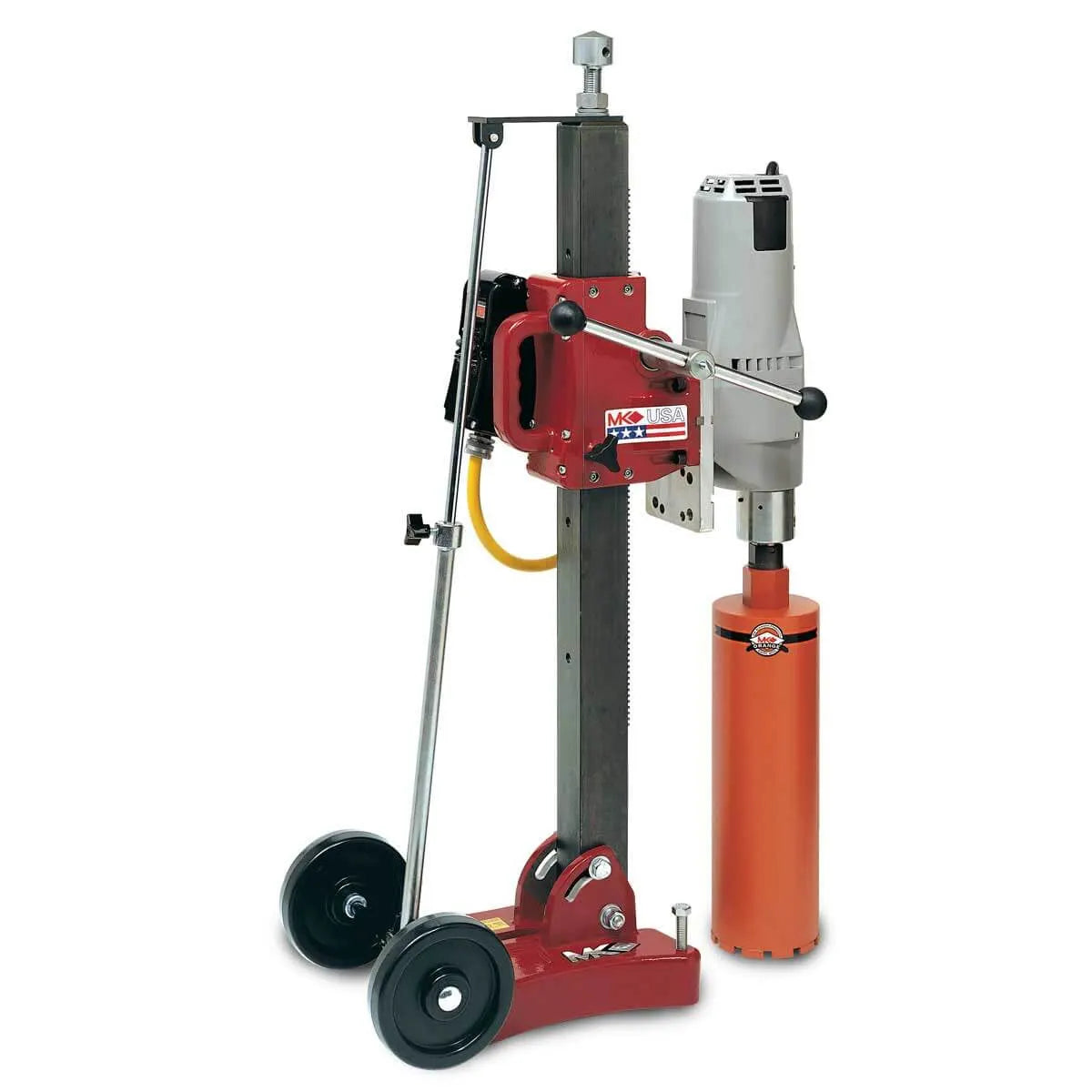

MK Manta III Tilt Base Core Drill Rig

Features

  • Motor Options:
  • Milwaukee 4094: 3 hp, 115 Volts, 20 Amps Shear Pin. 450/900 Rpm
  • Milwaukee 4096: 3 hp, 115 Volts, 20 Amps Slip Clutch. 450/950 Rpm
  • Bit Feed: 27"
  • Column: 2-1/2" x 2-1/2" adjustable rack and pinion
  • Choose from an anchor or combination base
  • Vacuum pump included with a combination base
  • Precision rack-and-pinion carriage with maintenance-free double-sealed bearings
  • 2-1/2" steel column with ceiling jack
  • Lightweight cast-aluminum base with built-in wheels
  • Positive anchoring for vertical and horizontal drilling
  • Control box with amp meter
  • Removable slide handle easily negotiates close to walls and columns
  • Carriage assembly easily detaches from the column for convenient transport
  • This is a made-to-order item that requires a 2-week lead time
  • Made in the USA
  • One-year limited warranty
  • Drill bits are sold separately


What's Included?

  • MK Manta III Tilt Base Core Drill Rig (with your choice of base)
  • Operator's manual


MK Manta III Core Drill Rig Specifications
Motor Milwaukee 4094/4096 - 120V
Power 1 hp / 20 amps
RPM 450-900
Bit Capacity 1/4" - 14"
Connection 1-1/4" - 7 thread
Weight 114 lbs. Combo Base
95 lbs. Anchor Base
Dimensions 19 in. x 24 in. x 46 in.
