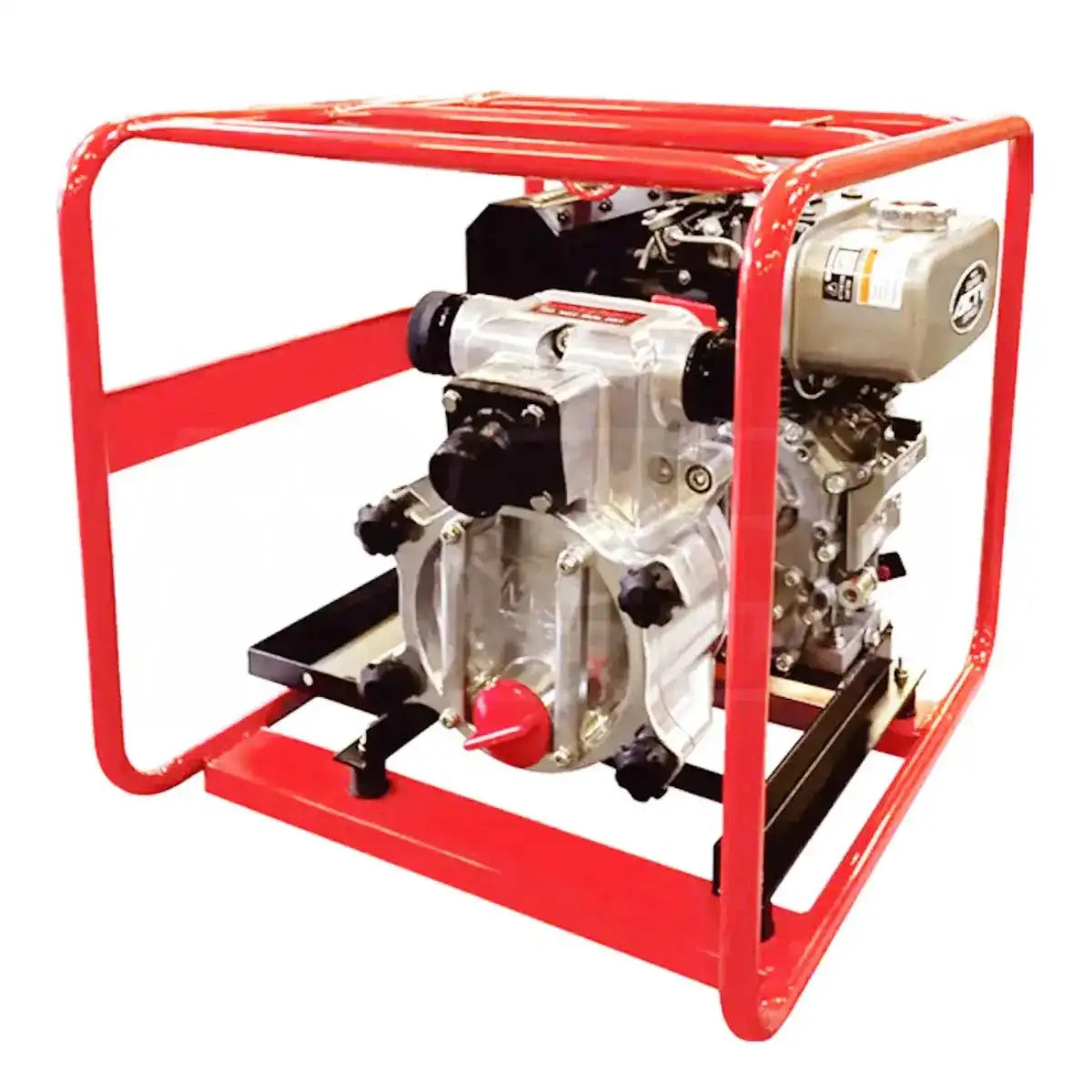

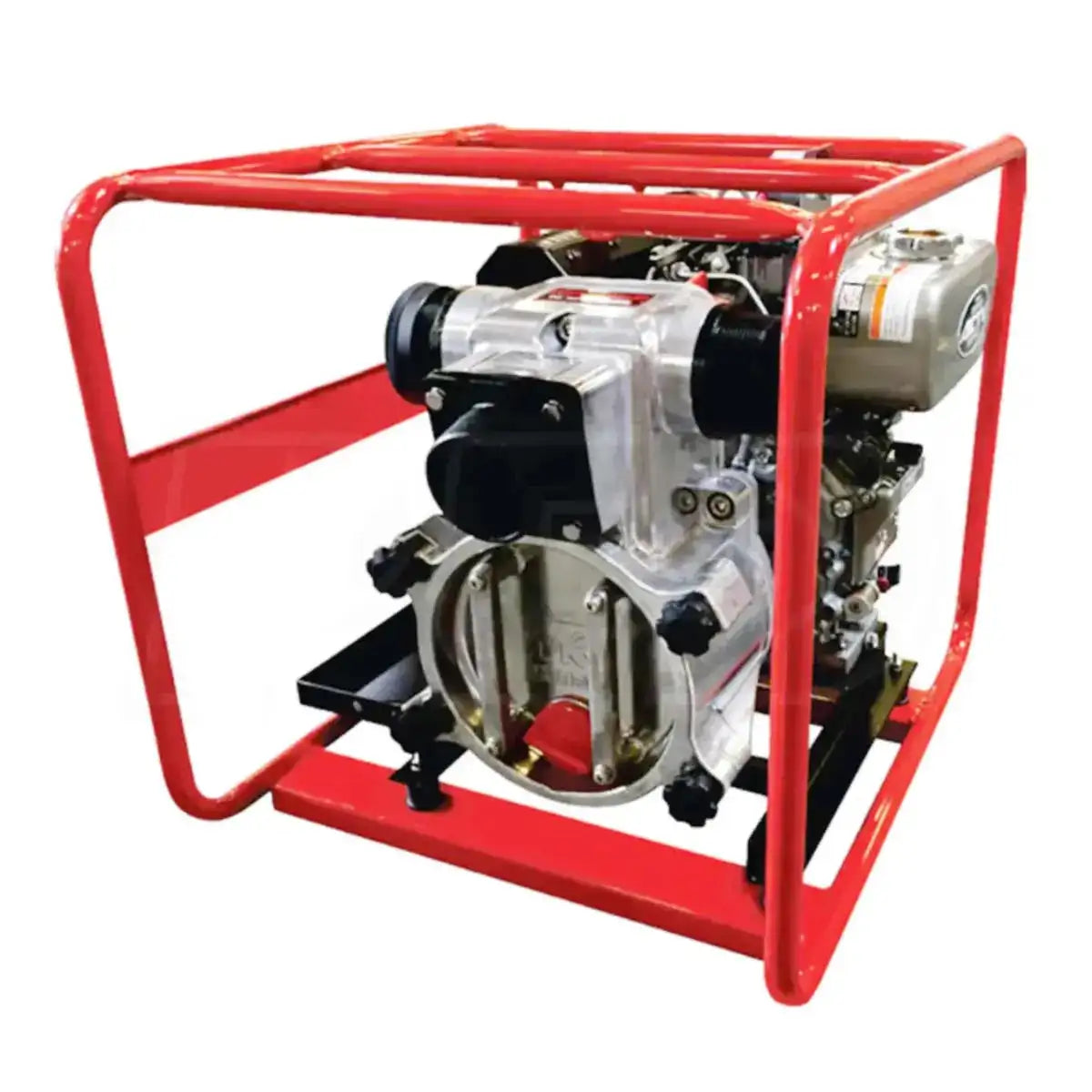

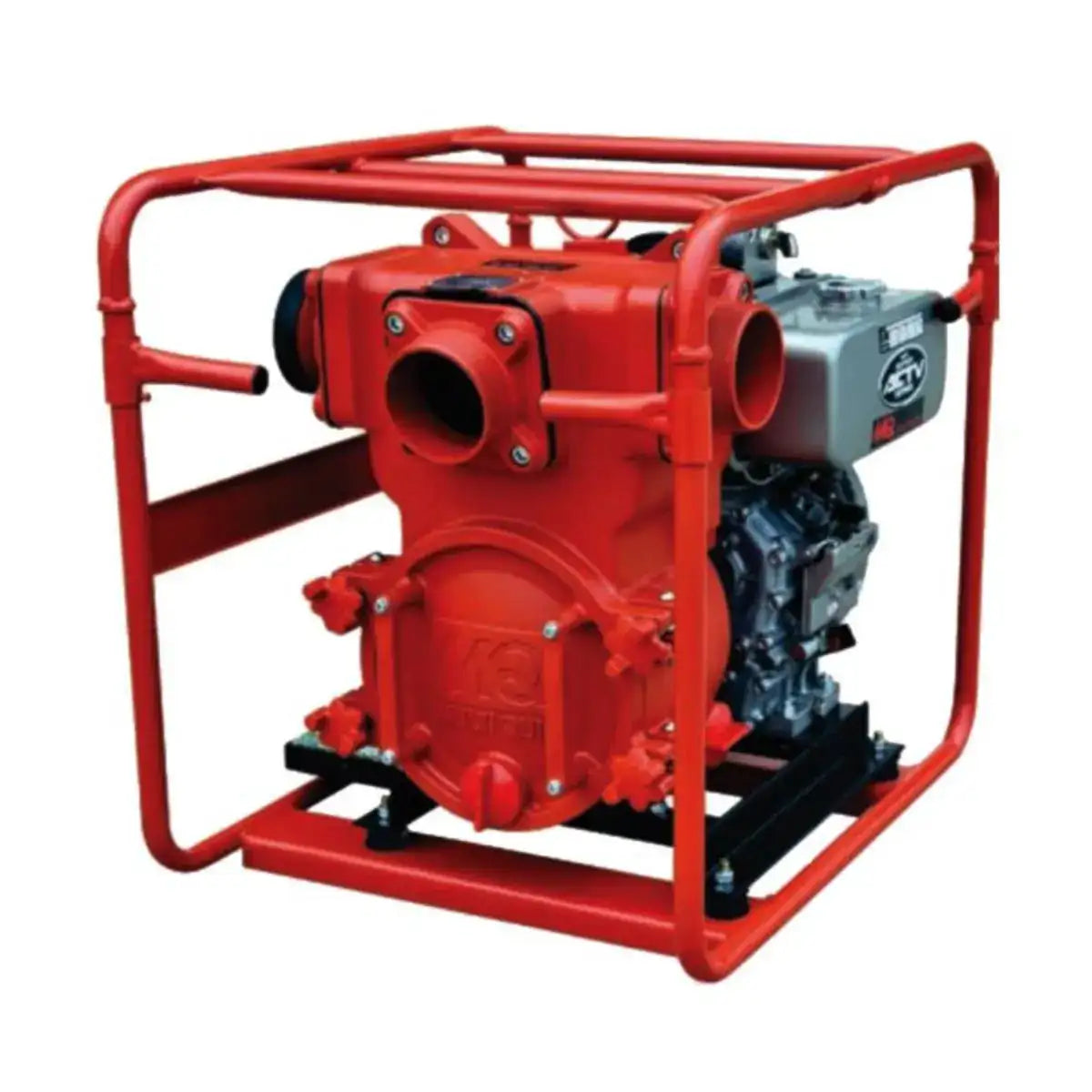

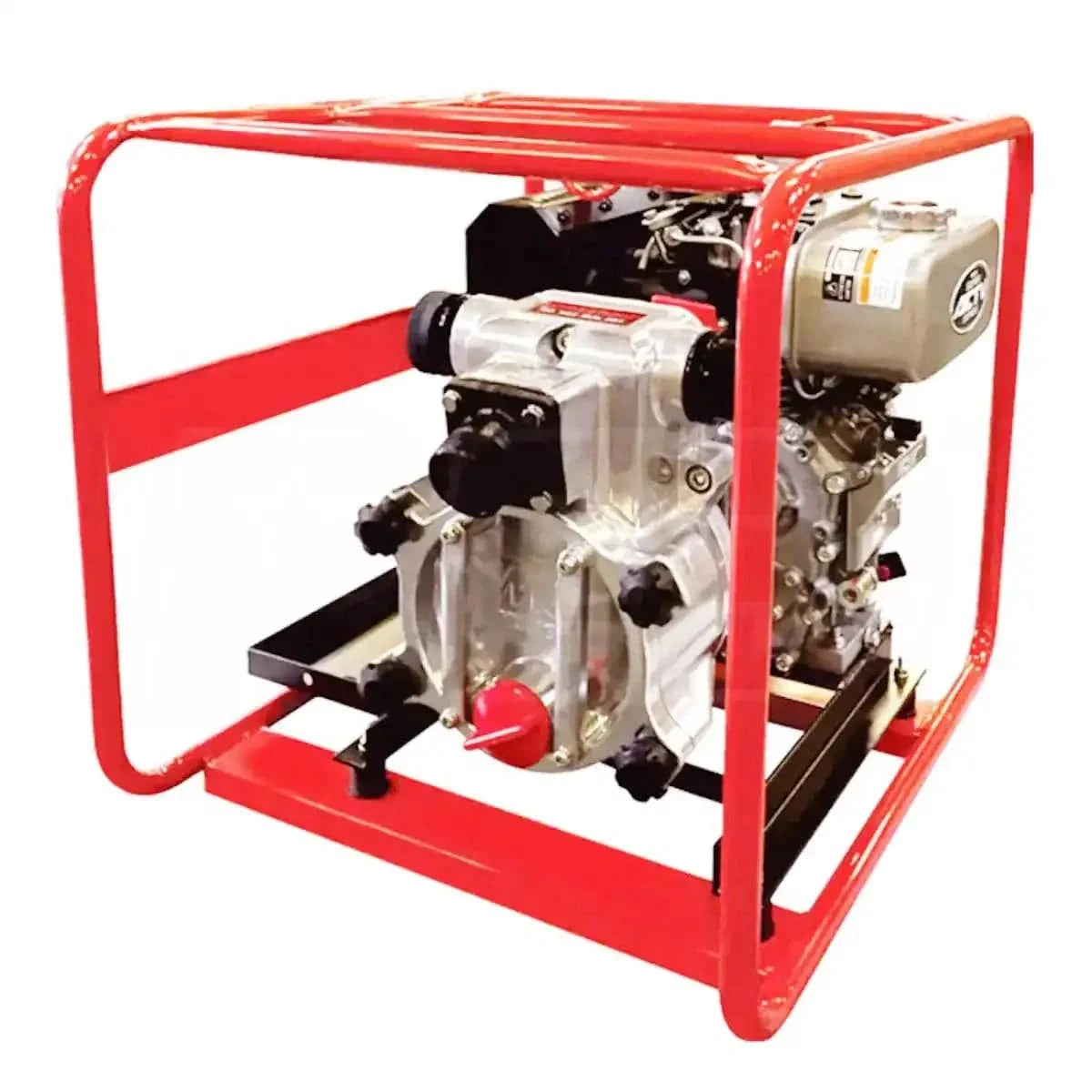

Multiquip Diesel Powered Trash Pumps

Multiquip Diesel Trash Pumps

The Multiquip Trash Pumps are engineered to meet the requirements of professional contractors. Rugged and dependable, they are ideal for de-watering applications with high solid content. Sticks, stones and debris easily pass through the pump, minimizing downtime due to clogging.

Features

• Rugged and dependable, they are ideal for de-watering applications with high solid content
• Sticks, stones and debris easily pass through the pump, minimizing downtime due to clogging
• Open-type two vane impeller handles solids and debris
• Unique dual discharge ports for versatility in application
• Silicon/carbon mechanical seal for durability
• Cast iron suction and discharge nipples are durable and easily replaced if threads are damaged
• Ideal for smaller jobs with solids up to 2 inch (51 mm)
• 85 foot maximum head (26 meters), Max lift 25 ft. (7.6m)

Multiquip Diesel Trash Pumps
Model	QP2TK	QP3TK	QP4TK
Motor	Kubota OC-60-E4	Kubota OC-60-E4	Kubota OC-95-E4
Power	6.0 HP	6.0 HP	9.5 HP
Operating RPM	3600 RPM	3600 RPM	3600 RPM
Water Capacity	172 gpm	325 gpm	475 gpm
Outlet Size	2 in	3 in	4 in
Inlet Size	2 in	3 in	4 in
Max Solids	1 in	1.5 in	2 in
Max Head	85 ft	85 ft	85 ft
Fuel capacity	1.4 Gal	.95 Gal	1.45 Gal
Max. Pressure	37.7 psi	37.7 psi	37.7 psi
Starting method	Electric	Electric	Electric
Weight	157 lbs	176 lbs	286 lbs
