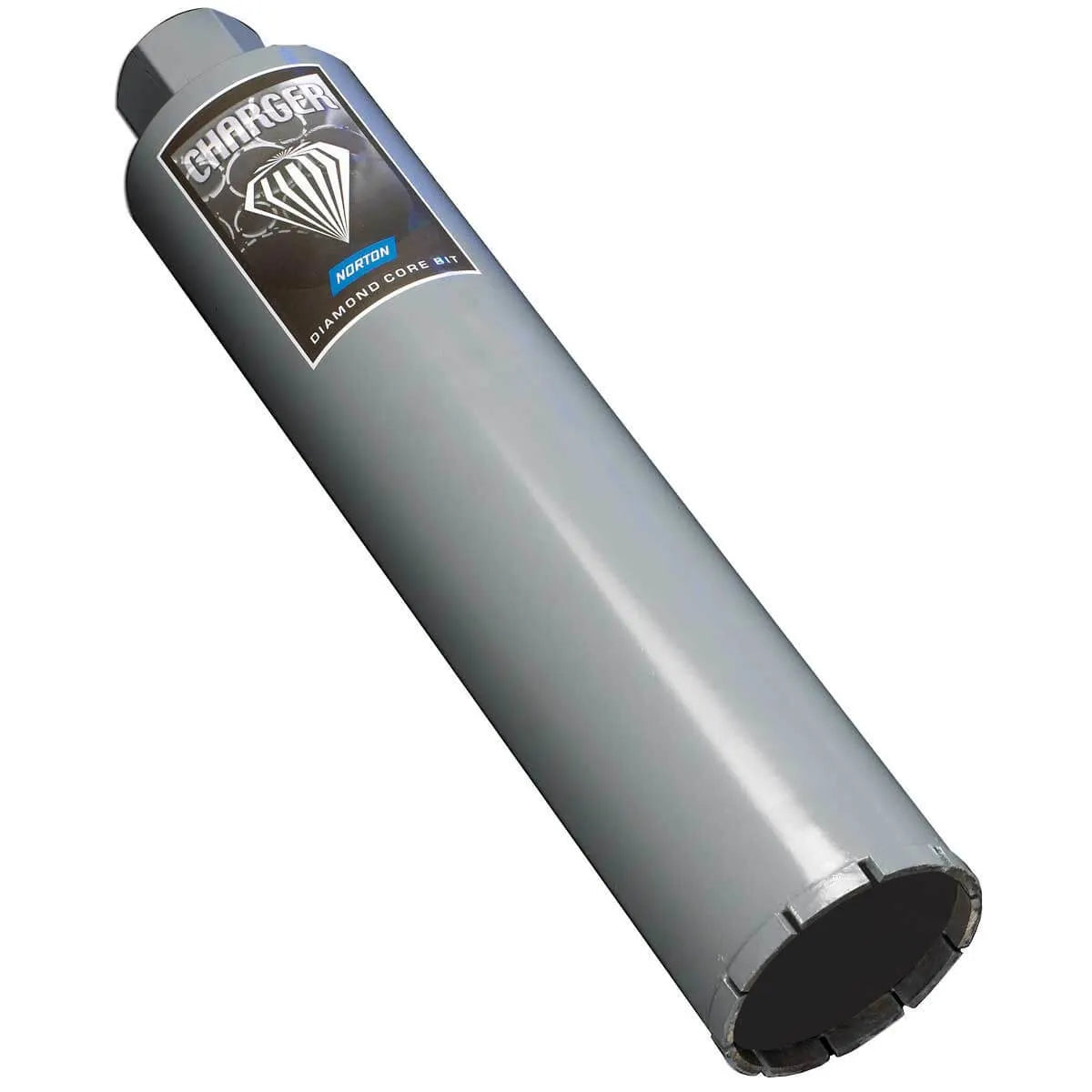

Norton Charger Wet Core Bits for Reinforced Concrete

Norton Charger Wet Core Bits for Reinforced Concrete

Laser welded segments for faster penetration in medium aggregate with reinforcement and maximum utilization of segment life.

Features

• For medium aggregate with steel reinforcement
• Will drill through reinforced concrete, hard bricks, limestone, terrazzo and other hard materials
• Maximum utilization of segment life
• Total segment height: .315"
• Bits from 1" to 1-1/2" diameter have 5/8"-11 threads adapters
• Bits 1-3/4" diameter and larger have 1-1/4"-7 threads adapters
• All bits are 16" long to produce a 13" core
• Wet cutting, laser welded

Norton Charger Wet Core Bit Specifications
Model No.	Size in Inches (mm)	RPM
CGBIT0100	1" (25 mm)	4,000
CGBIT0125	1-1/4" (32 mm)	3,000
CGBIT0150	1-1/2" (38 mm)	3,000
CGBIT0175	1-3/4" (44 mm)	2,000
CGBIT0200	2" (51 mm)	2,000
CGBIT0225	2-1/4" (57 mm)	1,300
CGBIT0250	2-1/2" (64 mm)	1,300
CGBIT0300	3" (76 mm)	1,300
CGBIT0350	3-1/2" (89 mm)	1,000
CGBIT0400	4" (102 mm)	1,000
CGBIT0425	4-1/4" (108 mm)	800
CGBIT0450	4-1/2" (114 mm)	800
CGBIT0500	5" (127 mm)	800
CGBIT0600	6" (152 mm)	665
CGBIT0700	7" (178 mm)	600
CGBIT0800	8" (203 mm)	500
CGBIT1000	10" (254 mm)	400
CGBIT1200	12" (305 mm)	330
CGBIT1400	14" (356 mm)	285
