It appears that the hole in the Norton blade supplied is of smaller diameter than the arbor. There are three very small holes and scoring at the center of the blade. Am I supposed to press out the center of the blade?

These blades are commonly referred to as knock out blades. Yes you are to "knock" out the inside pieces and it will fit on this saw.

Where is the company located?

Norton - Saint Gobain which manufactures the BBM307 has a United States location in New York.

Does saw or table tilt for angle cutting

The saw / table does not tilt but there is a rip guide accessory that is available by Norton that allows you to cut at a 45 and 90 degree angle. The part number is 234030Please contact us at 800-709-0002 or by email at orders@contractorsdirect.com to place an order for this part.

Do you guys carry the Norton Clipper BBM158 with the induction motor?

Yes, we do carry the BBM158 Click Here with induction motor.

I understand the water kit comes separate, but do the lines connected to the guard come with the saw as pictured?

Yes, there are water tubes that have a gardena water hose attachment at the end. This will attach to any standard water hose. When that is not available, the water kit accessory should be used with the BBM307.

Where can I buy the bearing motor inner for the BBM307?

Contractors Direct can get any parts needed for the BBM307. We ask that the customer provide the correct part number and we will place the order for you. For parts lists or any additional information, please contact customer service at 1-800-709-0002.

How much is the accessories for using wet?

The wet cutting kit is linked below and cost $198.50. CLICK HERE .

What blade do you recommend for cutting fire brick with this saw, and which water pump should I order... for light use?

We recommend using the Norton Clipper masonry blade, part number 7325. For water pumps, there is a wet cutting kit that we sell that includes the pump for this saw, part number 70184600704.

Do you sell replacement motors for a BBM307 (3 hp, 10 amp)?

You purchase a replacement BBM307 motor here .

How do you mount a masonry blade?

1. Before mounting any blade on the saw, the blade should be inspected for any damage which might have occurred during shipment, handling or previous use.2. The blade collars and arbors should be cleaned and examined for damage before mounting the blade.3. The blade must be properly fitted over the arbor.4. The blade shaft nut, which is a left-hand thread nut, must be tightened securely against the outside blade shaft collar.5. The blade must be operated within the specified maximum operating speed listed on the blade.6. The blade guard must be in place with the blade collar guard closed when the saw is running.

What thread is the arbor: right hand or left hand?

If we are talking about the blade shaft bolt it is M10 X 20MM 1.5 DIN933 Left hand thread.

Where can i buy brushes for the BBM307?

You can buy the replacement brushes for the BBM307 here .

Where does the water pump go?

This are mainly used dry if you wanted to use wet you would need the 70184600704.The water pump attaches to the clear tube in the back of the saw. The pump is typically placed in the bucket next to the saw.

Is the blade that comes with this saw suitable for firebrick?

The included blade is an economy concrete block & paver blade. It will be able to cut firebrick, but Norton does offer higher quality diamond blades that may cut firebrick more quickly and effectively.

Can you use it to cut small, thin tiles such as the one for a backsplash? Thanks!

Short Answer-- No.This saw specializes in cutting masonry material like outdoor stone blocks, bricks, pavers, etc. Cutting tile on this saw may result in chipped/broken tile when using an aggressive blade.

1 4

Norton Clipper 14" Masonry Saw

Name: Norton Clipper 14" Masonry Saw
Brand: Norton Clipper
SKU: BBM307
Price: 1360.0 USD
Availability: InStock

$1,360⁰⁰ USD

Shipping calculated at checkout.

Brand: Norton Clipper | SKU: BBM307 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

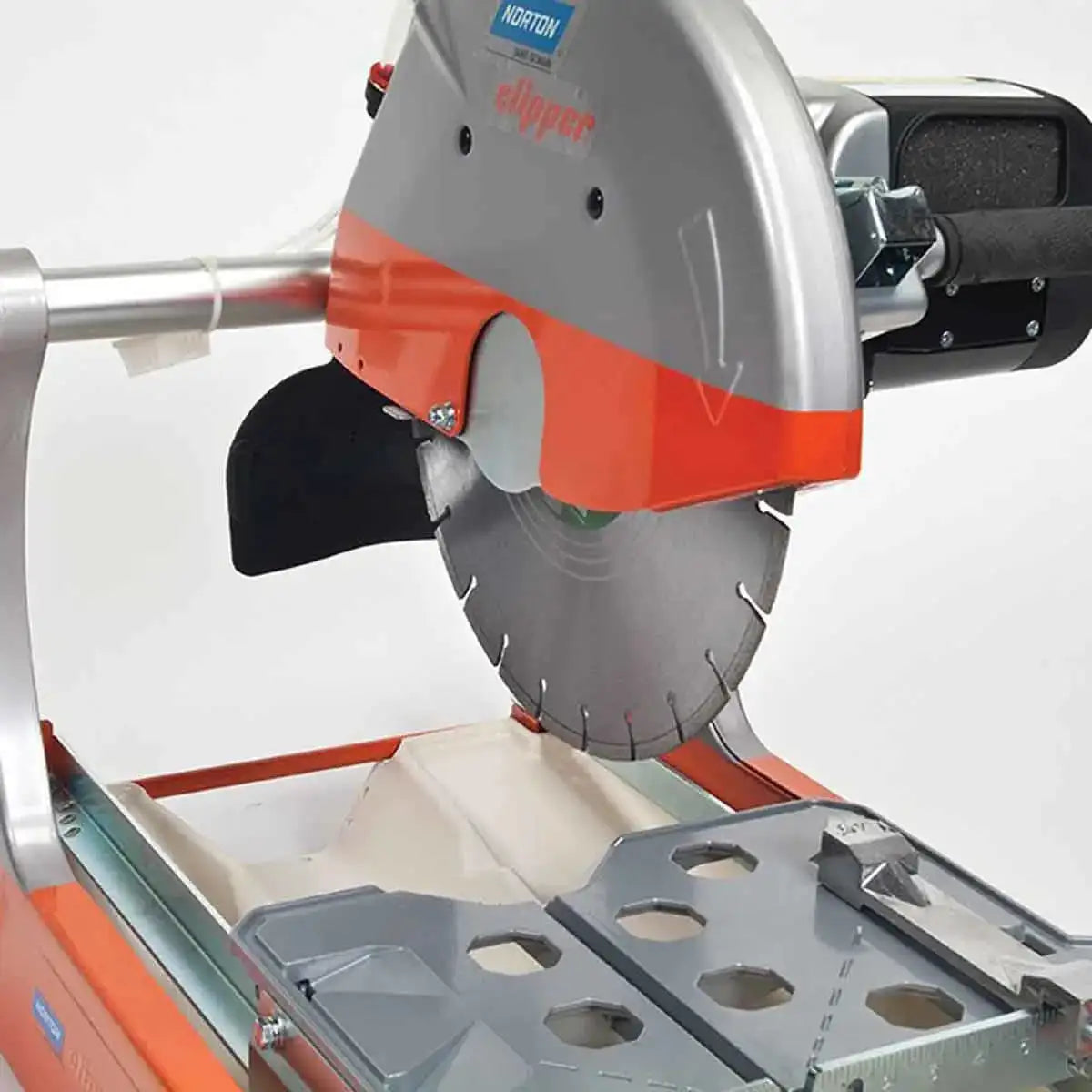

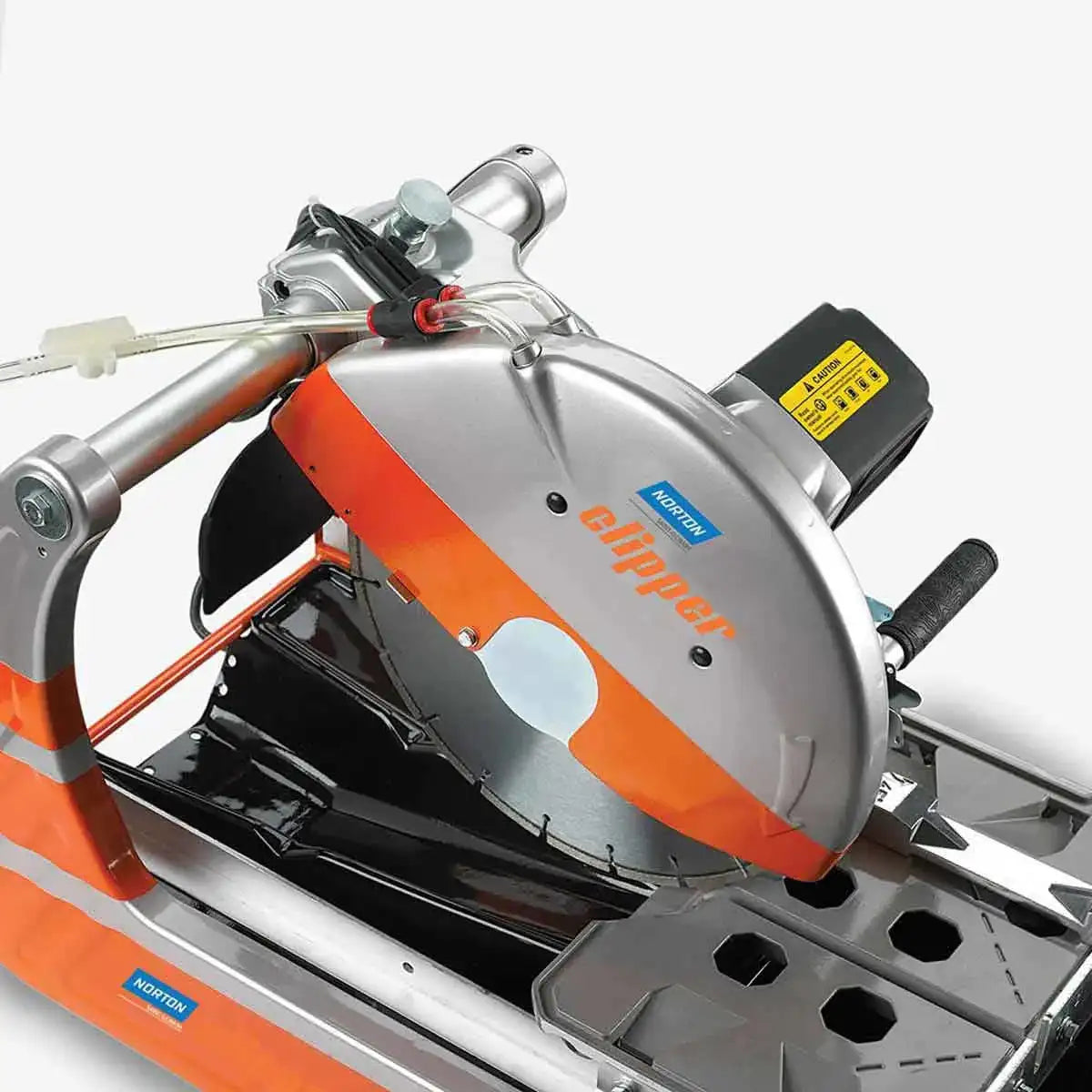

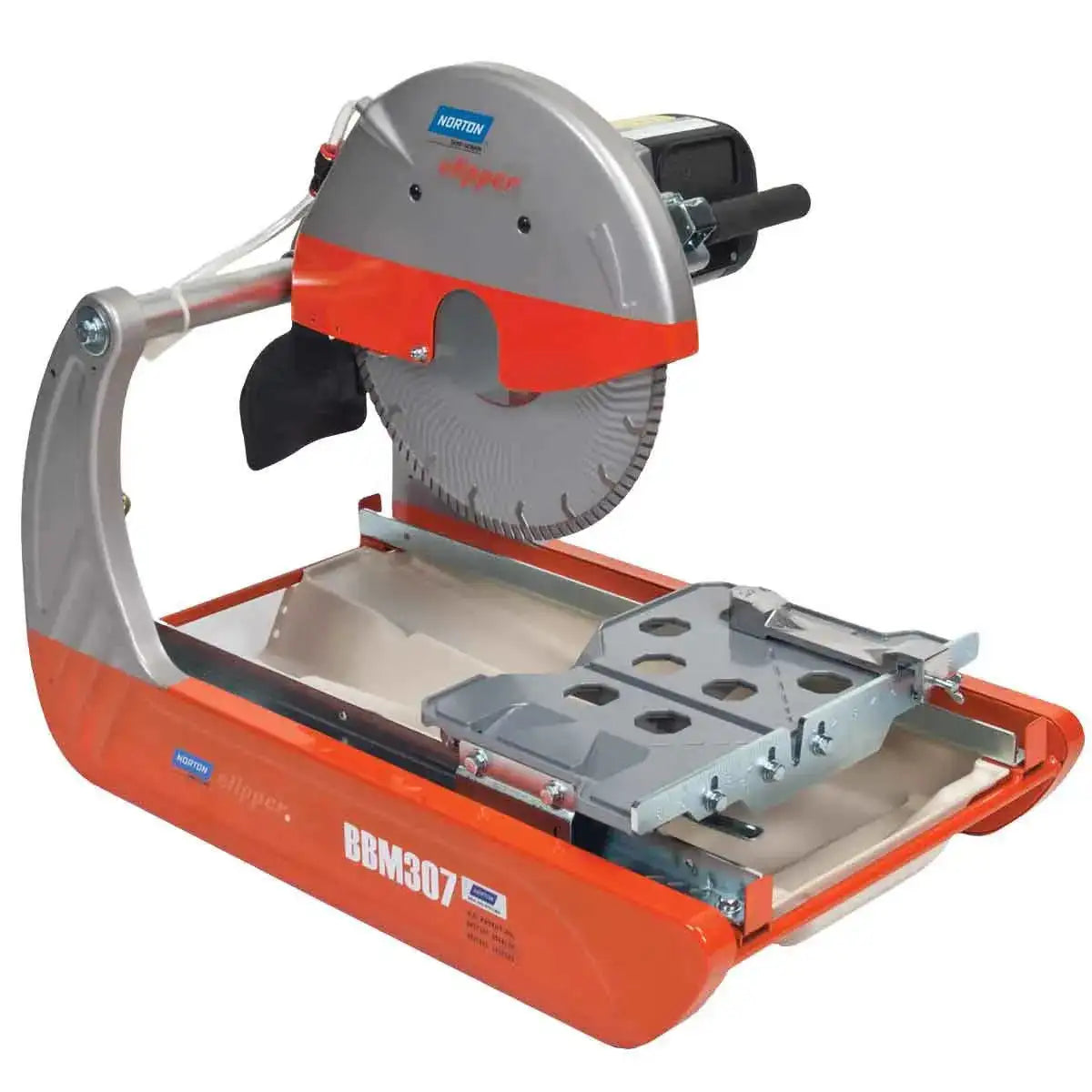

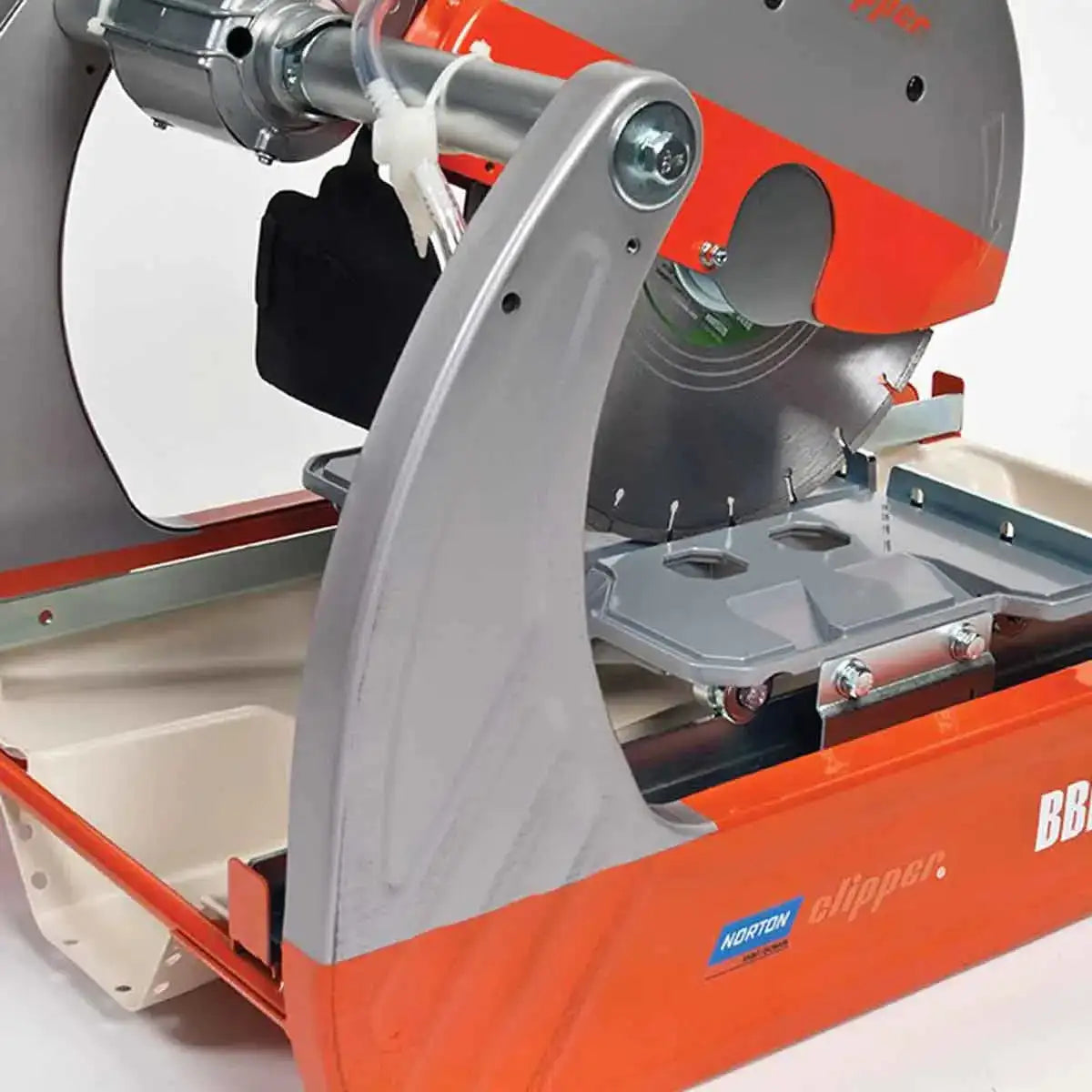

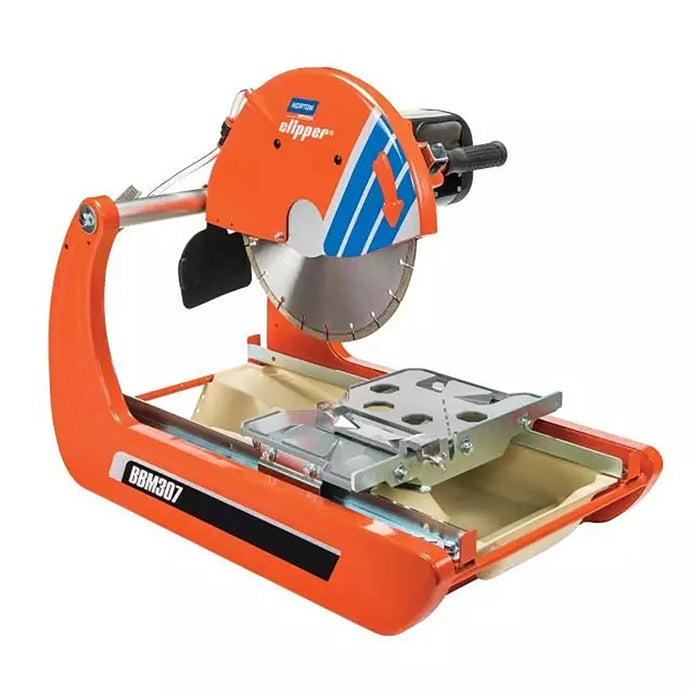

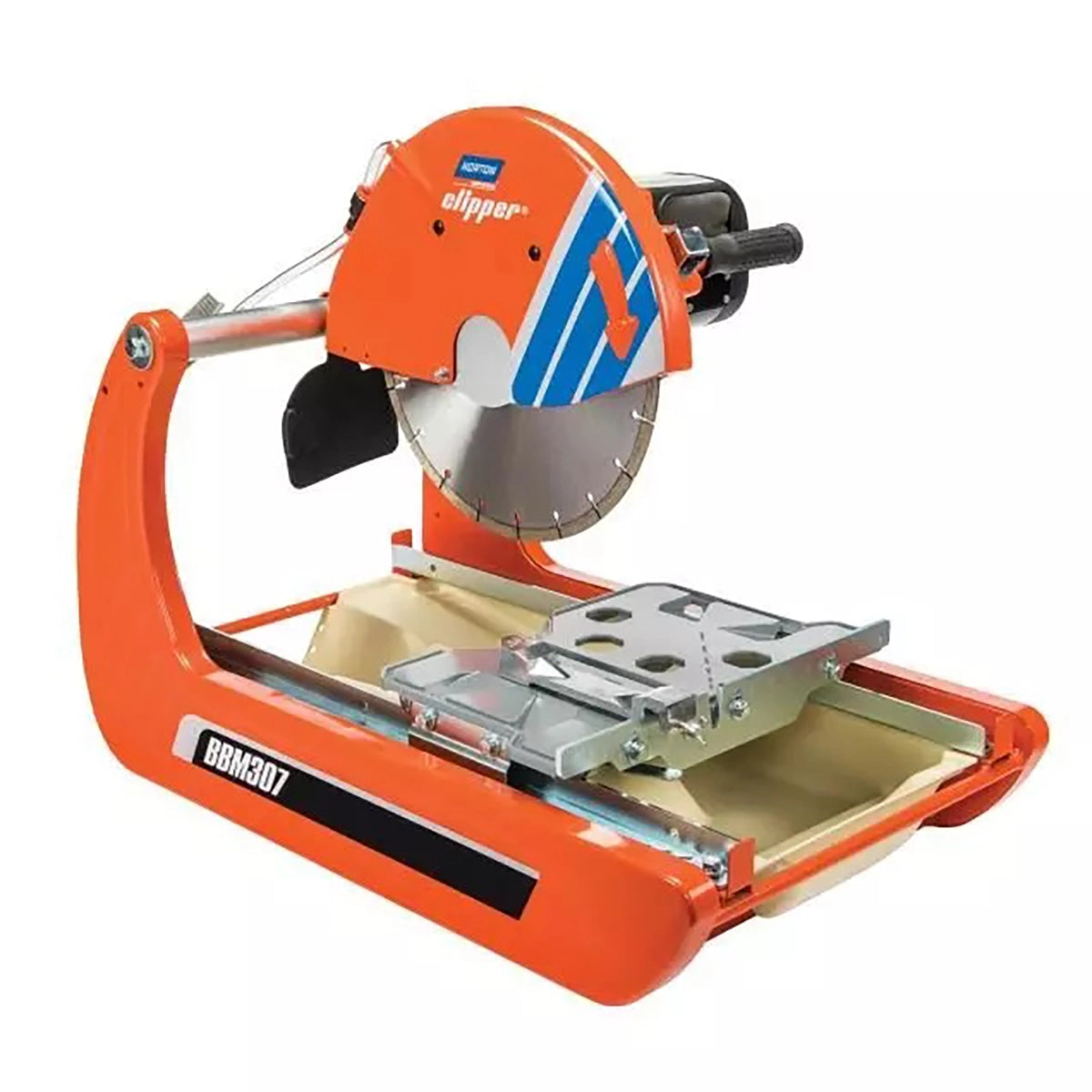

Norton Clipper BBM307 14" Masonry Saw

The Norton Clipper BBM307 Mini Masonry Saw features an all-steel uni-body construction with the best weight-to-strength distribution in its class, a 14" blade capacity, and an ergonomically designed three-position locking cutting head for a safe, clear view of the cutting area.

Features

Cut material up to 8" x 8" x 16"
Dry or wet cutting with quick-attach garden hose water system
Channeled water pan to direct dust and slurry away from the operator
Steel reinforced frame
Steel wheels
Sealed bearing conveyor cart
AC Universal brush motor with thermal overload protection
14" Blade is sold separately
Vacuum Adapter Kit, Wet Cutting Kit and Saw Stand sold separately

BBM307 Masonry Saw Specifications
Power (Electric)	3 hp
Voltage	115 V
Full Load Amps	10 amps
Blade Capacity	14 in
Depth of Cut	5 in
Arbor	1 in
Blade Shaft RPM	3,600 RPM
Dimensions	31-1/2 x 18 x 30 in
Weight	75 lbs
