Does the cable come with the thermostat probe ?

The probe does not come with the kits but can be purchased here.

I am doing a 500 sq foot tile project over a concrete basement slab. How much of an area should the heating system cover and can the individual mats be connected on one thermostat?

For concrete slab subfloors, Nuheat recommends insulating the slab prior to installing Nuheat Cable. Insulation will improve the upward heat transfer from the cable to the flooring surface. Depending on the size of the cable kit you purchase, that is the coverage of the heating system. You can install more than one Mat / Cable Kit / Mesh Kit to a thermostat, provided that the total draw does not exceed 15 amps. The thermostat typically holds up to 3 or 4 sets of leads before fitting the lead wires into the terminals becomes difficult. Each system must be designed for the same voltage all 120 V, all 240 V, or all 208 V.

Can this wire be used with prodeso mat ?

Yes, this cable system will work with most heat mats such as the Prodeso Heat Mat, however, the warranty will be voided if all Nuheat/nVent products arent used in the system.

Can this be placed in concrete

Yes, this can be placed in concrete. For concrete slab subfloors, Nuheat recommends insulating the slab prior to installing Nuheat Cable. Insulation will improve the upward heat transfer from the cable to the flooring surface.

1 2

Nuheat 120 Volt Floor Heat Cable Under Tile Heating Kit

Name: Nuheat 120 Volt Floor Heat Cable Under Tile Heating Kit
Brand: Nuheat
SKU: 4408-80 sq ft
Price: 420.0 USD
Availability: InStock

$420⁰⁰ USD

Shipping calculated at checkout.

Brand: Nuheat | SKU: 4408-80 sq ft | MPN:

Coverage Area

80 Sq Ft

Product variants

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

Nuheat 120 Volt Floor Heat Cable Kit

Nuheat Cable is quick and easy to install and provides comfortable floor heating to any tile, marble, stone, laminate, or engineered wood floor. This floor heat cable provides installers and designers with flexible, custom layout options to fit any room.

Features

Simple floor heat installation with a single-point lead
The slim profile heat cable is only 3/16" thick
Powerful heating (40 BTUs per sq ft.)
Energy efficient (12 watts per sq ft) with 3" spacing
Installs easily under tile, marble, stone, and laminate or engineered wood floors
Works great for wet areas, shower, and sauna applications
UL listed
25-year warranty
Cable can be used to heat wet areas such as shower beds and benches or saunas
Available in both 120 and 240-volt formats. Click here for 240V Nuheat Cable
Radiant heat temperature can be controlled with either a programmable or non-programmable floor heat thermostat
Can be installed in combination with a Nuheat Mat system - use standard mats for rectangular or square areas and use cables to fill in the irregularly angled or curved portions of the room

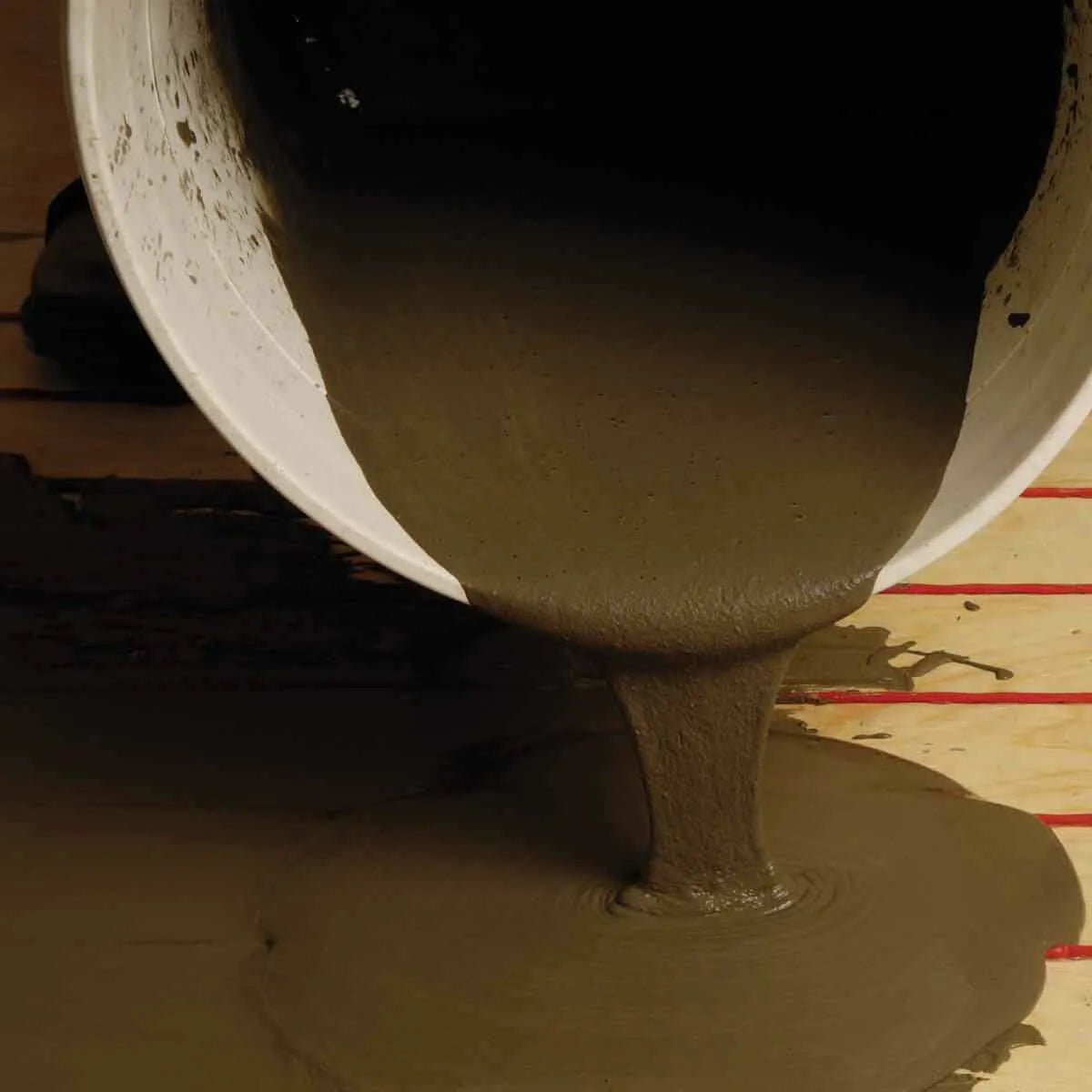

The heating cable is installed and covered with floor-leveling cement (self-leveler) or thin-set mortar - after the mortar has cured, flooring can then be installed on top of this new layer
Cable guides are included in the kit. Extra cable guides are also available

Coverage

Model	2/3/2 Pillars* 12 Watts/sq ft	3 Pillars* 12 Watts/sq ft	2 Pillars* 15 Watts/sq ft	Length (ft)	Total Watts
N1C008	Coverage	8 sq ft	9 sq ft	6 sq ft	29 ft	80 watts
N1C012	Coverage	12 sq ft	14 sq ft	10 sq ft	47 ft	138 watts
N1C015	Coverage	15 sq ft	17 sq ft	12 sq ft	57 ft	170 watts
N1C025	Coverage	25 sq ft	30 sq ft	21 sq ft	98 ft	299 watts
N1C030	Coverage	31 sq ft	36 sq ft	25 sq ft	12 ft	343 watts
N1C040	Coverage	38 sq ft	45 sq ft	31 sq ft	14 ft	442 watts
N1C050	Coverage	48 sq ft	57 sq ft	39 sq ft	18 ft	562 watts
N1C060	Coverage	60 sq ft	71 sq ft	49 sq ft	23 ft	719 watts
N1C070	Coverage	68 sq ft	81 sq ft	55 sq ft	26 ft	810 watts
N1C080	Coverage	82 sq ft	97 sq ft	66 sq ft	31 ft	947 watts
N1C085	Coverage	86 sq ft	102 sq ft	69 sq ft	33 ft	1021 watts
N1C095	Coverage	97 sq ft	115 sq ft	78 sq ft	37 ft	1161 watts
N1C110	Coverage	109 sq ft	129 sq ft	88 sq ft	42 ft	1299 watts
N1C120	Coverage	122 sq ft	145 sq ft	98 sq ft	47 ft	1461 watts
