Pearl Leveling System PLS 3/16" Clips

PLS Pearl Leveling System 3/16" Clips

PLS Pearl Leveling System is an all-in-one lippage control plus spacer system. It makes setting tiles easy and profitable.

Features

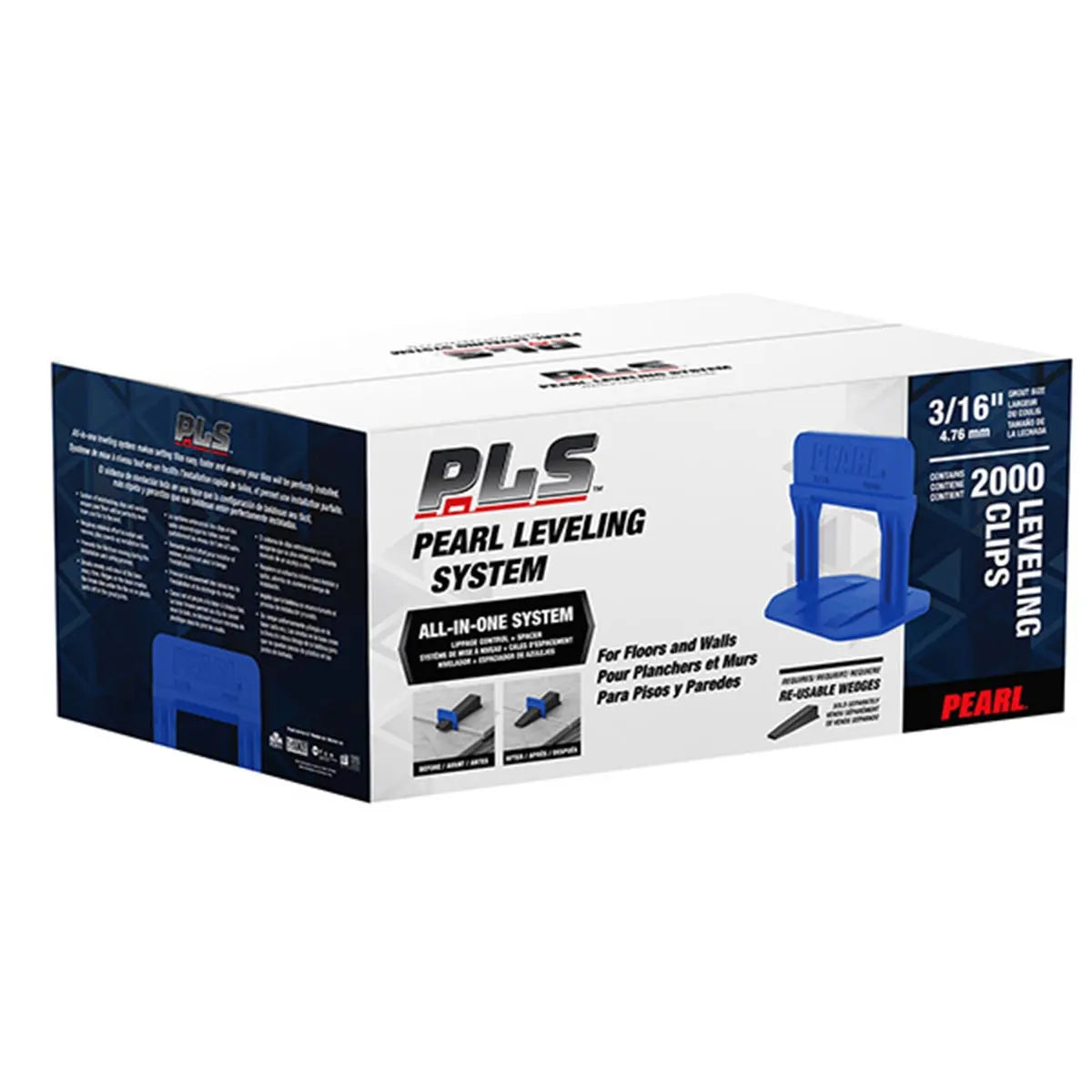

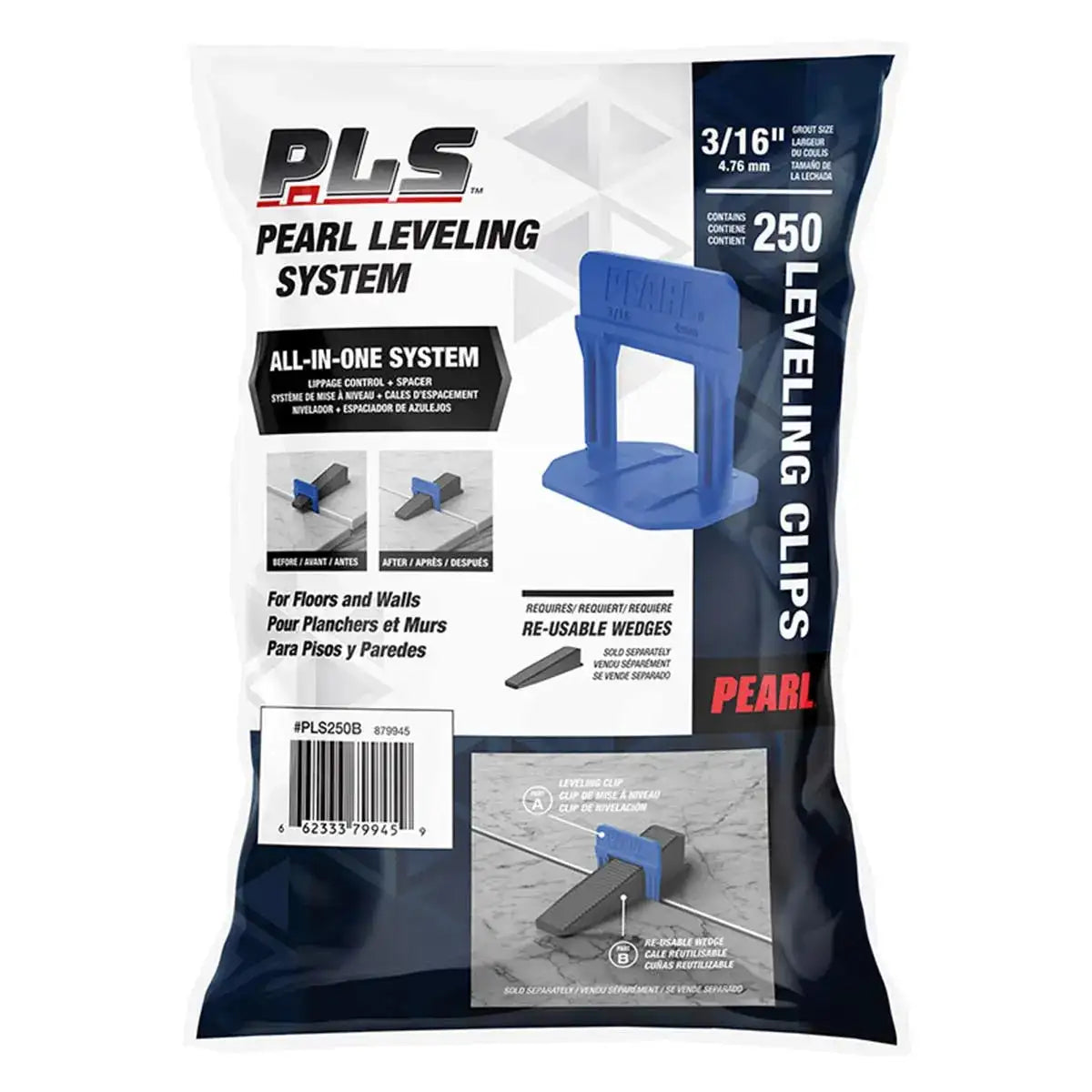

• Available in 250, 500 and 2000 quantities
• For use when installing wall and floor tiles
• For use on porcelain, ceramic and natural stone tiles
• Especially recommended to improve finishes when working with large-format tiles

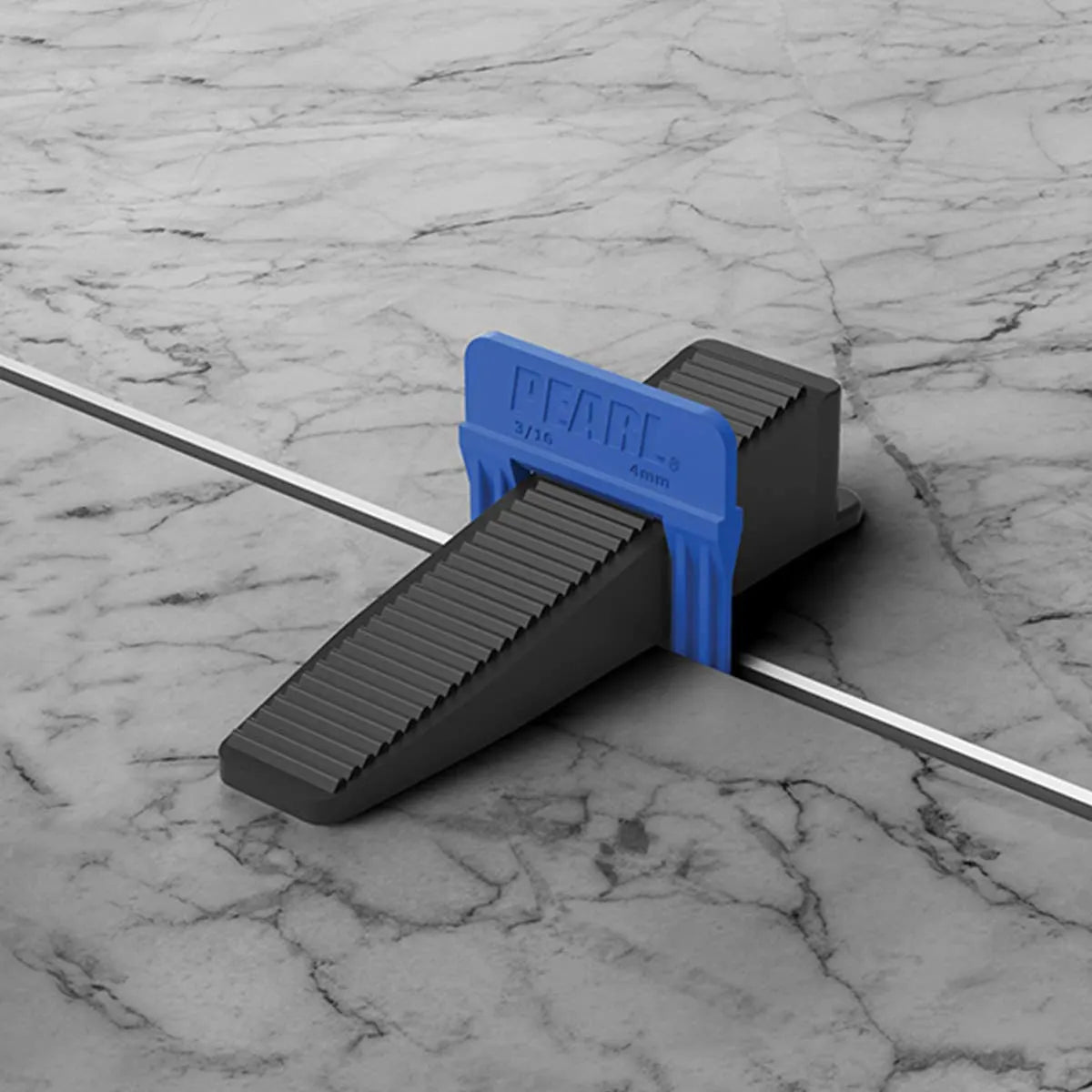

• System of interlocking clips and re-usable wedges ensure your floor will be perfectly level from one tile to the next
• Creates a grout joint size of 3/16"
• Requires minimal effort to install and remove, plus speeds up installation time
• Can be installed by hand or with optional install tool
• Prevents the tile from moving during the installation and curing process
• Multi-polymer plastic provides greater tensile strength while remaining flexible to avoid breakage failures while tightening

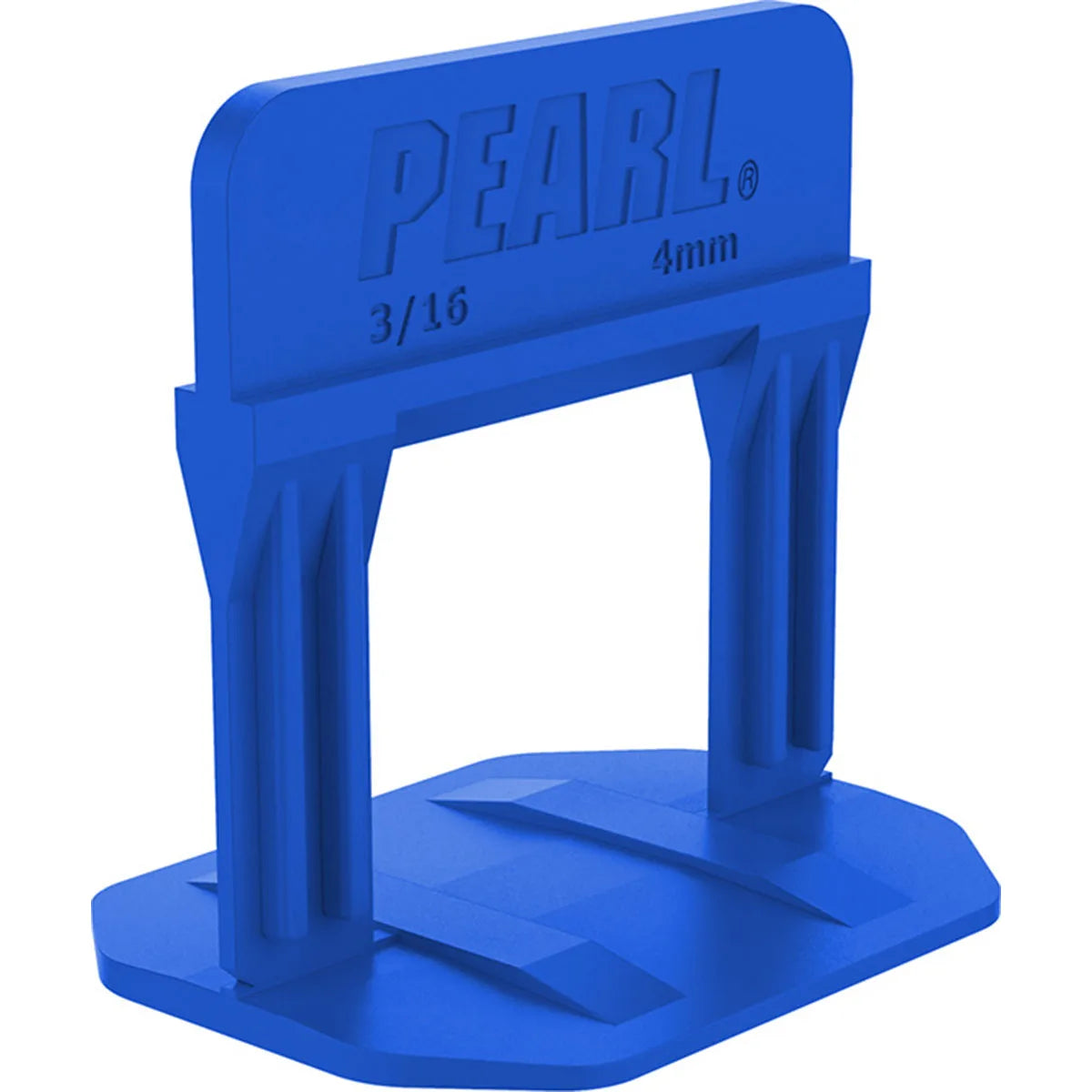

• Each clip thickness is easily identified thanks to the range of different colors available (3/16" is a blue clip)
• Breaks evenly and clean at the base every time
• Simple impact removal system (by kicking or mallet) - Always in the direction of the grout joint
• Use on 1/8" to 1/2" thick tile
• Wedges sold separately

Technical Data

• Use on 1/8" to 1/2" thick tile
• Minimum joint size: 3/16" (4,76mm)
• 250, 500, or 2000 bases per bag

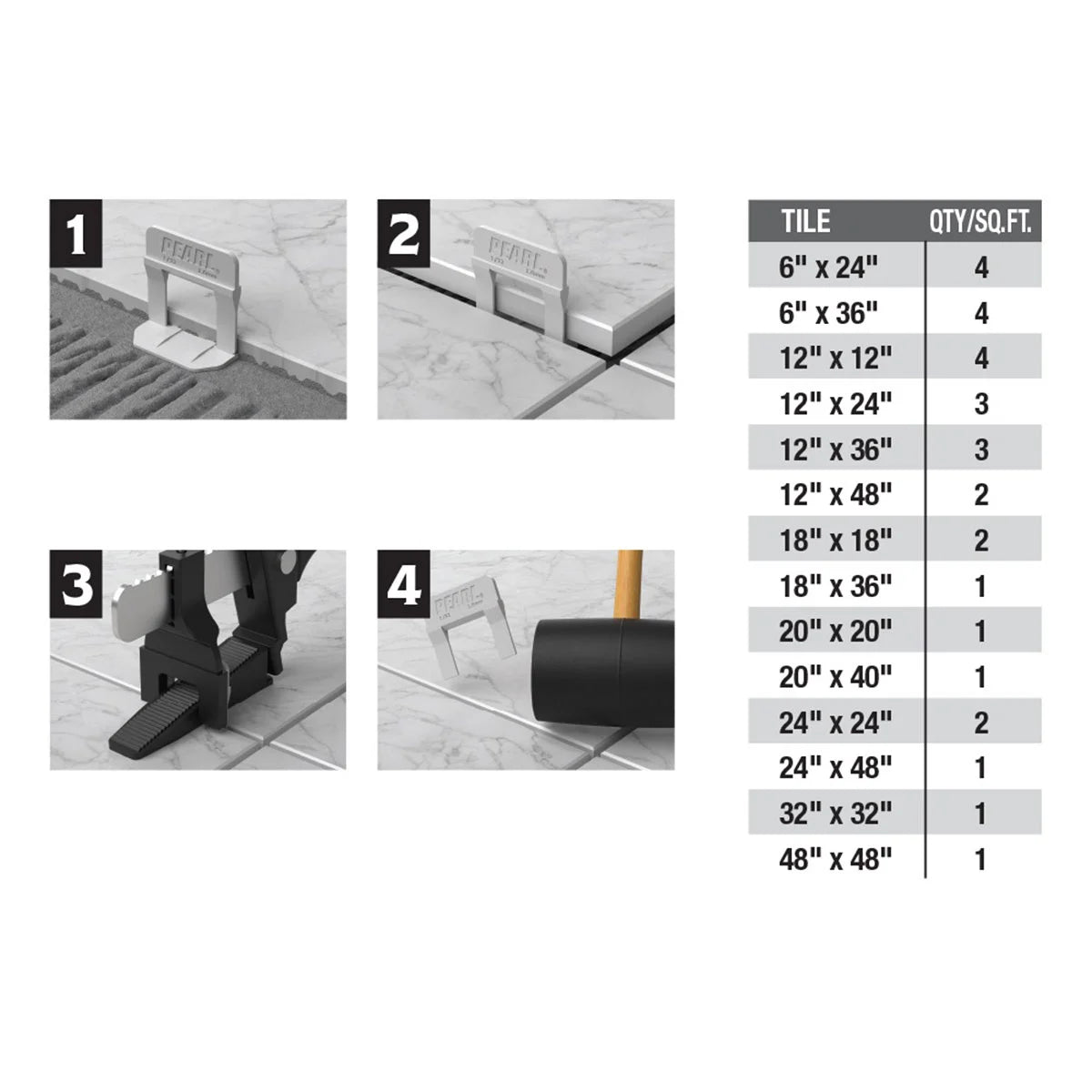

How to use

• STEP 1: Insert the clip under the first installed tile to achieve a consistent grout joint spacing
• STEP 2: Place the next tile on top of and against the clips of the previously installed tile
• STEP 3: Insert the wedge into the clip to secure, align and flatten the adjoining tile (your hand or the installation tool can be used to tighten the wedge into the clip)
• STEP 4: After thinset has cured, hit the clips (with or without wedge) with a rubber mallet, in the direction of the grout joint
• STEP 5: Separate the broken clips from the wedges (wedges are reusable and will last multiple jobs with proper installation and removal)
