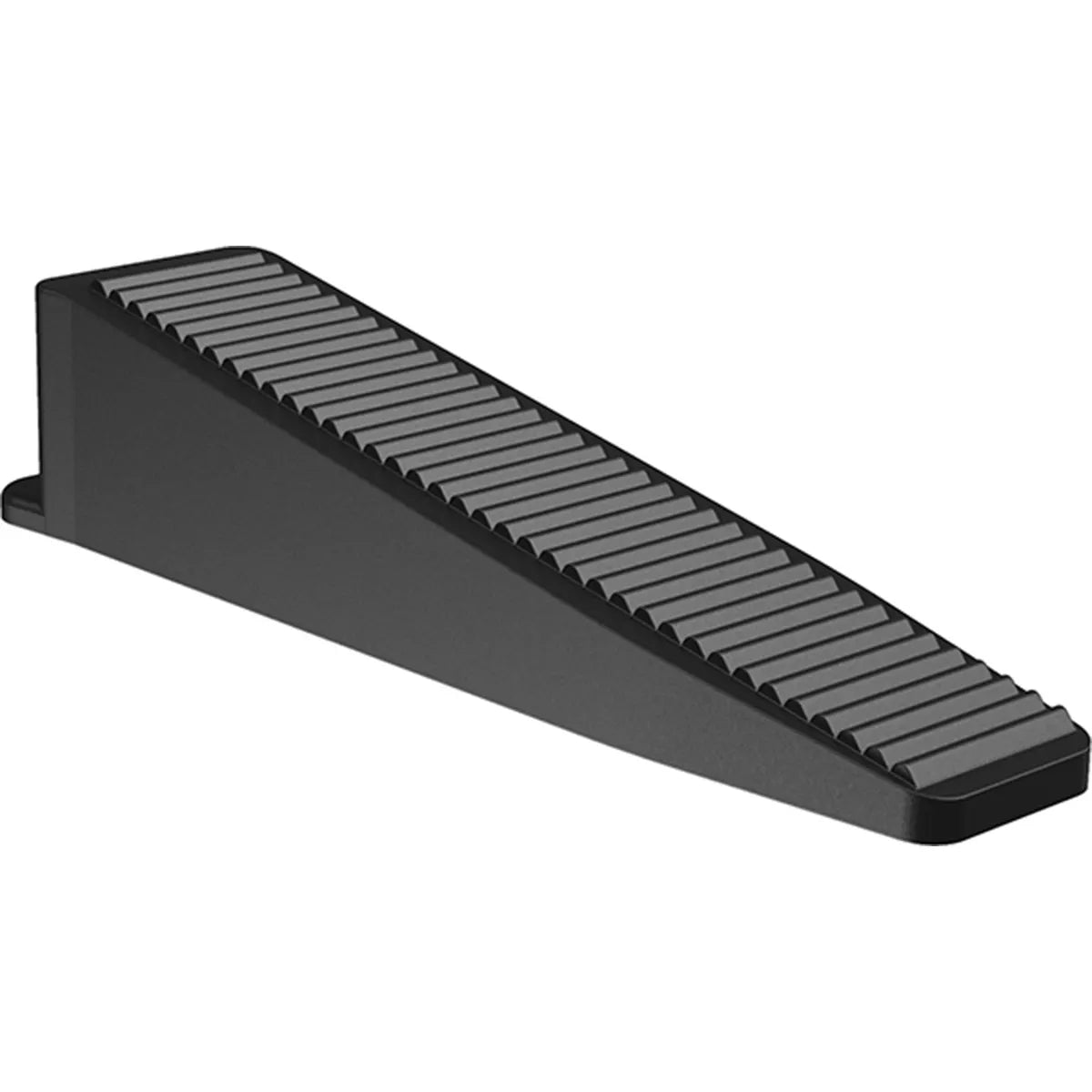

Pearl Leveling System PLS Wedges

PLS Pearl Leveling System Wedges

PLS Pearl Leveling System is an all-in-one lippage control plus spacer system. It makes setting tiles easy and profitable.

Features

• Available in 250, 500, and 2000 quantities
• The re-usable wedge that will last multiple jobs with proper installation and removal
• For use with the PLS Clips when installing wall and floor tiles
• For use on porcelain, ceramic, and natural stone tiles
• It is especially recommended to improve finishes when working with large-format tiles
• A system of interlocking clips and re-usable wedges ensure your floor will be perfectly level from one tile to the next
• It requires minimal effort to install and remove, plus it speeds up installation time
• It can be installed by hand or with an optional install tool
• Use PLS Clips to prevent the tile from moving during the installation and curing process
• Use on 1/8" to 1/2" thick tile
• PLS Clips are sold separately

Technical Data

• Use on 1/8" to 1/2" thick tile
• Minimum joint size: 1/32" (1mm)
• 250, 500, or 2000 wedges per bag

How to use

• STEP 1: Insert the clip under the first installed tile to achieve consistent grout joint spacing
• STEP 2: Place the next tile on top of and against the clips of the previously installed tile

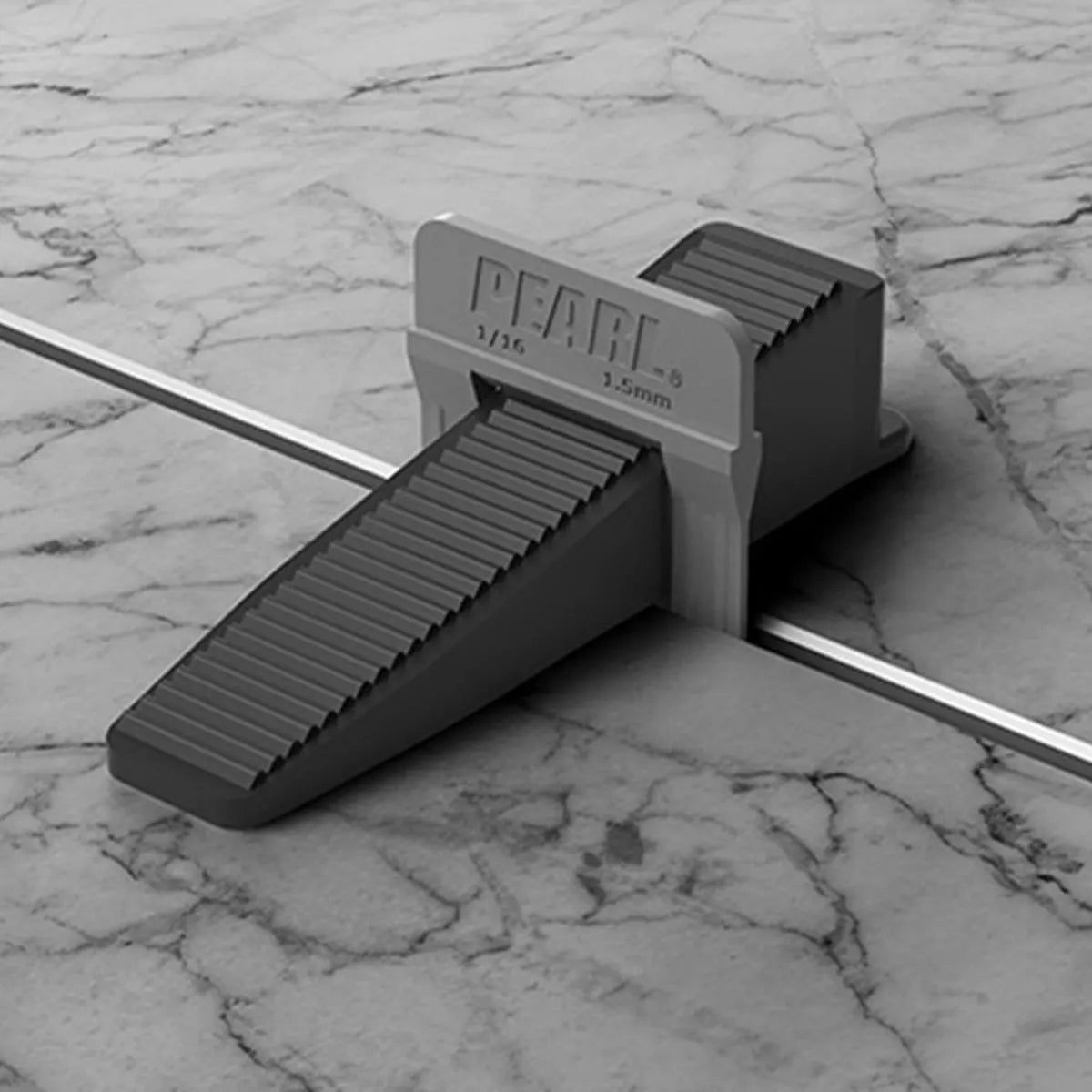

• STEP 3: Insert the wedge into the clip to secure, align, and flatten the adjoining tile (your hand or the installation tool can be used to tighten the wedge into the clip)
• STEP 4: After the thin set has cured, hit the clips (with or without a wedge) with a rubber mallet in the direction of the grout joint
• STEP 5: Separate the broken clips from the wedges (wedges are re-useable and will last multiple jobs with proper installation and removal)
