Porcelain Cyclone
$920 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Brand: PorcelainPlus
| SKU: 9043-3/16 inch
| MPN:
Shipping & Delivery
Shipping & Delivery
- $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
- Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
- Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
- Shipping time is calculated by business days. Weekends do not count.
- For Freight Items See Policy Here

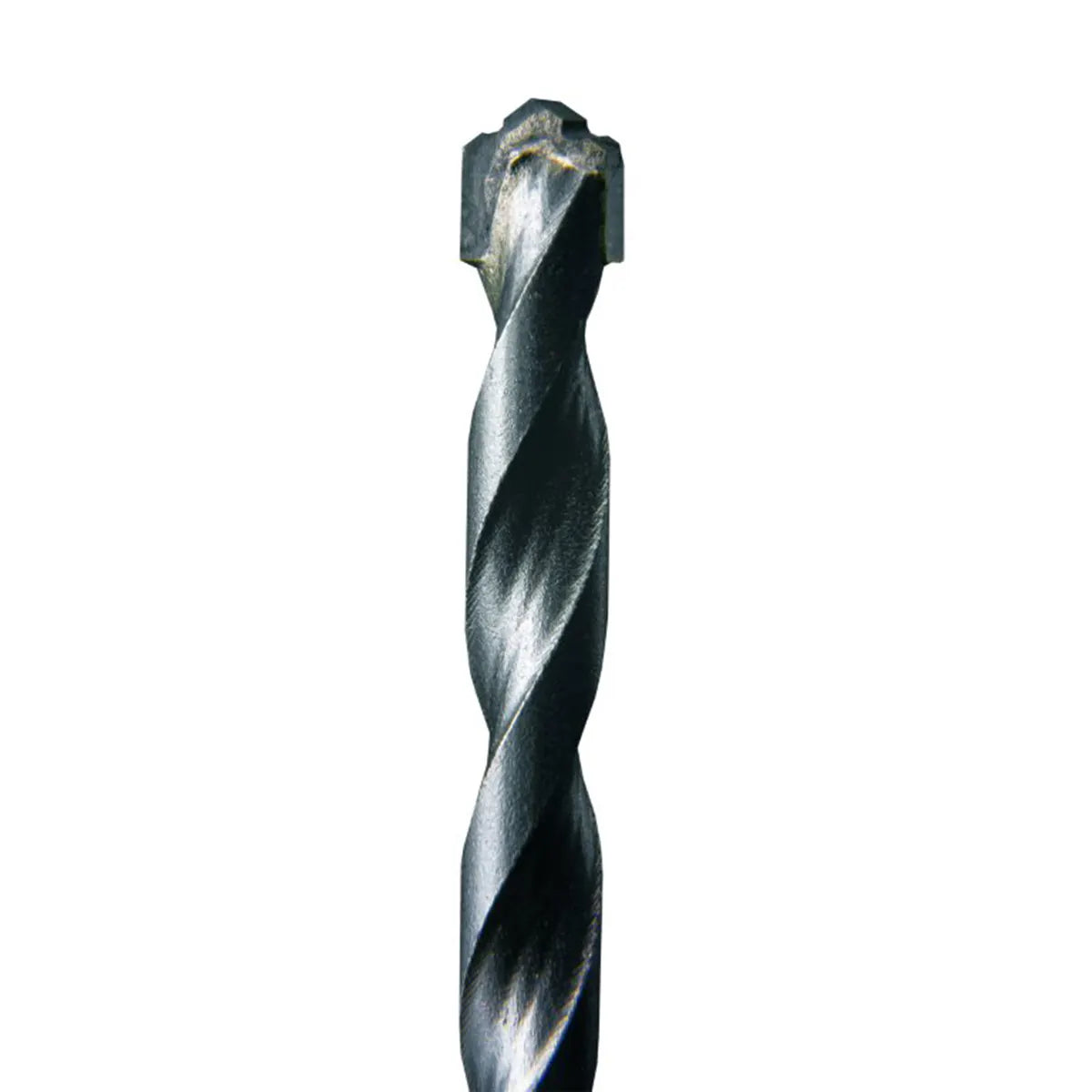

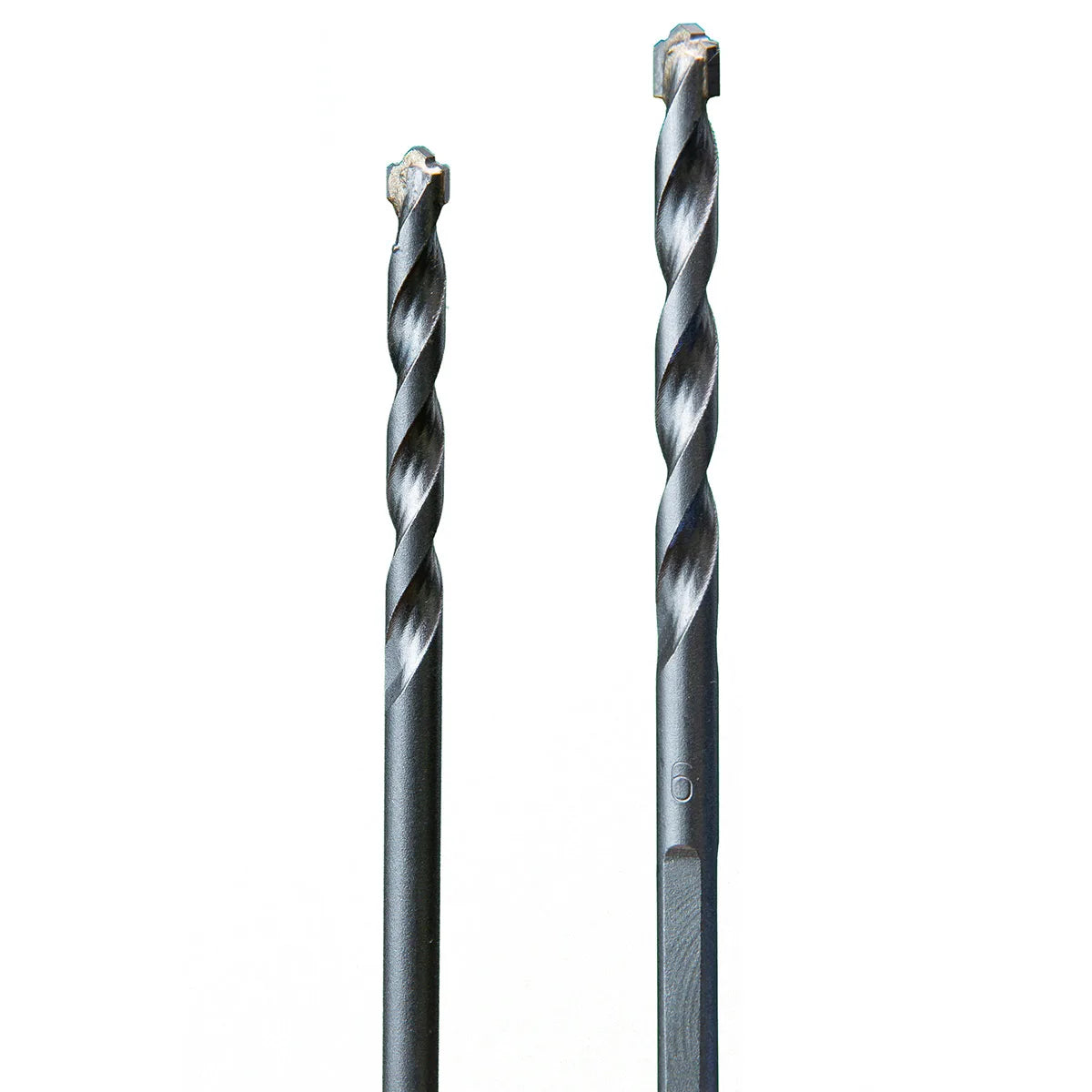

Porcelain Cyclone - Tungsten Carbide-Tipped Multi-Purpose Masonry/Tile Bits
The Porcelain Cyclone was specifically designed for drilling quickly and efficiently through porcelain, masonry, and other hard surfaces for a variety of applications. Its speed and durability distinguish itself from other standard carbide masonry bits. With a specially formulated mix of metals and superior designed carbide tip, the Porcelain Cyclone makes installations quicker and easier, therefore, more profitable.
Features
- Sold Individually
- Tungsten Carbide-Tipped, Multi-Purpose Masonry/Tile Drill Bit
- 3X Longer Life & 2X Faster than standard masonry/tile bits
- Drills 10+ holes per bit (based on PEI class 5 porcelain tile with 1/4in Cyclone)
- Faster Drilling Times (average 30 sec/hole)
- Specifically designed for porcelain, masonry, and harder substrates
- Clean precise holes
- Quick & easy startup, no wandering
- Recommended drilling speed of 600 rpms (hammer drills and handheld drills only)
Recommended For
- Porcelain Tile
- Ceramic Tile
- Marble
- Granite
- Concrete Block
- Brick
- Quartz
- Crystallized Glass
Applications
- Frameless Shower Doors
- Masonry
- Bathroom Partitions
- Bathroom Accessories
- Tiles
Instructions (for maximum durability)
- 1: DIP IN WATER before drilling and about every 5 seconds during drilling (more often when going thru harder materials). We find dipping in water is more effective at cooling the Porcelain bits than spraying.
- 2: FIRM PRESSURE: Let the bit do the work - Do not apply excessive pressure. Place the drill bit on the specified mark, apply pressure, listen for a slight CRUNCH, and start your drilling process. Drill straight into hole and do not wiggle drill.
- 3: USE PROPER DRILLING SPEED: Cyclone: 600 rpms and slowed down while breaking through the hole.
- 4: The Cyclone can be used in a Handheld or Hammer Drill.
- 5: Do not use dull or damaged bit.
- 6: Wear ANSI-approved safety goggles and heavy-duty work gloves during use and when handling bit.
| Porcelain Cyclone Sizes | |
| Diameter | Overall Length |
| 3/16" | 3-1/2" |
| 1/4" | 4" |
