Porcelain Speedbit

Porcelain Speedbit - Carbide Tipped Drill Bits

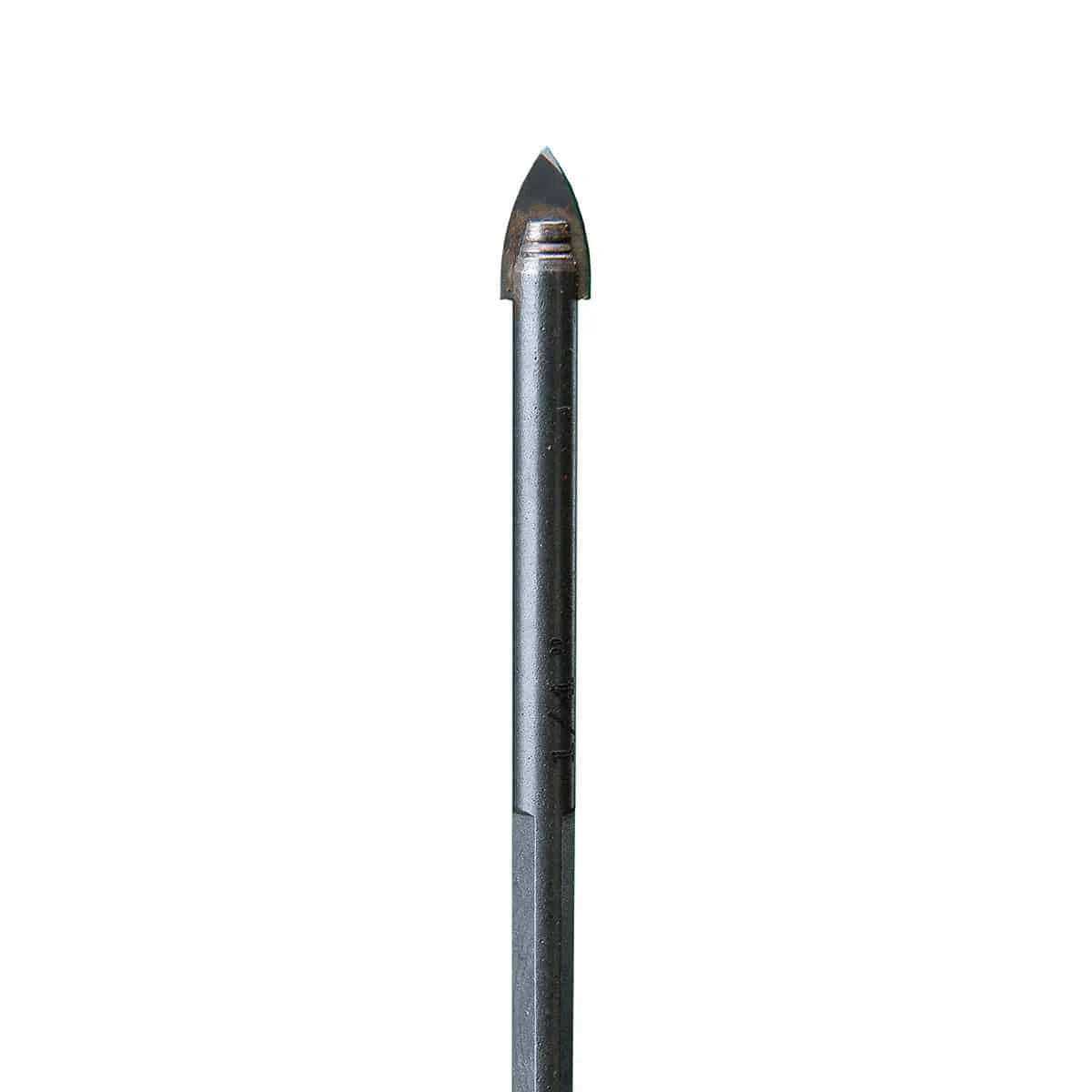

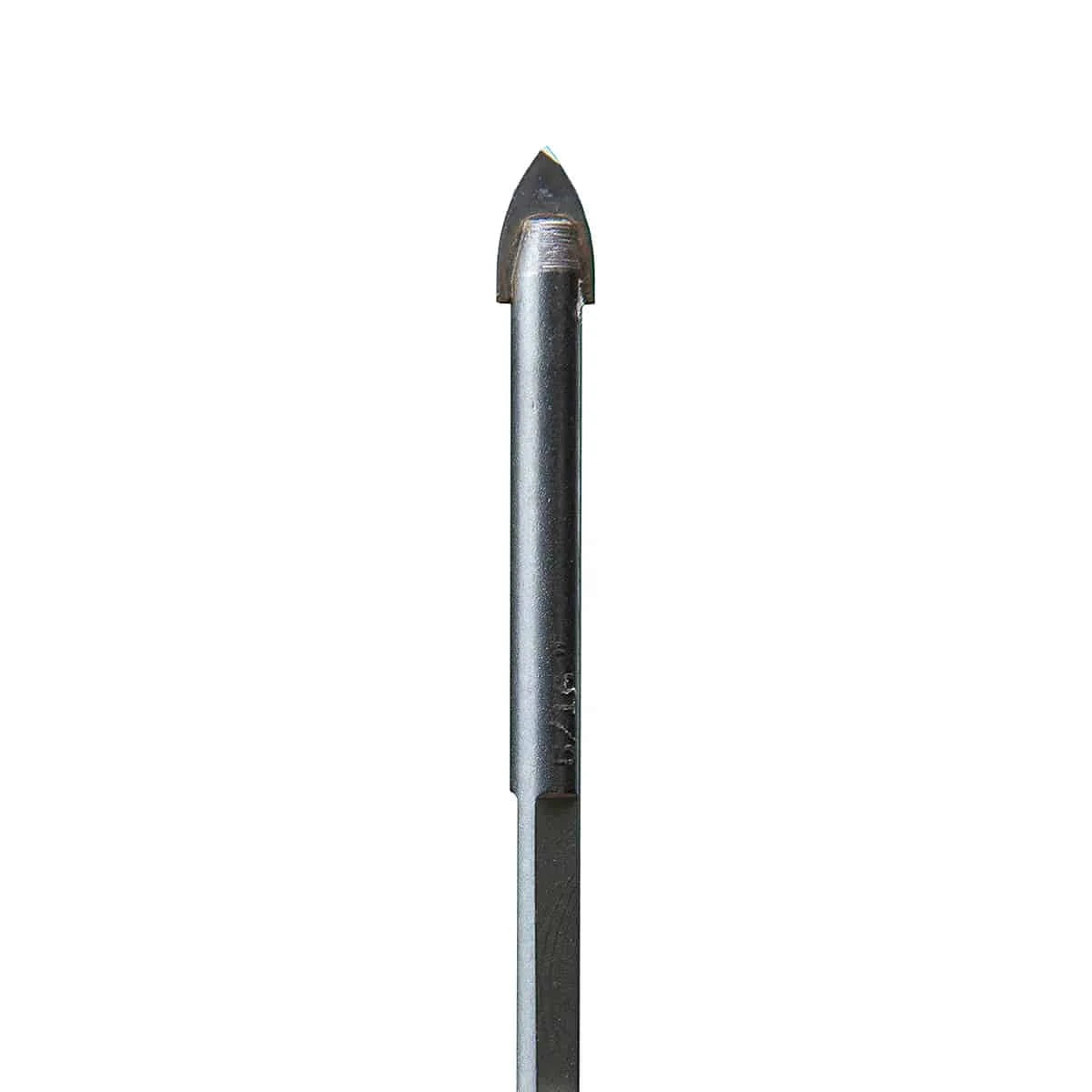

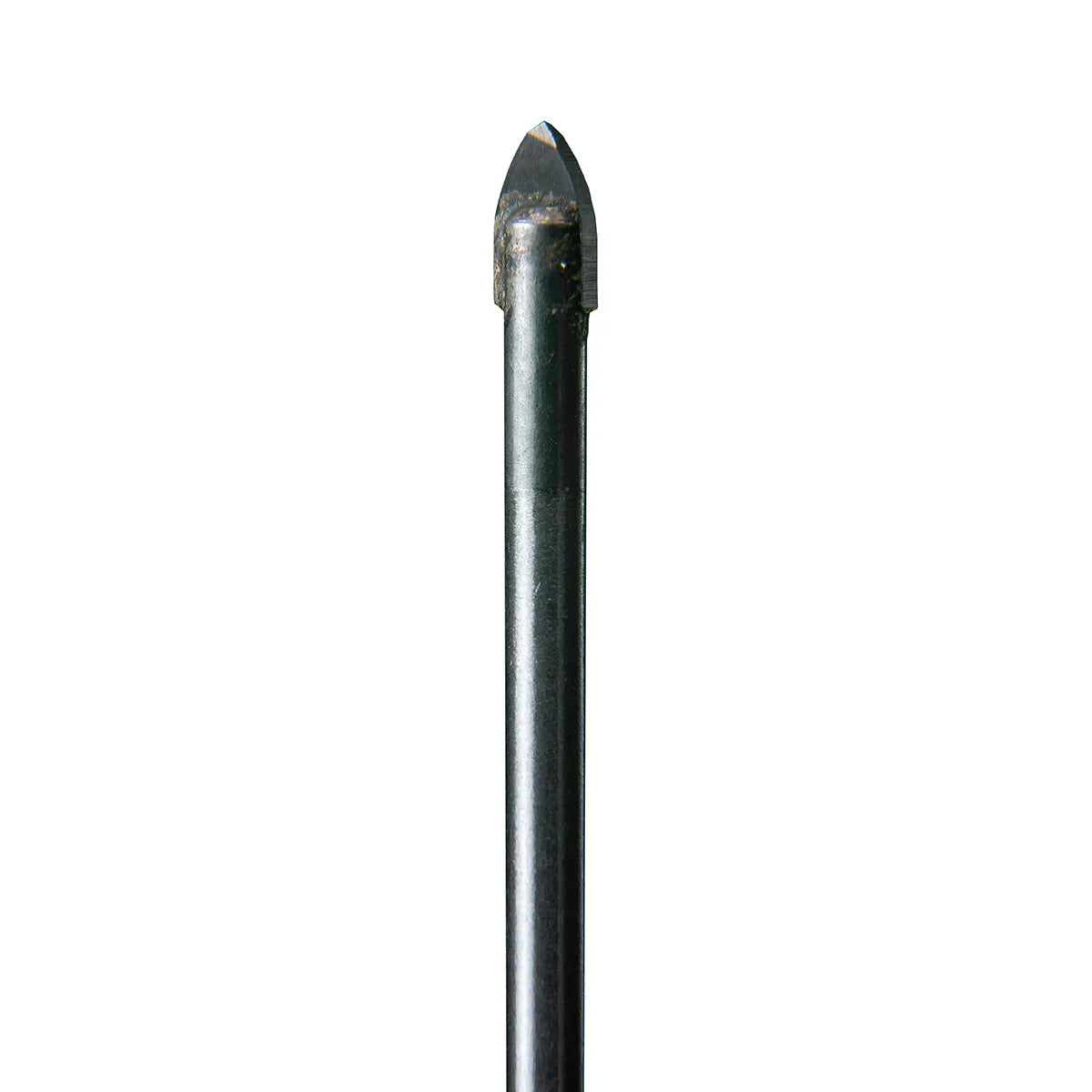

The Porcelain Speedbit is a tungsten carbide-tipped, spear point glass/tile drill bit that was specifically designed for drilling quickly and efficiently through porcelain, glass, and other hard surfaces for a variety of applications.

Features

• Sold Individually
• Tungsten Carbide-Tipped, Spear Point Glass/Tile Drill Bit
• 3X Longer Life & 2X Faster than standard glass/tile bits

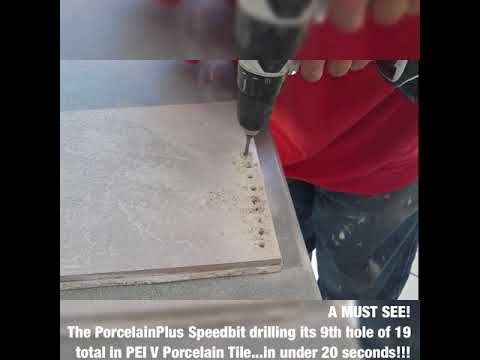

• Drills 10+ holes per bit (based on PEI class porcelain tile with 1/4in Speedbit)
• Internal test results show the Porcelain Speedbut drilled more than 3 times as many holes and more than twice as fast as most competitive bits
• Faster Drilling Times (average 30 sec/hole)
• Specifically designed for porcelain, glass, and harder substrates
• Can drill near edges of tiles/glass without cracking substrate
• Clean precise holes
• Quick & easy startup, no wandering
• Recommended drilling speed of 2,300 rpms (handheld drills only)

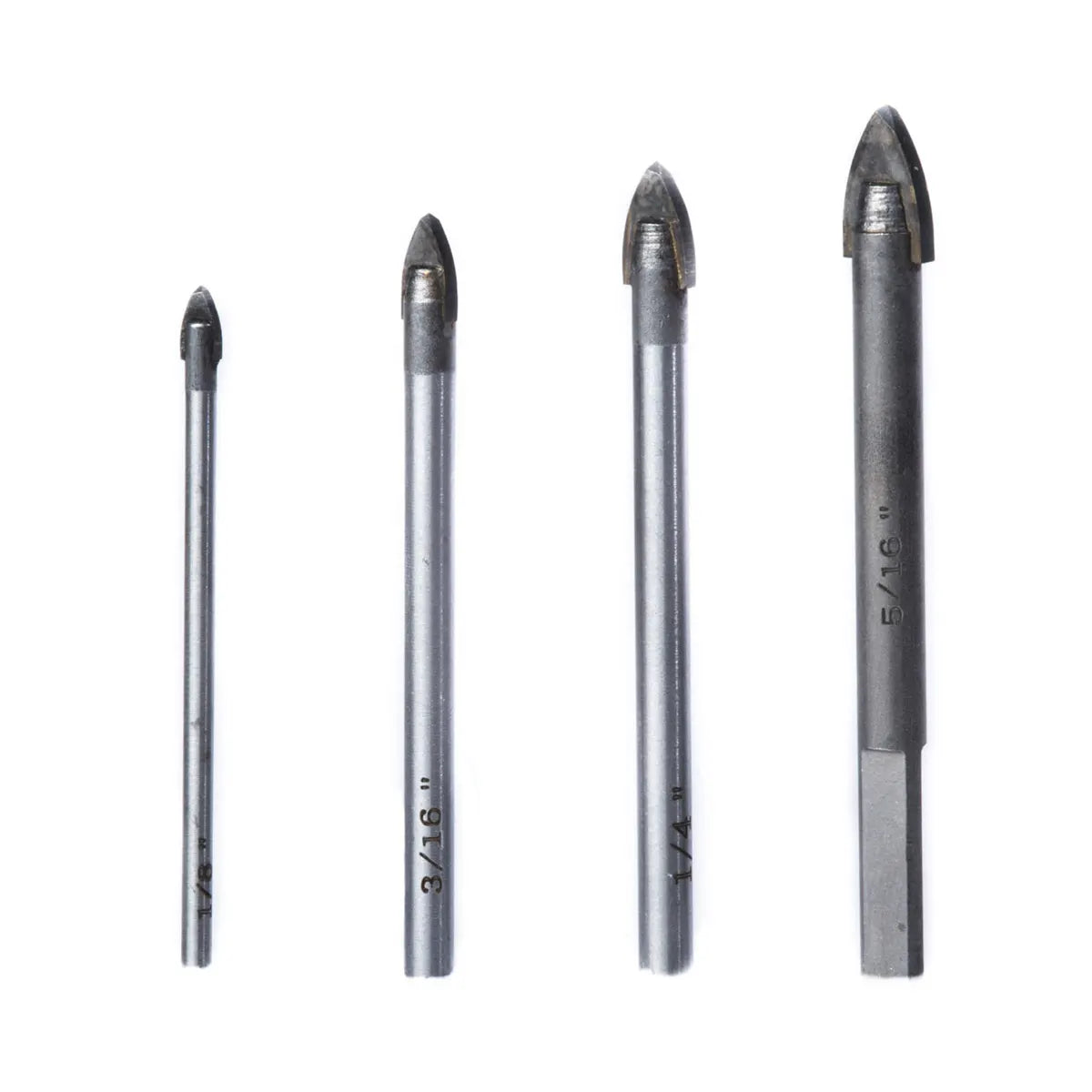

• 4-piece variety pack includes one each of the 1/8", 3/16", 1/4" and 5/16" speedbits

Recommended For

• Porcelain Tile
• Ceramic Tile
• Marble
• Glass Tile
• Granite
• Concrete Block
• Brick
• Quartz
• Crystallized Glass

Applications

• Frameless Shower Doors
• Masonry
• Bathroom Partitions
• Glass / Decorative Glass
• Bathroom Accessories
• Mirrors
• Tiles

Instructions (for maximum durability)

• 1: DIP IN WATER before drilling and about every 5 seconds during drilling (more often when going thru harder materials). We find dipping in water is more effective at cooling the Porcelain bits than spraying.
• 2: FIRM PRESSURE: Let the bit do the work - Do not apply excessive pressure. Place the drill bit on the specified mark, apply pressure, listen for a slight CRUNCH, and start your drilling process. Drill straight into hole and do not wiggle drill.
• 3: USE PROPER DRILLING SPEED: Speedbit: 2,300 rpms and slowed down while breaking through the hole. NOTE the higher speed for the Speedbit as most other spear point bits recommend slower speeds of 400-800 rpms.
• 4: Handheld Drills Only.
• 5: Do not use dull or damaged bit.
• 6: Wear ANSI-approved safety goggles and heavy-duty work gloves during use and when handling bit.

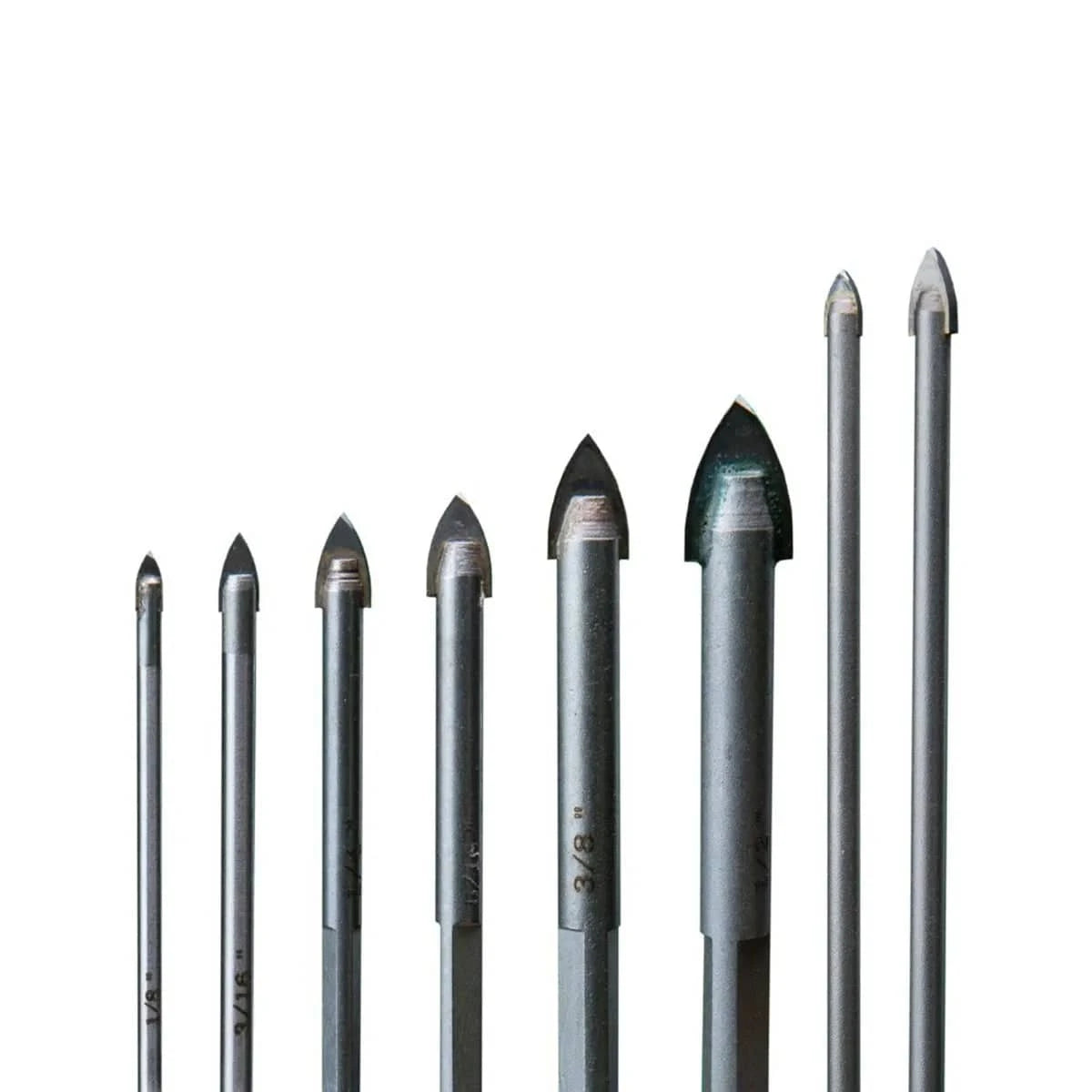

Porcelain Speedbit Sizes
Diameter	Overall Length

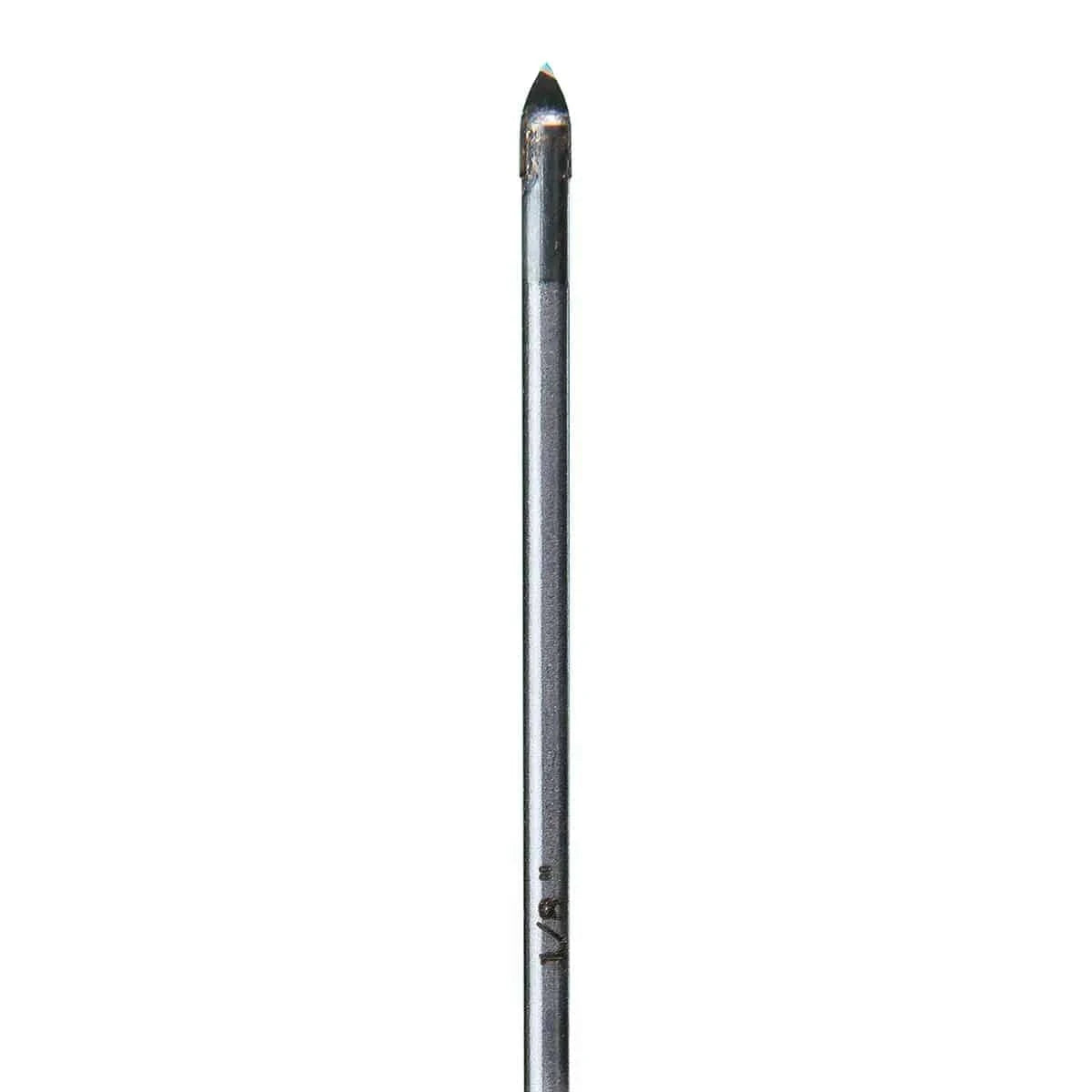

1/8"	2-3/8"
3/16"	2-5/8"
1/4"	2-3/4"
5/16"	3"

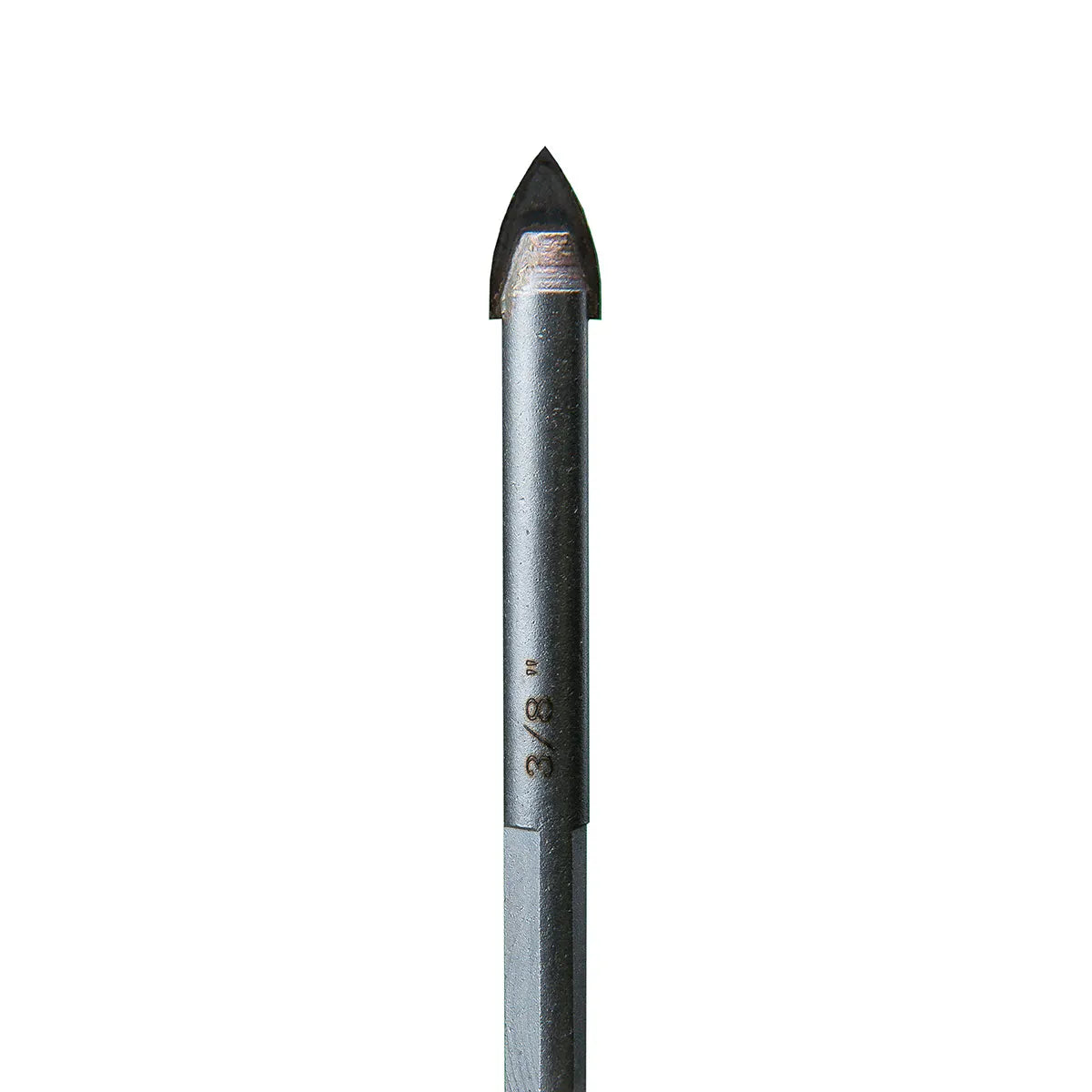

3/8"	3-1/8"

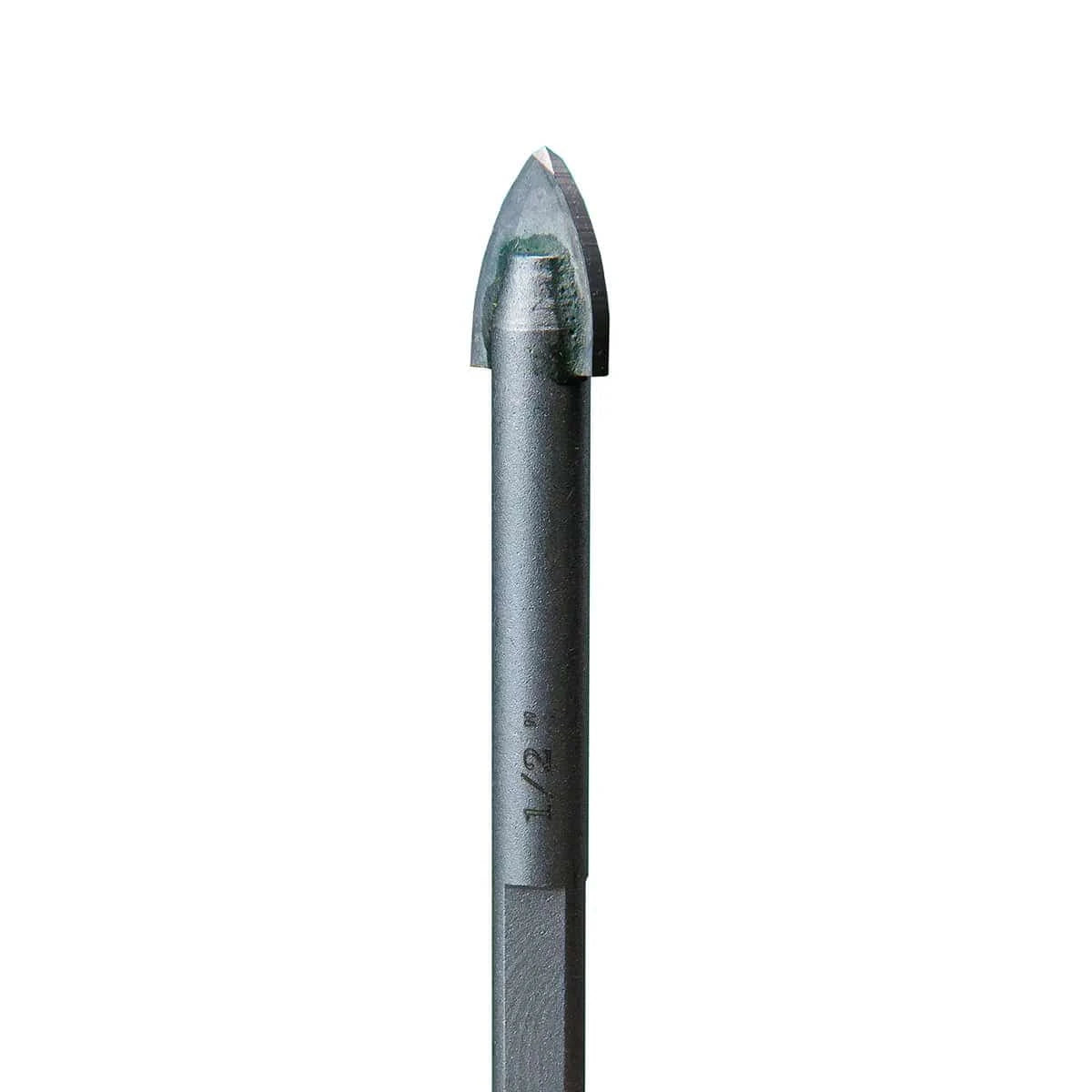

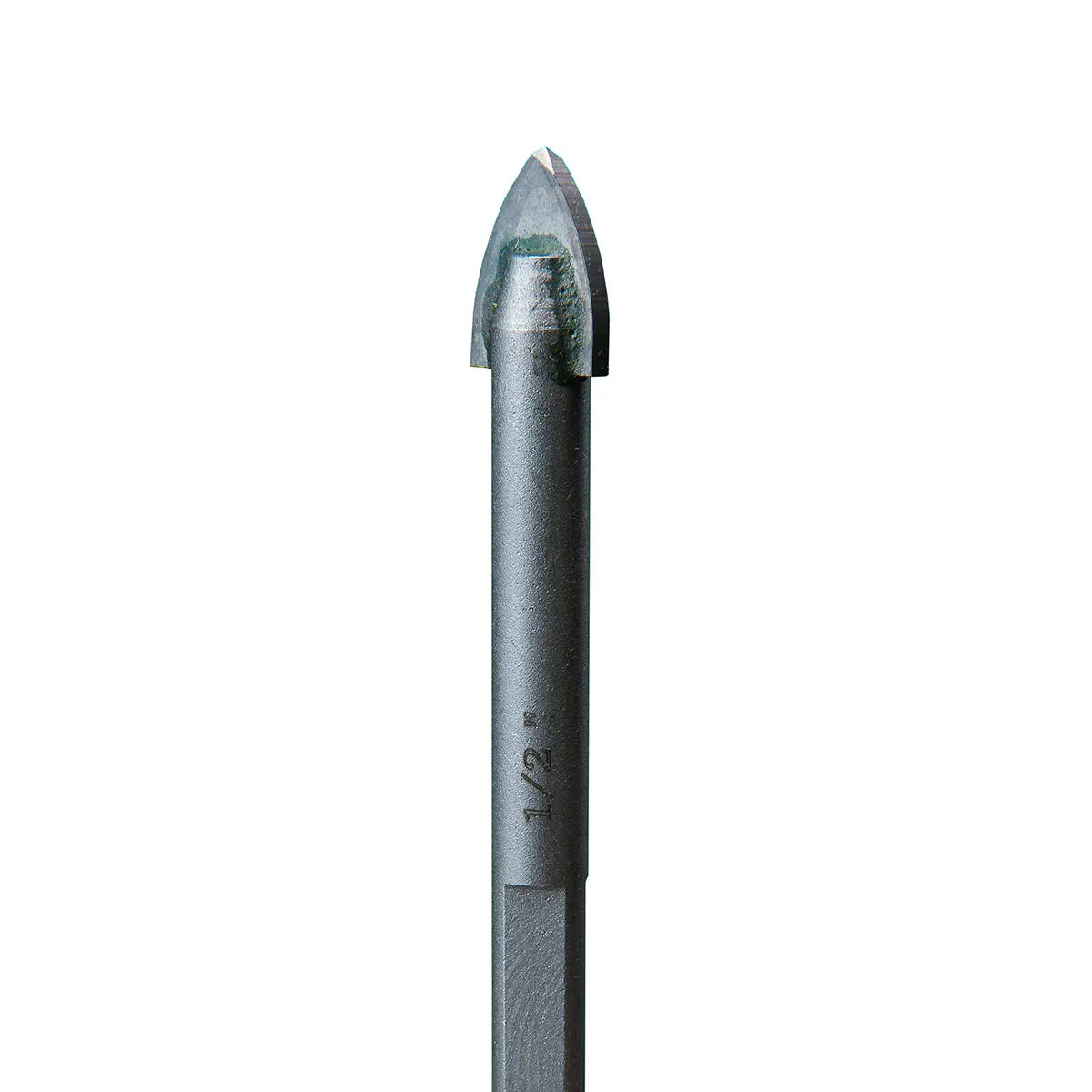

1/2"	3-1/2"
