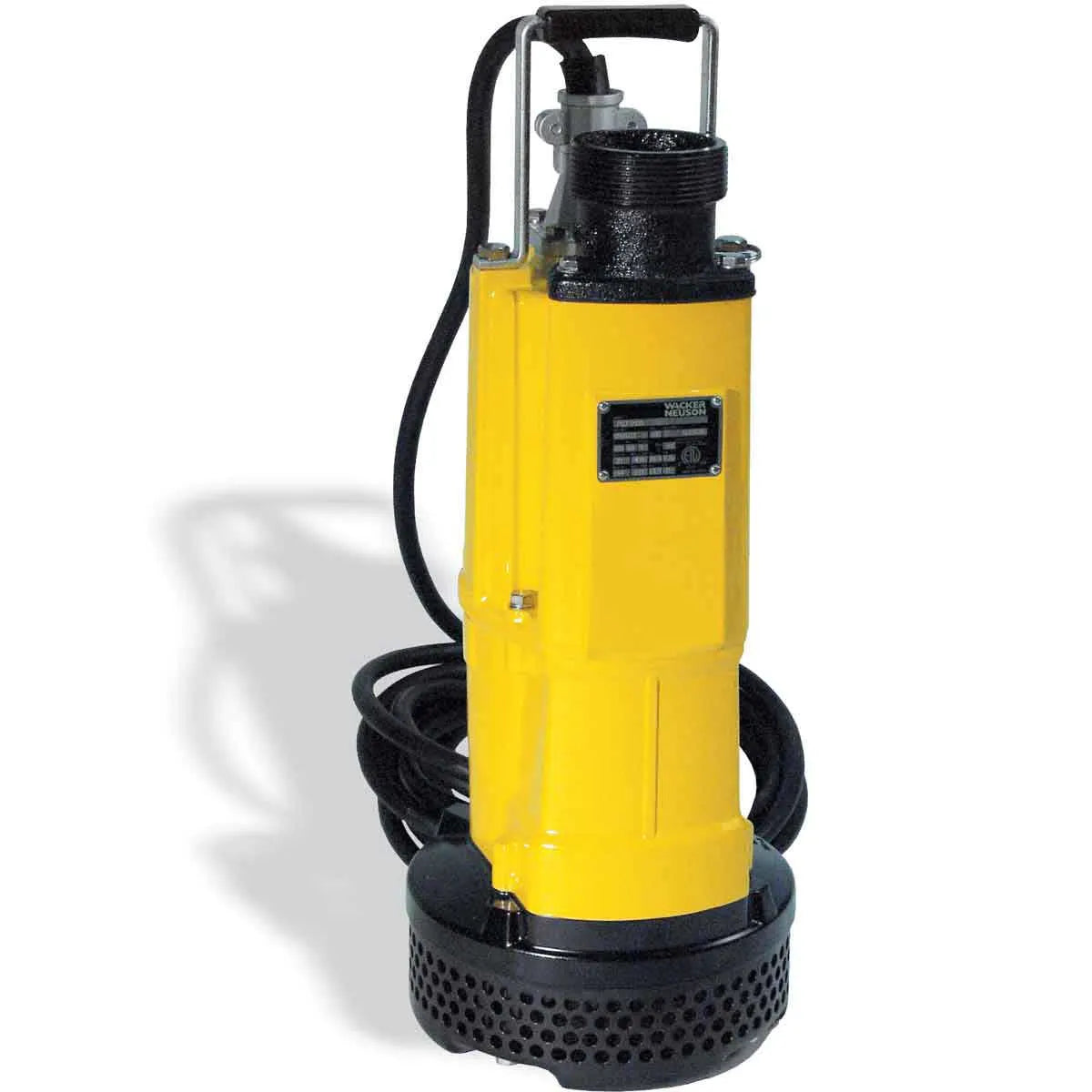

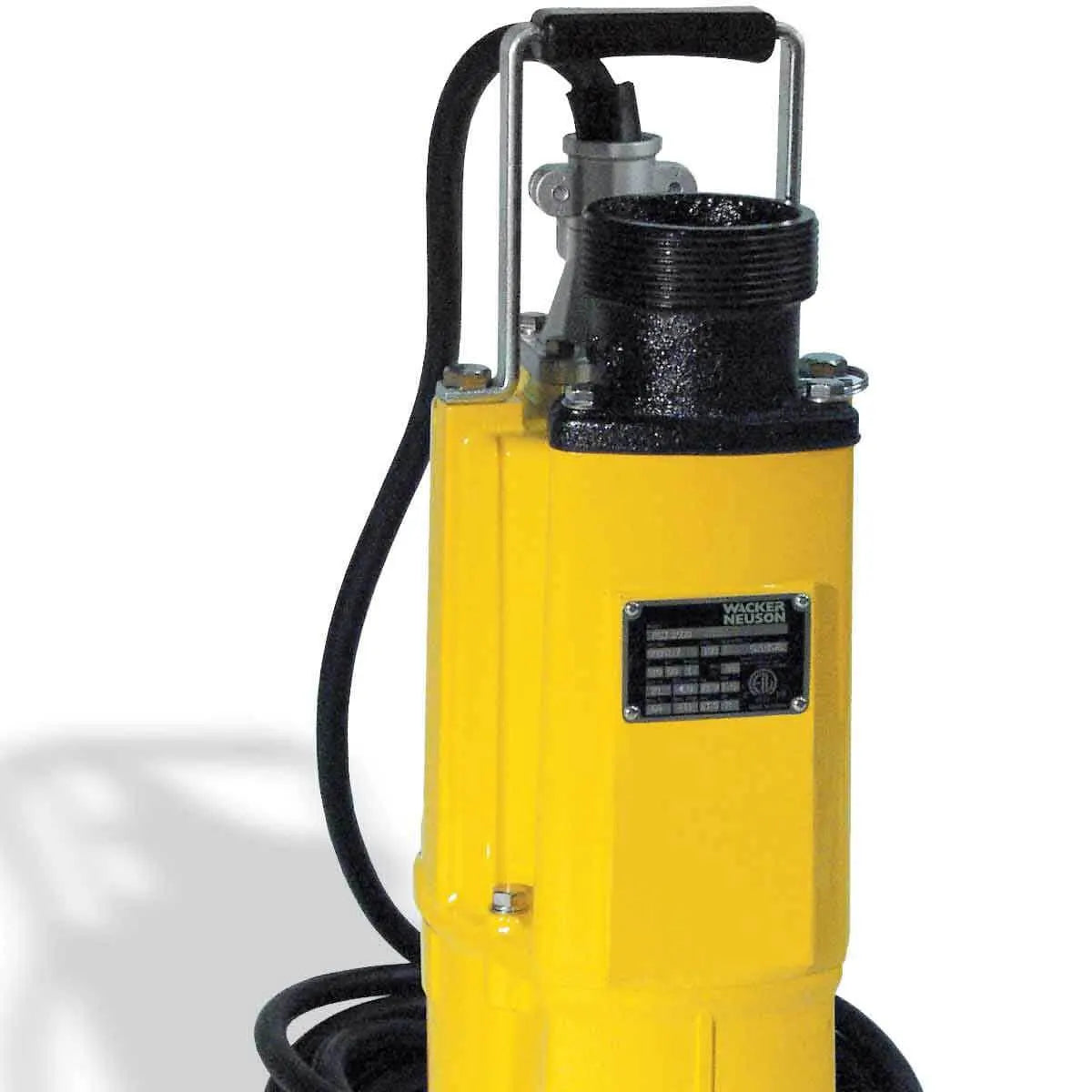

Wacker Neuson PS31500 3" Submersible Water Pump

Wacker Neuson PS3 1500 3" Submersible Water Pump

Lightweight, portable, single phase submersible pumps are designed to handle water and solids. Built for the demands of construction, mining, municipality and farm applications.

Features

• Lightweight, compact design for easy transport and positioning of pump
• Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs
• Heavy-duty power cord with strain relief resists pullout and abrasion reducing costly repairs
• Insulation on all conductors of the power cable are protected by a water block system to prevent wicking of water into the motor
• Silicon carbide faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrication, cooling and overall motor protection
• Preliminary v-ring or lip seal (depending on model) shields the mechanical seal from abrasive wear due to suspended debris in pumping fluid
• Semi-vortex impeller allows for optimum wear resistance

Technical Features

Description	Metric		Inch
Discharge diameter	80	mm	3	in
Length x width x height	240 x 240 x 570	mm	9.5 x 9.5 x 22.5	in
Operating weight	28,8	kg	63.5	lb
Max. head	21	m	69	ft
Max. discharge	420	l/min	111	US gpm
Max. pressure	2,07	bar	30	psi
Solid size capacity	8,5	mm	0.3	in
Motor type	Single phase/60 Hz
Voltage	110 or 220	V	110 or 220	V
Current (full load/start @ 110V)	23,0/136	A	23.0/136	A
Speed	3.440	1/min	3,440	rpm
Max. power output	1,5	kW	2	hp
Cable length	10	m	32	ft
Cable size	3,31	mm2	12	AWG
Impeller material	Ductile iron
Impeller type	Semi-vortex
