I have a large enough compressor but PSC-600 bogs down from time-to-time. What can I do to improve the operation?

Since you may have multiple pieces of equipment connected to the compressed airline, you may be short of air flow available from your compressor.

Does Alpha offer any flexible discs to complete profiling on a round over edge?

Alpha recommends a 5" VFlex Flexible Sanding Disc VDF50xx series to shape up the profile of round over edges or to clean up the internal oval rim of a vanity. Select from 35 grit, 50 grit or 80 grit to complete this task.

Which product does Alpha recommend for sanding and grinding?

We recommends using a 5" Vexcel Rigid Disc 25 grit VDR5025 for heavy grinding applications and a 35 grit VDR5035 for general shaping applications. We also recommend a 5" Spike Disc 35 grit VCS5035 for resin net removal from the back sides of stones. In both cases, you can enjoy fast material removal with much less noise and vibration as compared with sintered bond grinding wheels.

Can I use PSC-600 for grinding application?

Yes. use either as a wet stone cutter or wet stone grinder since it has a very unique center water feed system. To use as a grinder, replace the Inner Flange designed for cutting with the one designed for grinding which will send all the water to the grinding edge, instead of dividing it onto the two sides of the grinding cup wheel. Note-- Due to the spindle thread size, any grinding wheel with a pre-threaded 5/8"-11 arbor will not fit on PSC-600; so you need to use one with a 7/8" straight arbor for sanding and grinding.

What is different between wet grinders on the market and the PSC-600?

Most of the wet grinders have been built with alteration of a common pneumatic high-speed angle grinder designed for dry metal applications with an exterior water feed. Even though you may find one with center water feed system, water would spray towards the outside of the blade only and water wouldn't ever cool the other side of the blade. The PSC-600 is designed from scratch as an industrial wet cutting tool for the stone industries. With this said, the Alpha wet cutter is built with more than 30 years of experience producing wet polishers and the voices from stone fabricators.

1 7

Alpha Tools Pneumatic Stone Cutter

Name: Alpha Tools Pneumatic Stone Cutter
Brand: Alpha Tools
SKU: PSC-600
Price: 445.5 USD
Availability: InStock

$445⁵⁰ USD

Shipping calculated at checkout.

Brand: Alpha Tools | SKU: PSC-600 | MPN:

Shipping & Delivery

$13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
Shipping time is calculated by business days. Weekends do not count.
For Freight Items See Policy Here

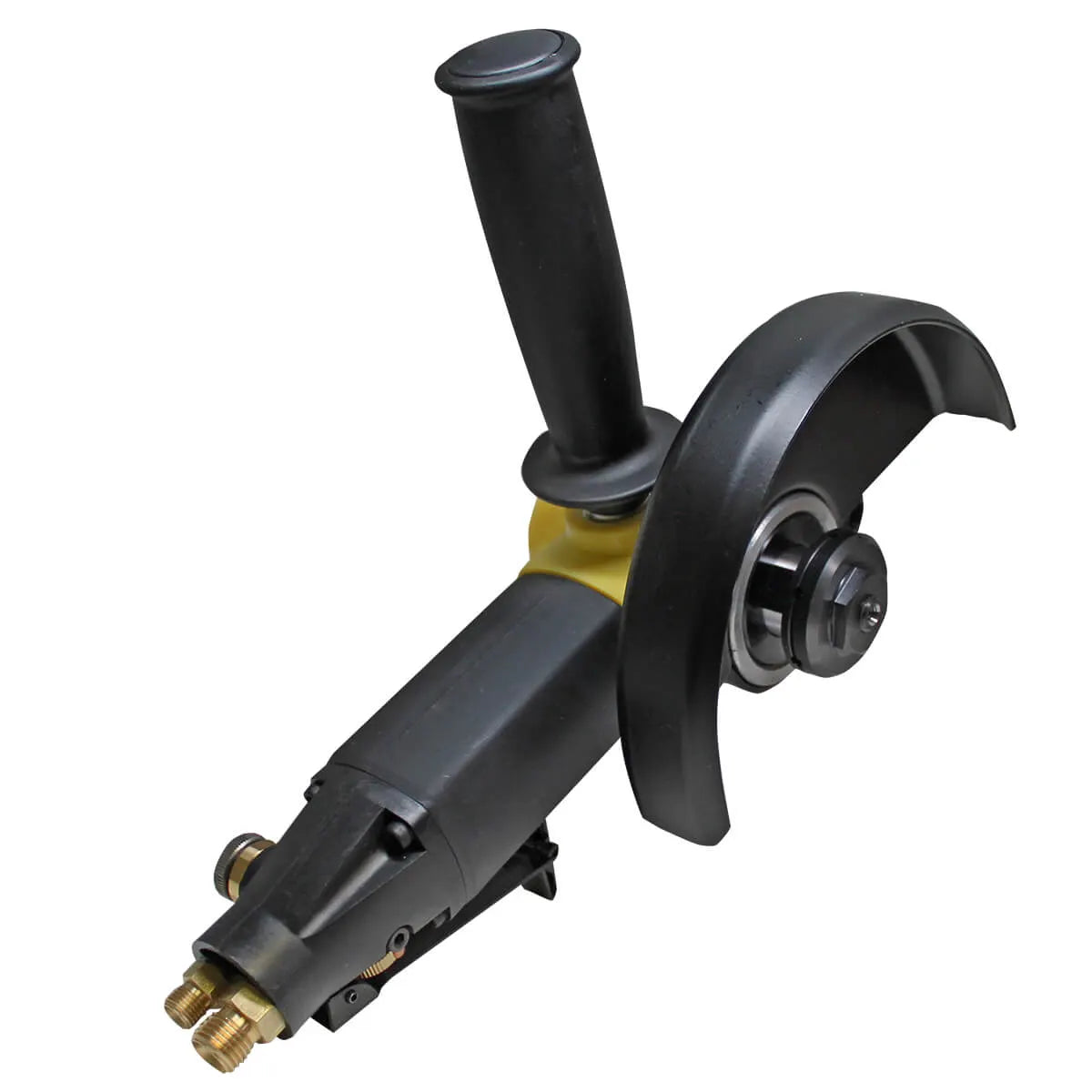

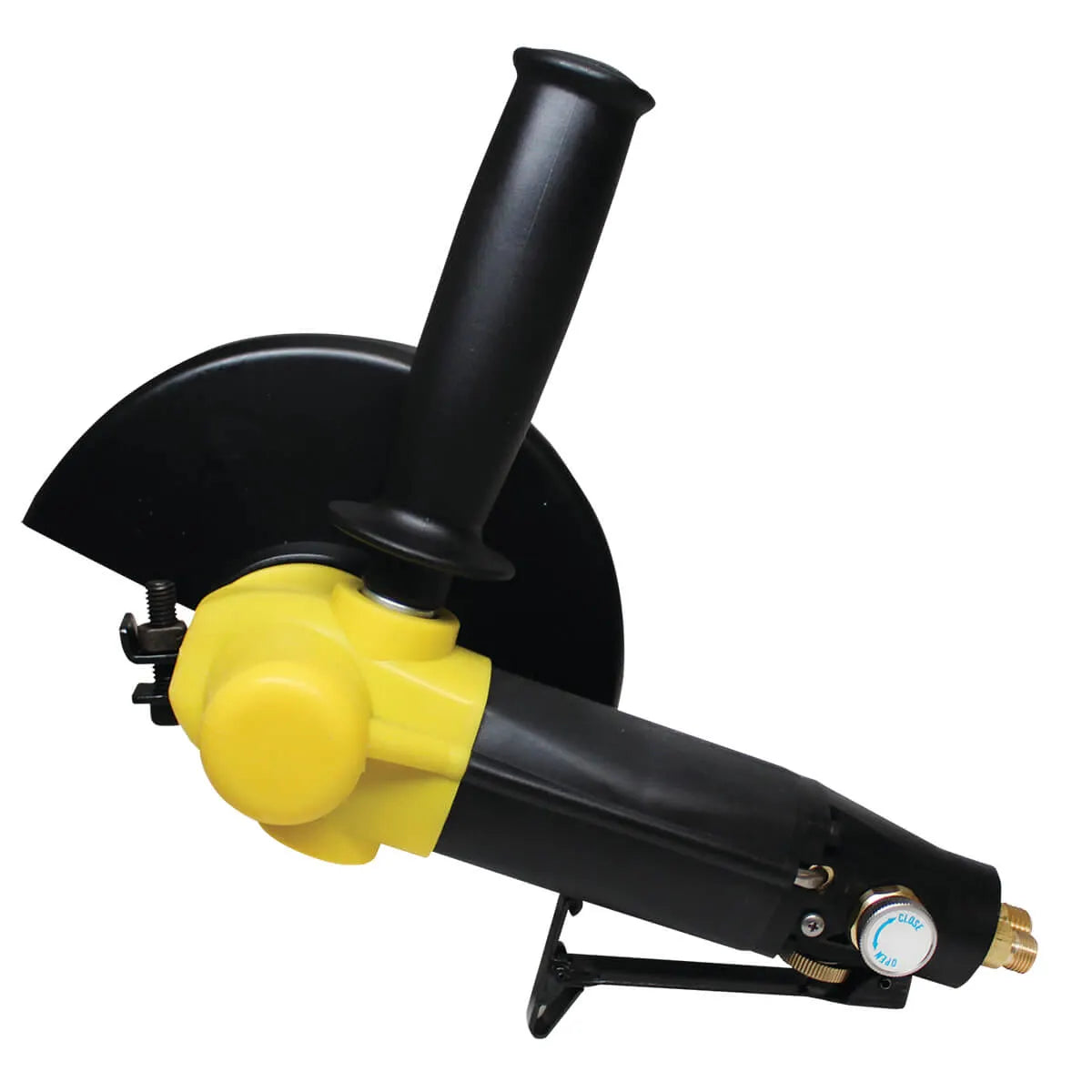

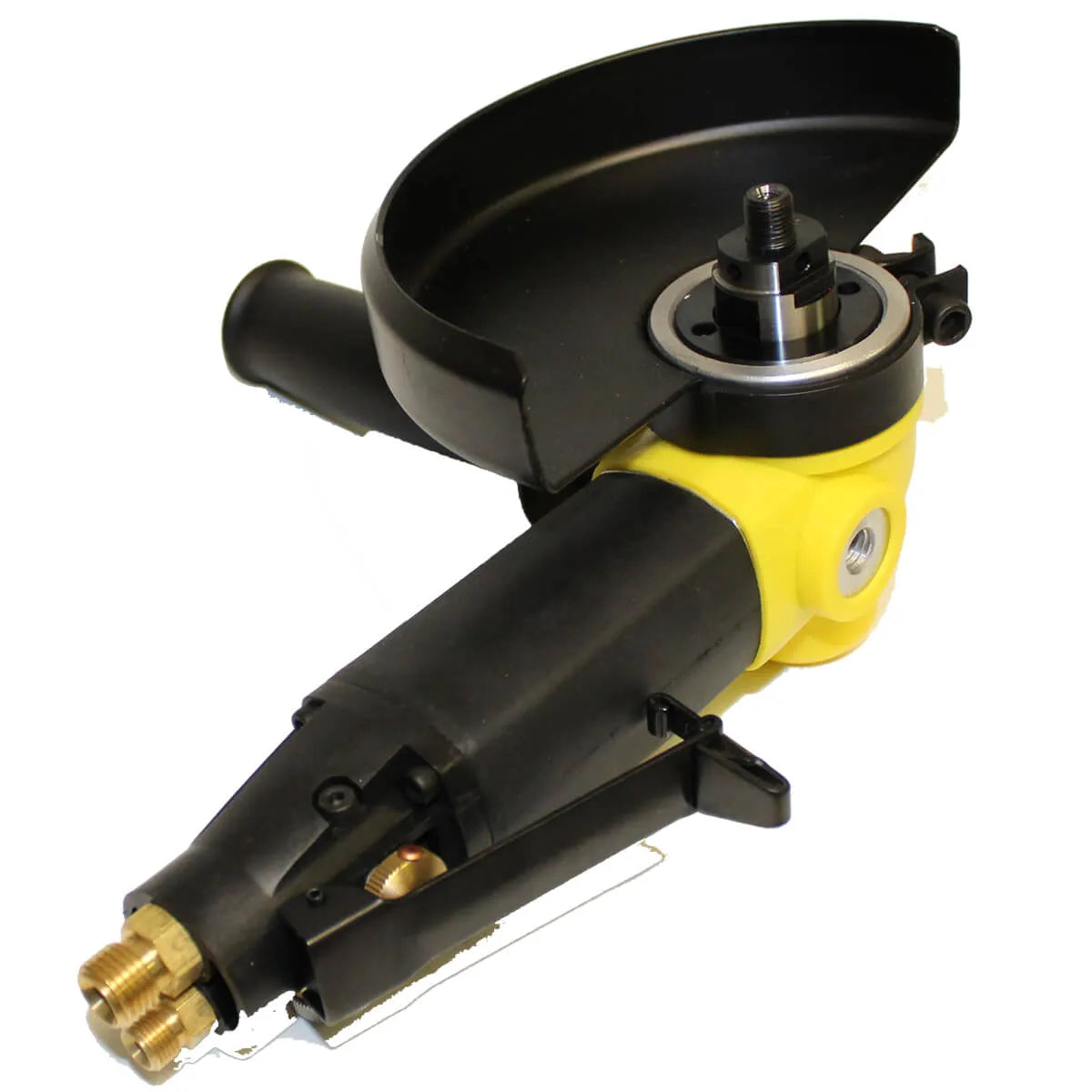

Alpha Tools PSC-600 Pneumatic Stone Cutter

Alpha's air stone cutter is ideal for the stone fabricator shop. It is pneumatically driven, making it safe and very durable in the wet stone fabricator environment. The water delivery system feeds both sides of the diamond blade. The cutter is small and light for maneuverability and features a rear exhaust for comfort.

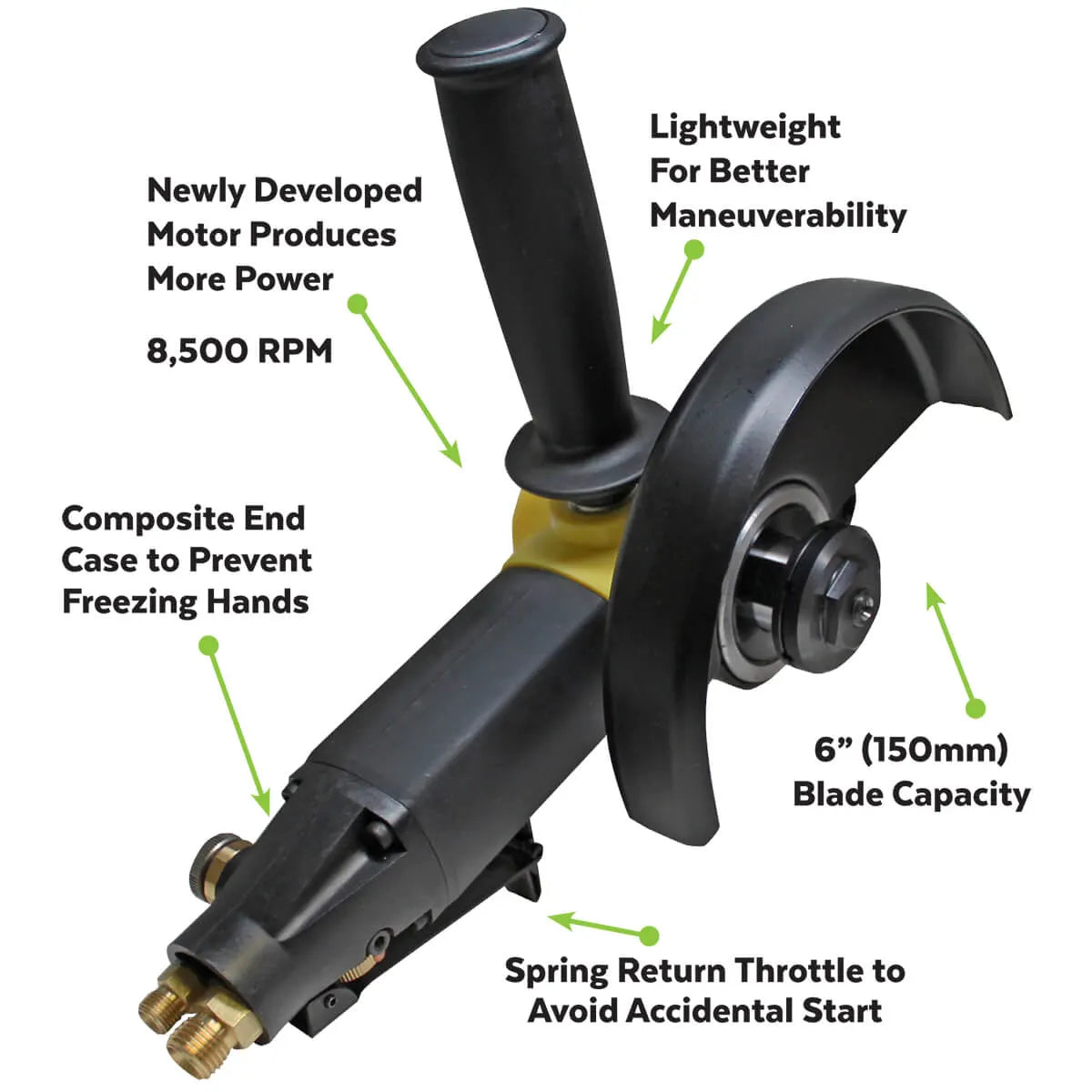

Features

No-Load 8,500 RPMs
Spring Return Throttle to Avoid Accidental Start
Composite End Case Prevents Freezing Hands
Silicon Gear Head Cover Provides Cushion and Keeps Hands Warm
15 ft. all–weather hoses and a convenient water quick coupler with a shut off valve
Lightweight for improved maneuverability

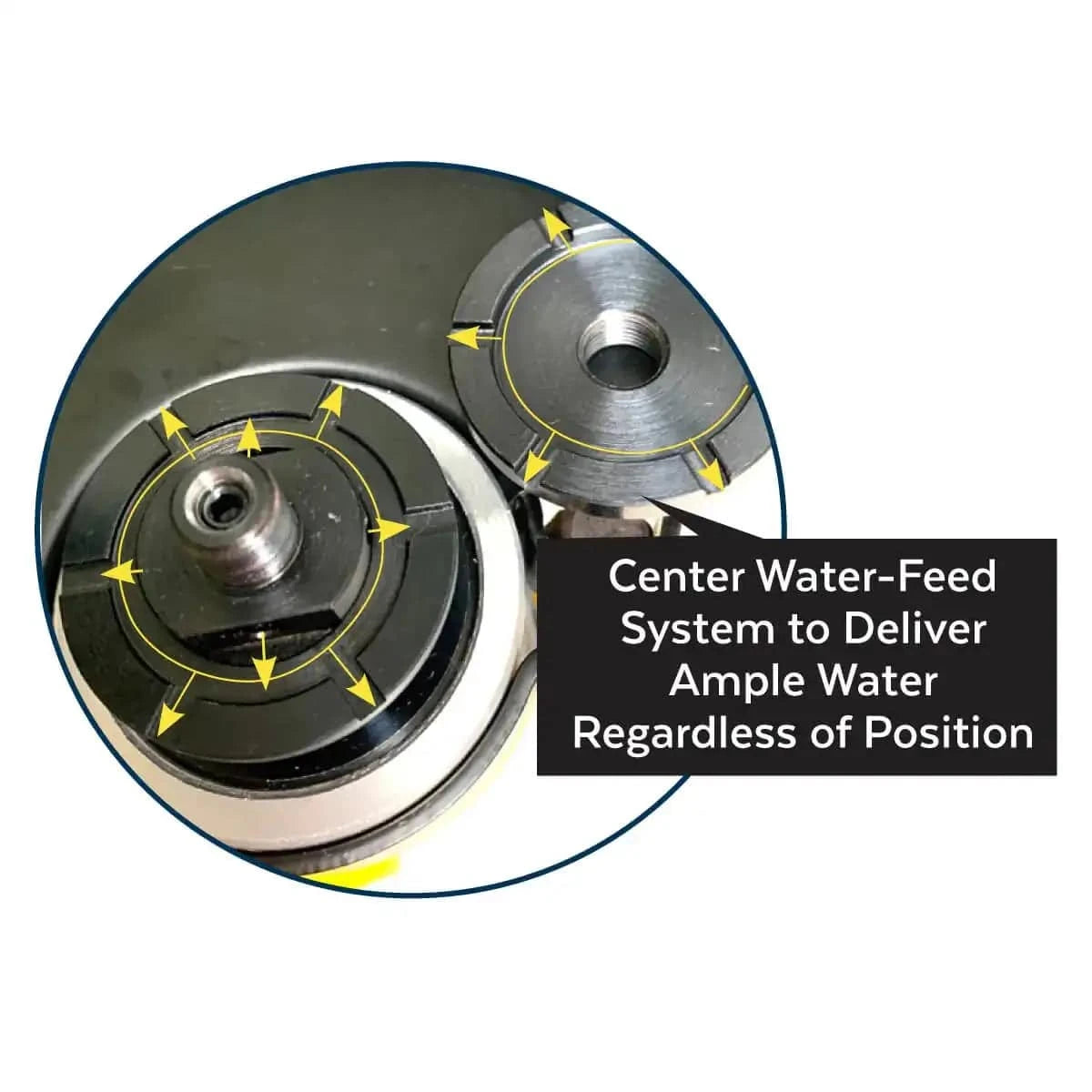

Central Water-Feed System Delivers Ample Water Regardless of Position

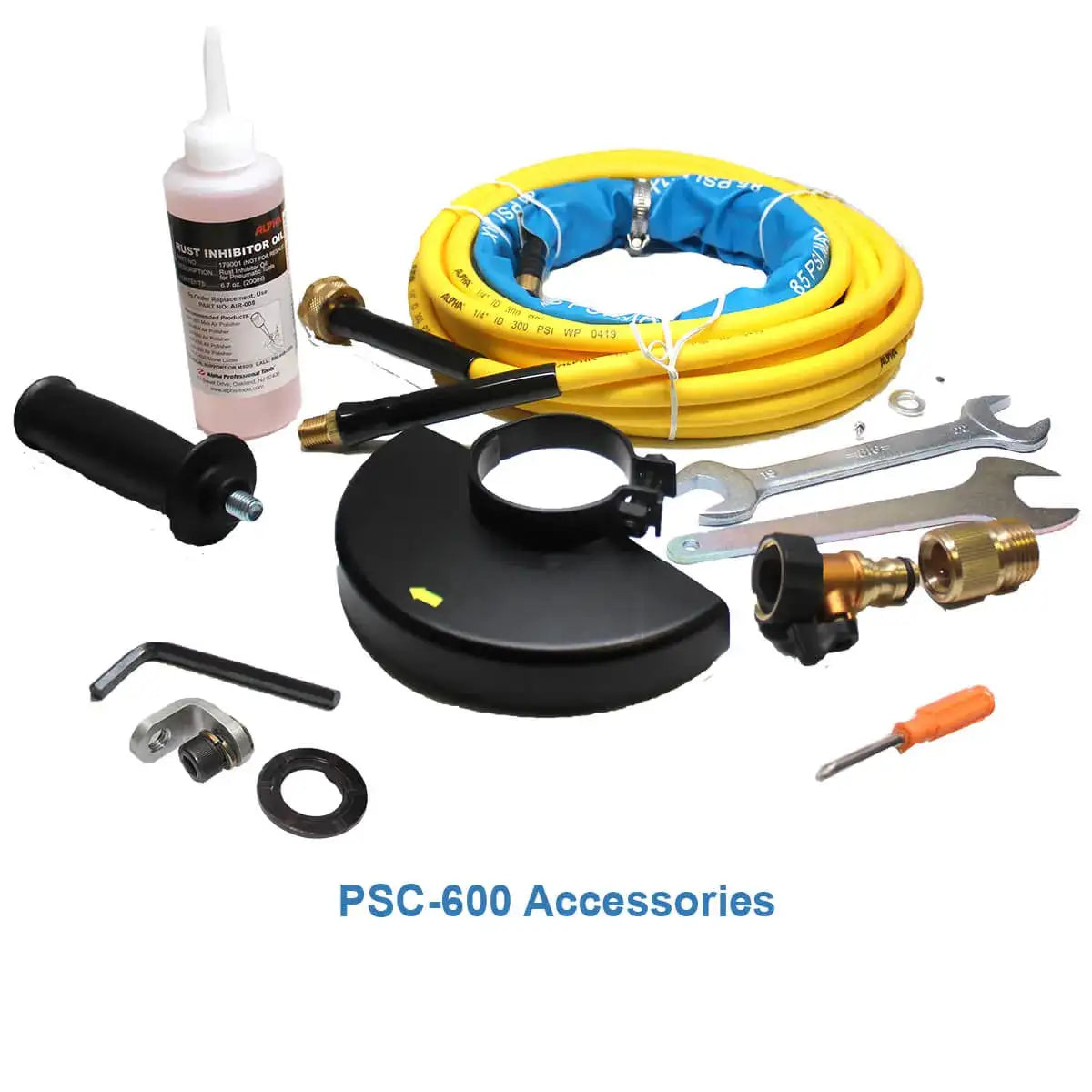

What's Included?

PSC-600 Alpha Tools Pneumatic Stone Cutter
Double End Wrench (19mm / 22mm)
Water Quick Coupler w/ Shut Off Valve
Side Handle (reversible)
6" Safety Guard
Air & water hose(15ft / 4.5m)
Operator's Manual

PSC-600 Alpha Tools Pneumatic Stone Cutter Specifications
Air Pressure	85 PSI (6 Bar)
Air Consumption	15 CFM (425L/min)
Weight	2.9 lbs (1.3 kg)
Water Inlet	1/8" BSPP
No Load Speed (Variable)	8,500 RPM
Air Inlet	1/4" BSPP
Max Disc Size	6" (150mm)
Arbor	7/8" (22mm)
Length	7-1/2" (190.5mm)
