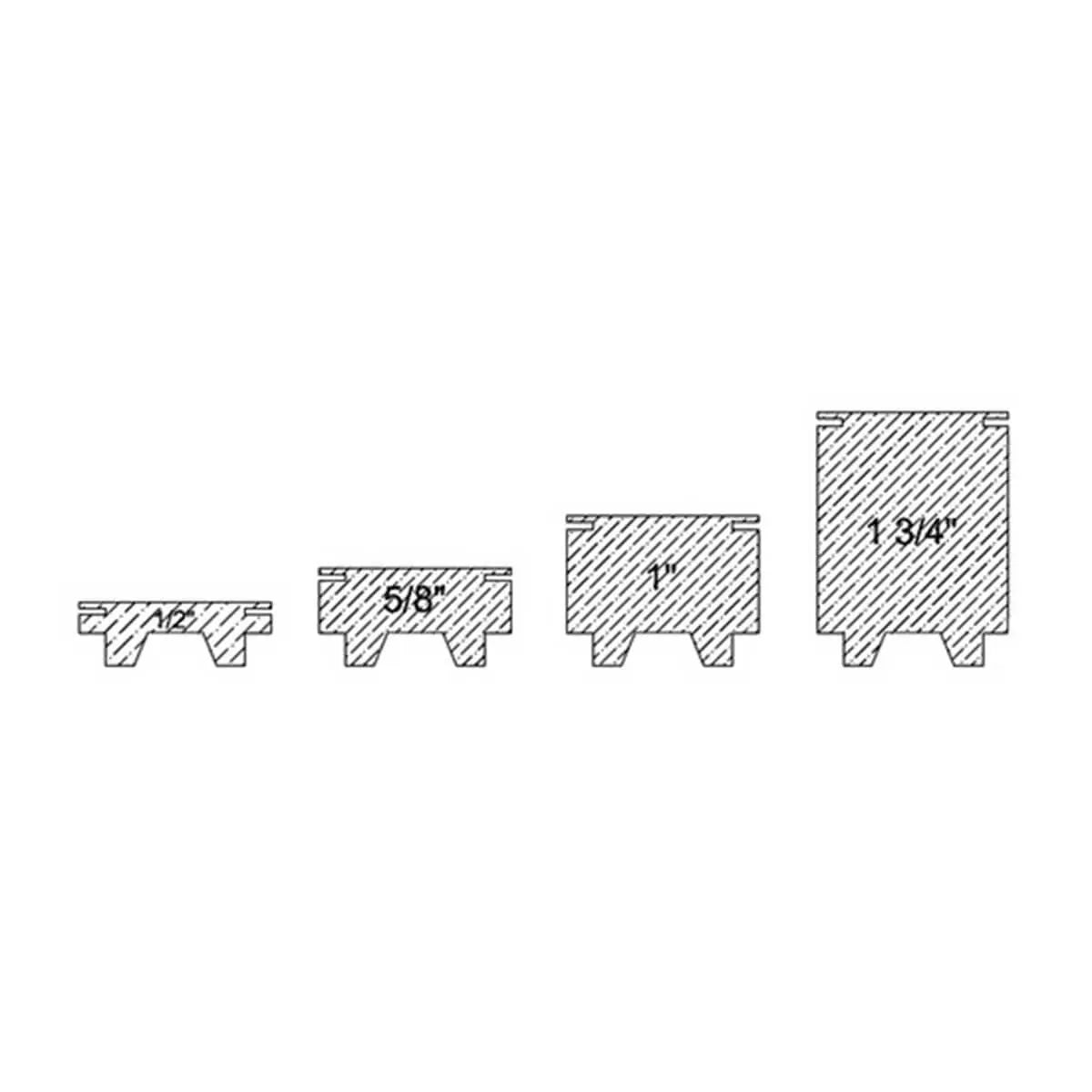

Spacers

• Check the final thickness of the flooring material used around the drain

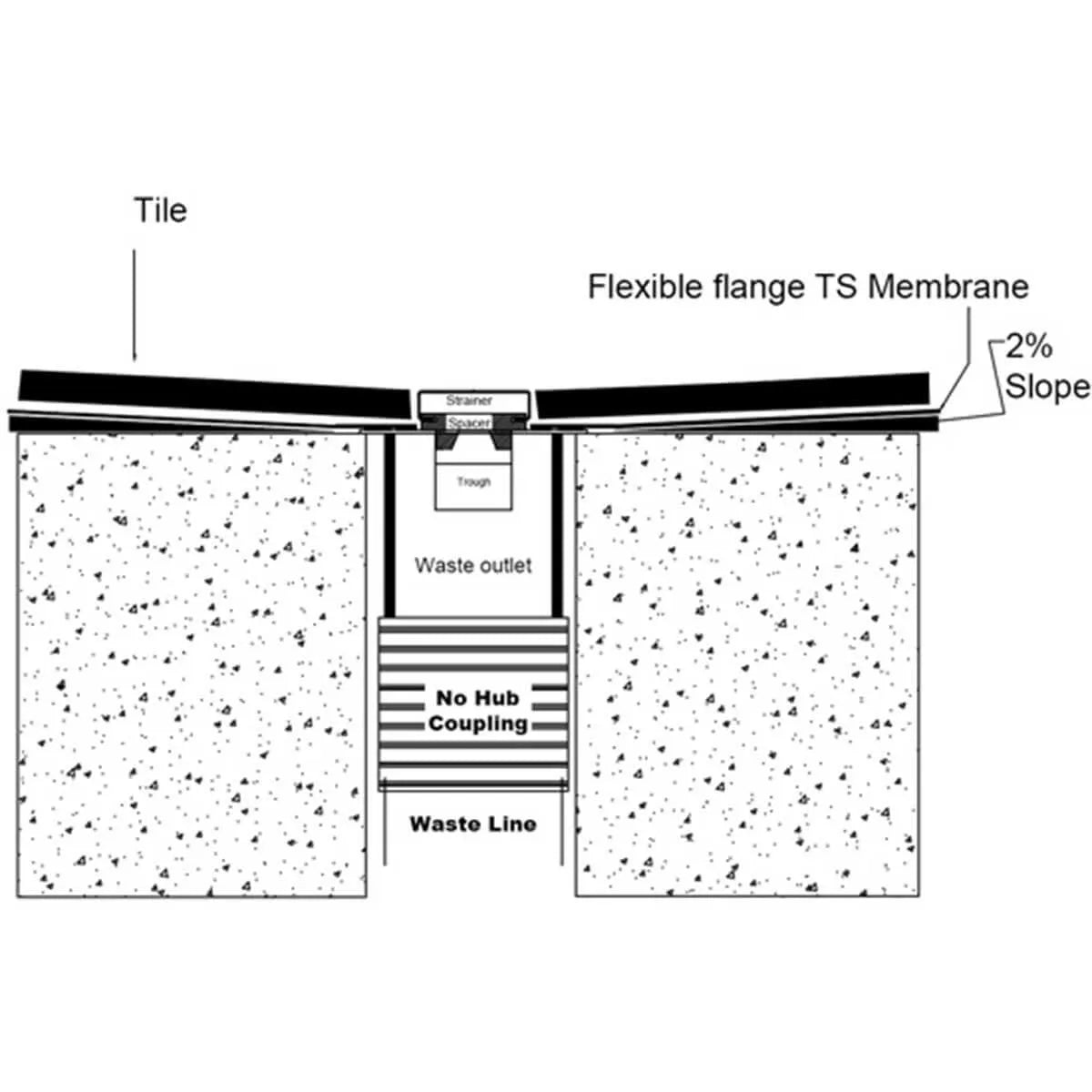

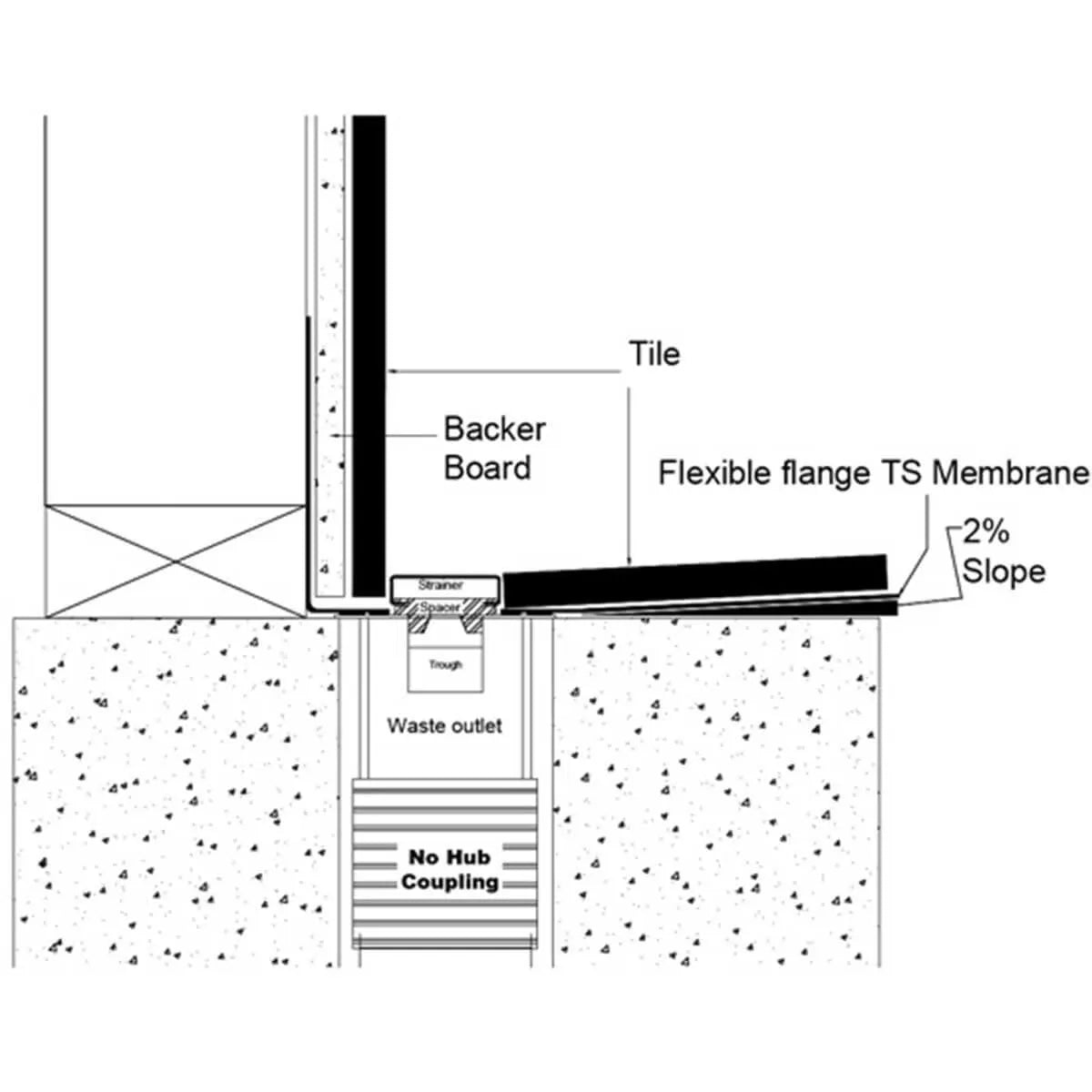

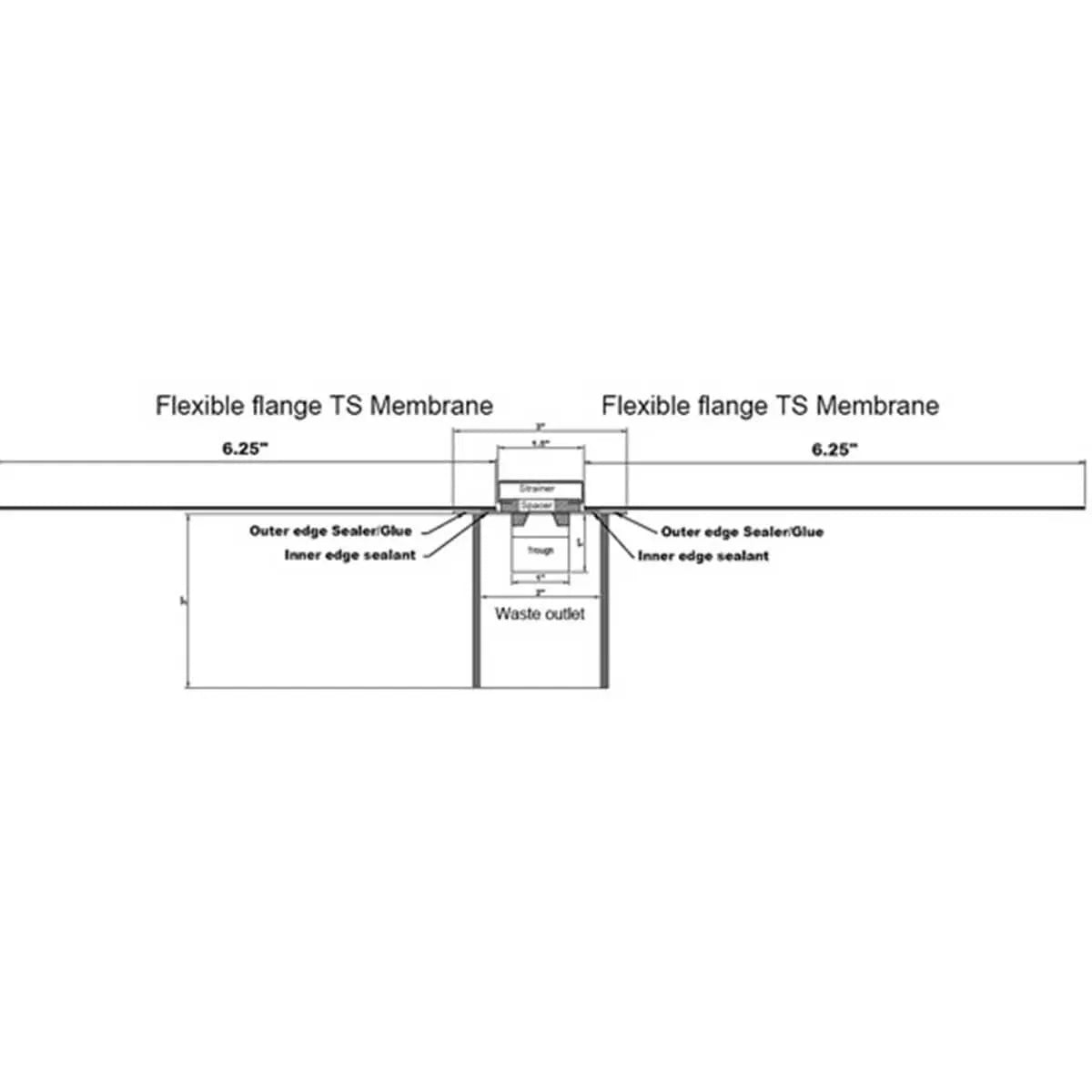

• The spacer size is the total thickness of materials from the top membrane to the top of the tile/slab on the shower floor
• The spacer is included in the price of the drain assembly. "1/2" spacer included if not specified)
• Number of spacers needed
• PLD26, PLD30, PLD36 drain: 3 spacers
• PLD40, PLD44, PLD46, PLD48 drain: 4 spacers
• PLD52, PLD58 drain: 5 spacers
• PLD68: 6 spacers

No Hub Coupling

• Made from synthetic rubber and stainless steel, and is used for connecting waste outlets to 1-1/2" and 2" piping applications

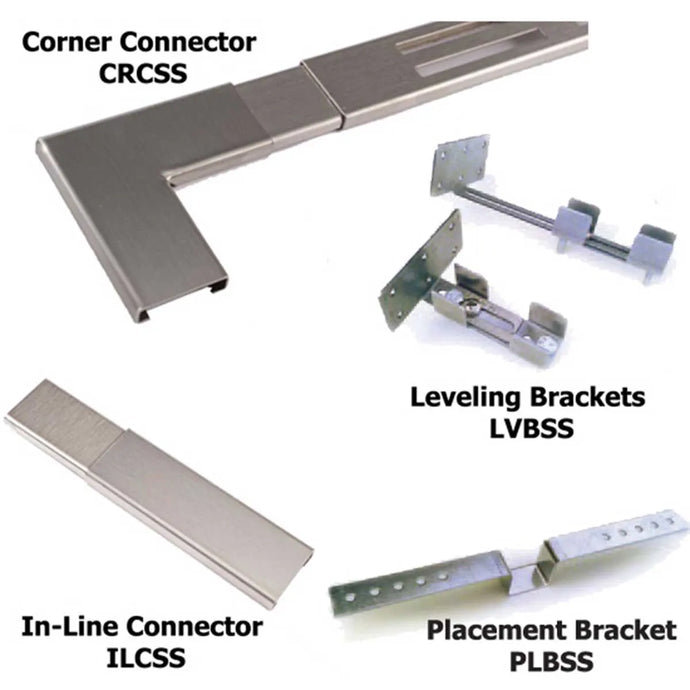

In-Line Connector ILCSS

• Connects multiple strainers in a line"; 3" long

Corner Connector CRCSS

• Connects strainer pieces at 90-degree angles

Leveling Brackets LVBSS & LVBSL

• Works well when the drain is being used on or in a concrete sub-floor
• Metal saddle with two leveling screws, one set screw, and an L-shaped connector, one bracket is placed on either end of the drain to keep the drain parallel and set the correct distance from drain-to-barrier
• To be used for installation that is above the sub-floor
• Long distance from drain-to-barrier may be set from 3" to 7"

• A short distance from drain-to-barrier may be set "p "3"
• Made of 16 gauge cold rolled steel

Placement Brackets PLBSS

• Works well when the drain is being set in a plywood subfloor
• It can be set on any sub floor
• A metal saddle for the drain body, set directly into a recess in the sub-floor, is used to keep the drain parallel and set the correct distance from the drain-to-barrier
• To be used for installation that is level with the sub-floor
• Made of 20 gauge galvanized steel
