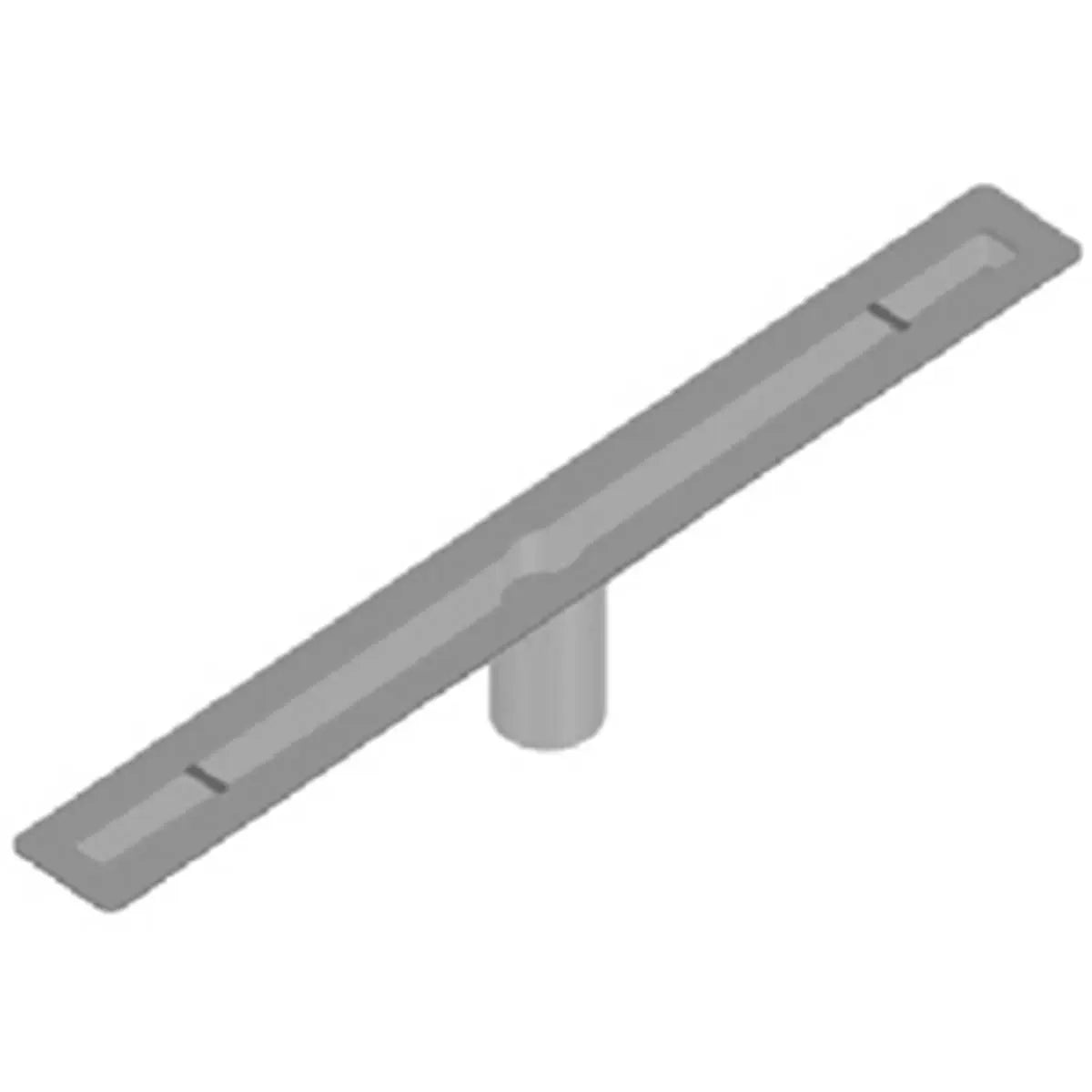

Quick Drain ProLine Drain Body

Quick Drain USA ProLine Drain Body

Features

• A liquid membrane is required for installation. The sheet membrane is no longer compatible

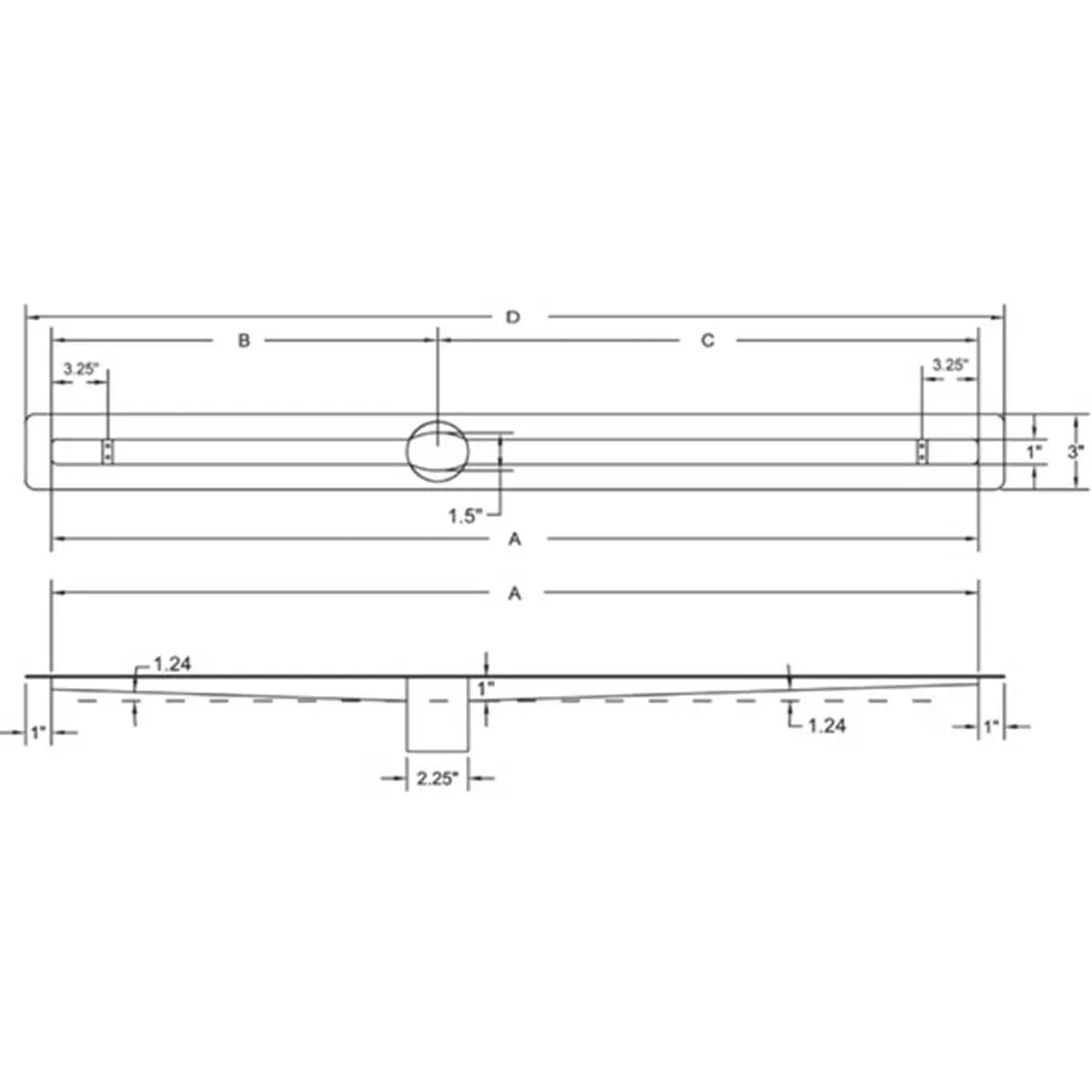

• PLD26 - 26" trough. Total length with flanges is 28". It fits rough opening from 28.5" to 32". 32" drain cover required A=26", B=13", C=13", D=28" - Waste outlet centered

• PLD275 - 27.5" trough. Total length with flanges is 29.5". 32" drain cover required A=27.5", B=13.75", C=13.75", D=29.5" - Waste outlet centered

• PLD30 - 30" trough. Total length with flanges is 32". It fits rough opening from 32.5" to 36". 40" drain cover required. A=30", B=12", C=18", D=32" - Waste outlet offset

• PLD33 - 33" trough. Total length with flanges is 35". 40" drain cover required. A=33", B=16.5", C=16.5", D=35" - Waste outlet offset

• PLD36 - 36" trough. Total length with flanges is 38". It fits rough opening from 38.5" to 42". 40" drain cover required. A=36", B=15", C=21", D=38" - Waste outlet offset

• PLD40 - 40" trough. Total length with flanges is 42". It fits rough opening from 42.5" to 46". 48" drain cover required. A=40", B=17", C=23", D=42" - Waste outlet offset

• PLD44 - 44" trough. Total length with flanges is 46". It fits rough opening from 46.5" to 50". 48" drain cover required. A=44", B=19", C=25", D=46" - Waste outlet offset

• PLD46 - 46" trough. Total length with flanges is 48". It fits rough opening from 48.5" to 52". 48" drain cover required. A=46", B=23", C=23", D=48" - Waste outlet centered

• PLD48 - 48" trough. Total length with flanges is 50". It fits rough opening from 50.5" to 54". 56" drain cover required. A=48", B=21", C=27", D=50" - Waste outlet offset

• PLD52 - 52" trough. Total length with flanges is 54". It fits rough opening from 54.5" to 58". 56" drain cover required. A=52", B=23", C=29", D=54" - Waste outlet offset

• PLD57 - 57" trough. Total length with flanges is 59". It fits a rough opening from 59.5" to 63". 64" drain cover required. A=57", B=25.5", C=31.5", D=59" Waste outlet offset

• PLD63 - 63" trough. Total length with flanges is 65". It fits rough opening from 65.5" to 69". 72" drain cover required. A=63", B=31.5", C=31.5", D=65" - Waste outlet centered

• PLD68 - 68" trough. Total length with flanges is 70". It fits rough opening from 70.5" to 74". 72" drain cover required. A=68", B=34", C=34", D=70" - Waste outlet centered


Quickconstruction'salone in the construction's showers. The leading edge is superior construction, design, and functionality. The low-profile linear shower drain is clean and unintrusive, and the outdated round center shower drain is no longer needed! A stainless steel channel slot shower drain can be used with any tile size and installed as a channel drain under the shower door or against the shower barrier as a linear trench drain. Lowest-profile bathroom and shower linear drain in the world. It is easy to clean and has a very high flow rate. Ease of installation keeps this shower drain in demand by home builders and contractors and by discerning homeowners. Advantages of low profile linear channel bathroom shower drain

Quick Drain USA TM stands alone in the construction showers. Here are some essential advantages and differences from conventional shower drains.

• The most visible advantage of the linear channel shower drain system is the clean and un-intrusive look.
• Any size tiles can be used in the shower pan installation around the slot drain
• The outdated look of a round center shower drain is gone for good
• Installation of poured shower pans has changed thanks to our new membrane and sealant system
• Both side and bottom drain outlet models are available. Very high drain flow capacity. High-quality Stainless Steel drain
• The low profile drain is made out of 316 Marine Grade Stainless Steel
• Very easy to clean. Everything is removable (including the shower linear drain cover and strainer), and even the waste pipe is accessible for cleaning
• Perfect shower drain, deck drain, pool drain
• The length of the drain is unlimited as the linear drain segments can be coupled
• This is ideal for linear swimming pool drains, public shower trench drains, and trough drain applications
• It is a very appealing and attractive design, and the "e slo" drain cover is only "1-1/2" wide
• The Quick Drain linear slot drain is both low profile and subtle

Includes

• Adjustable height spacers (4, 6, or 8, depending on length)
• (2) Trough Extensions
• (1) Nh2-2 No hub coupling
• (2) cover removal keys
• (1) polyester-faced butyl tape
