Quick Drain WallDrain

$1,22905 USD
Shipping calculated at checkout.
Brand: Quick Drain | SKU: 9936-WALLD48 | MPN:
Option

Shipping & Delivery

  • $13.95 Flat Rate shipping for orders under $500 (Other options at checkout)
  • Same-day shipping cut-off time for ground orders for CD stock items is 3:00 PM ET
  • Same-day shipping cut-off time for expedited orders for CD stock items is 12:00 PM ET
  • Shipping time is calculated by business days. Weekends do not count.
  • For Freight Items See Policy Here

Quick Drain USA WallDrain

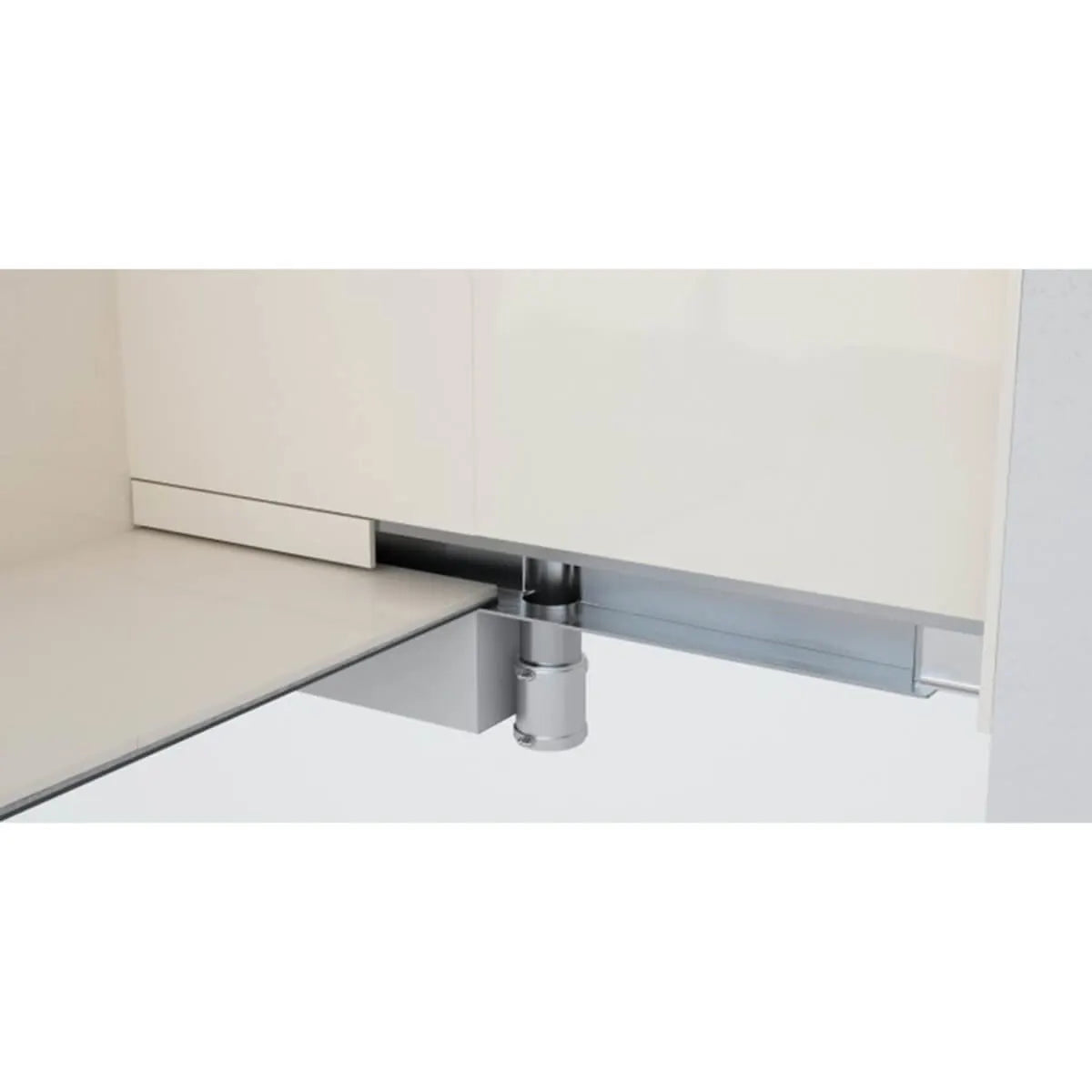

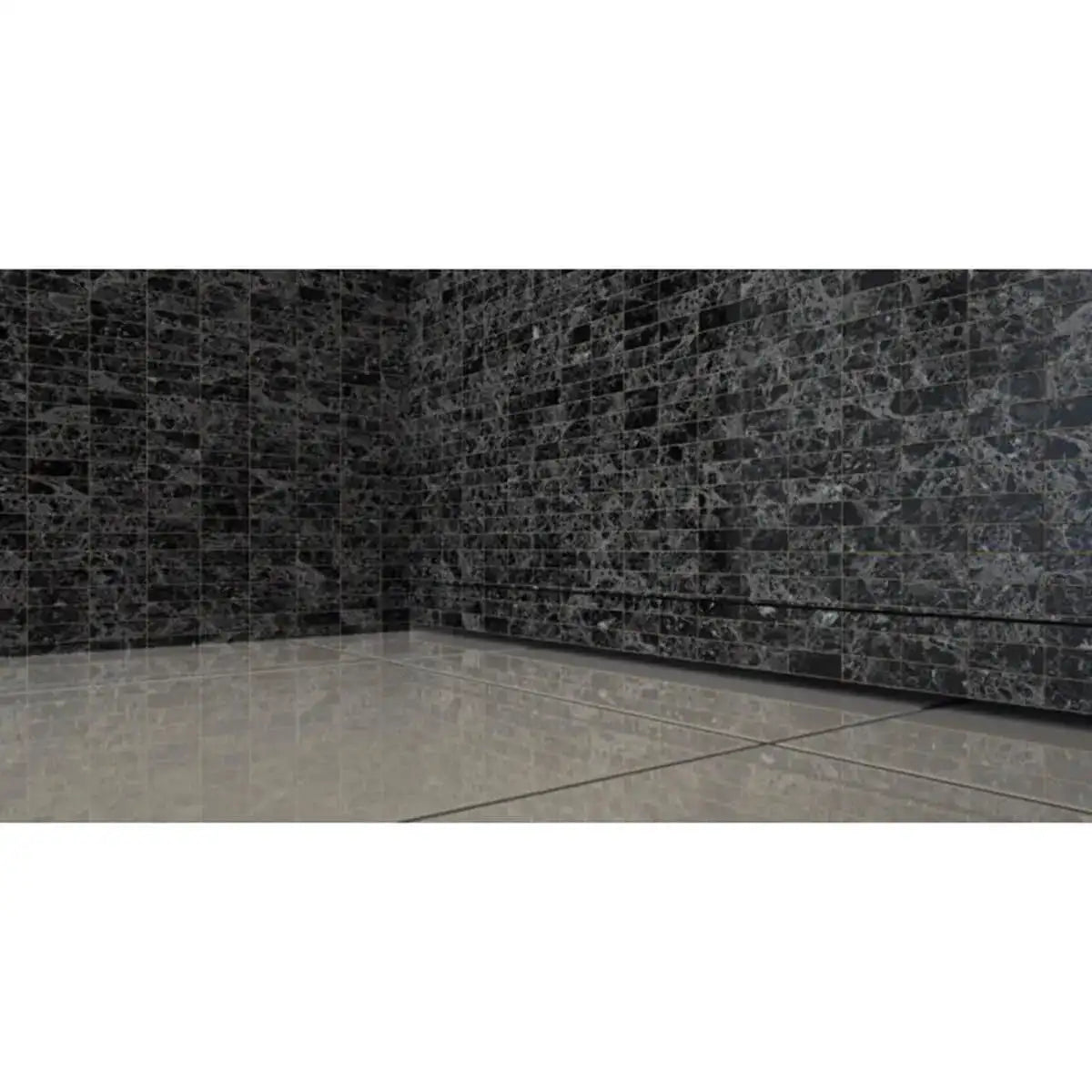

Quick Drain's latest shower drain innovation is the WallDrain, a sloped linear drain system installed into the shower barrier with a subtle channel for a perfectly seamless design. These linear shower systems are transitional, offering an aesthetic flow with the design of its environment.


Features

  • Patented Sure Flow System's internally sloped drain configuration ensures no standing water, preventing build-up and bacteria growth
  • Adjustable length drain body with the use of drain extensions (24" for each side, 48" total) to accommodate shower sizes from 26" - 72" with the use of one drain and 56" - 96" with two drains linked together
  • Can be installed with most roll-on liquid waterproofing membranes or sub-floor drain systems (copper or PVC shower pans)
  • It can be installed with any thickness of the tile and up to 3/4″ floor tile
  • Available in 3 standard drain lengths with either a vertical waste outlet or a side waste outlet
  • Vertical-to-vertical surface coverage
  • Extensions and covers ensure a perfect install every time
  • Extensions are trimmed at the job site after drain body installation

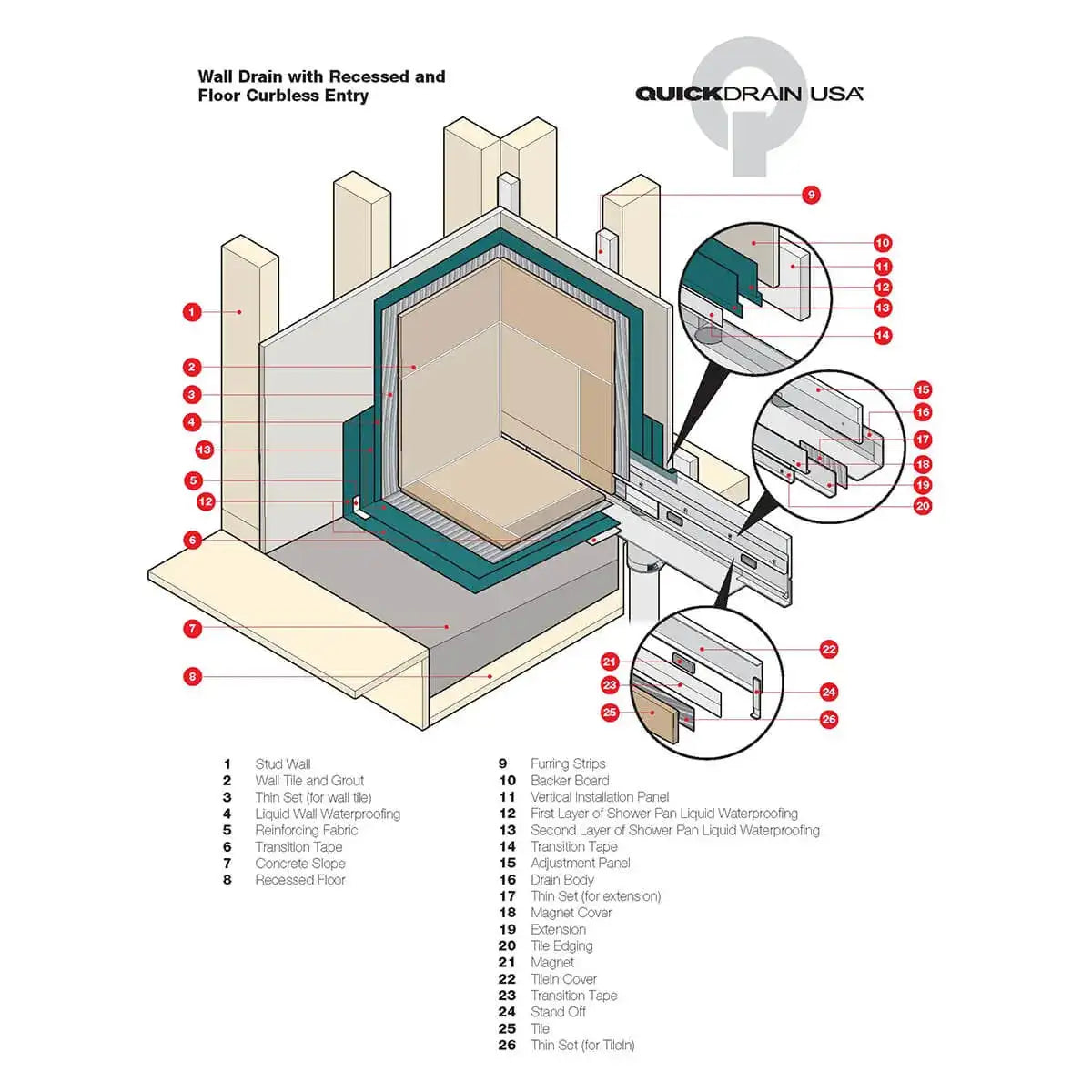

What's Included?

  • Vertical Installation Panel
  • Adjustment Panel (Adjust Panel Base, Magnet Cover, and Tile Edging)
  • Tile-in Cover
  • Drain Extensions (2)
  • Drain Body
  • Furring Strips (8)
  • Transition Tape
  • Reinforcement Tape
  • Inside Corners (2)
  • Outside Corners (2)
  • No-Hub Coupling
  • Cover Removal Key
  • Hardware (magnets, standoffs and screws)
  • Installation Guide

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

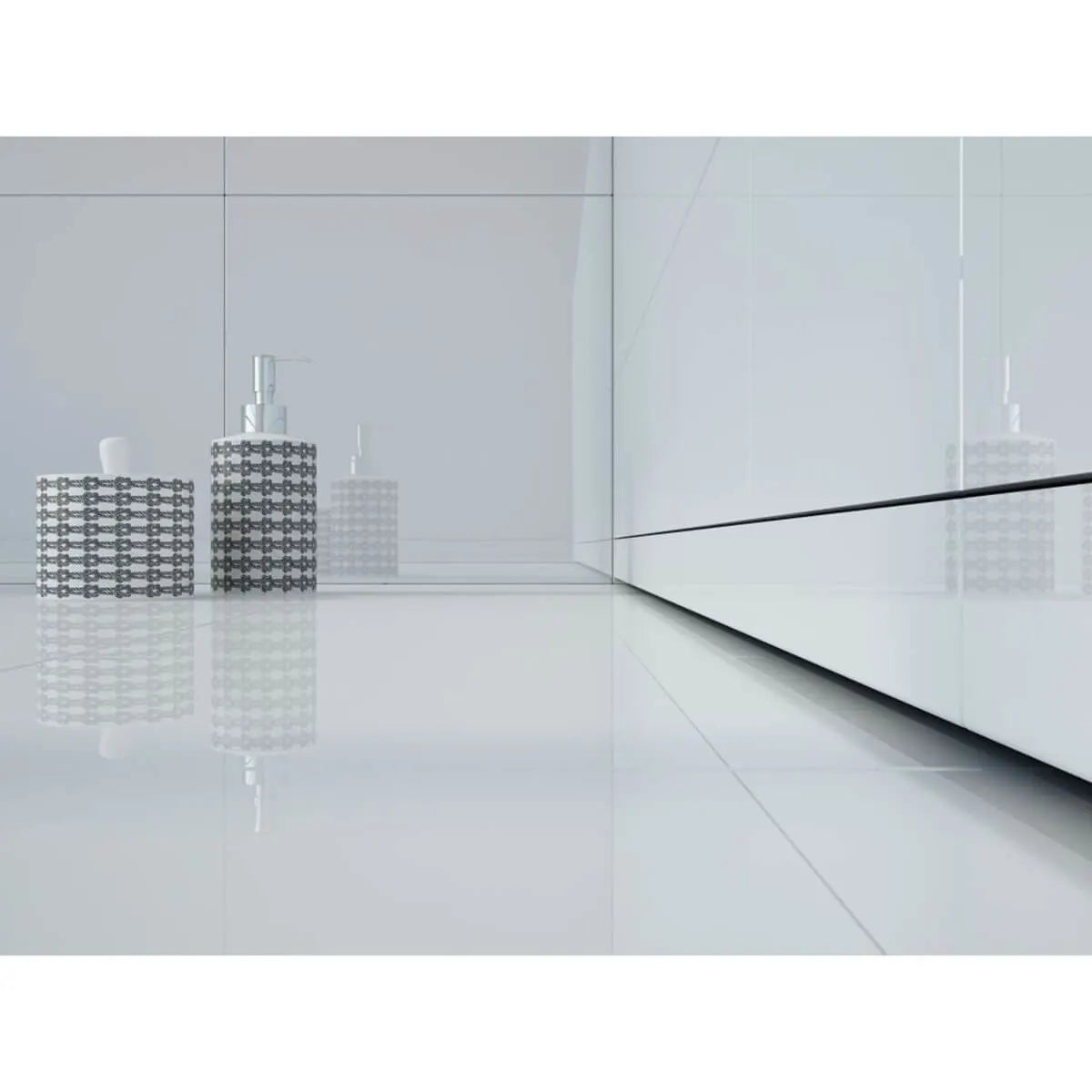

WallDrain Linear Shower Drains
Quick Drain

Quick Drain WallDrain

From $1,22905 USD
Quick Drain USA WallDrain Quick Drain's latest shower drain innovation is the WallDrain, a sloped linear drain system installed into the shower barrier with a...

Option

  • WALLD48 - 48"
  • WALLD48-SWO - 48" Side Water Outlet
  • WALLD72 - 72"
  • WALLD72-SWO - 72" Side Water Outlet
  • WALLD96 - 96"
  • WALLD96-SWO - 96" Side Water Outlet
