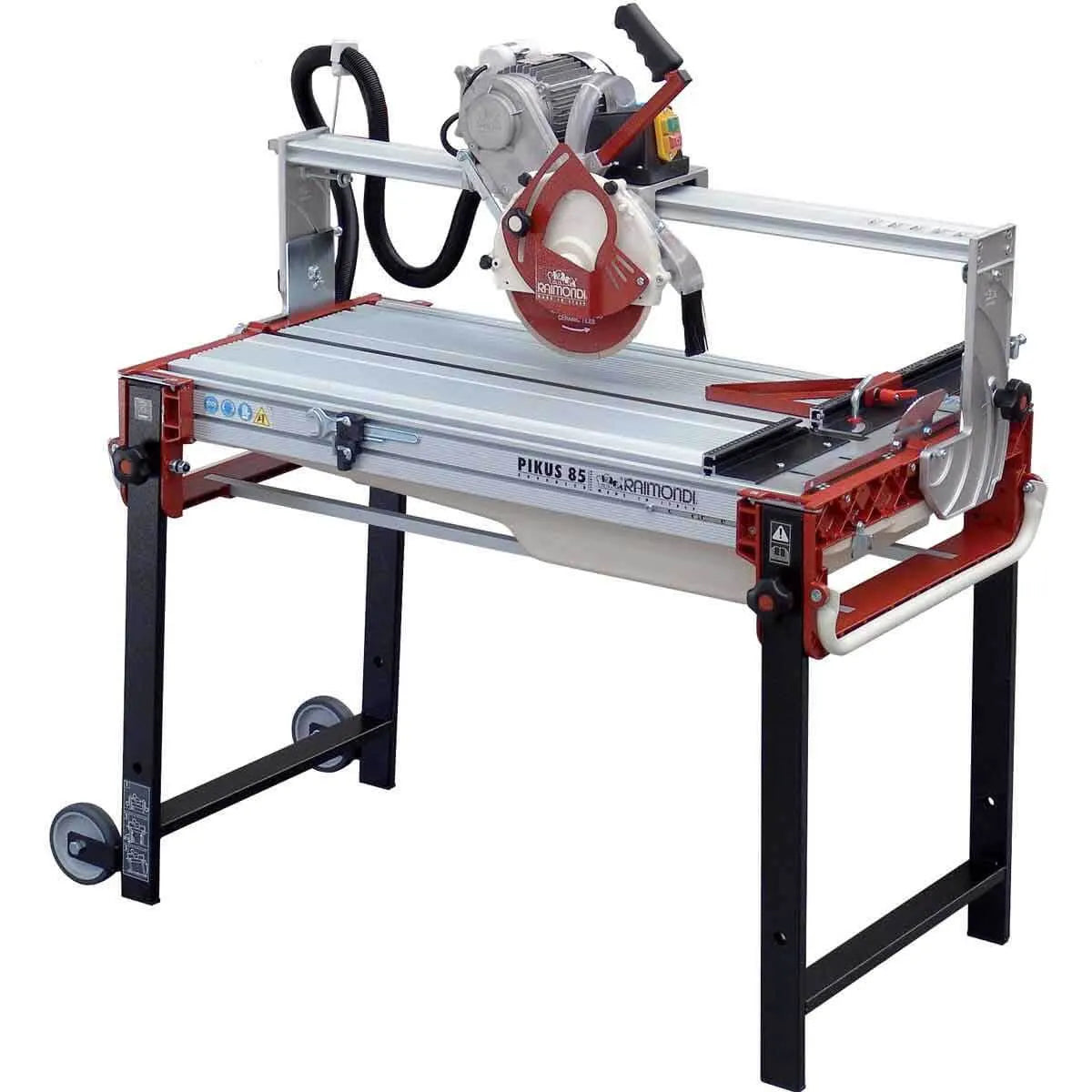

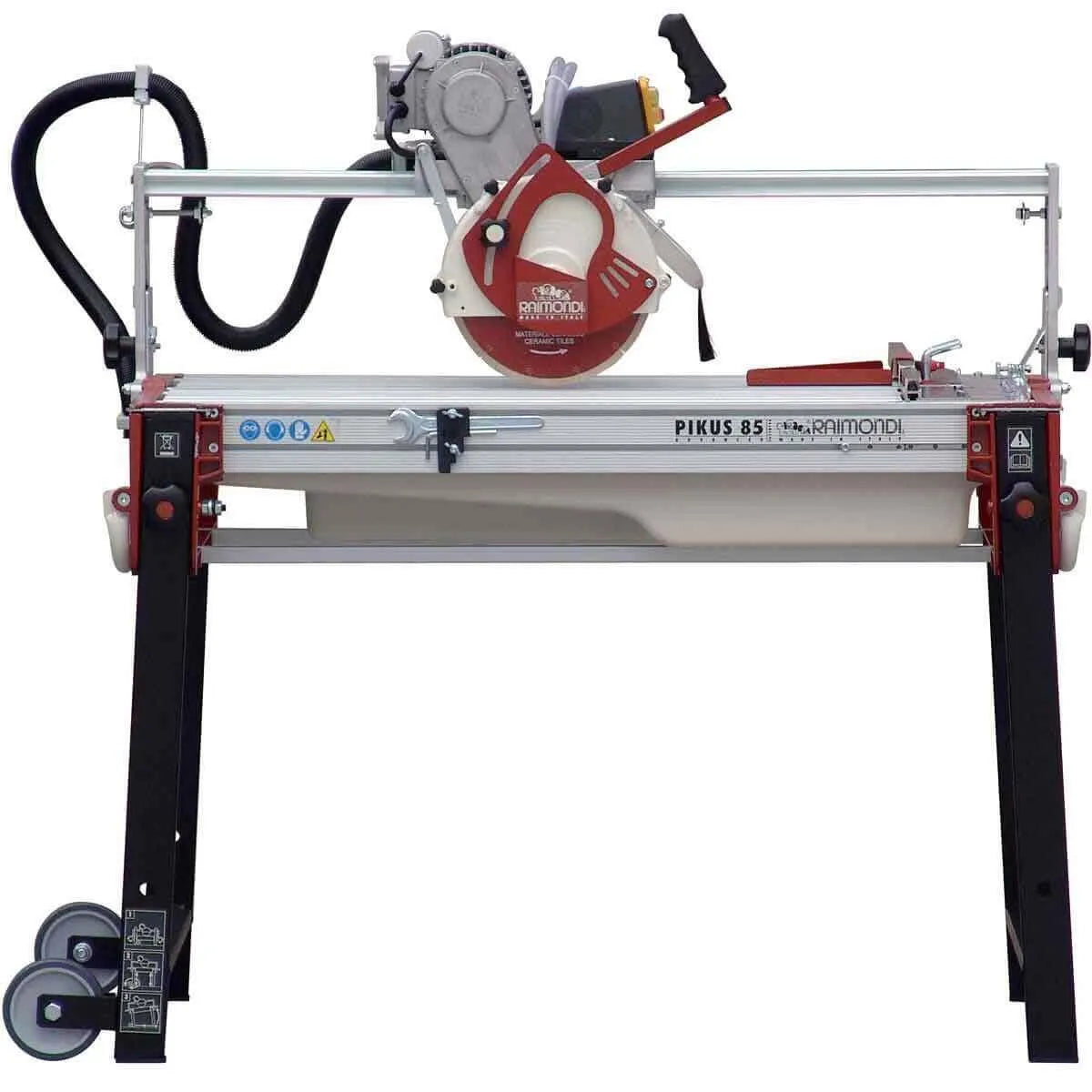

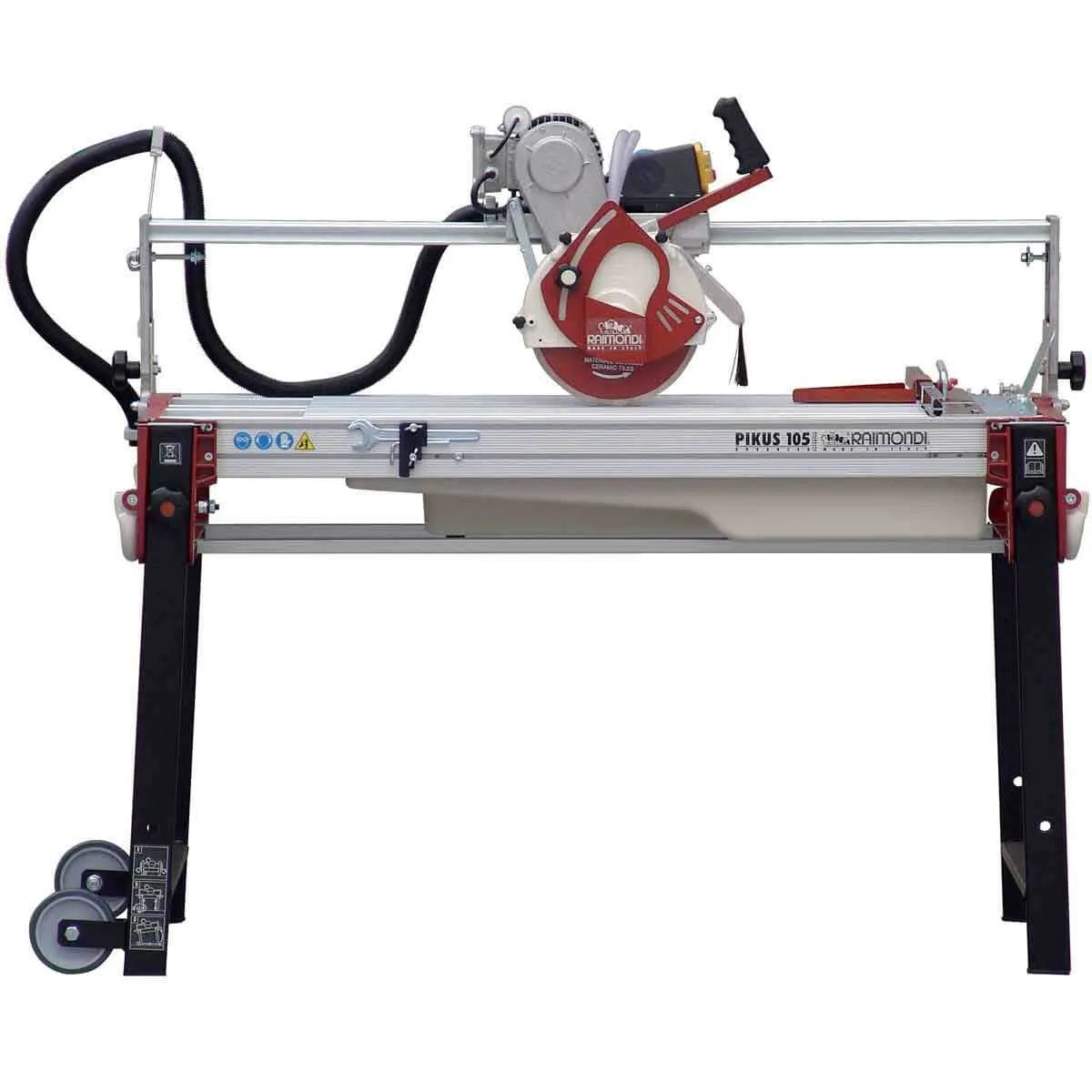

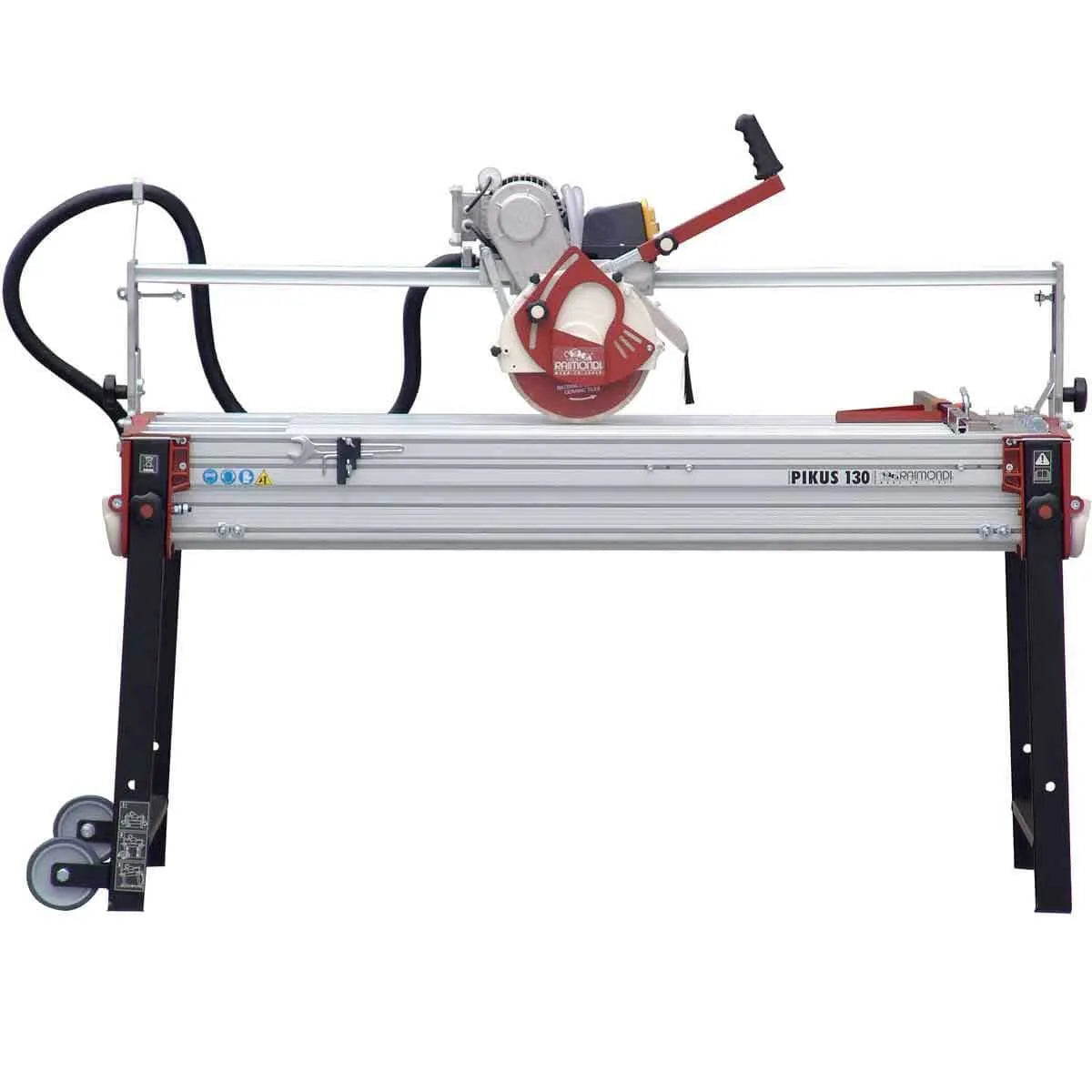

Raimondi Gladiator Advance Wet Tile Saw

Raimondi's high-quality, belt-driven Gladiator rail saw offers professional-grade work when cutting granite, marble, porcelain, single and double-fired bricks, cement, etc.


Features

  • Straight, 45° bevel (Jolly) and plunge cuts
  • Rail pivots to a variety of angles for a perfect miter cut

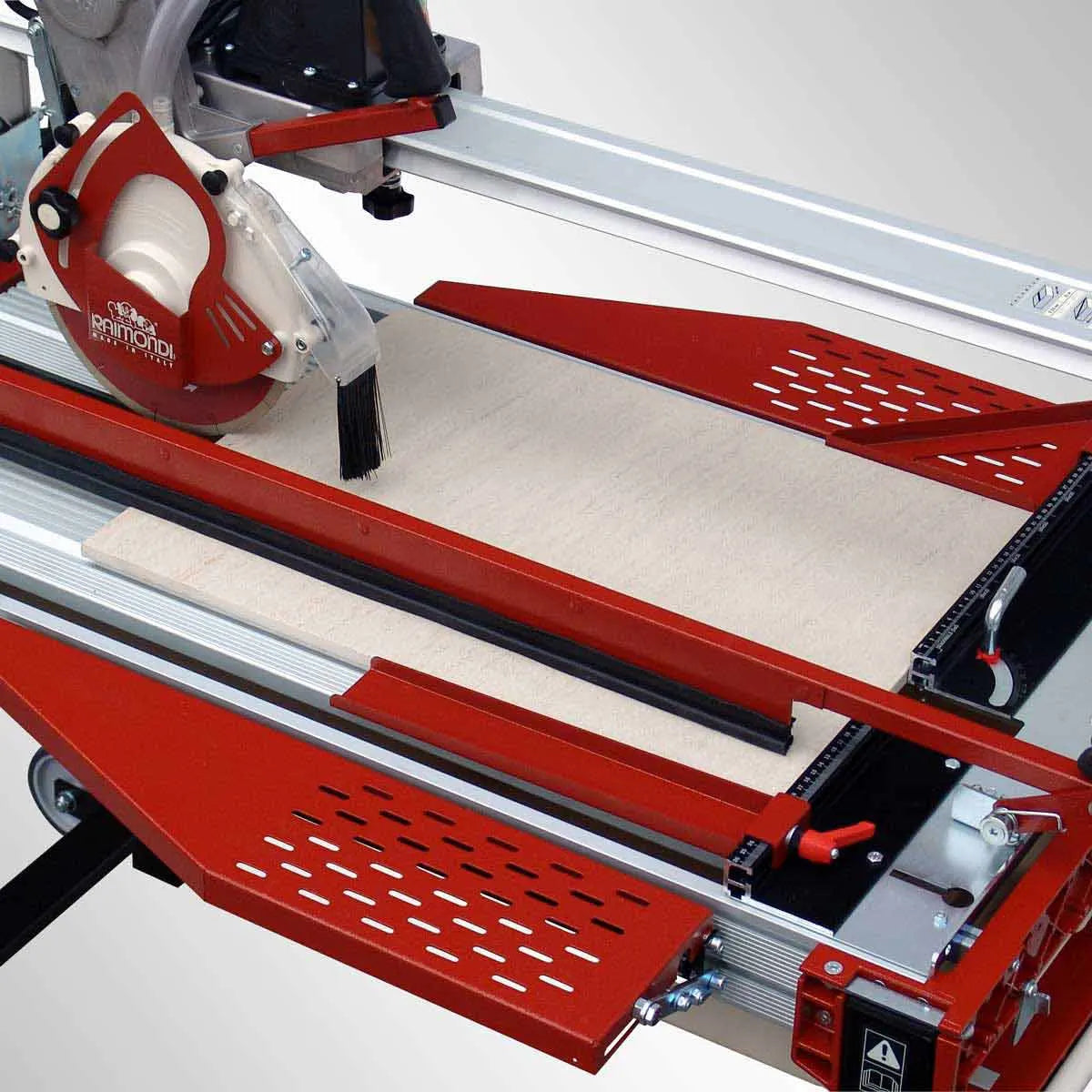

  • Optional collapsible table extensions on both sides
  • Legs fold into the bottom of the water pan for ease of transporting
  • Cast and extruded aluminum framework

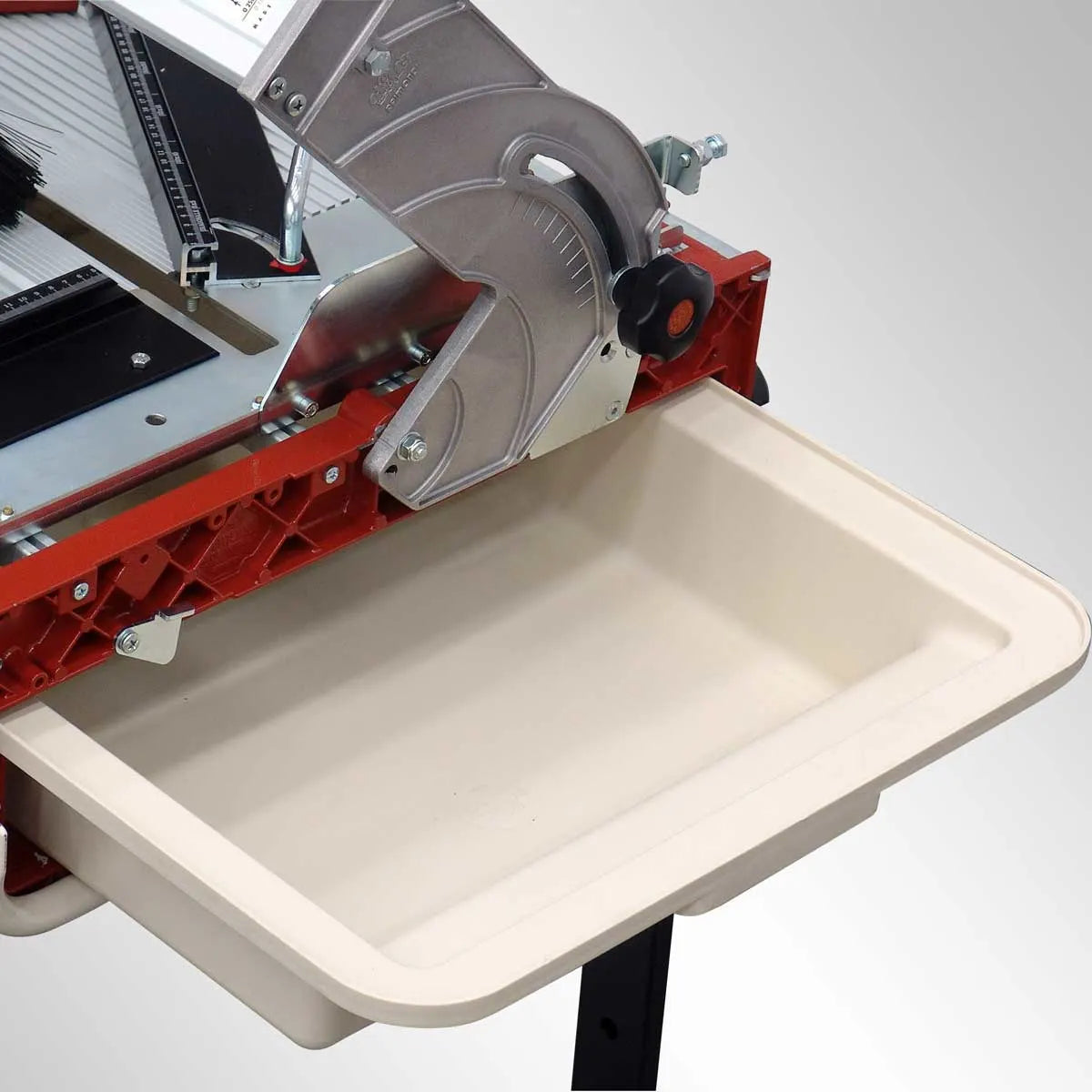

  • Easy-to-remove polypropylene 10-gallon tank for easy cleaning
  • Aluminum cutting tables
  • Floating blade guard
  • Heavy-duty water pump and (2) jet nozzles (front or rear mounted)

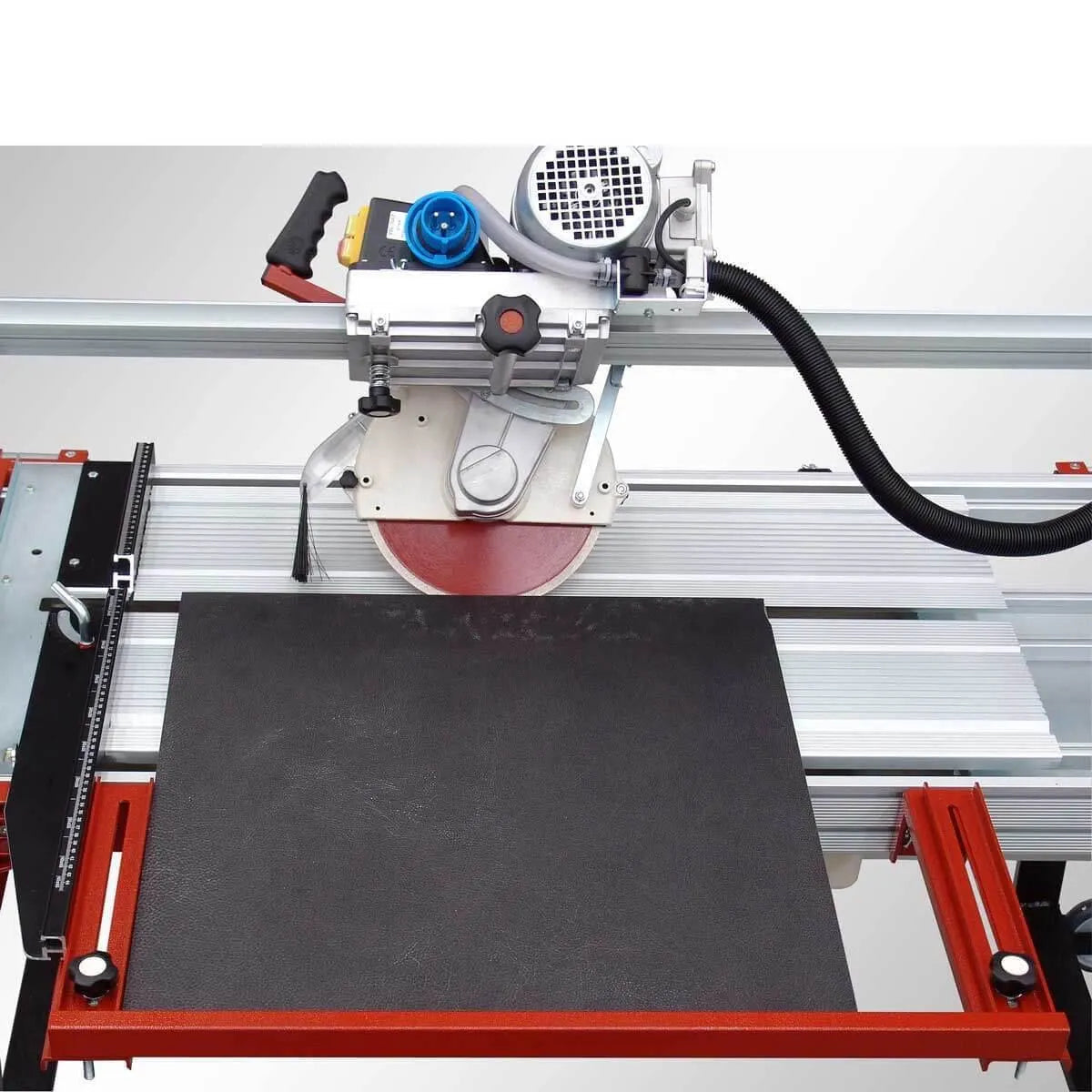

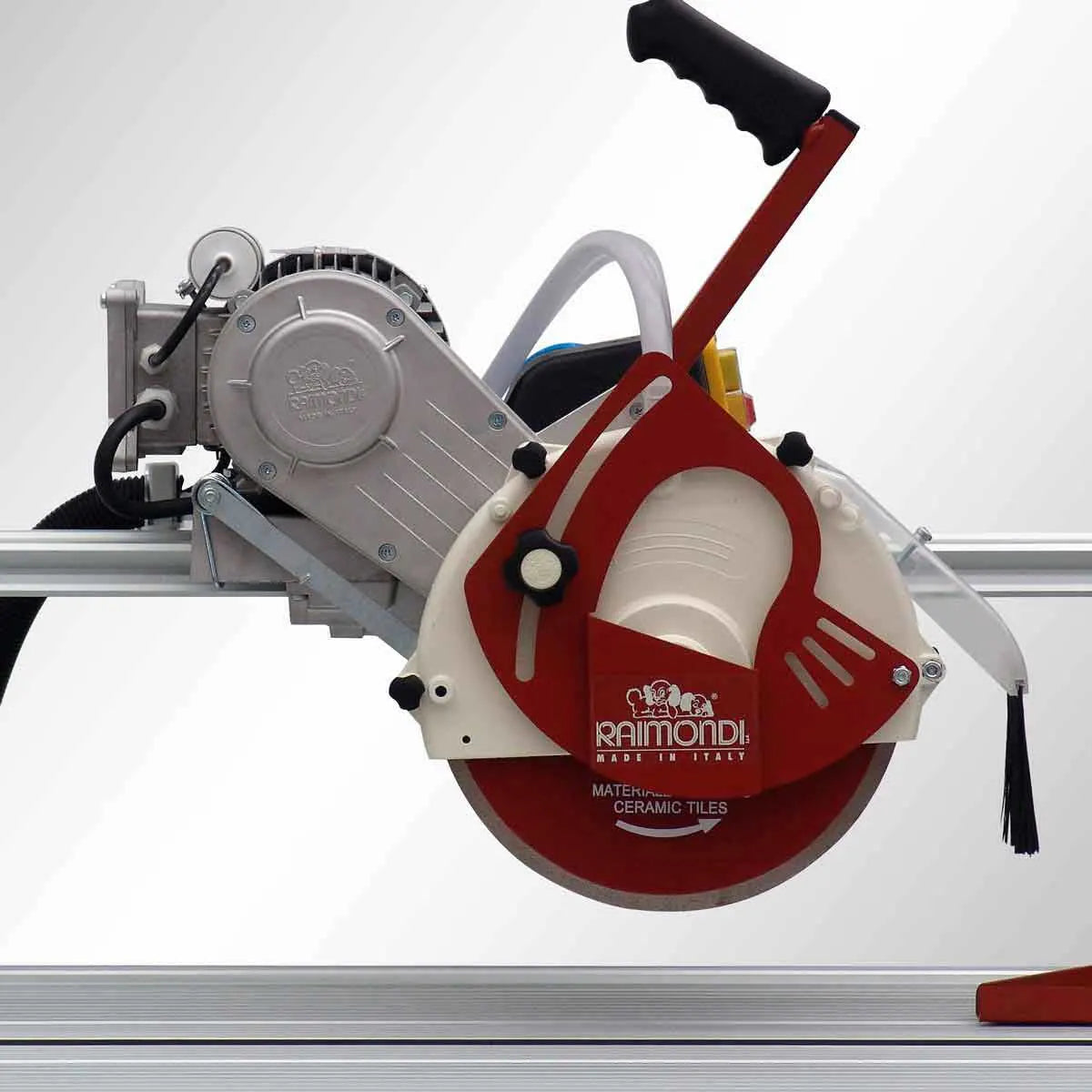

  • Sliding motor assembly with cast aluminum housing

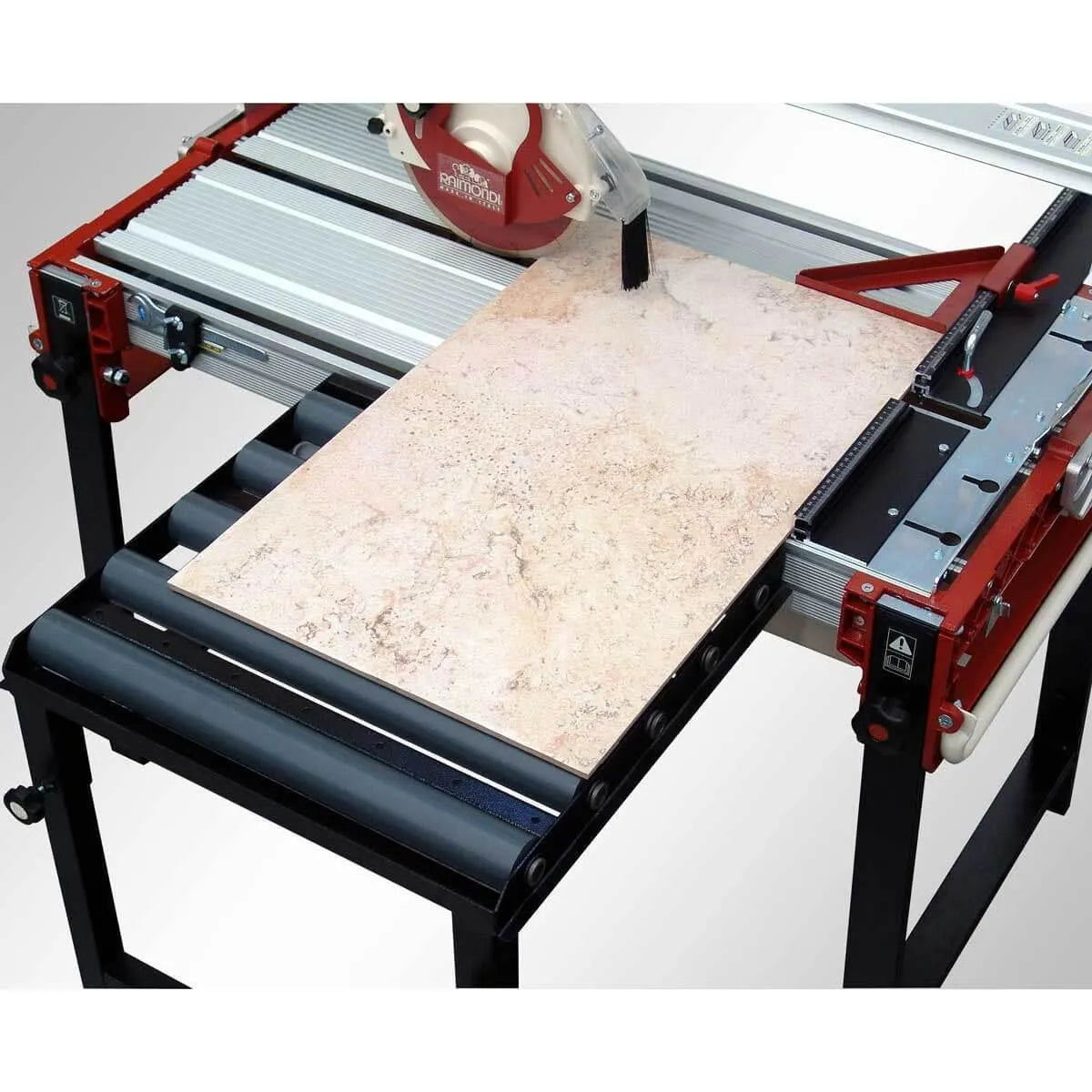

  • Material hold-down guide, rolling table extension, and extension side square are sold separately


What's Included?

  • Raimondi Gladiator Advanced Rail Saw
  • Built-In Stand (with Wheels)
  • 10 in G Slot Diamond Blade
  • 45°/90° Sliding Square
  • Dressing Stone
  • Water Pump
  • Wrench Kit
  • Operator's manual


Raimondi Gladiator Specifications
Raimondi Gladiator 85 Gladiator 105 Gladiator 130
Voltage 110V 110V 110V
Power 1.5 hp 1.5 hp 1.5 hp
Draw 20/25A 20/25A 20/25A
Blade RPM 3600 3600 3600
Blade Capacity 10 in, 5/8 in arbor 10 in, 5/8 in arbor 10 in, 5/8 in arbor
Depth of Cut 3 in 3 in 3 in
Length of Cut 34 in 41 in 51 in
Diagonally Cuts 24 in x 24 in Tile 29 in x 29 in Tile 35 in x 35 in Tile
Weight 132 lbs. 141 lbs. 172 lbs.
LxWxH 50 in x 27 in x 31 in 57 in x 27 in x 31 in 68 in x 27 in x 31 in
Shipping Truck on Pallet Truck on Pallet Truck on Pallet

Customer Reviews

Based on 6 reviews
67%
(4)
33%
(2)
0%
(0)
0%
(0)
0%
(0)
A
Alex
Great saw, but...

I agree with Scott. Great saw but the manual and blade guard are incorrect. The blade nut is reverse thread. I emailed CD and they gave me incorrect information as well.

A
Andre A.
Awesome!

This is one of the best saws I have ever used!

J
Jim W.
Perfect saw for ripping plank tile

This is one of the best investments I have ever made! With the popularity of wood plank porcelain tile growing this is the best solution I have found to rip down plank tile. The Raimondi Gladiator is an Awesome Italian Machine!!!!

S
Scott
Very accurate

Bought this saw to handle the demand of larger format tile. A lot of thought went into designing this saw. Very powerful, quiet and cuts dead on accurate. Cleaning the saw couldn't be easier. If you purchase this saw just be aware that the instructions are printed for saws sold in Europe. When changing your blade do not pay attention to the directional arrow stamped on the blade guard. In Europe they install the blade to spin counter clockwise. Even the arbor nut is removed opposite of what is stated in the owners manual. Called customer service at Contractors Direct and they were aware of these issues. Hopefully an American version owners manual will be available in the near future. Deserves six stars but had to give it only four stars strictly because of the lack of instructions not the performance of the saw.

W
WCC
Excellent Tool

As it seems there is more and more demand these days for large format tile (24"+), we had to do something. Our old MK 101 just isn't any fun with that big tile so we bought this saw. After using it almost full time for a year now, I can say this saw delivers quality cutting and user ease. We use both the Porcellana and the T3 Razor, and it will trim 1/8" off of a 24" rip all day long and stay true and straight with the trimming staying intact. Mitering is just down-rite fun. The MK had a bevel table that was a complete pain to rip a bevel on even a 12" tile. This saw gets it done with the same ease as a 90º cut. It's a heavy beast but the wheels and handles on both ends are helpful and one person can set it up in about 2 minutes. The only downside is they were a bit stingy with the adjustable square. It only works on the right side. I wish they would have thrown in the left (accessory) square. I cannot say enough good about this saw.

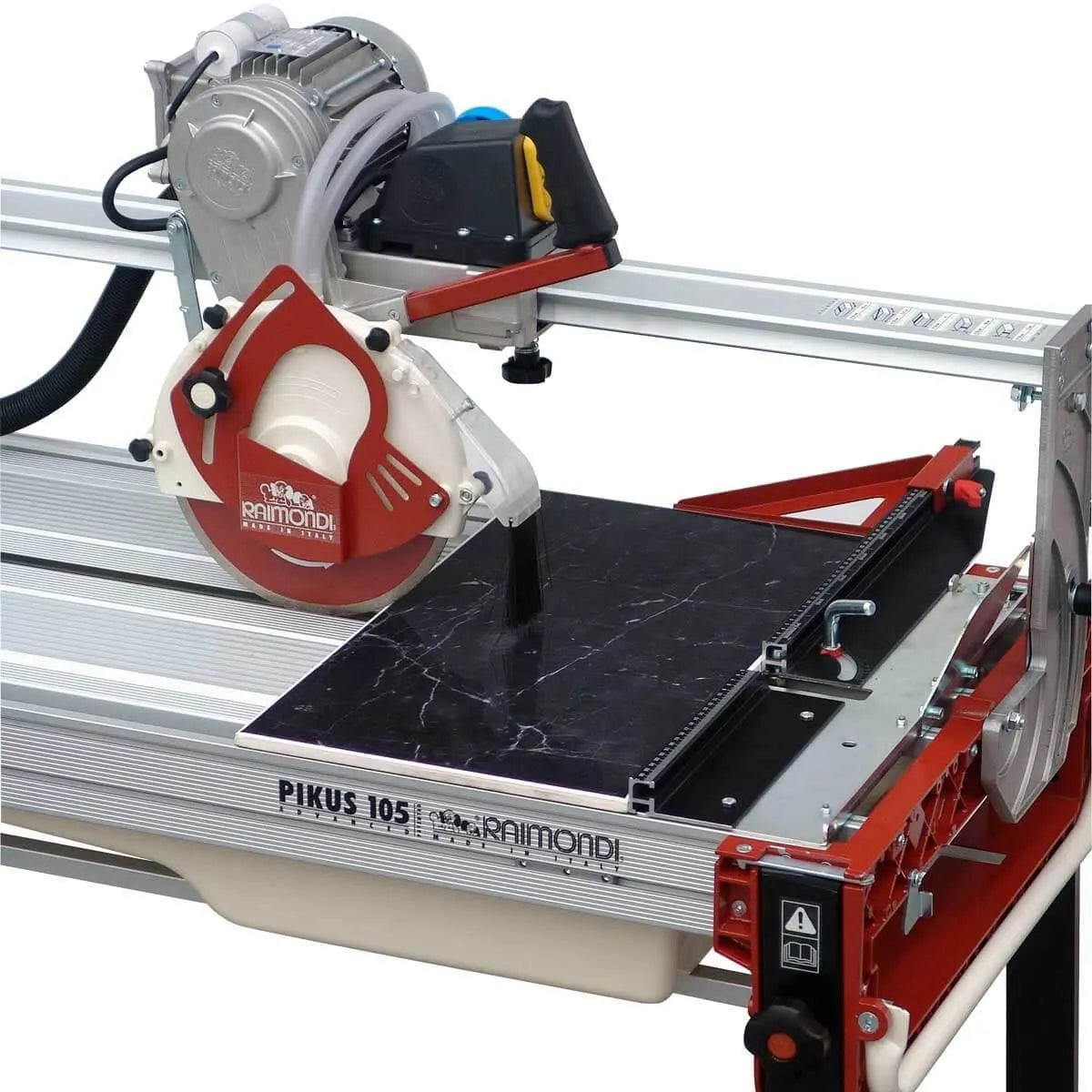

Raimondi Gladiator Advanced 105 Rail Saw
